ZB2L3 Battery Capacity Analyzer Discharge Tester Module

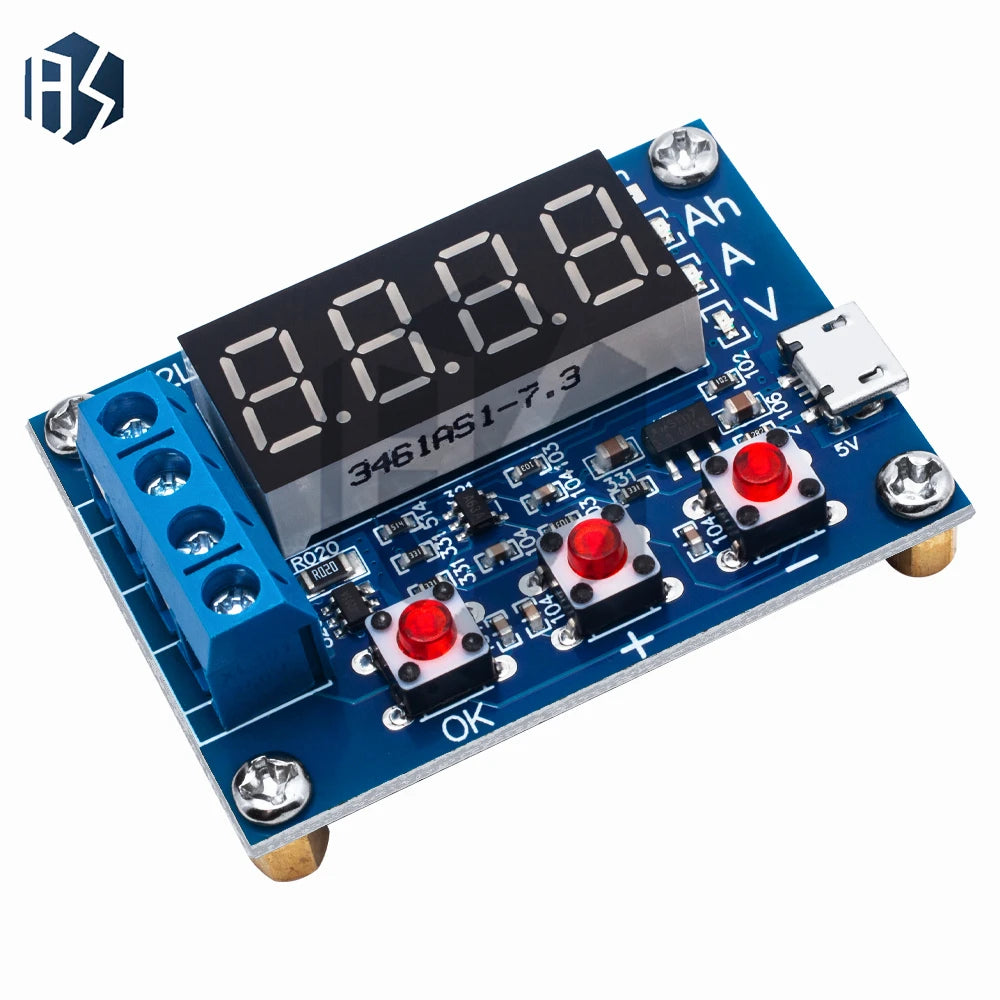

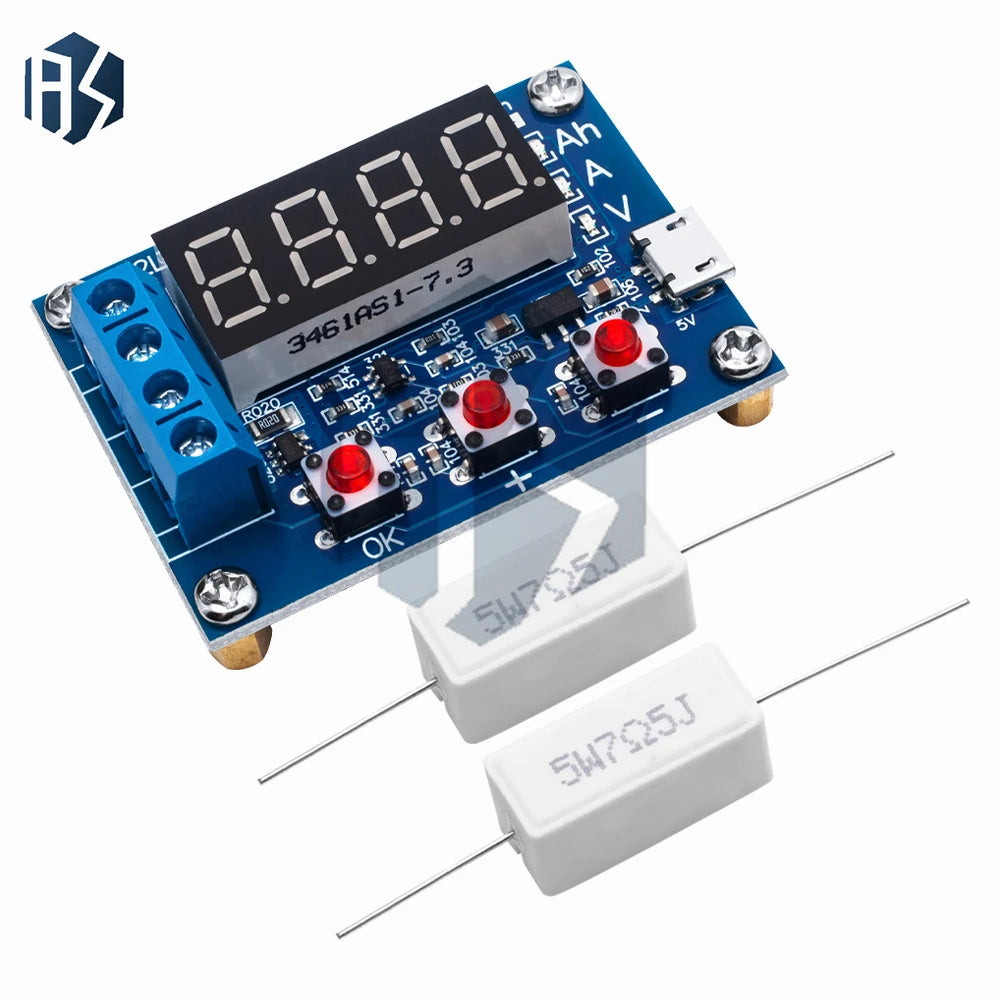

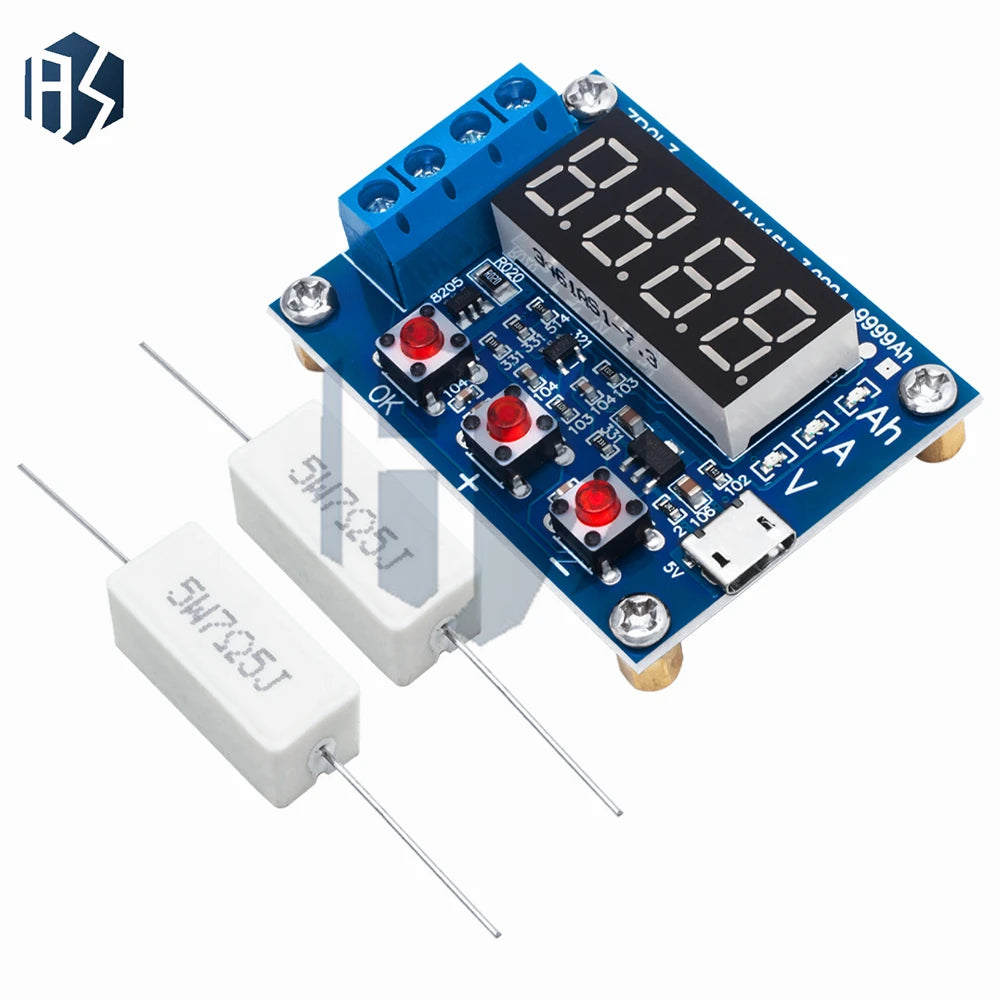

ZB2L3 Battery Capacity Analyzer & Discharge Tester

The ZB2L3 Battery Capacity Analyzer is a compact, professional-grade electronic module designed to accurately measure and test the true capacity of rechargeable batteries. Whether you're working with Li-ion, NiMH, or Lead-Acid battery packs, this discharge tester gives you reliable, real-time data so you can evaluate battery health and performance with confidence. Perfect for electronics hobbyists, Arduino and STM32 developers, DIY kit builders, and lab technicians alike.

Key Features

• Wide Battery Compatibility: Works with Li-ion, NiMH, Lead-Acid, and other common rechargeable battery types.
• Accurate Capacity Measurement: Discharges battery under load and records actual mAh/Ah capacity — no guesswork, just real data.
• Digital Display: Clear digital readout for easy monitoring of voltage and discharged capacity in real time.
• DIY-Friendly Module: Available as a DIY kit — great for integration into custom electronics projects, Arduino setups, and STM-based systems.
• Customizable & Versatile: Suitable for switch and sensor applications in Arduino and STM environments.
• Compact & Portable: Lightweight module form factor fits easily into lab benches, tool kits, or project enclosures.
• Broad Operating Temperature: Rated for -40°C to +85°C — built to perform across a wide range of environments.

Specifications

Who Is This For?

The ZB2L3 is the go-to tool for anyone who needs to verify battery performance before a build, during a project, or as part of a quality-check workflow. Electronics hobbyists building battery-powered Arduino gadgets, engineers testing battery packs, or makers sourcing second-hand cells will all benefit from the objective capacity readings this module provides.

Related Products You May Like

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What battery types is the ZB2L3 Battery Capacity Analyzer compatible with?

A: The ZB2L3 is compatible with a wide range of rechargeable battery chemistries, including Li-ion, NiMH (Nickel-Metal Hydride), and Lead-Acid batteries. This makes it a versatile tool for hobbyists and professionals working with various battery-powered devices and DIY electronics projects.

Q: How does the ZB2L3 Discharge Tester measure battery capacity?

A: The ZB2L3 works by discharging the connected battery through a controlled load while simultaneously tracking the voltage and total capacity (in mAh or Ah) discharged over time. The digital display shows you real-time readings, giving you an accurate picture of your battery's true usable capacity.

Q: What power supply does the ZB2L3 module require?

A: The ZB2L3 module requires a supply voltage of 4.5V to 6V and operates at a working current not exceeding 70mA. It is well-suited for use with standard USB power supplies or regulated bench power sources commonly used in Arduino and STM development setups.

Q: Is the ZB2L3 suitable for Arduino and STM32 projects?

A: Yes! The ZB2L3 is specifically listed as compatible with Arduino and STM-based switch and sensor applications. It ships as a DIY kit module, making it easy to integrate into custom electronic builds, battery management systems, or standalone test rigs.
