A Battery Management System (BMS) is the brain behind every safe, reliable lithium battery pack. Whether you're building an e-bike battery, a DIY power wall, a cordless tool pack, or a custom RC power supply, a quality BMS protects your cells from overcharge, over-discharge, overcurrent, short circuits, and dangerous temperature swings. Our collection covers a wide range of voltages (3.7V to 58.8V), cell configurations (1S to 13S), and current ratings (4A to 150A) — so you can find exactly the right board for your project without compromise.
Why You Need a BMS
Lithium-ion and lithium polymer cells are powerful energy storage devices, but they are sensitive to abuse. Without a BMS, overcharging a cell can cause swelling, venting, or even thermal runaway. Over-discharging permanently damages capacity. Unbalanced cells in a series pack lead to premature failure. A good BMS board continuously monitors each cell and acts as an automatic guardian — cutting off charge or discharge current the moment a parameter goes out of safe range. Investing in the right protection board extends the life of your battery pack and keeps your project safe.
Featured Products
- 10S 10A BMS 36V Battery Protection Board for 18650 Li-ion — A compact, reliable solution for 36V e-bike and scooter packs, with full over-voltage and short-circuit protection.
- 10S 36V Lithium BMS Board 20A 30A Integrated Balance Module — Higher current ratings with built-in cell balancing, ideal for power-hungry 36V applications.
- 13S 48V 20A Lithium BMS Battery Protection Board — Perfect for 48V e-bike and energy storage builds using 13 cells in series.
- 150A Lithium Battery Protection Board 21700 DC18V/21V PCB — A heavy-duty high-current board designed for power tools and demanding discharge applications.
- 10pcs Reverse Polarity Protection Module 3-14V 4A PCB — Safeguard your circuits from accidental reverse polarity connections across a wide voltage range.
Our BMS Range at a Glance
| Cell Configuration | Nominal Voltage | Typical Current Range | Common Application |
|---|---|---|---|

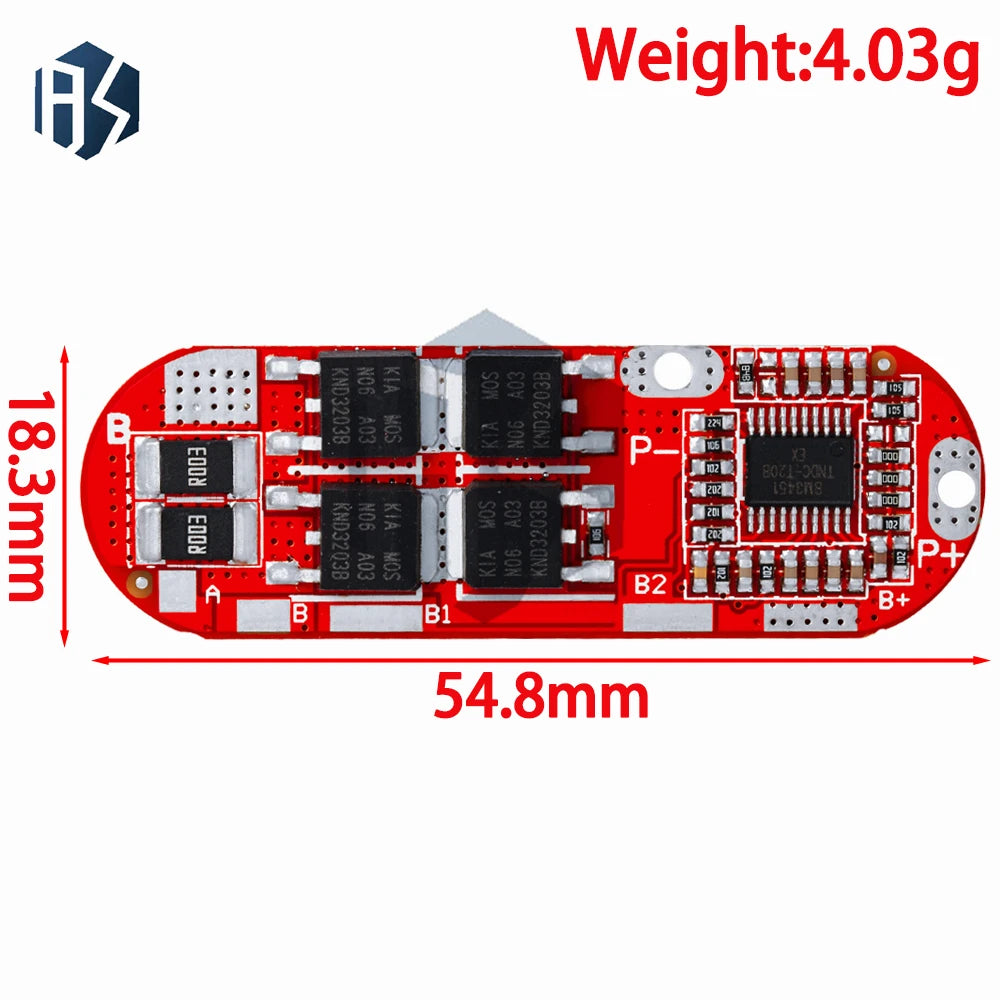

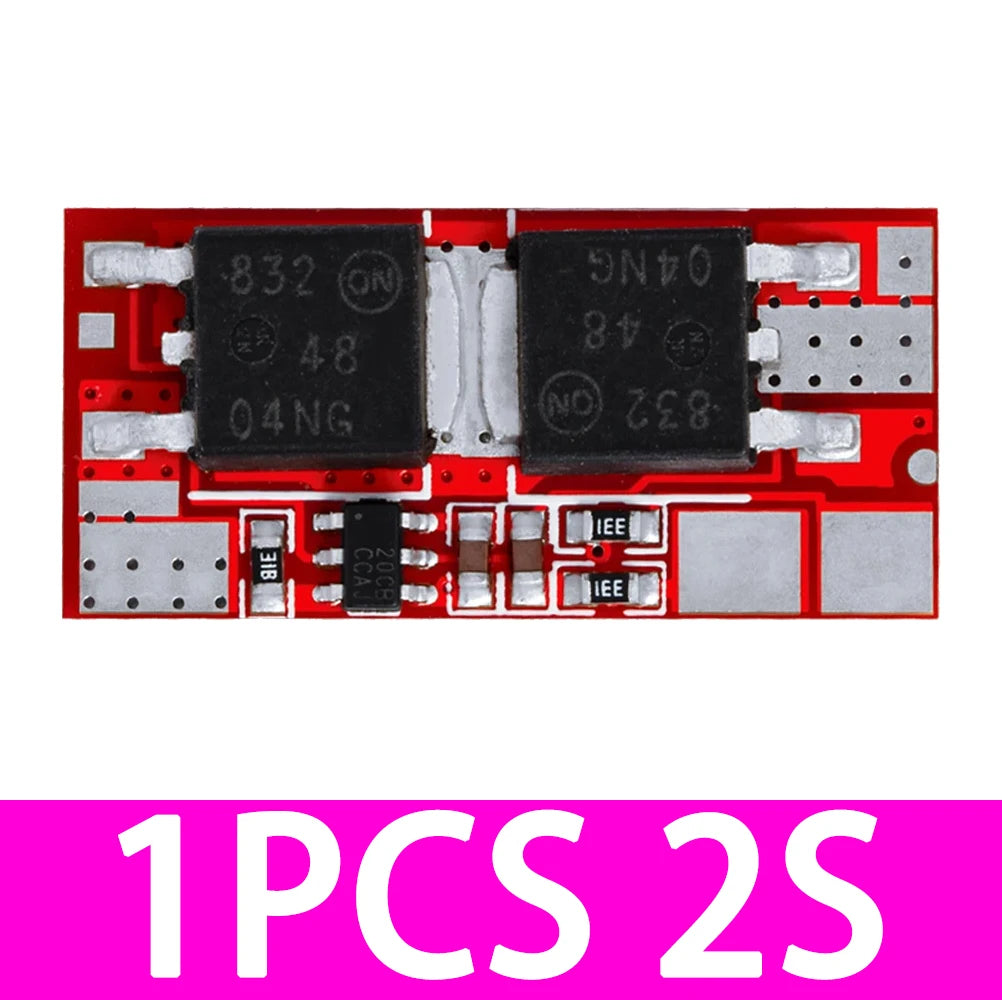

| 1S – 2S | 3.7V – 7.4V | Up to 13A | Small electronics, flashlights |
| 4S – 7S | 14.8V – 29.6V | Up to 20A | RC vehicles, drones, power banks |
| 10S | 36V – 42V | 10A – 30A | E-bikes, scooters, DIY packs |
| 13S | 48V – 58.8V | 20A – 30A | High-power e-bikes, energy storage |
| High Current | 18V – 21V | Up to 150A | Power tools, industrial packs |
How to Choose the Right BMS Board
Selecting the correct BMS comes down to four key parameters:
- Cell count (S rating): Match the number of cells in series in your pack (e.g., 10S for ten cells in series).
- Voltage: Ensure the board's rated voltage matches your pack's fully-charged voltage (e.g., 42V for a 10S Li-ion pack).
- Continuous current: Choose a BMS whose continuous discharge current rating meets or exceeds your load's requirements, with headroom to spare.

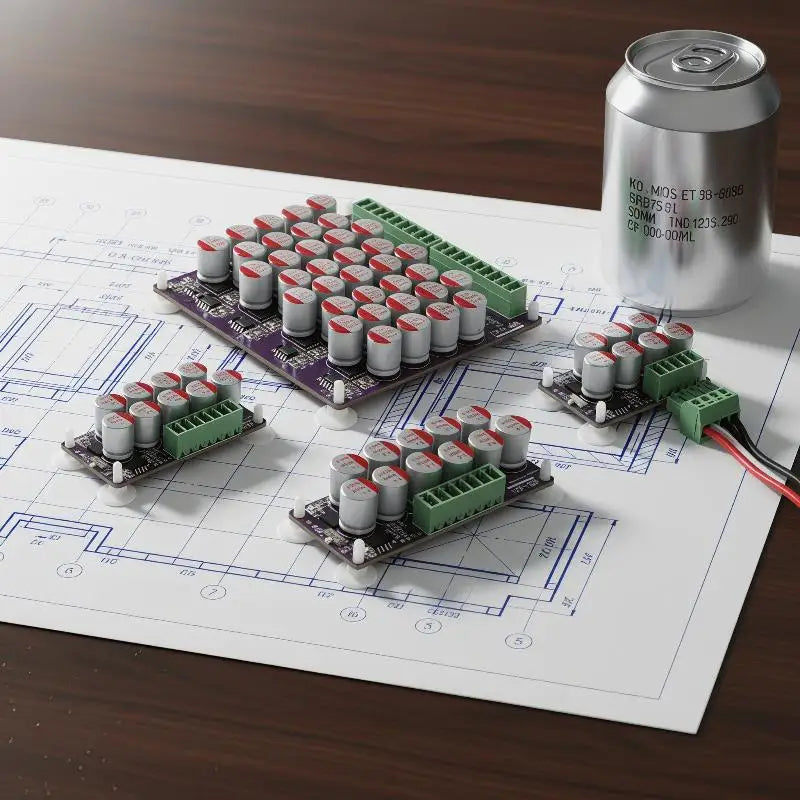

- Balance function: For longer pack life, opt for a board with built-in passive or active cell balancing.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What does a BMS (Battery Management System) protection board actually do?
A: A BMS protection board monitors individual cell voltages, overall pack current, and temperature in a lithium battery pack. It automatically disconnects the pack from charge or discharge circuits when it detects conditions such as overcharge, over-discharge, overcurrent, short circuit, or excessive temperature — preventing damage to the cells and reducing safety risks like thermal runaway.
Q: How do I match a BMS board to my 18650 lithium battery pack?
A: First, count the number of 18650 cells connected in series (the "S" number). Then confirm the fully-charged pack voltage (4.2V × S). Choose a BMS with the matching S rating and voltage, and ensure its continuous current rating is equal to or greater than your maximum load current. For example, a 10S 36V pack with a 15A motor needs at least a 10S 15A BMS board.
Q: What is cell balancing on a BMS board, and why does it matter?
A: Cell balancing is a feature on many BMS boards that equalizes the charge level across all cells in a series pack. Without balancing, small differences in cell capacity cause some cells to reach full charge before others, reducing total usable capacity over time and shortening overall pack life. BMS boards with built-in balance charging help maximize capacity and extend the lifespan of your lithium battery pack.
Q: Can I use these BMS boards for e-bike batteries?
A: Yes. Many boards in this collection — such as the 10S 36V 15A BMS 18650 Lithium Battery Protection Board and the 13S 48V 30A Lithium BMS PCB Balance Board — are specifically designed for 36V and 48V e-bike battery packs built from 18650 cells. Always verify that the BMS continuous current rating is sufficient for your motor controller's peak draw.
Q: What is the difference between a 10S and a 13S BMS board?
A: The "S" number refers to the number of lithium cells connected in series. A 10S BMS is designed for packs of ten cells in series, giving a nominal voltage of 36V and a fully-charged voltage of 42V. A 13S BMS suits packs of thirteen cells in series, resulting in a nominal voltage of 48V and a fully-charged voltage of 54.6V. Using a BMS with the wrong S rating can result in improper protection thresholds and potential cell damage.
