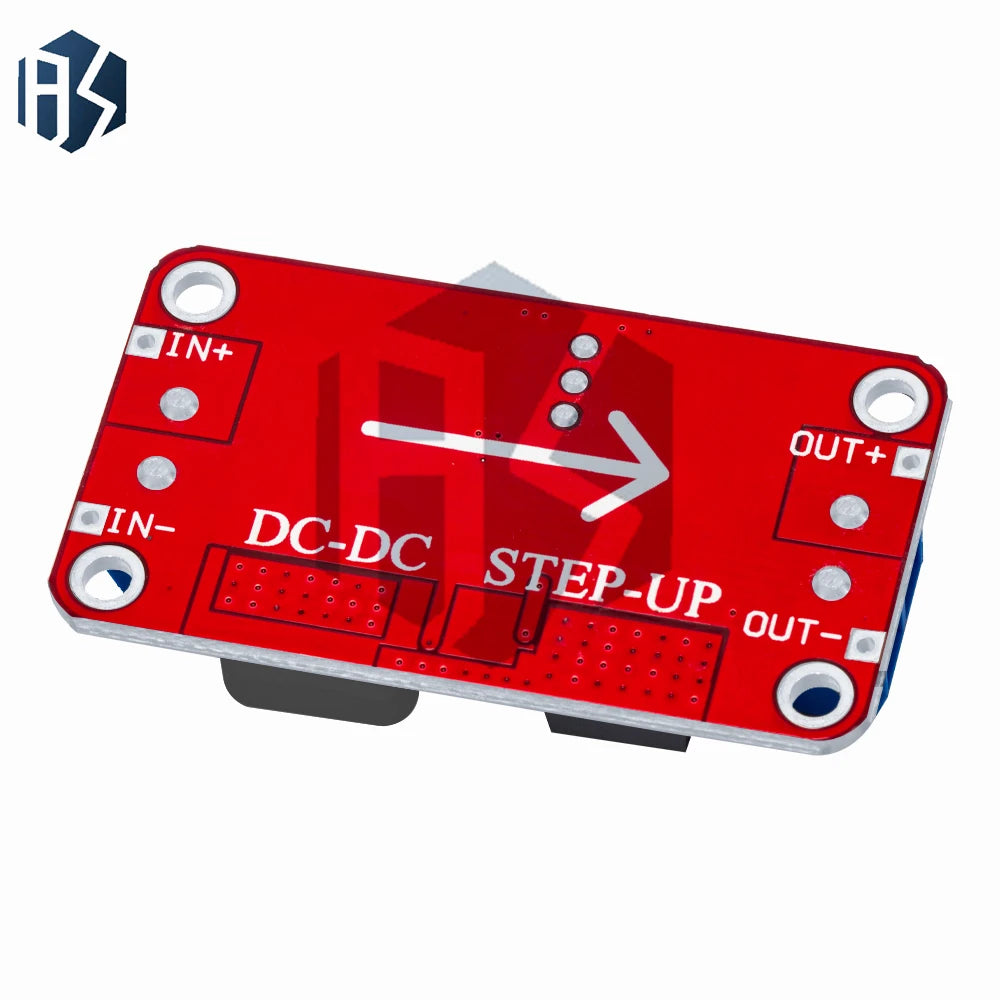

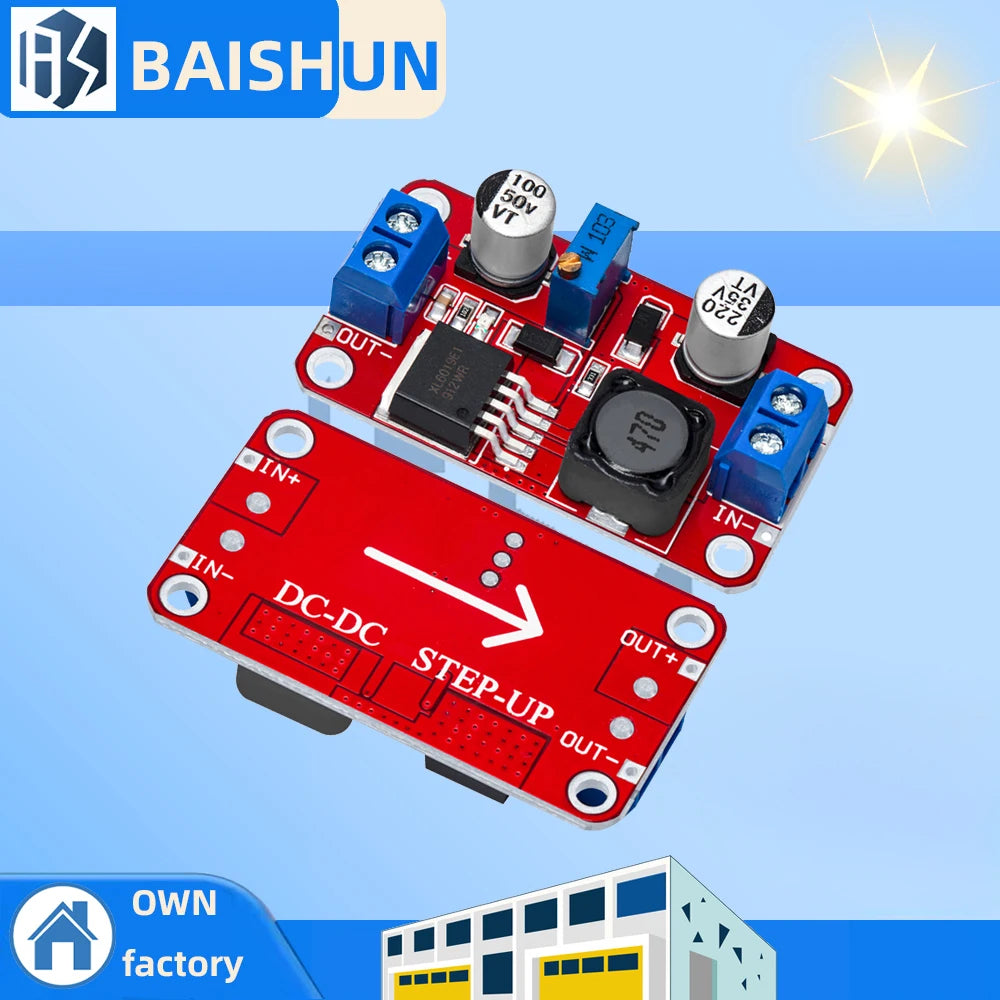

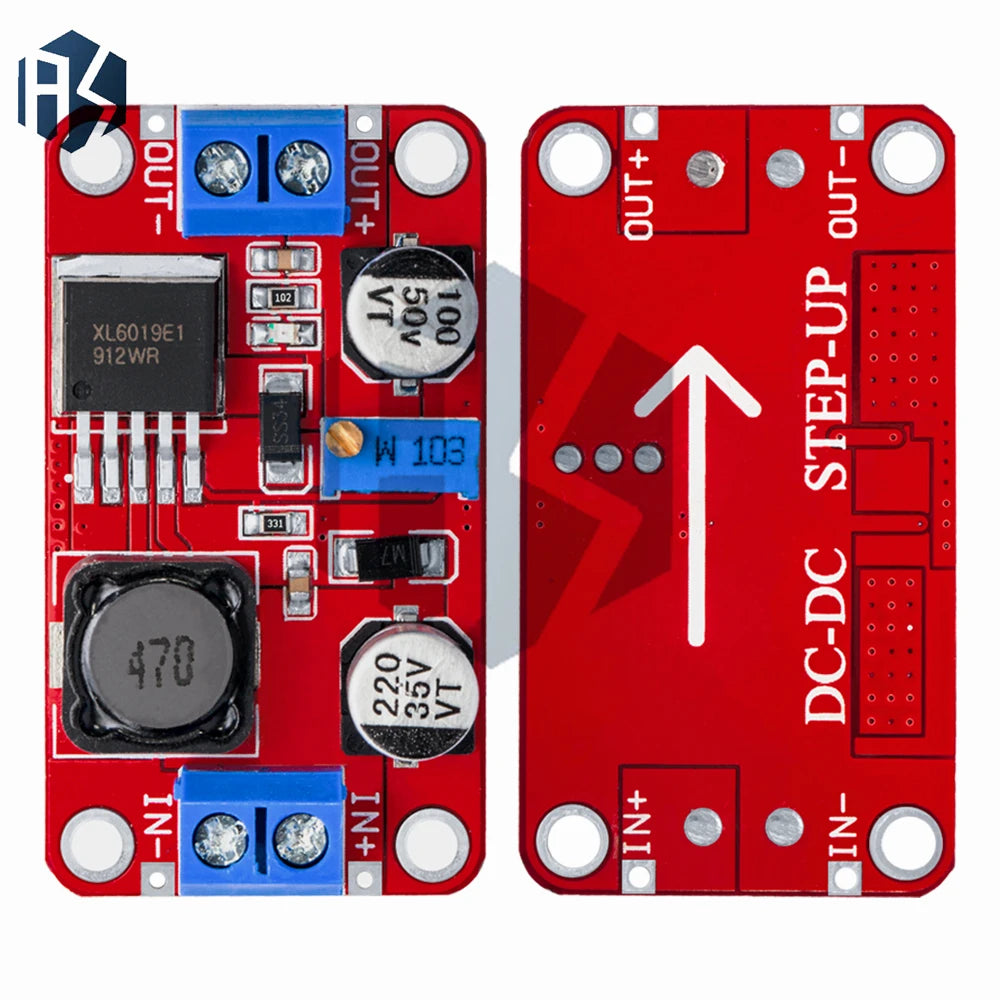

XL6019 Adjustable DC-DC Boost Step-Up Voltage Converter Module

Power your next electronics project with the XL6019 Adjustable DC-DC Boost Module — a compact, reliable step-up voltage converter with a built-in regulator. Whether you're building a custom power supply, charging circuit, or embedded electronics project, this SMD module delivers stable, adjustable output voltage with impressive efficiency.

Key Features

• Adjustable Output Voltage: Easily fine-tune the output voltage to match your project's exact requirements using the onboard potentiometer.
• Built-In Voltage Regulator: The XL6019 IC includes an integrated regulator for consistent, stable power delivery.
• Wide Input Voltage Range: Accepts a broad DC input range, making it compatible with batteries, solar panels, and other DC power sources.
• High Efficiency Boost Conversion: Step-up (boost) topology efficiently converts lower DC voltages to higher output levels with minimal energy loss.
• Compact SMD Design: Surface-mount construction keeps the module small and lightweight — perfect for space-constrained builds.
• Easy to Use: Clearly labeled input/output terminals and a simple adjustment interface make setup quick and straightforward.
• Durable Construction: Built with quality components for dependable long-term performance.

Specifications

• IC: XL6019
• Topology: DC-DC Boost (Step-Up)
• Output: Adjustable
• Component Type: SMD Module
• Regulator: Built-In

What's in the Box?

• 1 × XL6019 Adjustable DC-DC Boost Step-Up Voltage Converter Module (SMD)

Perfect For

• DIY electronics and maker projects
• Custom power supply designs
• Arduino, Raspberry Pi, and microcontroller power rails
• Battery-powered device prototyping
• Educational electronics labs

You May Also Like

Looking for more components for your DIY builds? Check out these related products:

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What does the XL6019 DC-DC Boost Module do?

A: The XL6019 Adjustable DC-DC Boost Module is a step-up voltage converter that takes a lower DC input voltage and boosts it to a higher, adjustable DC output voltage. It uses the XL6019 IC with a built-in regulator to deliver stable output, making it ideal for powering circuits that require a higher voltage than the source can provide.

Q: How do I adjust the output voltage on the XL6019 Boost Module?

A: The output voltage is adjusted using the onboard potentiometer (trim pot). Simply connect your input power supply, connect a multimeter to the output terminals, and turn the potentiometer until the desired output voltage is displayed. Always verify output voltage before connecting sensitive components.

Q: What types of projects is the XL6019 Step-Up Converter suitable for?

A: This module is well-suited for a wide range of DIY electronics projects including custom power supplies, microcontroller power rails (Arduino, Raspberry Pi), battery-operated prototypes, solar power applications, and any project where you need to step up a DC voltage to a higher regulated level.

Q: What is included with each order?

A: Each order includes one (1) XL6019 Adjustable DC-DC Boost Step-Up Voltage Converter Module (SMD).
