WT32-ETH01 ESP32 Ethernet WiFi Bluetooth Module Board

WT32-ETH01 Embedded Ethernet + WiFi + Bluetooth Module – ESP32-Based Networking Board

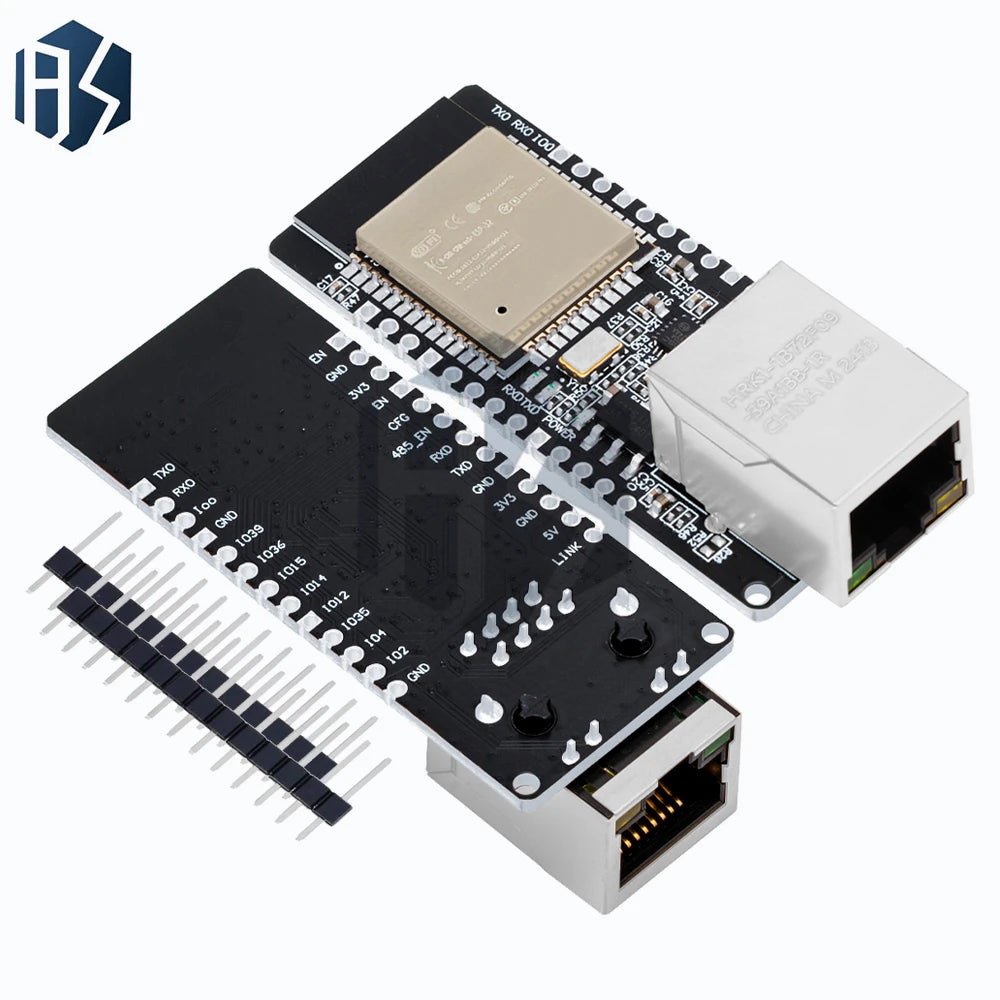

The WT32-ETH01 is a powerful, compact embedded networking module built on the popular ESP32 chipset. It combines wired Ethernet (LAN8720A) with onboard Wi-Fi and Bluetooth connectivity, making it an ideal solution for IoT gateways, serial-to-network bridges, smart home controllers, and industrial automation projects. Whether you need reliable wired networking or seamless wireless communication, the WT32-ETH01 delivers both in a single SMD-packaged module.

Key Features

• Dual Connectivity: Combines wired Ethernet and wireless Wi-Fi (2.4 GHz) + Bluetooth in one compact module
• ESP32-Based: Powered by the versatile ESP32 SoC — dual-core processor with rich peripheral support
• Serial Port Networking: Easily bridge serial (UART) devices to an Ethernet or Wi-Fi network
• Compact SMD Package: Designed for direct PCB integration — perfect for embedded product development
• IoT Gateway Ready: Supports TCP/IP, MQTT, HTTP and other common networking protocols
• Customizable Firmware: Fully compatible with Arduino IDE, ESP-IDF, and MicroPython development environments
• Available in Multiple Configurations: Choose from single units or adapter board bundles (1, 5, or 10-piece sets)

What's Included

Select your preferred configuration at checkout:

• WT32-ETH01 1PCS — One standalone module

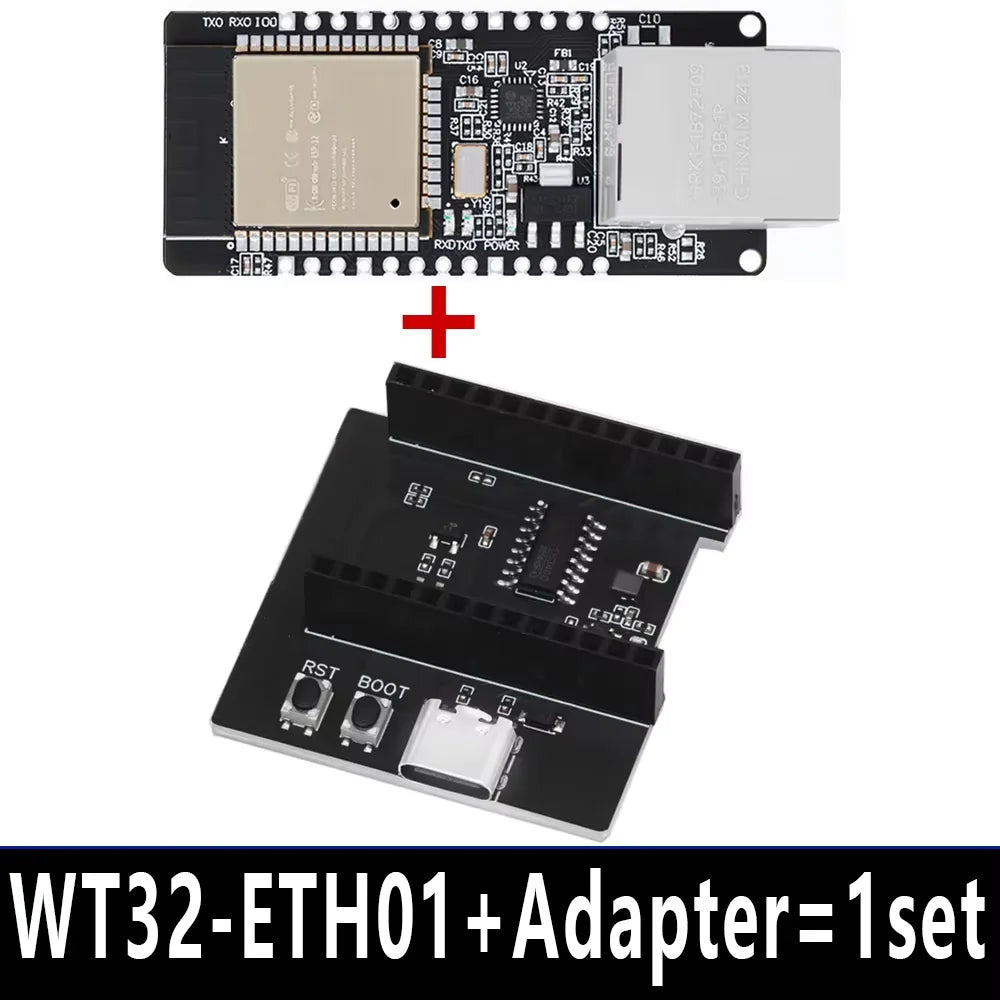

• 1 Set — Module with accessories
• ETH01 Adapter 1PCS — One adapter board for breakout/development use
• ETH01 Adapter 5PCS — Five adapter boards
• ETH01 Adapter 10PCS — Ten adapter boards for production or prototyping runs

Ideal Applications

• IoT edge gateways and smart home hubs
• Serial-to-Ethernet converters for legacy devices
• Industrial automation controllers
• Network-enabled sensor nodes
• Embedded product development and prototyping

Specifications

Related Products You May Like

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire — great for custom enclosures and component mounting
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs
• 50pcs Gold & Silver Drawstring Jewelry Gift Bags 7x9 9x12cm

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the WT32-ETH01 and what makes it different from a standard ESP32 module?

A: The WT32-ETH01 is an ESP32-based embedded module that adds a wired Ethernet interface (via LAN8720A PHY) alongside the standard ESP32 Wi-Fi and Bluetooth capabilities. Unlike standard ESP32 modules that rely solely on wireless connectivity, the WT32-ETH01 allows you to connect your project to a wired LAN network — providing more stable and reliable connectivity for IoT gateways, serial bridges, and embedded applications.

Q: Is the WT32-ETH01 compatible with Arduino IDE or ESP-IDF?

A: Yes. The WT32-ETH01 is fully compatible with the Arduino IDE (using the ESP32 board package), Espressif's official ESP-IDF framework, and MicroPython. There are community-supported board definitions and example sketches available to get you started quickly with both Ethernet and Wi-Fi functionality.

Q: What is the ETH01 Adapter board and do I need it?

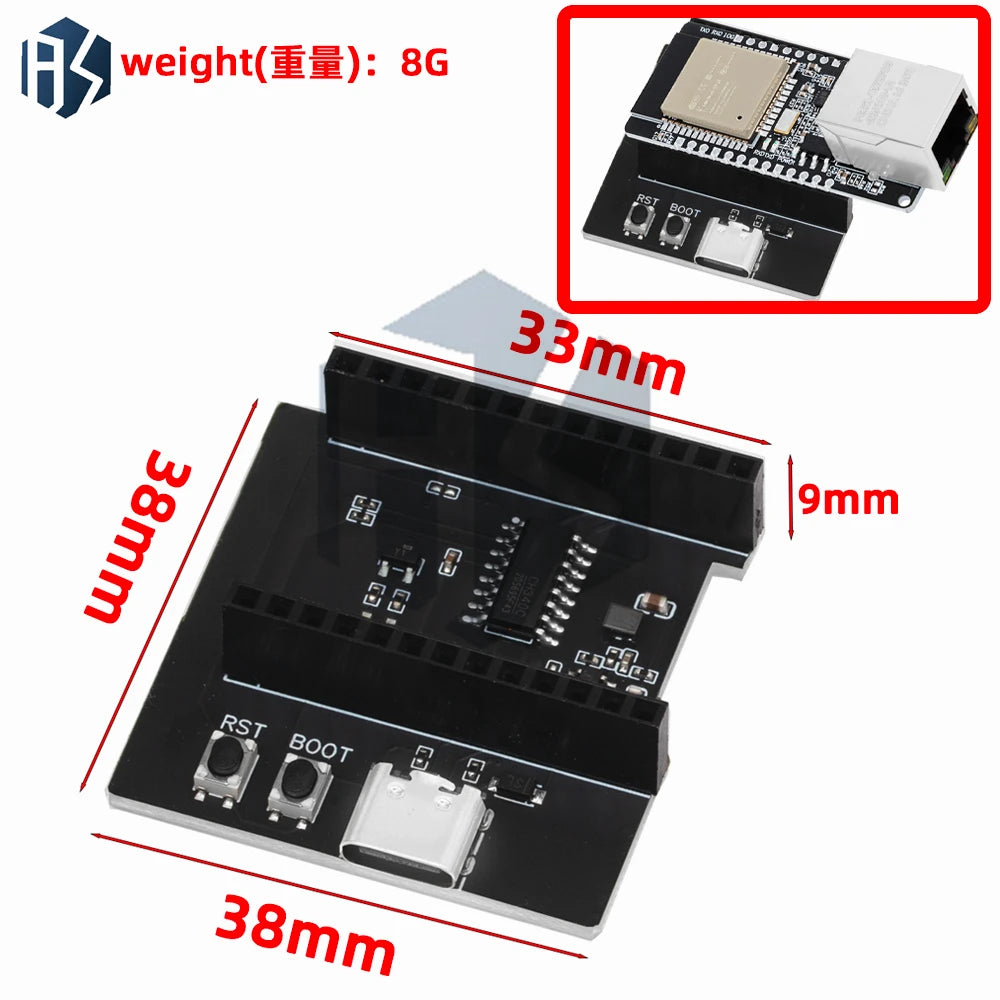

A: The ETH01 Adapter board is a breakout/development board designed to make the WT32-ETH01 module easier to work with during prototyping. It exposes the module's pins to standard header connectors, adds USB-to-serial programming capability, and simplifies power delivery. It is highly recommended for development and testing; for final production PCB integration, the standalone WT32-ETH01 module is typically soldered directly.

Q: How many units can I order at once?

A: You can choose from several bundle options at checkout: a single WT32-ETH01 module, a 1-set combo, or ETH01 Adapter boards in quantities of 1, 5, or 10 pieces — making it convenient for both individual makers and small-batch production runs.
