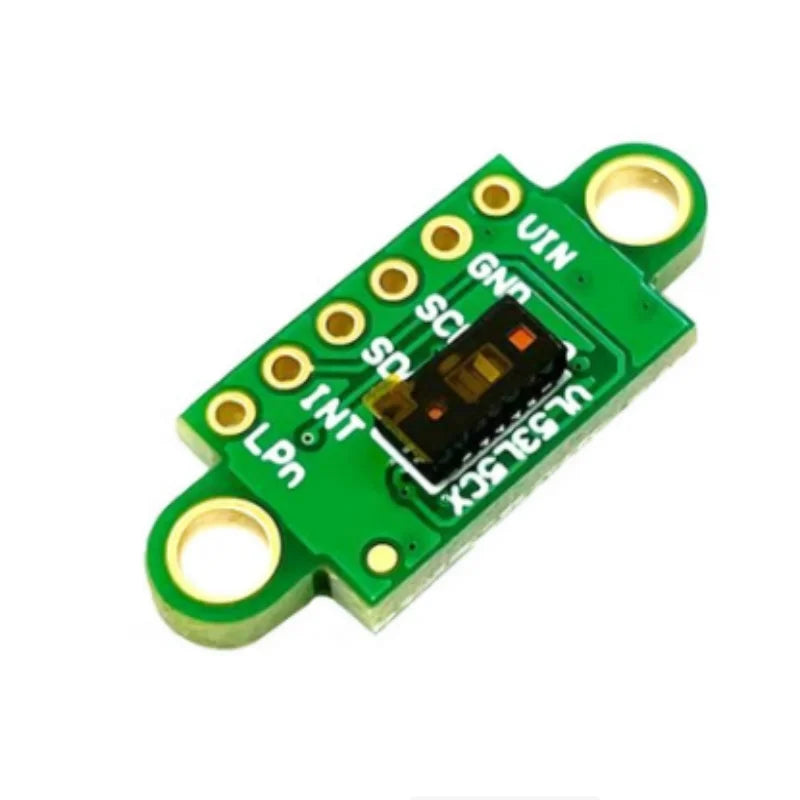

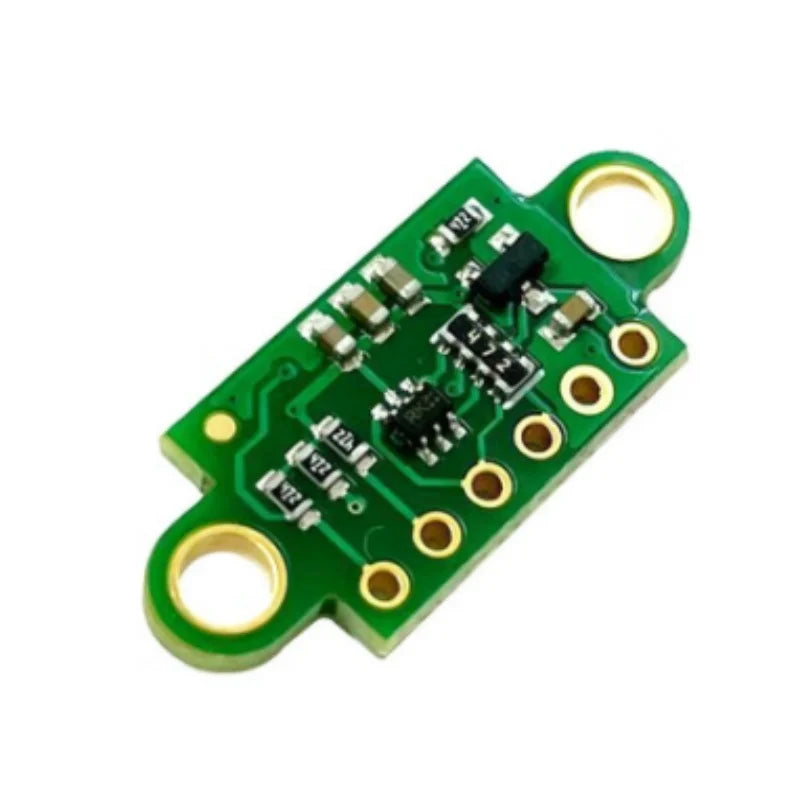

VL53L5X V2 ToF Wide Field Multi-Zone Distance Sensor Module

The VL53L5X V2 Time-of-Flight (ToF) Sensor Module is a compact, high-performance ranging module delivering fast, accurate multi-zone distance measurements across a wide field of view. Powered by ST's VL53L5CX chip, this breakout board is ideal for robotics, drones, smart home automation, gesture recognition, presence detection, obstacle avoidance, and any embedded project demanding reliable spatial awareness.

Key Features

Multi-Zone Detection: Measures distance across an 8×8 grid of zones simultaneously for full spatial coverage in a single scan.
Wide Field of View: Up to 63° diagonal FoV for broad area sensing without mechanical scanning.
High-Speed Ranging: Delivers distance readings at up to 60 Hz — perfect for real-time applications.
Long Effective Range: Accurately detects objects from approximately 2 cm up to 4 m under typical conditions.
I²C Interface: Standard I²C communication makes integration with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers straightforward.
Compact Breakout Design: On-board voltage regulation and logic level shifting allow operation with 3.3 V or 5 V systems.
Low Power Consumption: Optimized for battery-powered and always-on IoT deployments.
Available in 3 configurations to suit your project requirements.

Specifications

Sensor IC: VL53L5CX (V2)
Measurement Technology: Direct Time-of-Flight (dToF)
Zone Resolution: 4×4 or 8×8 selectable
Field of View: 63° diagonal
Operating Voltage: 3.3 V / 5 V (on-board regulator)
Interface: I²C (up to 1 MHz)
Max Frame Rate: 60 Hz
Range: ~2 cm – 400 cm

Ideal Applications

Robotics obstacle avoidance & navigation
Drone altitude and proximity sensing
Gesture & presence detection
Smart home occupancy monitoring
3D scene mapping & spatial analysis
Industrial level measurement & counting systems

Works Great With

Pair this sensor module with other electronics components from our store. Check out the 4/6mm CCB Flat Round Spacer Beads for unrelated craft projects, or explore the Round Aluminum Wire for DIY Making for your workbench toolkit. For more advanced embedded projects, the Natural Stone Round Beads are a popular pick in our store.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What makes the VL53L5X V2 different from a standard single-point ToF sensor?

A: Unlike single-point ToF sensors that return only one distance value, the VL53L5X V2 uses a multi-zone ToF approach — simultaneously measuring distance across up to 64 zones (8×8 grid) within a wide 63° field of view. This makes it suitable for gesture recognition, presence detection, and basic 3D mapping without the need for mechanical scanning.

Q: Which microcontrollers are compatible with this VL53L5X sensor module?

A: The module communicates via standard I²C and includes on-board level shifting, making it compatible with virtually any popular microcontroller platform including Arduino (Uno, Nano, Mega), Raspberry Pi, ESP32, ESP8266, STM32, and more operating at either 3.3 V or 5 V logic levels.

Q: What is the maximum reliable ranging distance for the VL53L5X V2 module?

A: Under typical indoor conditions, the VL53L5X V2 reliably measures distances from approximately 2 cm up to 400 cm (4 m). Performance may vary depending on target reflectivity, ambient light levels, and surface characteristics.
