VFD GPS Car Instrument – Speed, Clock, Voltmeter & Altitude

VFD GPS Car Instrument – Speed, Clock, Voltmeter & Altitude Level

Upgrade your dashboard with this feature-packed VFD Car GPS Instrument. Combining a Beidou GPS dual-mode receiver, real-time clock, voltmeter, and atmospheric pressure/altitude sensor into one sleek unit, this multifunctional car meter keeps you informed at a glance — all displayed on a crisp, easy-to-read VFD (Vacuum Fluorescent Display) screen.

Whether you're monitoring your vehicle's battery voltage, checking your GPS-synchronized time, tracking your current speed, or reading altitude via atmospheric pressure, this all-in-one instrument delivers accurate, real-time data right from your dashboard.

Key Features

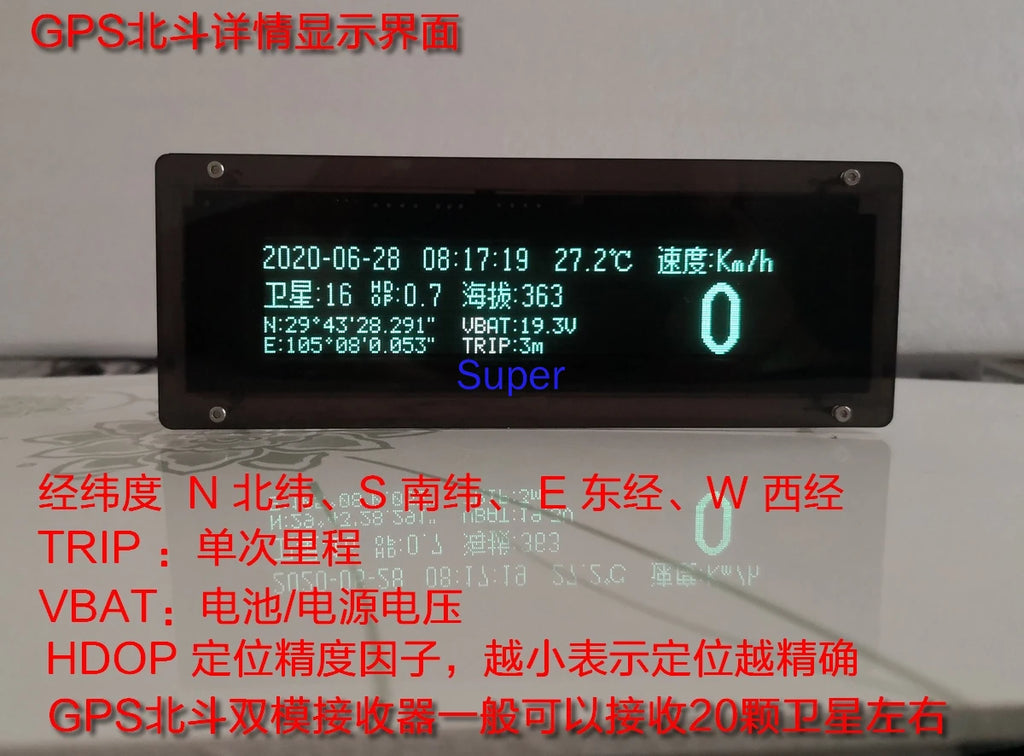

• Beidou GPS Dual-Mode Receiver: Automatically syncs time and tracks speed using the Beidou GPS satellite system for precise, reliable readings.
• R8025T Temperature-Compensated Clock Chip: Ensures highly accurate timekeeping, automatically synchronized via Beidou GPS.
• STC 8A8K64S4 Microcontroller: Powered by STC's latest single-chip microcomputer for fast, efficient data processing.
• Real-Time Voltmeter: Continuously monitors your car's battery voltage so you're never caught off guard.

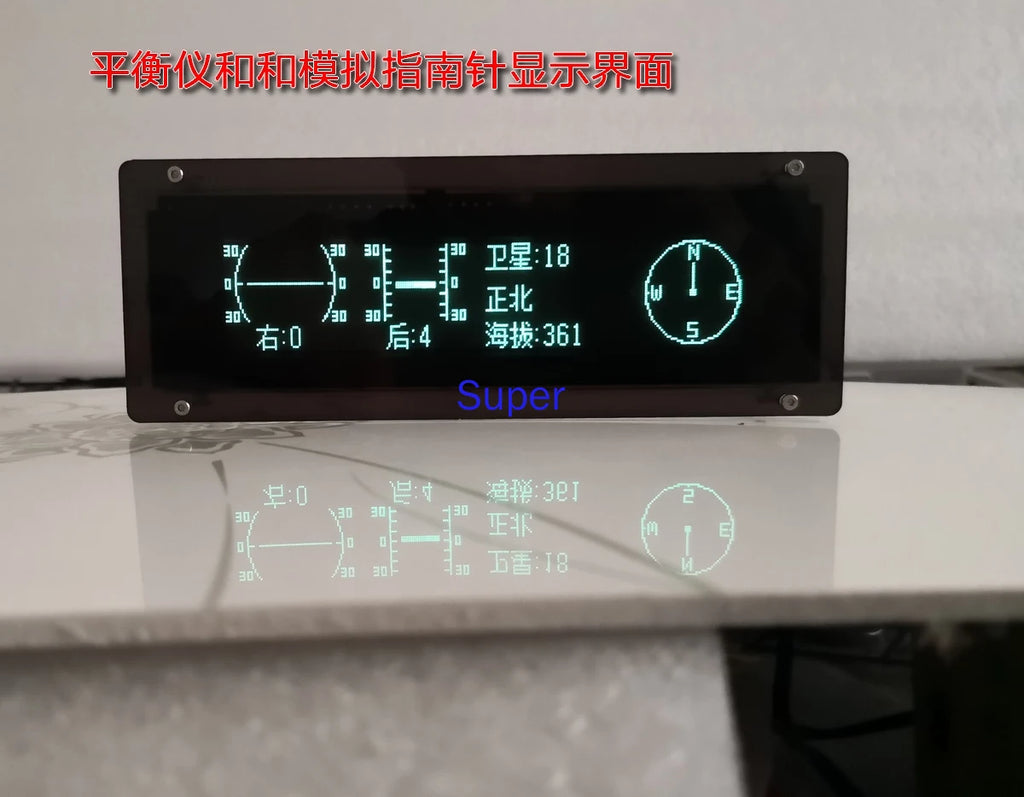

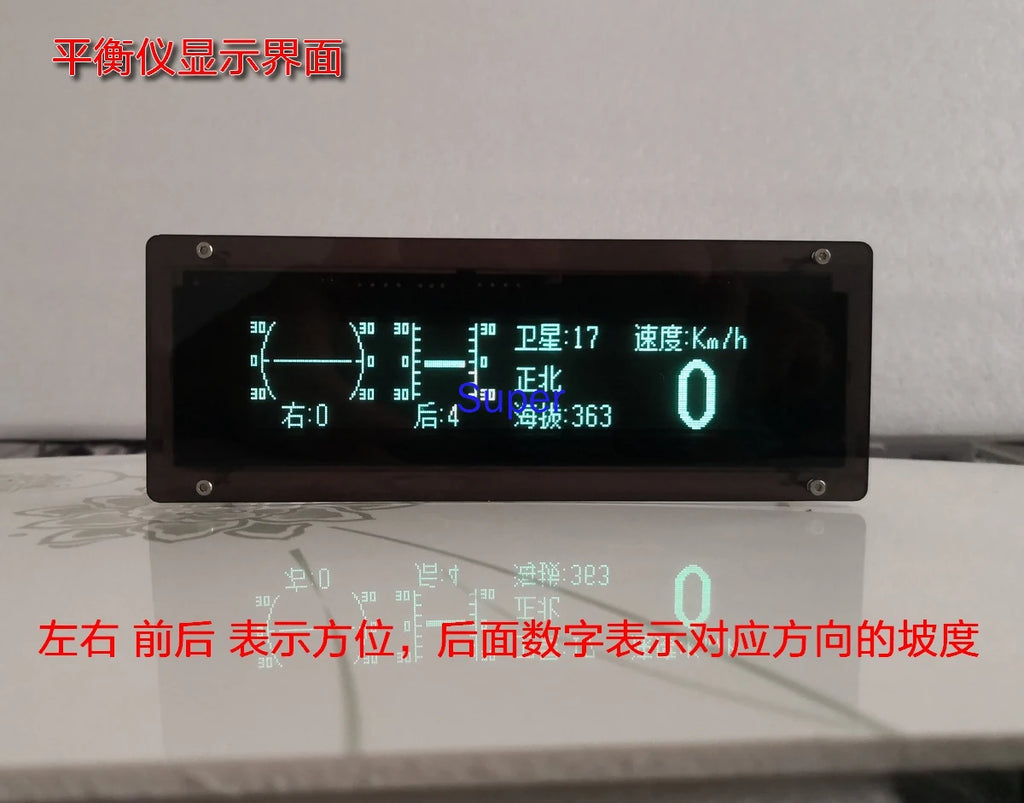

• Atmospheric Pressure & Altitude Display: The atmospheric pressure version displays live barometric readings and calculates approximate altitude.
• Compact & Dash-Ready: Measures just 15.9 × 5.8 × 2 cm (3 cm from the power socket) — fits neatly in virtually any vehicle interior.
• 2 Color Options: Choose the finish that best matches your car's interior style.
• Plug-and-Play Installation: Ready to use right out of the box — simple connection to your vehicle's power socket.

Specifications

• Display Type: VFD (Vacuum Fluorescent Display)
• GPS System: Beidou GPS Dual-Mode
• Clock Chip: R8025T Temperature Compensation
• Microcontroller: STC 8A8K64S4
• Dimensions: 15.9 × 5.8 × 2 cm (3 cm from power socket)
• Color Options: 2 available

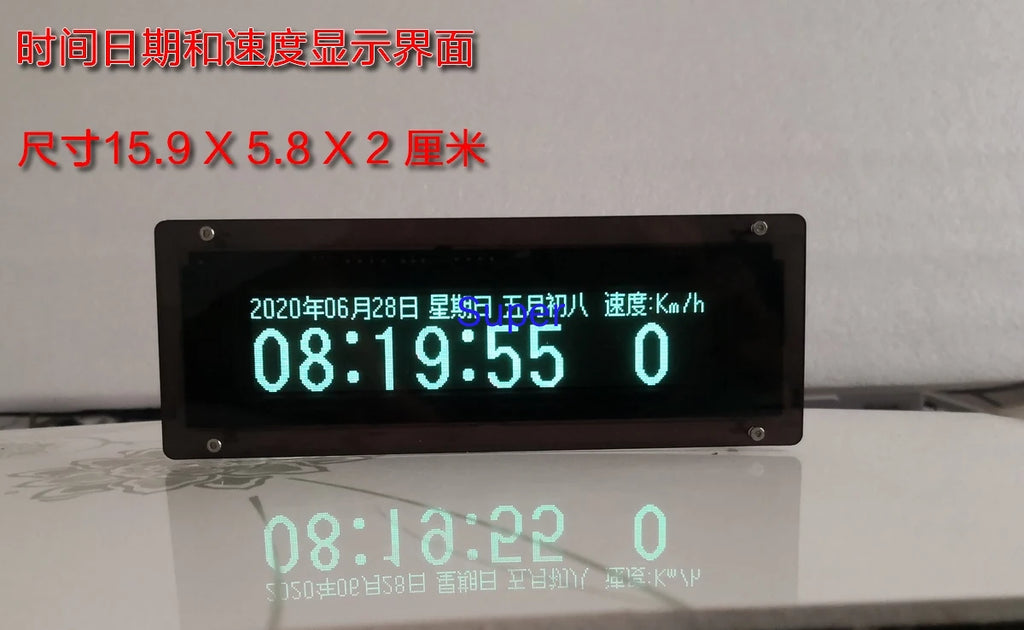

• Functions: Speed, Clock, Voltmeter, Atmospheric Pressure, Altitude

Related Products You May Like

• Glow in the Dark Natural Stone Round Beads | DIY Jewelry Making
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What functions does the VFD GPS Car Instrument display?

A: This VFD GPS Car Instrument displays multiple real-time readings including GPS-based vehicle speed, Beidou GPS auto-synchronized clock, battery voltmeter readings, atmospheric pressure values, and calculated approximate altitude — all on a single, clear VFD screen.

Q: How does the Beidou GPS automatic time synchronization work?

A: The instrument uses a Beidou GPS dual-mode receiver alongside an R8025T temperature-compensated clock chip. Once the device acquires a GPS signal, it automatically syncs the onboard clock to GPS time, ensuring highly accurate and reliable timekeeping without any manual adjustment.

Q: Is the VFD Car GPS Instrument easy to install in my vehicle?

A: Yes — the instrument is designed for plug-and-play installation. Its compact 15.9 × 5.8 × 2 cm form factor fits most dashboard spaces, and it connects directly to your vehicle's power socket (extending approximately 3 cm). No complex wiring or professional installation is required.

Q: What is the atmospheric pressure feature used for?

A: The atmospheric pressure version of this instrument can display real-time barometric pressure values and use those readings to calculate your approximate altitude above sea level — a useful feature for drivers navigating mountainous or varying terrain.
