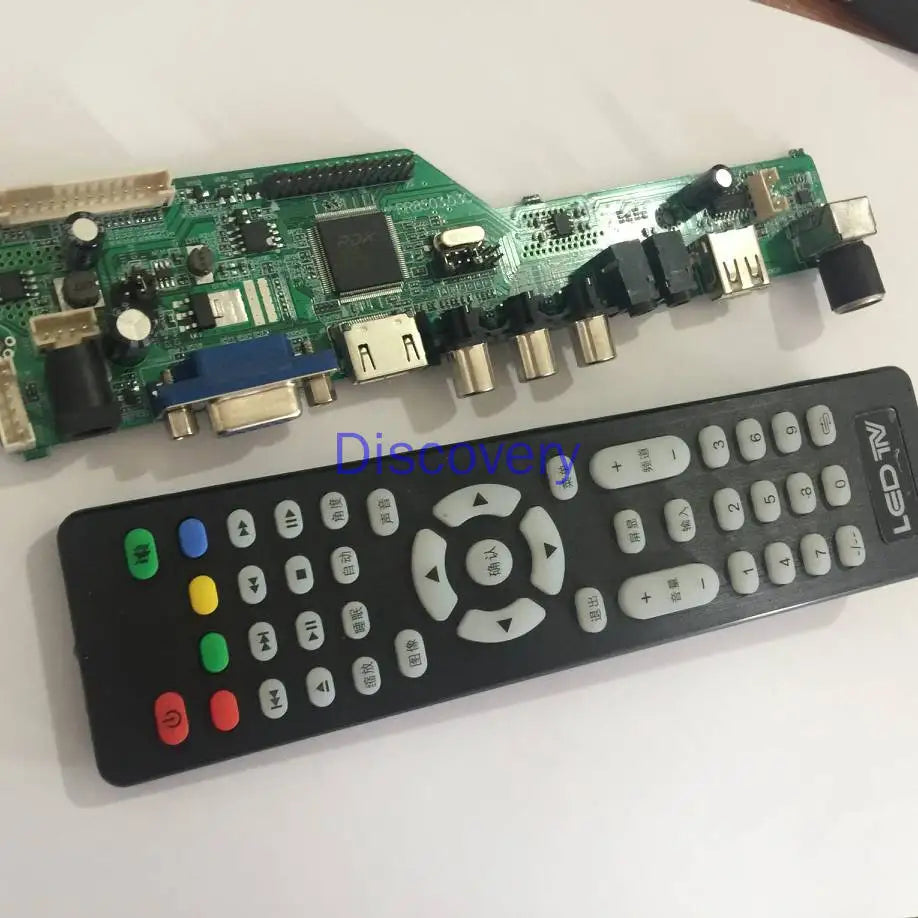

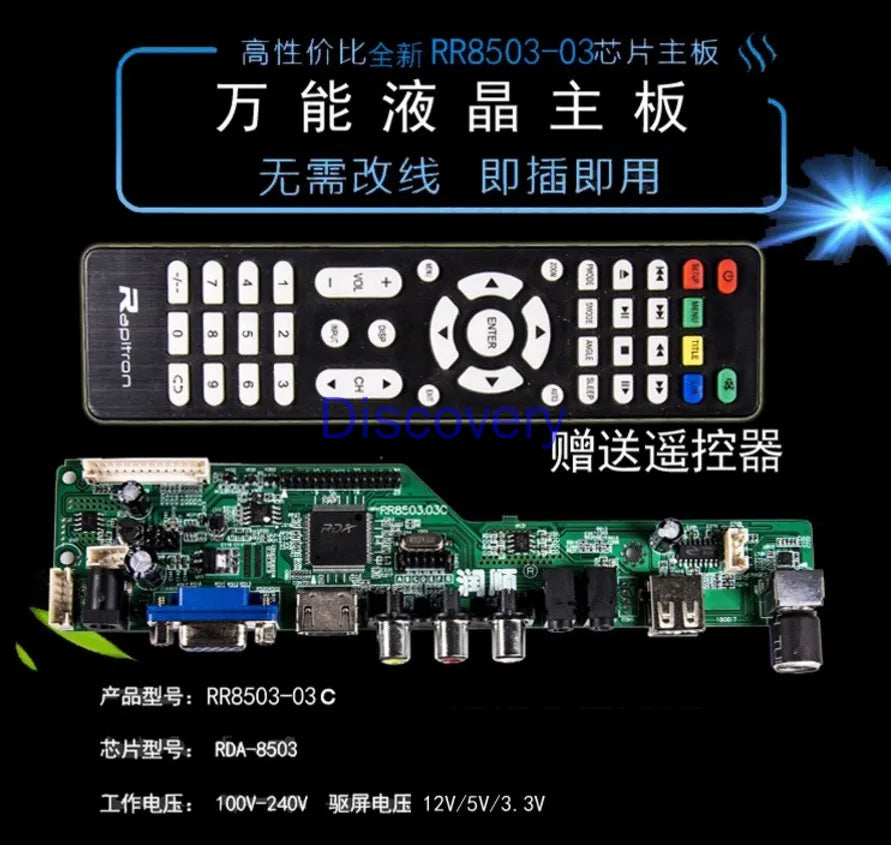

Universal TV Motherboard LCD Controller Board 8503

Upgrade or repair your LCD display with the Universal TV Motherboard LCD Controller Board 8503 — a reliable, wide-compatibility controller board designed for DIY TV builds, monitor repairs, and screen integration projects. Engineered for precision and durability, this board supports multiple LCD panel resolutions, making it a versatile choice for electronics enthusiasts and repair technicians alike.

Key Features

• Wide Resolution Support: Compatible with multiple LCD panel resolutions, including 1920×1200 and 1280×768, via onboard configuration jumpers for easy setup.
• Screen Protection Design: Built-in safeguards help protect your LCD panel — always ensure the power connector is correctly oriented (follow the red-line indicator on the cable) to prevent damage to the screen.
• Universal Compatibility: Designed to work with a broad range of LCD panels, making it ideal for TV repairs, monitor builds, and custom display projects.
• Easy Configuration: Onboard jumper caps (AB position for 1920×1200; AE position for 1280×768) allow straightforward resolution selection without extra software.
• Durable Construction: High-quality PCB components built for stable, long-term performance in DIY and professional repair environments.

Specifications

• Model: 8503
• Type: Universal LCD TV Controller Motherboard
• Supported Resolutions: 1920×1200 (AB jumper position), 1280×768 (AE jumper position)
• Application: LCD TV repair, custom monitor builds, display integration

Important Wiring Notice

When connecting the screen power cable, always align the red-line indicator on the cable with the marked arrow on the board. Incorrect orientation can cause irreversible damage to the LCD screen. Double-check all connections before powering on.

You May Also Like

• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the Universal TV Motherboard LCD Controller Board 8503 used for?

A: The Universal TV Motherboard LCD Controller Board 8503 is used to drive and control LCD display panels in TV repair, custom monitor assembly, and DIY display projects. It supports multiple common resolutions and is compatible with a wide range of LCD panels.

Q: How do I select the correct resolution on the LCD Controller Board 8503?

A: Resolution is selected using onboard jumper caps. Place a jumper cap at the AB position to configure the board for 1920×1200 resolution. Use the AE position for 1280×768 resolution. Refer to the board's silkscreen markings for exact jumper locations.

Q: How do I safely connect the power cable to avoid screen damage?

A: Always match the red indicator line on the screen power cable to the directional arrow marked on the controller board connector. Connecting the cable in the wrong orientation can cause permanent damage to the LCD panel, so verify alignment carefully before powering on.

Q: Is the LCD Controller Board 8503 compatible with my TV or monitor panel?

A: The 8503 is a universal LCD controller board designed for broad compatibility across many LCD panel types. However, it is recommended to verify your specific panel's interface (LVDS connector type, voltage requirements, and resolution) against the board's specifications before purchase to ensure compatibility.
