TPL5110 Low Power Timer Breakout Board – Compact Evaluation Module

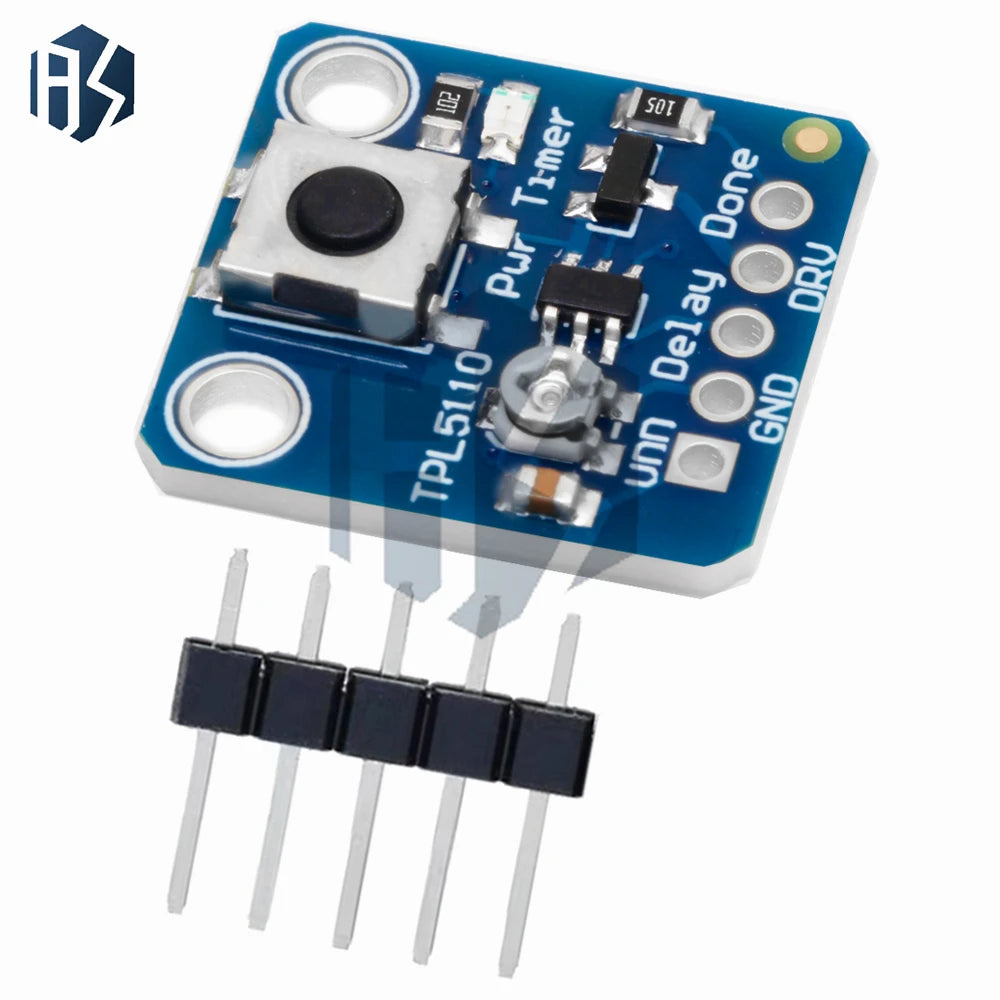

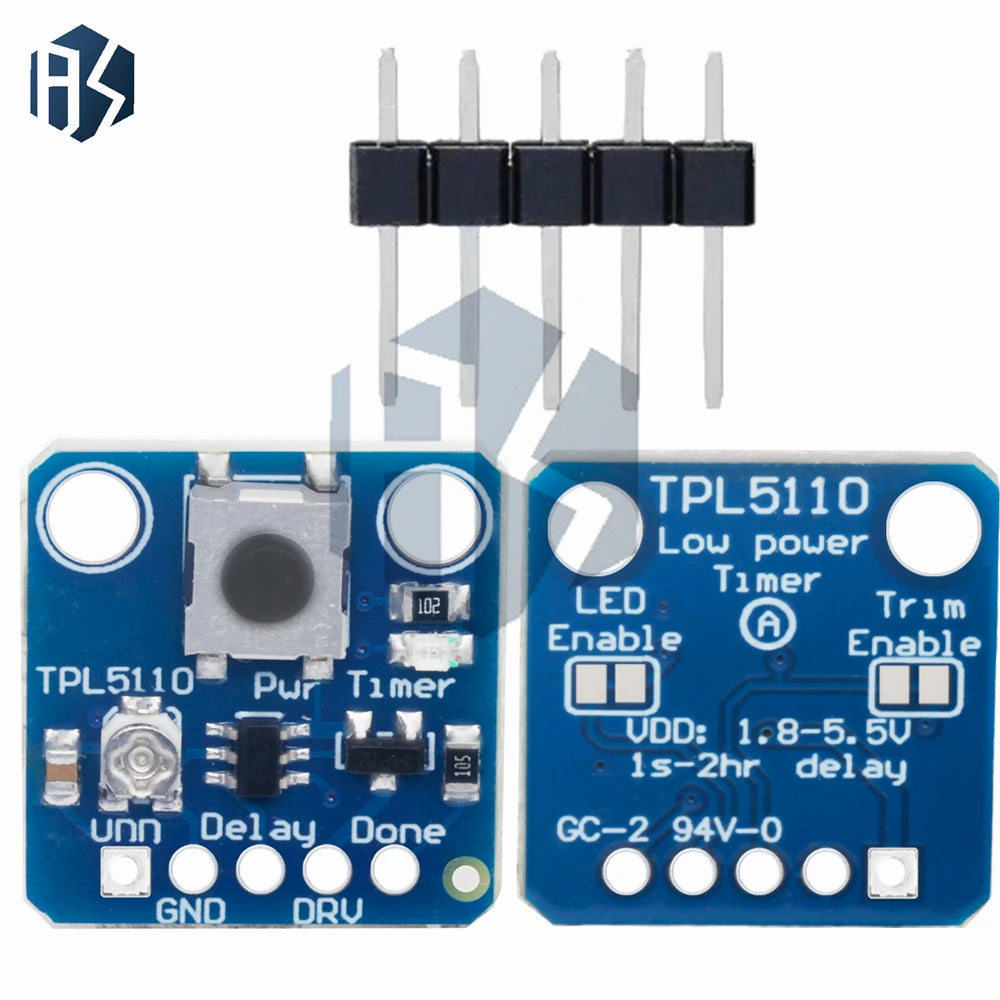

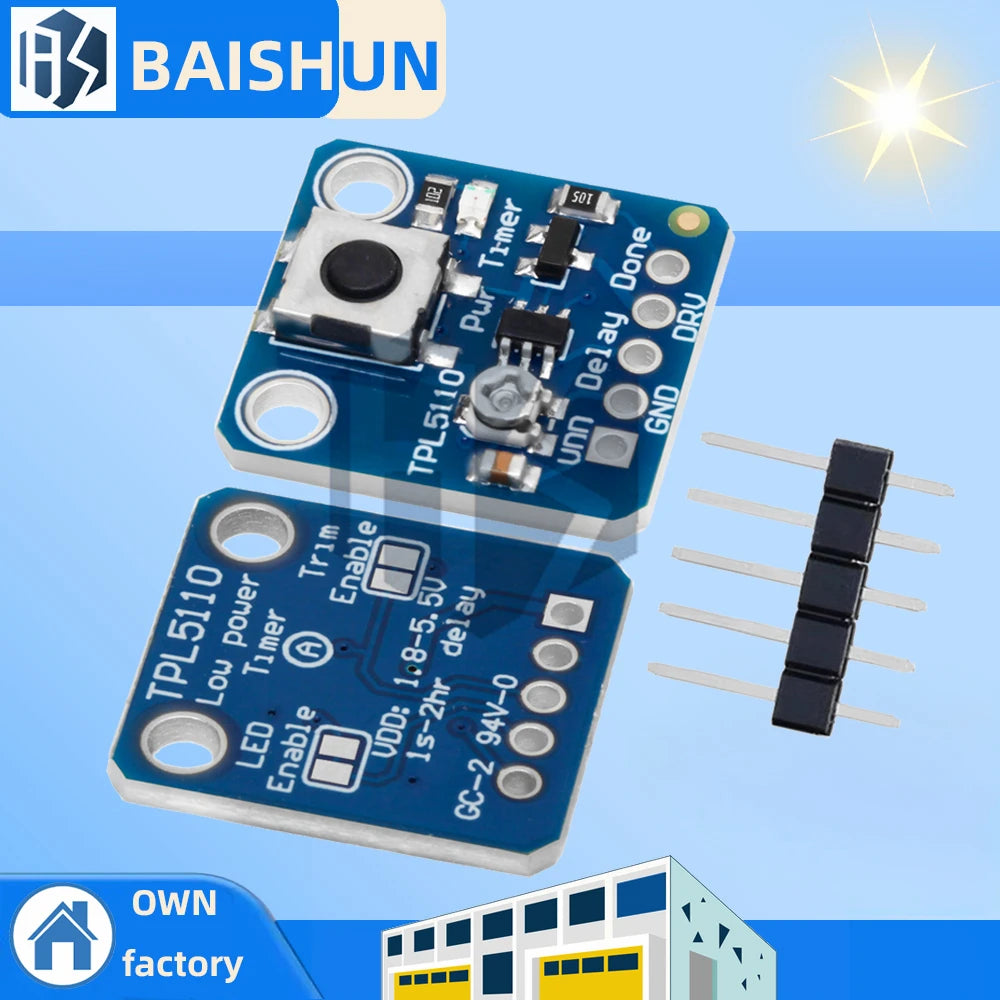

The TPL5110 Low Power Timing Breakout Board is a compact, highly efficient evaluation module built around the TPL5110 nano-power timer IC. Designed for battery-powered and energy-conscious electronics projects, this breakout board lets you prototype and evaluate ultra-low standby-current timing circuits with ease. Whether you're an electronics hobbyist, maker, or embedded systems developer, this module delivers dependable timing performance in a small, breadboard-friendly form factor.

Key Features

  • Ultra-Low Power Consumption: Based on the TPL5110 nano-power timer IC, ideal for battery-powered applications where conserving energy is critical.
  • Compact Breakout Design: Small PCB footprint makes it easy to integrate into prototypes, evaluation setups, and DIY electronics builds.
  • SMD Components Included: Each order comes with SMD (surface-mount device) components already populated on the board — ready to use.
  • Flexible Quantity Options: Available in 1pc, 2pcs, 5pcs, and 10pcs configurations to suit individual projects or bulk prototyping needs.
  • Breadboard Compatible: Standard pin spacing for quick, tool-free integration into your development setup.
  • Wide Application Range: Perfect for IoT devices, wireless sensor nodes, wearables, and any microcontroller-based project requiring timed power switching.

What's in the Box

  • TPL5110 Low Power Timing Breakout Board (quantity as selected)
  • SMD components pre-populated

Specifications

  • IC: TPL5110 Nano-Power System Timer

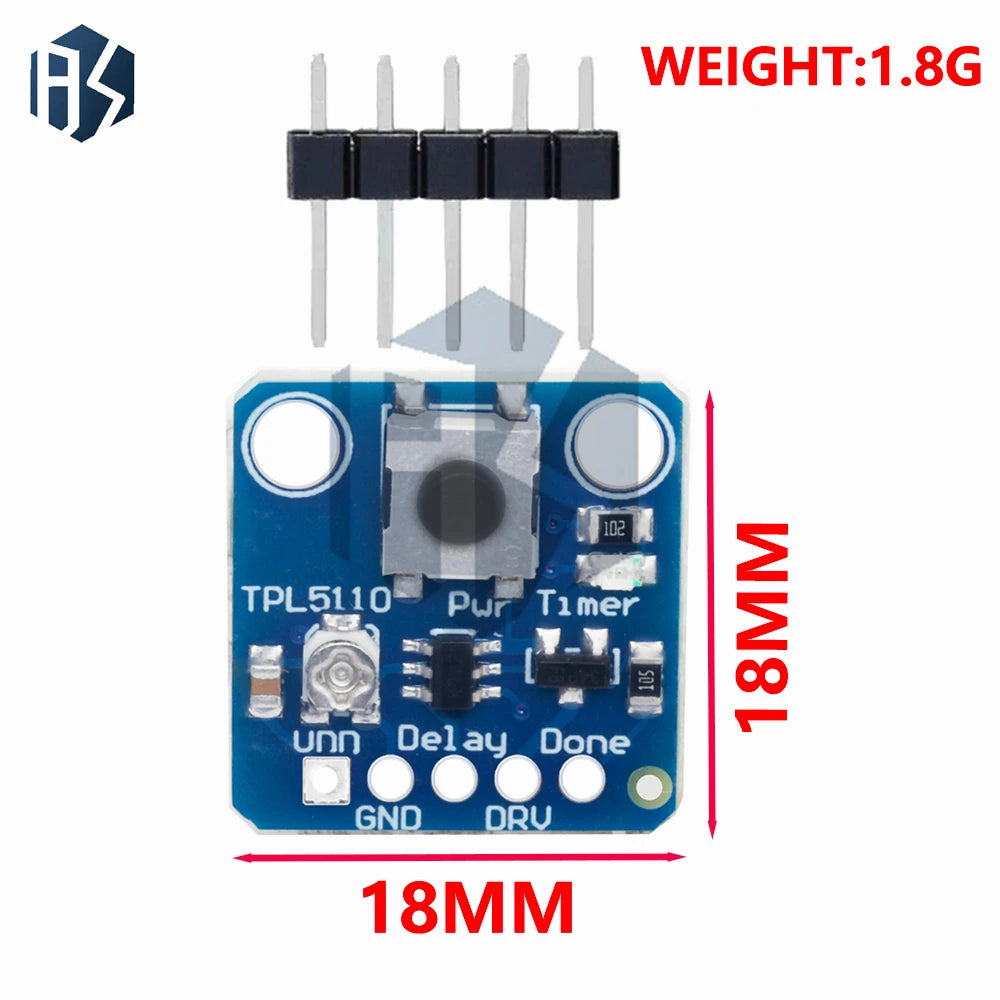

  • Form Factor: Compact breakout/evaluation module
  • Component Type: SMD (Surface-Mount Device)
  • Customizable: Yes
  • Available Quantities: 1pc, 2pcs, 5pcs, 10pcs

Ideal For

  • Battery-powered IoT and sensor projects
  • Microcontroller timed wake/sleep cycles
  • Embedded systems prototyping and evaluation
  • Electronics education and DIY maker builds

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the TPL5110 Low Power Timing Breakout Board used for?

A: The TPL5110 Low Power Timing Breakout Board is a compact evaluation module based on the TPL5110 nano-power timer IC. It is designed for battery-powered electronics projects that require precise, energy-efficient timed power switching — such as IoT sensor nodes, wearables, and microcontroller wake/sleep cycle applications.

Q: What components are included with the TPL5110 Breakout Board?

A: Each order includes the TPL5110 timing breakout board with SMD (surface-mount device) components pre-populated, ready for use in your prototyping or evaluation setup. You can select quantities of 1pc, 2pcs, 5pcs, or 10pcs depending on your project needs.

Q: Is this board compatible with standard breadboards and prototyping setups?

A: Yes. The TPL5110 Breakout Board features a compact PCB with standard pin spacing, making it fully compatible with breadboards and common prototyping environments. It is designed to be easy to integrate without any special tools or additional hardware.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
