TL494 PWM Controller Module 5V 500–100kHz 250mA Adjustable

TL494 PWM Controller Module – Adjustable Frequency 5V, 500Hz–100kHz, 250mA

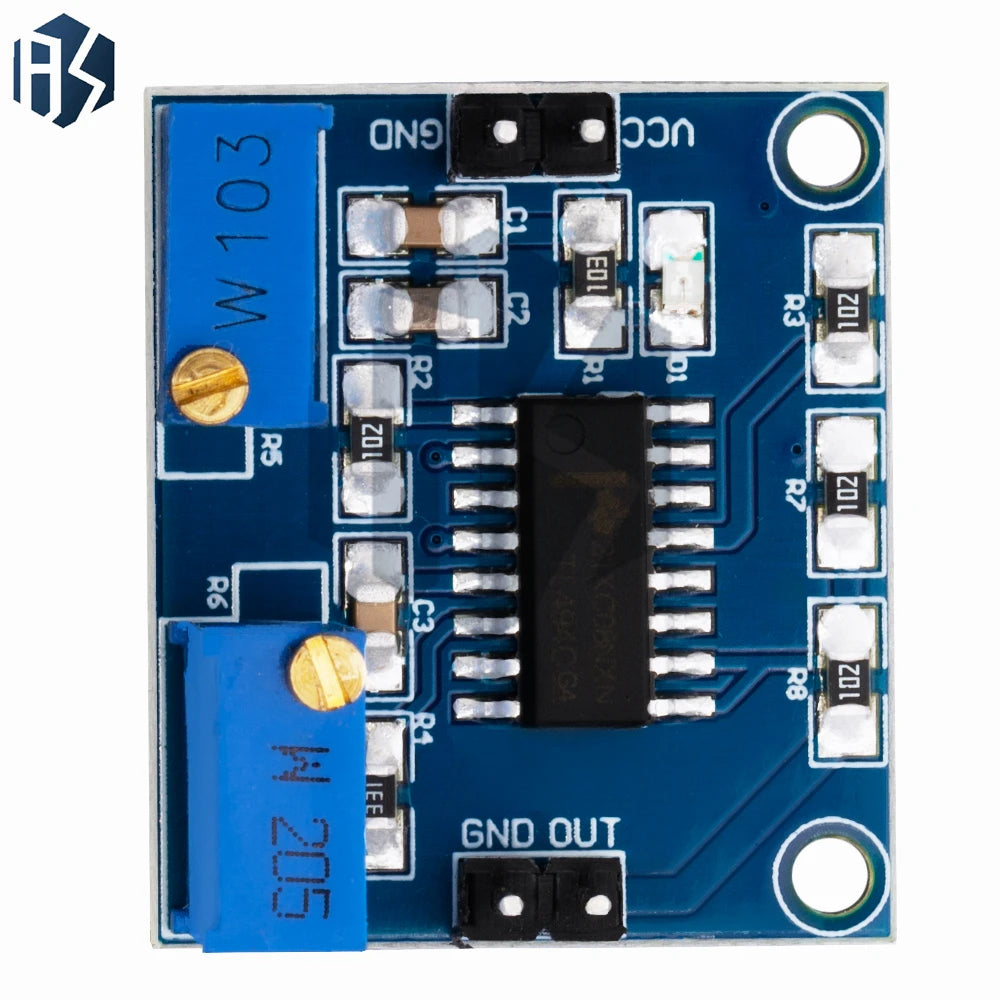

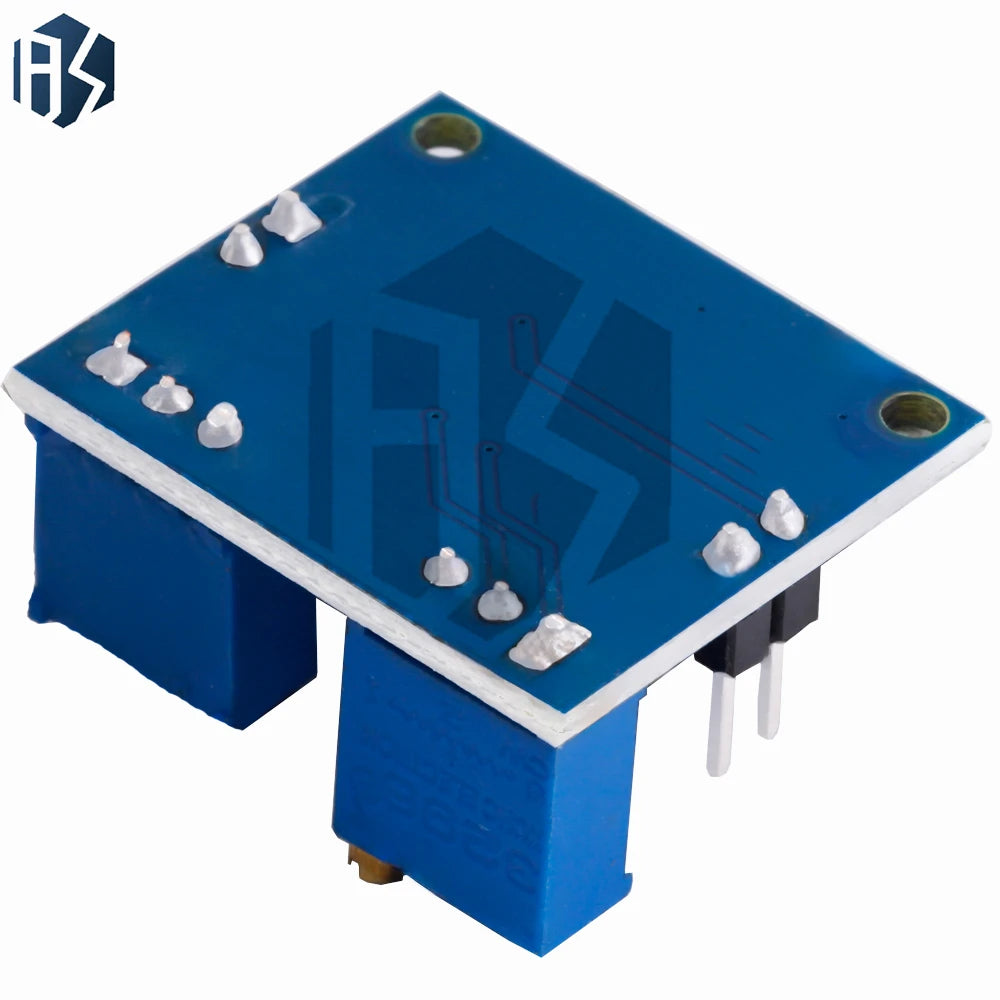

Take precise control of your electronics projects with the TL494 PWM Controller Module. Built around the reliable TL494 pulse-width modulation IC, this compact SMD module delivers a wide adjustable frequency range from 500Hz to 100kHz at a regulated 5V output with up to 250mA drive capability. Whether you're building a motor speed controller, DC-DC converter, inverter, or custom power supply, this module offers the flexibility and performance that hobbyists, engineers, and makers demand.

Key Features

• Wide Adjustable Frequency Range: 500Hz – 100kHz, tunable via onboard components for your specific application
• 5V Operating Voltage: Compatible with standard microcontroller and prototyping power rails
• 250mA Output Current: Sufficient for driving switching transistors, MOSFETs, and logic-level loads
• TL494 IC Core: Industry-standard PWM controller IC known for stability, precision, and versatility
• SMD Construction: Compact surface-mount design keeps your builds clean and space-efficient
• Customizable: Fully adaptable — adjust duty cycle and frequency to match your circuit requirements
• Broad Application Range: Ideal for switching power supplies, motor drives, inverters, battery chargers, and educational electronics projects

Specifications

What's in the Box?

• 1 × TL494 PWM Controller Module (SMD)

Perfect For

• DIY switching power supply design
• DC motor speed control circuits
• Battery charging systems
• Inverter and converter projects
• Electronics prototyping and learning
