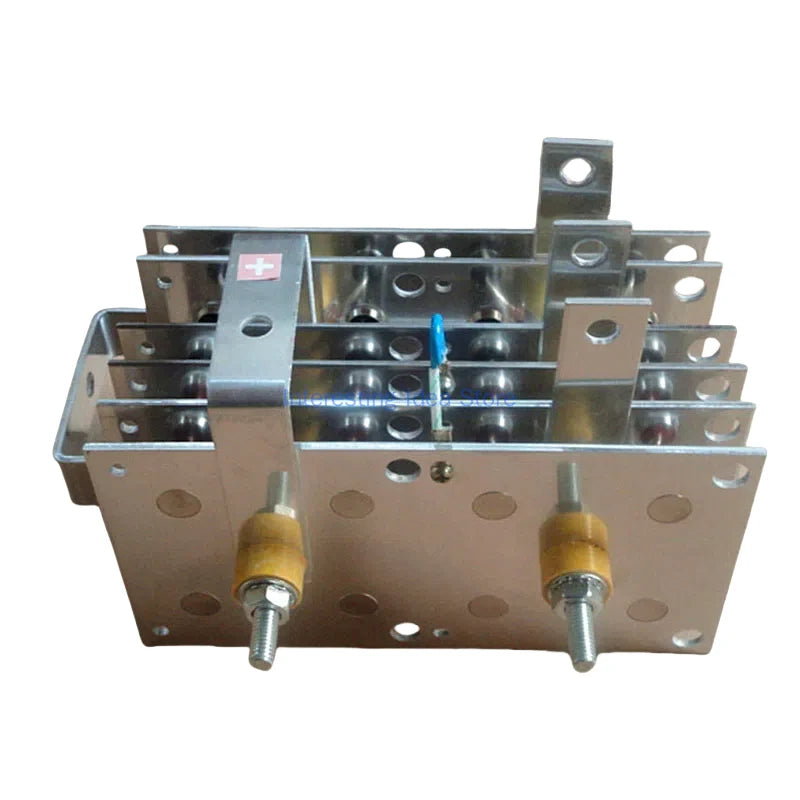

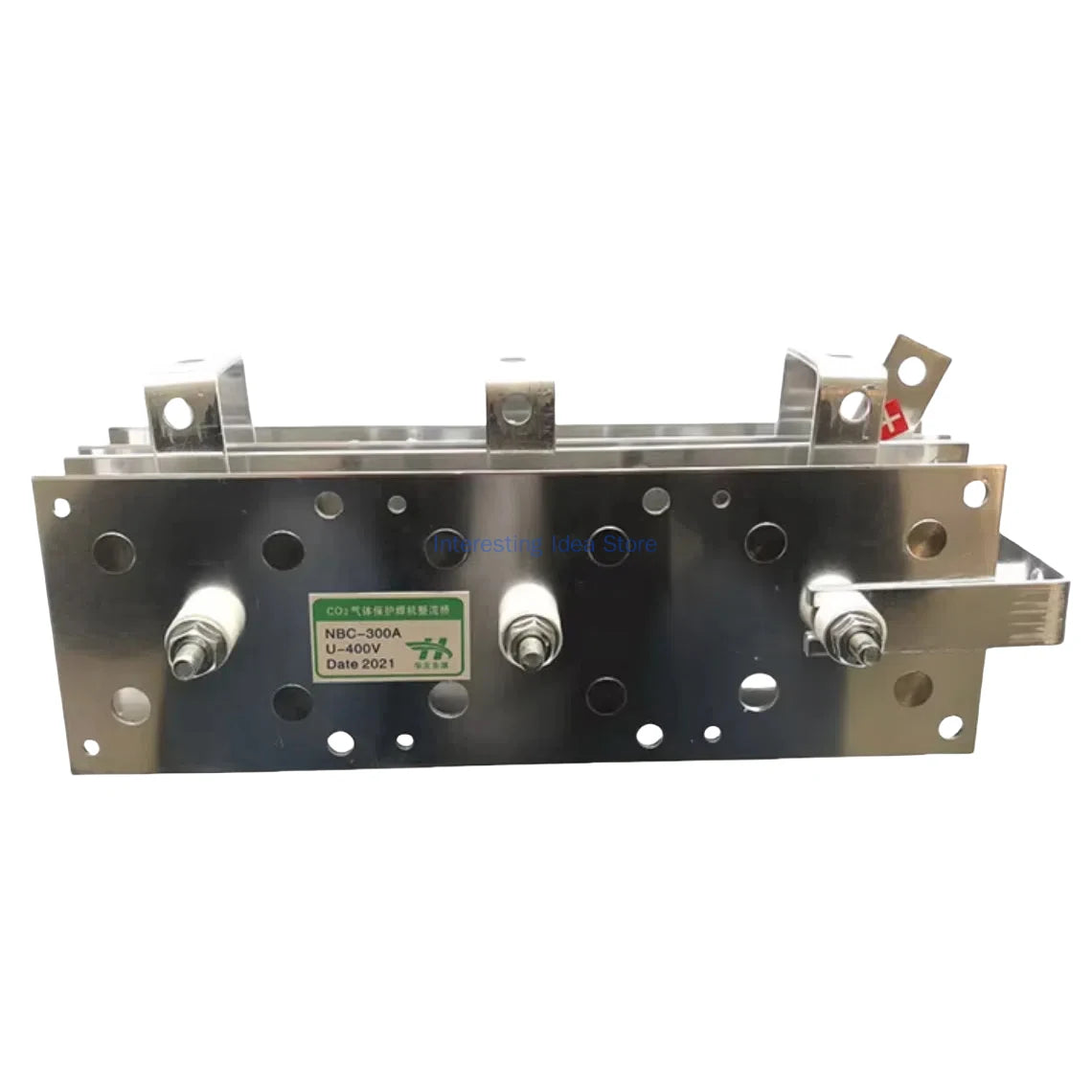

Three Phase Welding Bridge Rectifier – High-Power Diode Welder

Upgrade your welding setup with this robust Three Phase Welding Bridge Rectifier. Engineered for high-power welding machines, this diode bridge rectifier efficiently converts three-phase AC input into smooth DC output, ensuring stable arc performance and consistent welding results. Built from a durable aluminum-body design, it delivers reliable electrical performance in demanding workshop and industrial environments.

Key Features

Three-Phase Bridge Configuration: Full-wave rectification from a three-phase AC source for smooth, ripple-reduced DC power output.
High-Power Diode Construction: Heavy-duty diodes rated for the high current demands of welding power machines.
Aluminum Housing: Lightweight yet sturdy aluminum model construction for efficient heat dissipation and long-term durability.
4 Color Options: Choose from 4 available color variants to suit your equipment and workspace aesthetic.
Broad Compatibility: Designed to fit a wide range of three-phase welding machines and high-power rectifier applications.
Easy Installation: Straightforward mounting and wiring connections for quick integration into existing systems.

Specifications

Type: Three Phase Bridge Rectifier
Application: High-power welding machines, industrial power supplies
Material: Aluminum model
Configuration: Full-wave three-phase diode bridge
Color Options: 4 variants available

Why Choose This Rectifier?

Whether you're building, repairing, or upgrading a welding power machine, a reliable bridge rectifier is at the heart of stable DC output. This three-phase diode bridge is designed to handle demanding power loads while maintaining consistent performance over time. Its solid aluminum construction promotes effective thermal management, protecting the diodes during extended operation.

Frequently Asked Questions

Q: What does a three phase welding bridge rectifier do?

A: A three phase welding bridge rectifier converts three-phase AC (alternating current) into DC (direct current) using a full-wave diode bridge configuration. This provides a smooth, stable DC output essential for consistent arc welding performance in high-power welding machines.

Q: What material is this bridge rectifier made from?

A: This three phase welding bridge rectifier features an aluminum model housing. Aluminum is chosen for its excellent strength-to-weight ratio and its ability to dissipate heat efficiently, which is critical for components handling high electrical currents in welding applications.

Q: Is this rectifier compatible with my welding machine?

A: This bridge rectifier is designed for use with three-phase welding power machines that require a high-power diode bridge rectifier. It comes in 4 color variants. Always verify the voltage, current rating, and physical dimensions against your specific machine's requirements before installation.

Q: How many color options are available?

A: This three phase welding bridge rectifier is available in 4 color options, allowing you to select the variant that best matches your equipment setup or preference.
