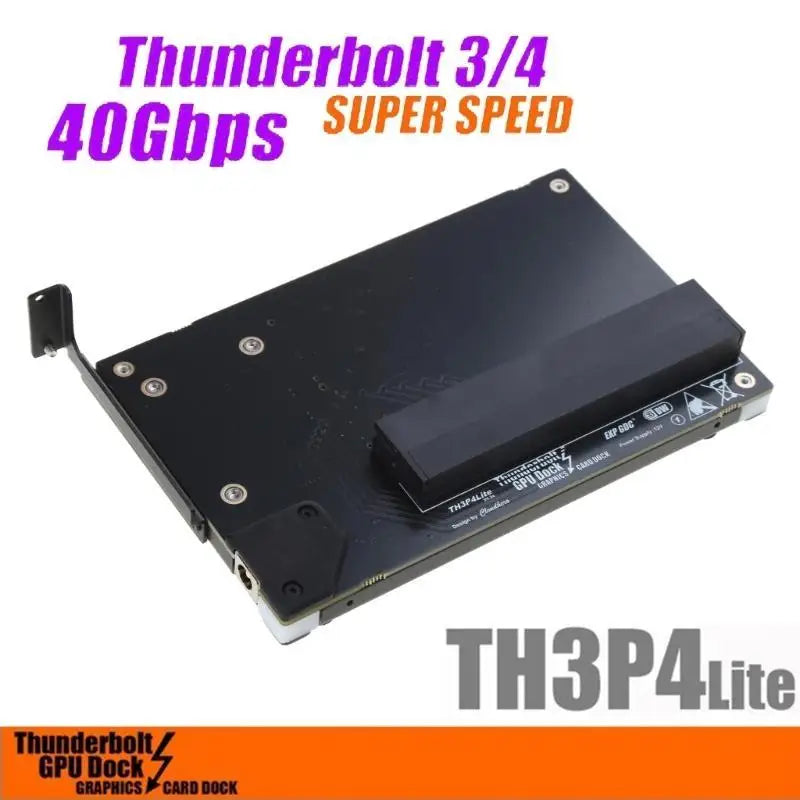

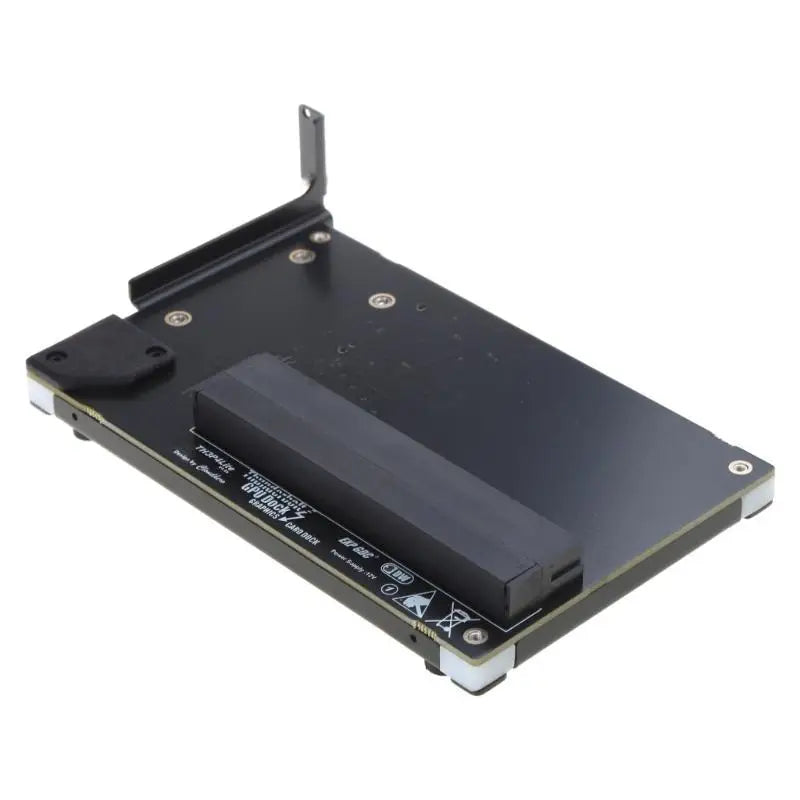

TH3P4 Lite External GPU Dock for Thunderbolt 3 & 4 Laptops

Unlock desktop-class graphics performance on your laptop with the TH3P4 Lite GPU Dock. Powered by the advanced JHL7440 Thunderbolt controller chip, this eGPU enclosure breaks past the bandwidth ceiling of older JHL6xxx and JHL8xxx series chips, delivering a blazing 32 Gbps PCI-E 3.0 x4 transfer speed — and up to 40 Gbps total Thunderbolt throughput. Whether you're accelerating creative workloads, compute tasks, or video capture, this dock gives your laptop a serious performance boost.

Why Choose the TH3P4 Lite GPU Dock?

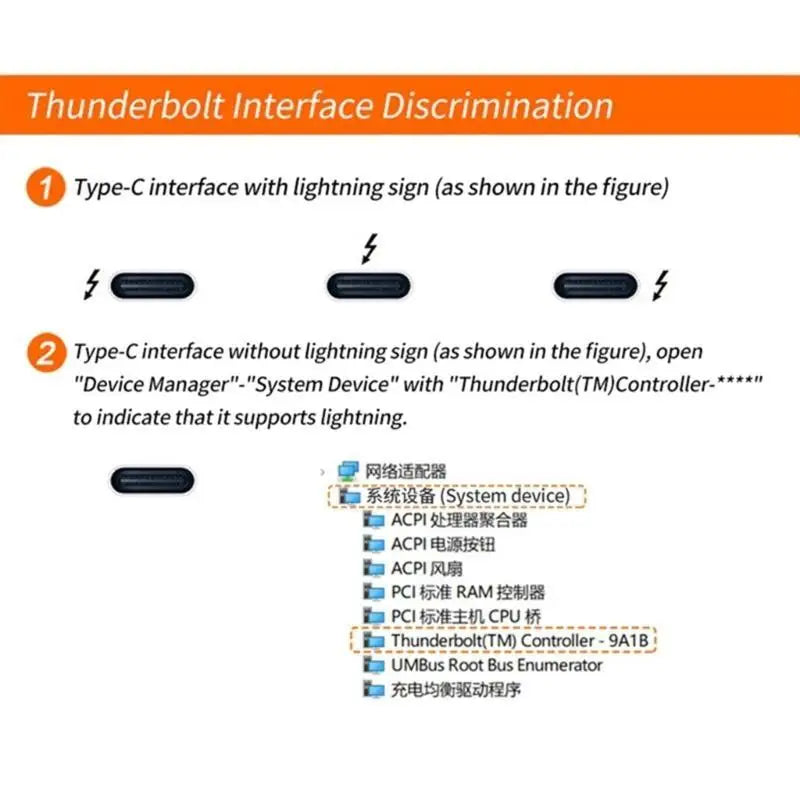

Thunderbolt 3 & 4 Compatible — Works seamlessly with any laptop equipped with a Thunderbolt 3 or Thunderbolt 4 port using either data cable type.
High-Speed PCIe Bandwidth — JHL7440 chip achieves 32 Gbps PCI-E 3.0 x4 speed, a significant step up from previous-generation controllers.
Full & Half Height Bracket Support — Includes both bracket types plus a convenient holder, making it easy to mount your graphics card, power supply, and dock in one unified setup.

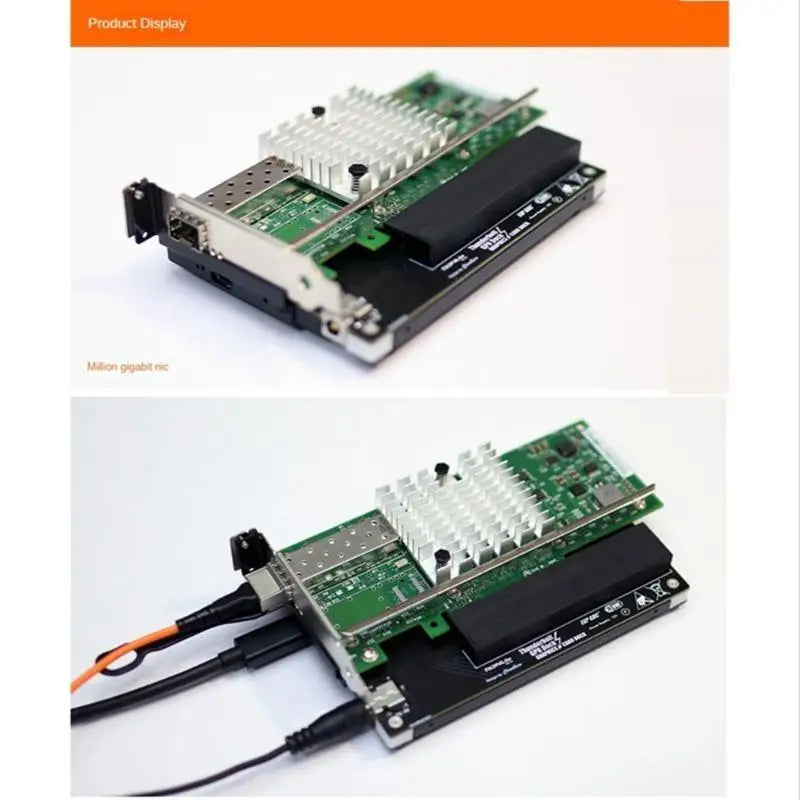

Broad PCIe Device Compatibility — Supports PCIe-interface compute cards, capture cards, and other devices operating within 75W.

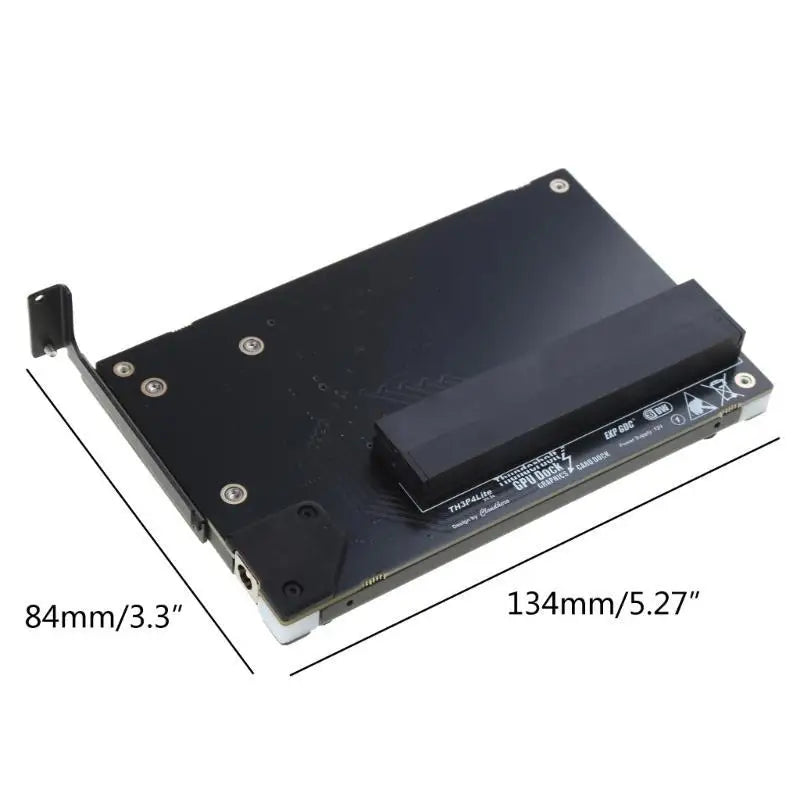

Compact Metal Construction — Solid metal build measuring just 134×84×21mm (5.27×3.30×0.82 in), keeping your workspace tidy.
DC 12V Power Input — Simple, stable power delivery for consistent operation.

Specifications

Model	TH3P4 Lite
Main Material	Metal
Dimensions	Approx. 134×84×21mm / 5.27×3.30×0.82 in
Interface	Thunderbolt 3 / Thunderbolt 4
Thunderbolt Speed	40 Gbps
PCIe Speed	32 Gbps (PCI-E 3.0 x4)
Power Supply	DC 12V
Bracket Support	Full height & half height
Max Device Power	75W
Daisy-chain	Not supported
PD Charging	Not included
USB Function	Not included

What's in the Box

1× TH3P4 Lite GPU Dock
1× Thunderbolt Data Cable
1× Holder / Bracket Set

Ships from CN (China).

Frequently Asked Questions

Q: What laptops are compatible with the TH3P4 Lite GPU Dock?

A: The TH3P4 Lite GPU Dock is compatible with any laptop that features a Thunderbolt 3 or Thunderbolt 4 port. Simply connect using the included Thunderbolt data cable to get started — no additional adapters required.

Q: What PCIe devices can I use with this GPU Dock?

A: The dock supports any PCIe-interface card — including compute cards, capture cards, and similar devices — as long as they operate within the 75W power envelope. Both full-height and half-height cards are supported thanks to the included bracket set.

Q: What makes the JHL7440 chip better than older Thunderbolt controllers?

A: The JHL7440 chip overcomes the bandwidth limitations found in both the JHL6xxx series (capped at 22 Gbps) and the PCIe restrictions of the JHL8xxx series. It achieves a true 32 Gbps PCI-E 3.0 x4 transfer speed, unlocking significantly faster data throughput for external graphics and compute tasks.

Q: Does the TH3P4 Lite GPU Dock support daisy-chaining or USB hub functions?

A: No — the TH3P4 Lite is purpose-built for maximum PCIe bandwidth. Daisy-chaining, USB hub functionality, and PD charging are not supported on this model, keeping the focus on delivering the fastest possible external GPU connection.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
