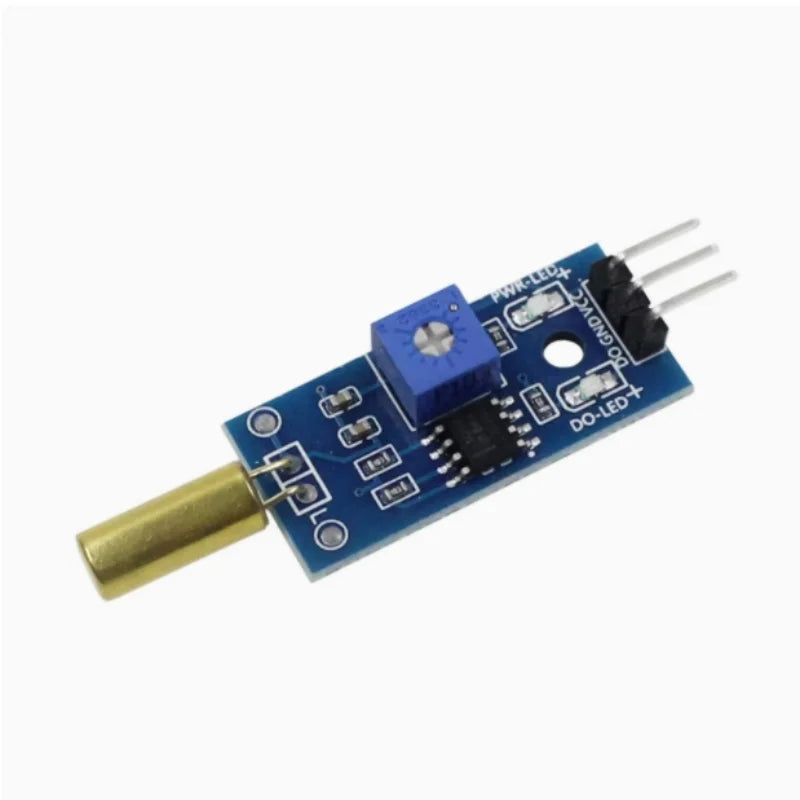

SW-520D Angle Tilt Sensor Module with Ball Switch

The SW-520D Angle Tilt Sensor Module is a compact, reliable component designed for DIY electronics, microcontroller projects, robotics, and prototyping. Using an internal conductive ball mechanism, it detects changes in angle and vibration, triggering a digital signal to your microcontroller (Arduino, Raspberry Pi, ESP8266, and more). It's an essential building block for motion-detection circuits, alarm systems, position-sensing devices, and interactive gadgets.

Key Features

SW-520D Ball Switch Technology: Reliable angle and vibration detection via a rolling conductive ball inside the sensor housing.
Microcontroller Compatible: Works seamlessly with Arduino, Raspberry Pi, ESP8266/ESP32, STM32, and most 3.3V/5V logic platforms.
Digital Output: Provides a clean HIGH/LOW signal — easy to read and integrate into any digital circuit.
Onboard Indicator LED: Visual feedback when the sensor is triggered, great for testing and debugging.
Adjustable Sensitivity: Onboard potentiometer lets you fine-tune the trigger threshold to suit your project needs.
Compact & Breadboard-Friendly: Small PCB footprint fits neatly onto breadboards and inside enclosures.
2 Color Options: Available in two variants to suit your build aesthetic.
Wide Application Range: Ideal for tilt alarms, vibration detectors, anti-tamper sensors, interactive toys, and automation projects.

Specifications

Sensor Type: SW-520D Ball Tilt Switch
Operating Voltage: 3.3V – 5V DC
Output Type: Digital (HIGH/LOW)
Interface: 3-pin (VCC, GND, DO)
PCB Size: ~32mm x 14mm (compact module)

What's in the Box

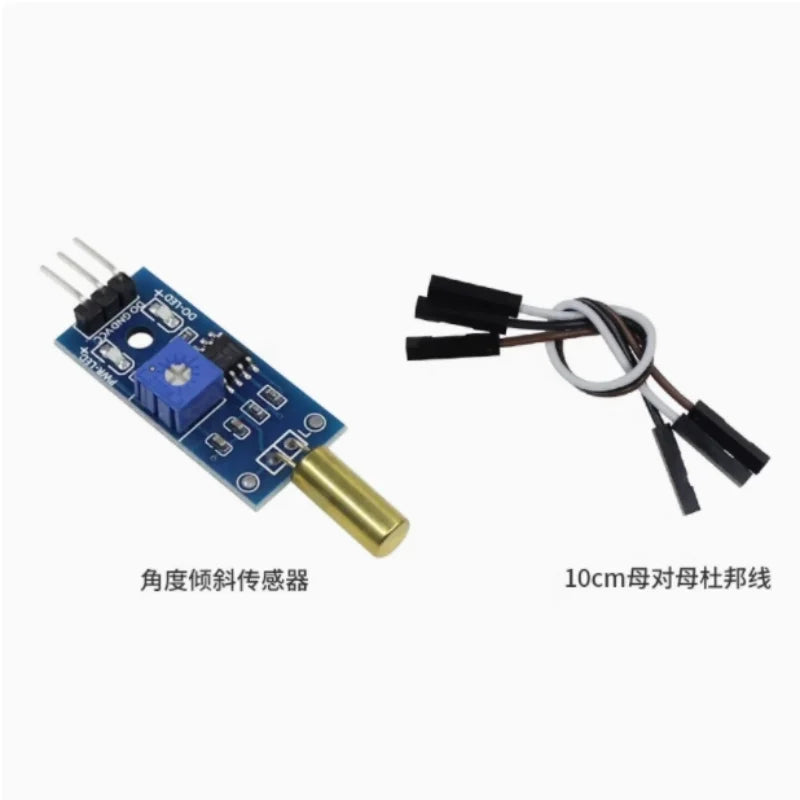

1 × SW-520D Angle Tilt Sensor Module

Great for These Projects

Whether you're building a tilt-triggered alarm, a vibration-sensitive counter, a motion-activated light, or an interactive prototype, the SW-520D module delivers consistent, repeatable performance. Its plug-and-play simplicity makes it a go-to choice for hobbyists, students, and engineers alike.

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does the SW-520D Angle Tilt Sensor Module detect?

A: The SW-520D Tilt Sensor Module detects changes in angle and vibration. When the module is tilted beyond a set threshold or experiences vibration, the internal conductive ball rolls and completes or breaks the circuit, sending a digital HIGH or LOW signal to your microcontroller.

Q: Which microcontrollers is the SW-520D sensor module compatible with?

A: The SW-520D Angle Tilt Sensor Module is compatible with virtually any 3.3V or 5V microcontroller, including Arduino (Uno, Nano, Mega), Raspberry Pi, ESP8266, ESP32, STM32, and similar platforms. Simply connect VCC, GND, and the digital output (DO) pin to get started.

Q: Can I adjust the sensitivity of the tilt sensor module?

A: Yes! The module features an onboard potentiometer that allows you to fine-tune the sensitivity threshold. This lets you control how much tilt or vibration is required to trigger the digital output signal, making it versatile across a wide range of project applications.

Q: What are common uses for the SW-520D Ball Switch Tilt Sensor?

A: Common applications include tilt-triggered alarms, anti-tamper detection, vibration-sensing circuits, position indicators, interactive toys, robotics balance detection, and DIY home automation projects.
