SS23E04 Double Toggle Switch 8-Pin 2P3T DP3T – 10–50pcs

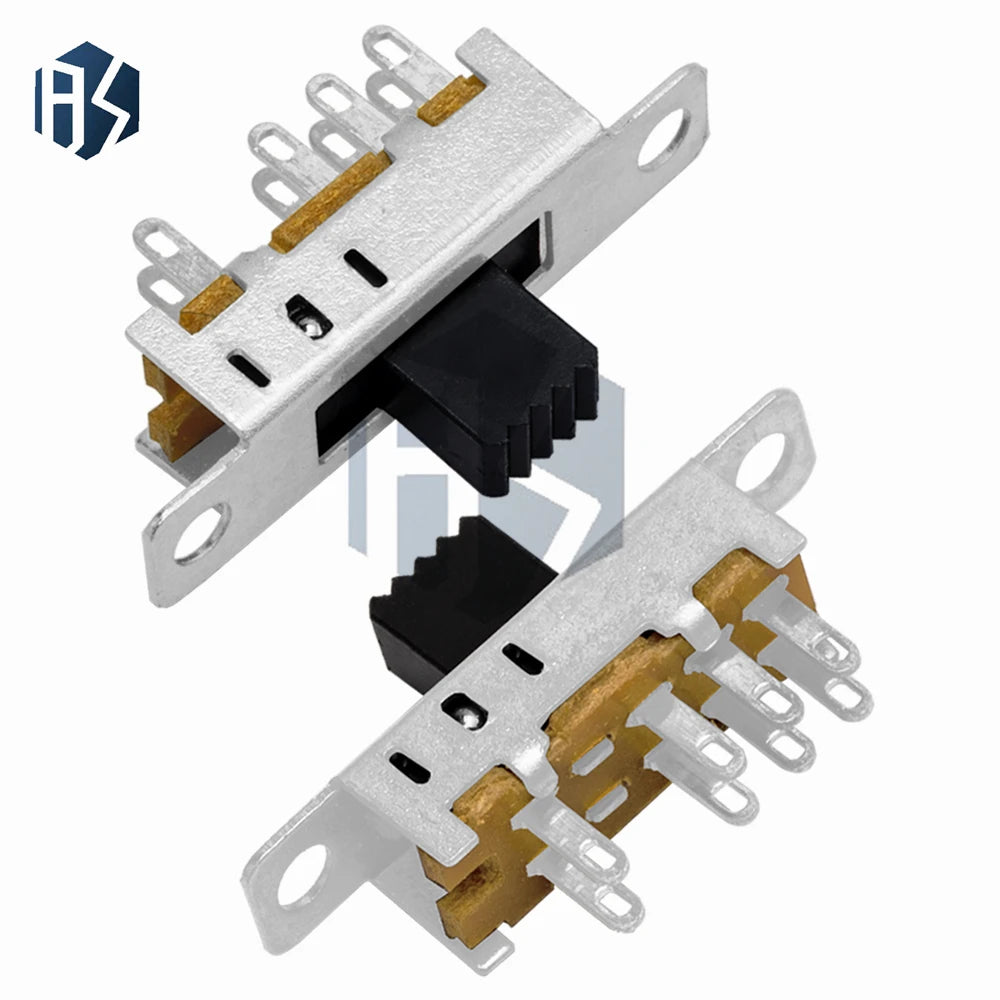

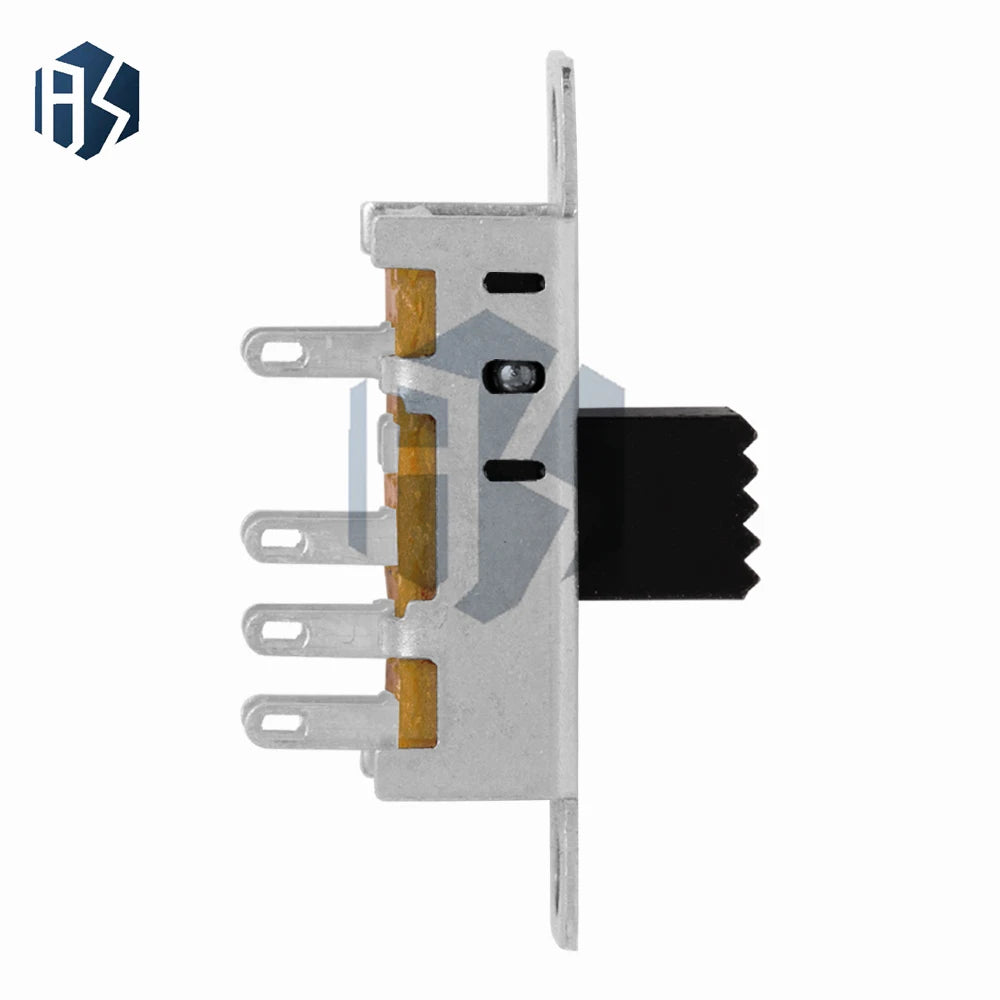

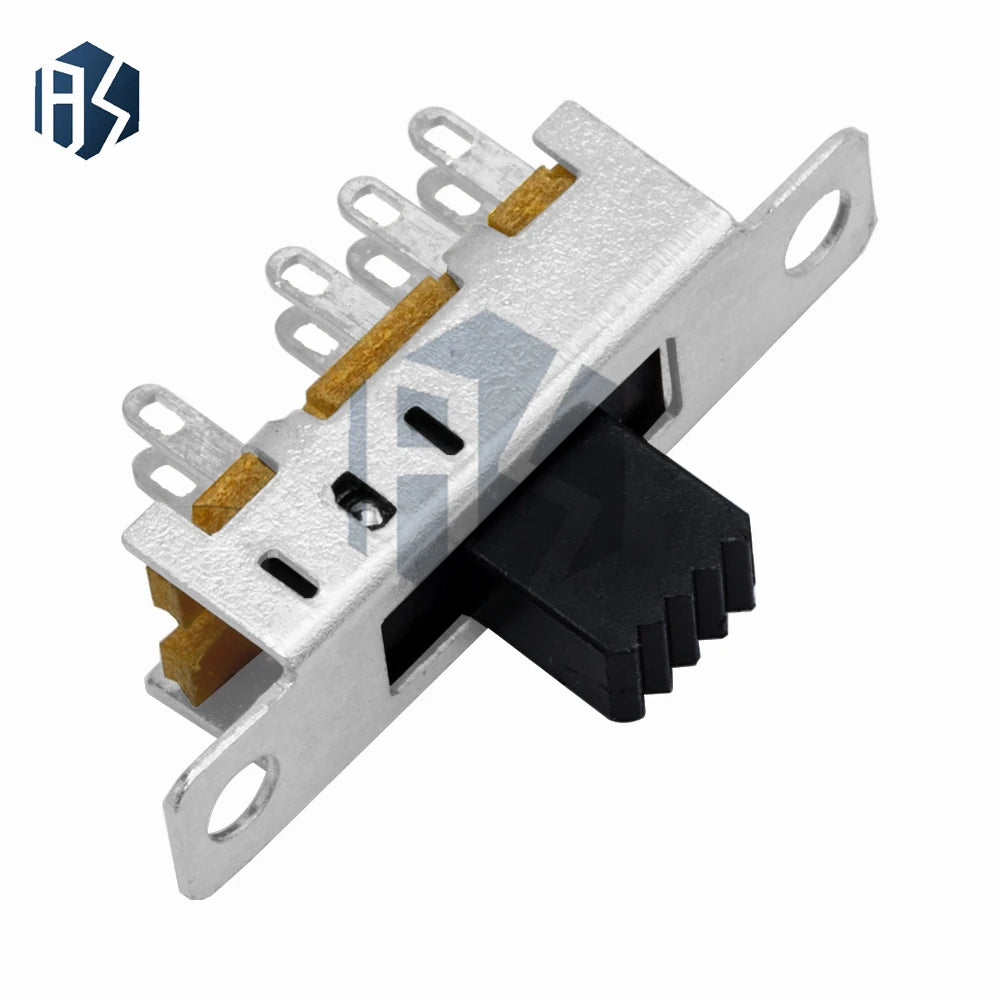

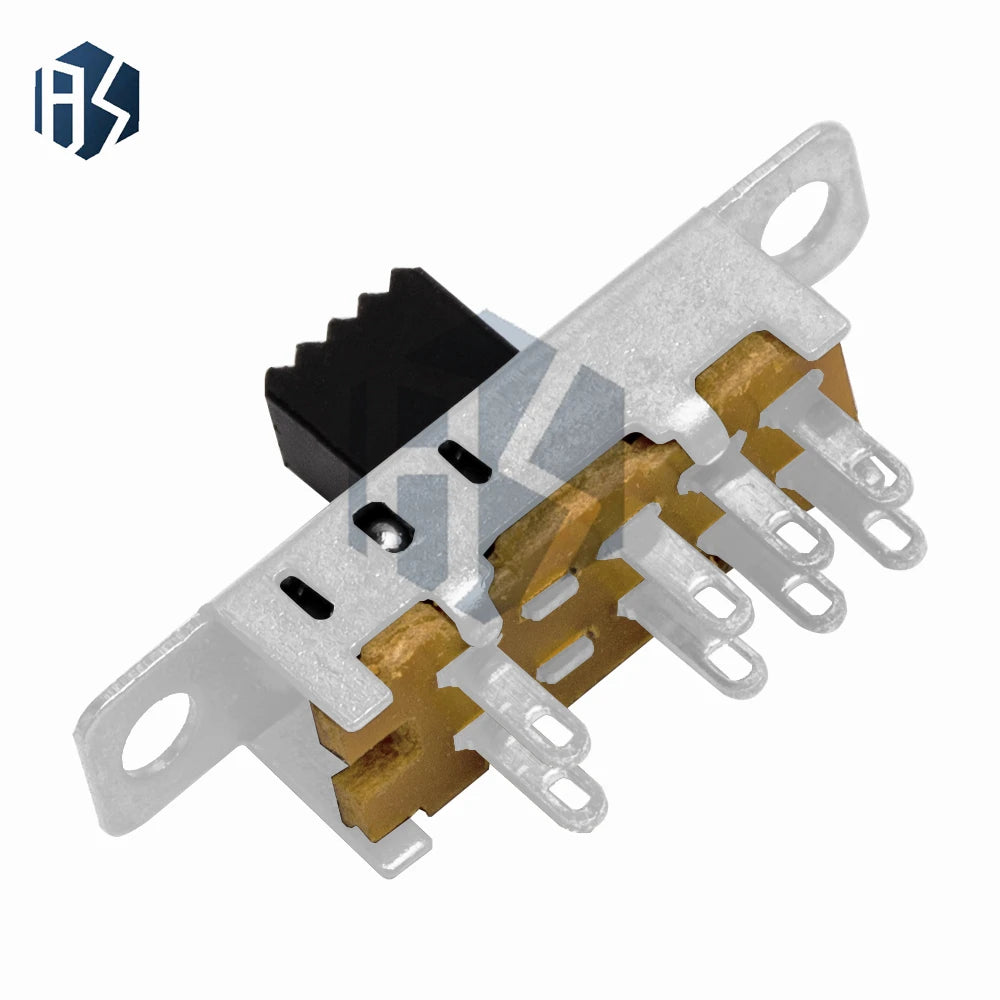

SS23E04 Double Toggle Switch – 8-Pin 2P3T DP3T Slide Switch

Keep your electronics projects running smoothly with the SS23E04 Double Toggle Switch. This compact, reliable 2P3T (DP3T) 3-position slide switch features 8 pins and a small, ergonomic handle — perfect for DIY electronics, computer builds, hobbyist circuits, and prototype boards. Available in convenient multi-packs (10, 20, 30, 40, or 50 pieces) so you always have spares on hand.

Key Features

• Configuration: Double Pole 3 Throw (2P3T / DP3T) — 3 switching positions for versatile circuit routing
• Pin Count: 8 pins for secure, stable PCB mounting
• Rated Load: DC 50V, 0.5A — suitable for low-voltage electronic circuits
• Withstand Voltage: AC 5000V / 1 min — built for durability and safety
• Contact Resistance: 30mΩ MAX — ensures low-loss, reliable connections
• Insulation Resistance: 500MΩ MIN at 500V DC — excellent electrical isolation
• Operating Temperature: -25°C to +85°C — performs across a wide temperature range
• Compact Handle Design: Small form factor fits tight spaces on PCBs and enclosures
• Condition: Brand new, high-quality construction
• Package: DIY Kit — bulk multi-pack options (10 / 20 / 30 / 40 / 50 pcs)

Specifications

What's in the Pack?

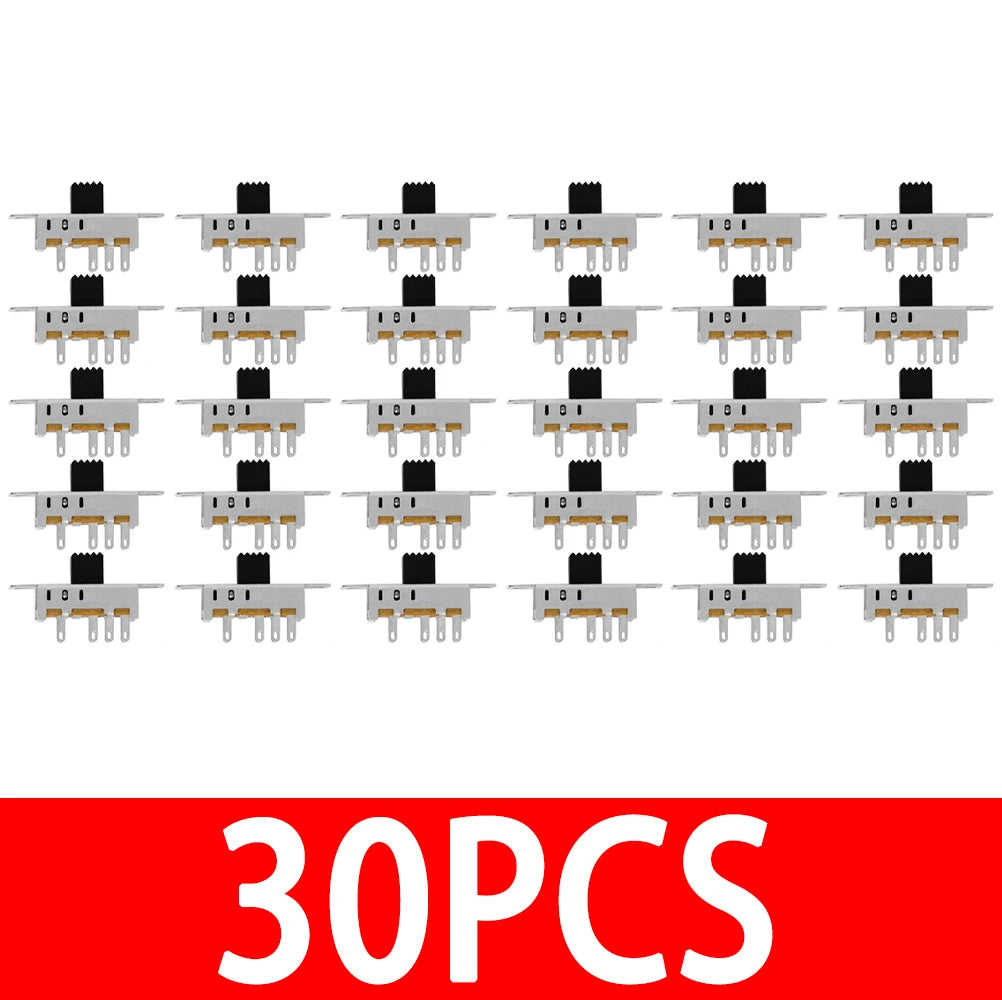

Select your desired quantity at checkout — 10, 20, 30, 40, or 50 pieces of the SS23E04 Double Toggle Switch. Ideal for engineers, hobbyists, students, and makers who want to stock up on dependable switching components.

Great for DIY Projects?

Whether you're wiring up a custom controller, building a circuit prototype, or working on a computer modification, these switches deliver consistent, precise performance. Pair them with other DIY components and explore our related accessories:

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 4/6mm CCB Flat Round Spacer Beads – DIY Jewelry Making 100–200pcs

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does 2P3T (DP3T) mean on the SS23E04 toggle switch?

A: 2P3T stands for Double Pole, 3 Throw. This means the switch can simultaneously control two separate circuits (double pole) and route each to one of three different positions (3 throw). The SS23E04 is ideal for applications where you need to select between three signal or power paths in a compact form factor.

Q: How many pins does the SS23E04 switch have and how is it mounted?

A: The SS23E04 features 8 pins designed for through-hole PCB (printed circuit board) mounting. The pins provide stable mechanical support and reliable electrical connection, making it straightforward to integrate into DIY electronic projects, computer builds, and prototype boards.

Q: What is the rated load and operating voltage for this toggle switch?

A: The SS23E04 is rated for DC 50V at 0.5A, making it suitable for low-voltage electronics and signal switching. It also withstands voltages up to AC 5000V for 1 minute during dielectric strength testing, ensuring a robust and safe construction for your projects.

Q: Can I use the SS23E04 switch for computer or hobbyist electronics projects?

A: Yes! The SS23E04 is specifically suited for computer applications and broader DIY electronics use. Its compact handle size, wide operating temperature range (-25°C to +85°C), and low contact resistance (30mΩ MAX) make it a versatile and dependable choice for hobbyists, engineers, and students alike.
