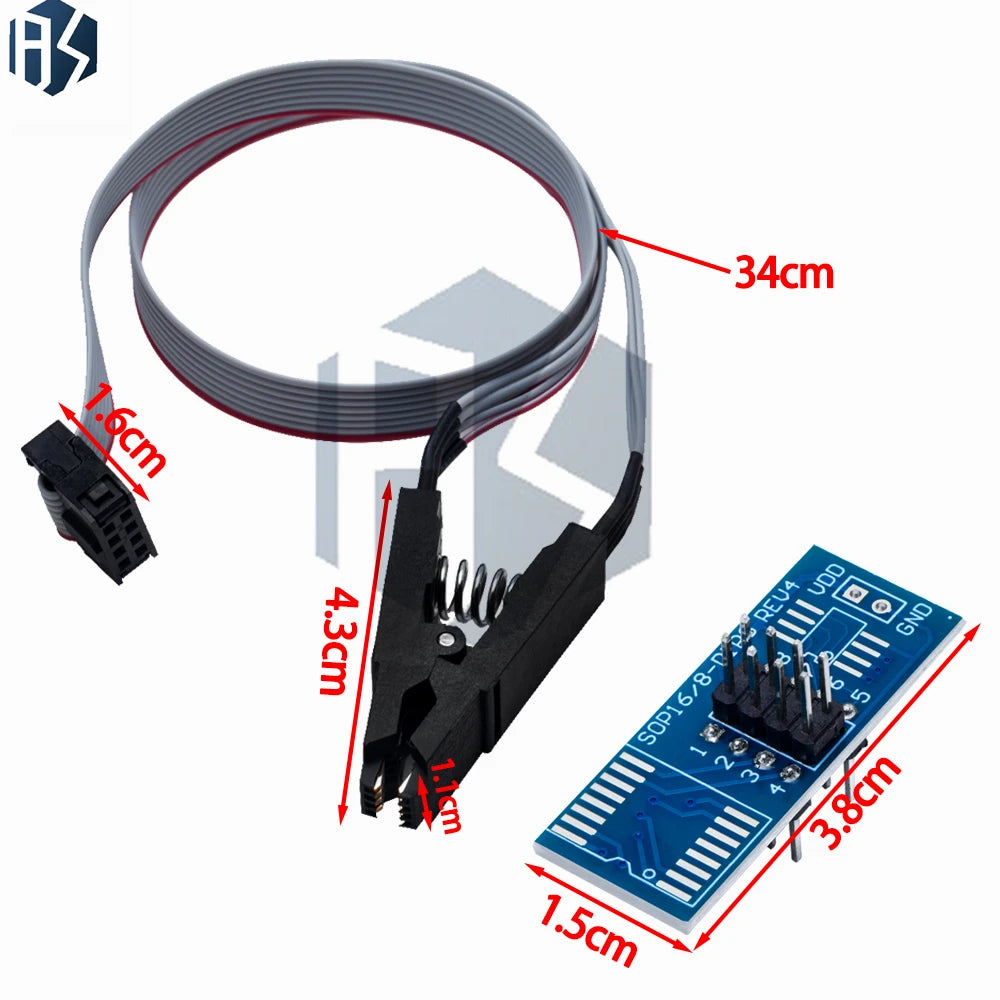

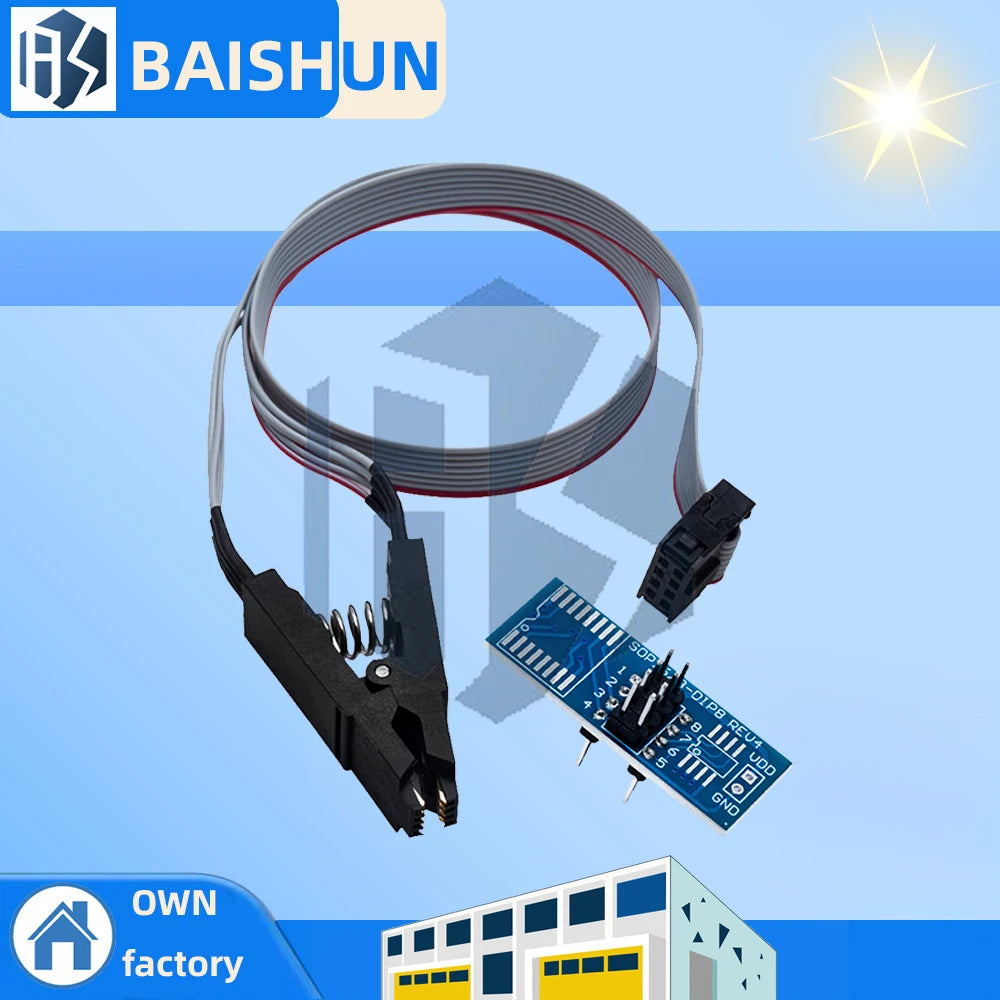

SOIC8 SOP8 Gold-Plated Spring-Loaded Test Clip for EEPROM In-Circuit Programming

Take the hassle out of in-circuit programming with this precision-engineered SOIC8 / SOP8 Test Clip. Featuring gold-plated, spring-loaded contacts, it clamps firmly and reliably onto 8-pin SOIC/SOP surface-mount ICs — no soldering, no desoldering, no risk of damaging your board. Whether you're reading, writing, or verifying EEPROM chips such as 93CXX, 25CXX, and 24CXX series, this clip delivers a solid, low-resistance connection every time.

Why Choose This Test Clip?

Gold-Plated Contacts: Corrosion-resistant gold plating ensures excellent conductivity and long-lasting performance across hundreds of uses.
Spring-Loaded Mechanism: Self-aligning spring tension grips SOIC8/SOP8 chips securely without slipping, giving you a stable connection throughout your programming session.
In-Circuit Use: Program, read, or verify chips directly on the PCB — no need to remove components from the board.
Wide Compatibility: Works with popular EEPROM families including 93C46, 93C56, 93C66, 25C64, 25C128, 24LCxx, and more.
Programmer Compatible: Designed for use with widely-used USB programmers including the TL866CS, TL866A, EZP2010, and similar devices.
SMD Package Ready: Built specifically for standard 8-pin SMD packages, making it ideal for automotive ECUs, alarm systems, and consumer electronics repairs.

Key Specifications

Package Type: SMD (SOIC8 / SOP8)
Contact Finish: Gold-Plated
Mechanism: Spring-Loaded
Compatible Chips: 93CXX / 25CXX / 24CXX EEPROM series
Condition: New

What Can You Use It For?

This test clip is a go-to tool for electronics technicians, hobbyists, and engineers involved in:

Automotive ECU and alarm system chip programming
BIOS and firmware flashing
Consumer electronics repair and data recovery
Prototyping and embedded systems development

Pair It With

Looking to complete your electronics workbench? Check out these related products from our store:

Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire — versatile wire for prototyping and DIY projects
4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100–200pcs — great for cable management and organization crafts
50pcs Gold & Silver Drawstring Jewelry Gift Bags 7x9 9x12cm — handy pouches for storing small electronic components and clips

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Which EEPROM chip families are compatible with this SOIC8 SOP8 test clip?

A: This spring-loaded test clip is compatible with the most common 8-pin SOIC/SOP EEPROM families, including the 93CXX series (e.g. 93C46, 93C56, 93C66), the 25CXX series (e.g. 25C32, 25C64, 25C128), and the 24LCxx series (e.g. 24LC02, 24LC256). If it comes in an 8-pin SOIC or SOP package, this clip will typically fit.

Q: Which USB programmers work with this test clip?

A: This clip is designed to interface with popular USB EEPROM programmers such as the TL866CS, TL866A, and EZP2010, among other compatible devices. It connects via standard flying leads to your programmer's ZIF socket or clip port.

Q: Do I need to remove the chip from the PCB to use this clip?

A: No — that's one of the key advantages of this test clip. The spring-loaded, gold-plated contacts clamp directly onto the chip while it remains on the circuit board, enabling full in-circuit programming without any desoldering.

Q: How durable are the gold-plated contacts?

A: The gold-plated contacts are designed for repeated use. Gold plating resists oxidation and corrosion, maintaining reliable electrical contact across hundreds of clamping cycles under normal working conditions.
