Smart Digital Multimeter – 6000 Counts | AC/DC Voltage, Current & More
Meet your new go-to electrical testing companion. The Smart Digital Multimeter (6000 Counts) is a professional-grade, auto-ranging meter built for electricians, hobbyists, and DIY enthusiasts alike. With a bright LCD backlit display, NCV (non-contact voltage) detection, built-in flashlight, and a rugged silicone sheath, this multimeter is engineered for accuracy and durability in every testing scenario.
Key Features
- 6000-Count LCD Display – High-resolution backlit screen for clear readings in any lighting condition
- Auto-Ranging – Automatically selects the correct measurement range, saving time and reducing errors
- NCV Detection – Non-contact voltage detection for added safety around live wires
- Built-in Flashlight – Illuminate dark workspaces without a second tool
- Data Hold Function – Freeze readings on screen for easy recording
- Auto Power-Off – Shuts off after 15 minutes of inactivity to preserve battery life

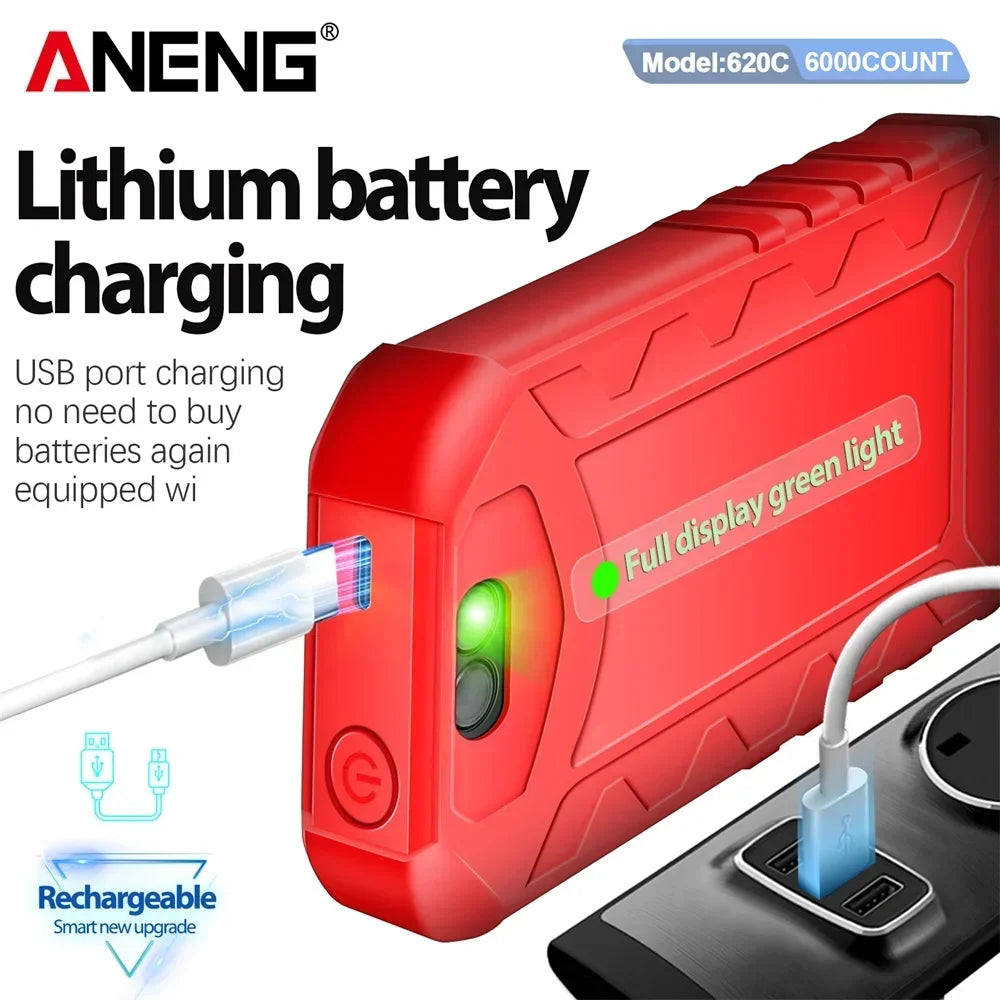

- Rechargeable Lithium Battery (750mAh) – Eco-friendly and always ready to go
- Silicone Sheath & Storage Bag – Protects the meter from drops and keeps accessories organized
- Diode & Continuity Buzzer – Quick circuit testing at your fingertips
- Over-Range Indicator – Displays 'OL' or '−OL' when readings exceed the selected range

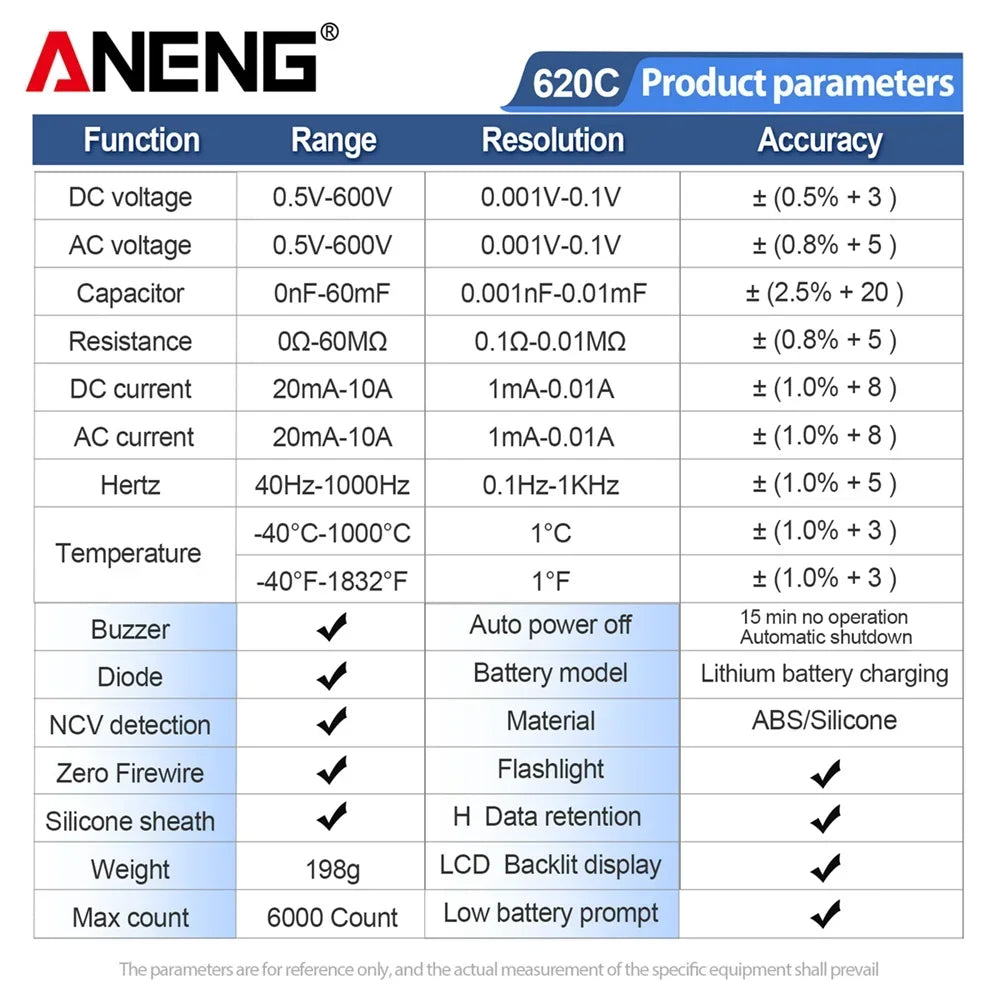

Full Measurement Specifications
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| DC Voltage | 0.5V – 600V | 0.001V – 0.1V | ±(0.5%+3) |
| AC Voltage | 0.5V – 600V | 0.001V – 0.1V | ±(0.8%+5) |
| DC Current | 20mA – 10A | 1mA – 0.01A | ±(1.0%+8) |
| AC Current | 20mA – 10A | 1mA – 0.01A | ±(1.0%+8) |
| Resistance | 0Ω – 60MΩ | 0.1Ω – 0.01MΩ | ±(0.8%+5) |
| Capacitance | 0nF – 60mF | 0.001nF – 0.01mF | ±(2.5%+20) |
| Frequency | 40Hz – 1000Hz | 0.1Hz – 1kHz | ±(1.0%+5) |
| Temperature | −40°C to 1000°C / −40°F to 1832°F | 1°C / 1°F | ±(1.0%+3) |
Technical Specs
- Max Count: 6000
- Sampling Rate: ~3 times per second
- Working Temperature: 0°C – 40°C
- Storage Temperature: −20°C – 60°C
- Temperature Coefficient: <0.1 × accuracy/°C
- Power Source: 750mAh rechargeable lithium battery
- Material: ABS body with silicone protective sheath
What's in the Box
- 1× Digital Multimeter
- 1× Packing box
- 1× Storage bag
- 1× User manual
- 1× Temperature probe line
- 1× Test pen line
- 1× Charging cable
- 1× 16-in-1 combination line (subject to your selected option)
Safety Guidelines
- Never touch the metal probes directly with bare hands during live-circuit testing.
- Do not exceed the maximum rated voltage or current for each measurement range.
- Keep the meter away from moisture and extreme heat sources.
- Inspect test leads for damage before each use.
Looking for more DIY tools and accessories? Check out our Round Aluminum Wire for DIY Projects or browse our Gold & Silver Drawstring Gift Bags for stylish packaging solutions.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What can the Smart Digital Multimeter 6000 Counts measure?
A: This multimeter measures AC and DC voltage (up to 600V), AC and DC current (up to 10A), resistance (up to 60MΩ), capacitance (up to 60mF), frequency (40Hz–1000Hz), and temperature (−40°C to 1000°C). It also features diode testing, continuity buzzer, and NCV (non-contact voltage) detection — making it one of the most versatile handheld testers available.
Q: Does the Smart Digital Multimeter come with a battery and charging cable?
A: Yes. The multimeter is powered by a built-in 750mAh rechargeable lithium battery and includes a charging cable in the package. An auto power-off feature activates after 15 minutes of inactivity to extend battery life.
Q: Is the Smart Digital Multimeter suitable for beginners?
A: Absolutely. The auto-ranging function automatically selects the correct measurement range, removing the guesswork for new users. The bright backlit LCD, intuitive controls, and included manual make it easy to get started right away. Always follow the safety guidelines in the manual and avoid touching metal probe tips during live testing.
Q: What is NCV detection and how does it work on this multimeter?
A: NCV stands for Non-Contact Voltage detection. The multimeter can sense the presence of AC voltage in a wire or outlet without the probes making direct contact, adding an extra layer of safety when working around potentially live circuits. Simply bring the tip of the meter near a wire and the device will alert you if voltage is present.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
