RJ45 Multi-Network Interface Module 8/16 Bus RS485 Modbus

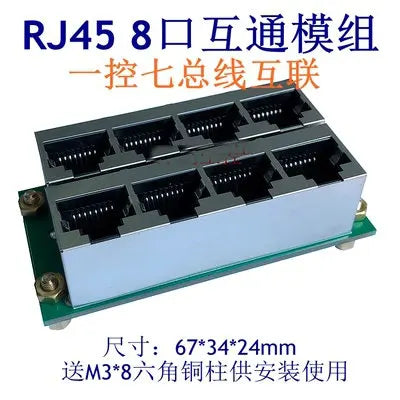

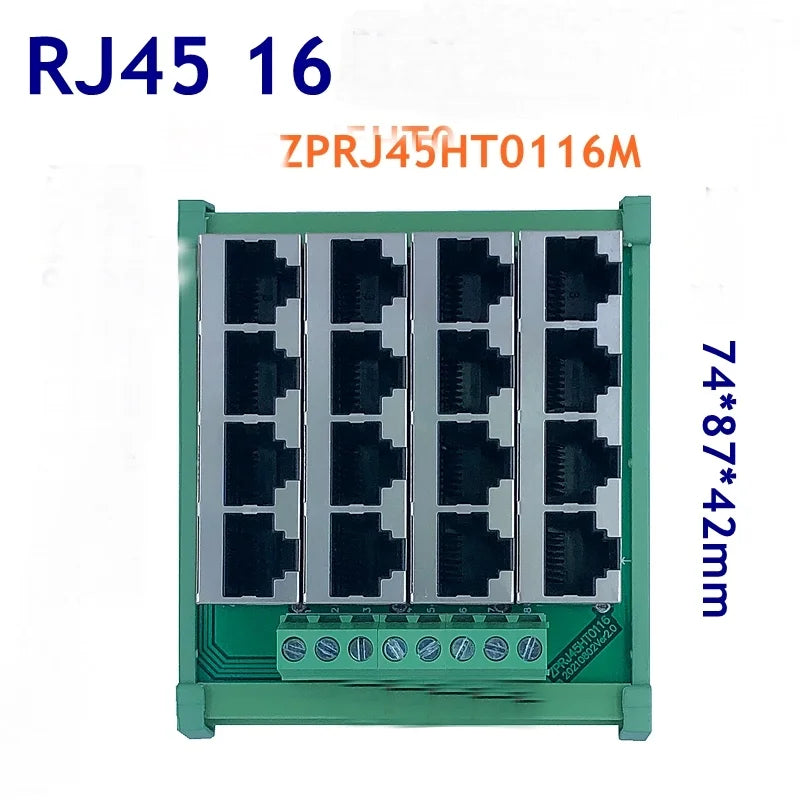

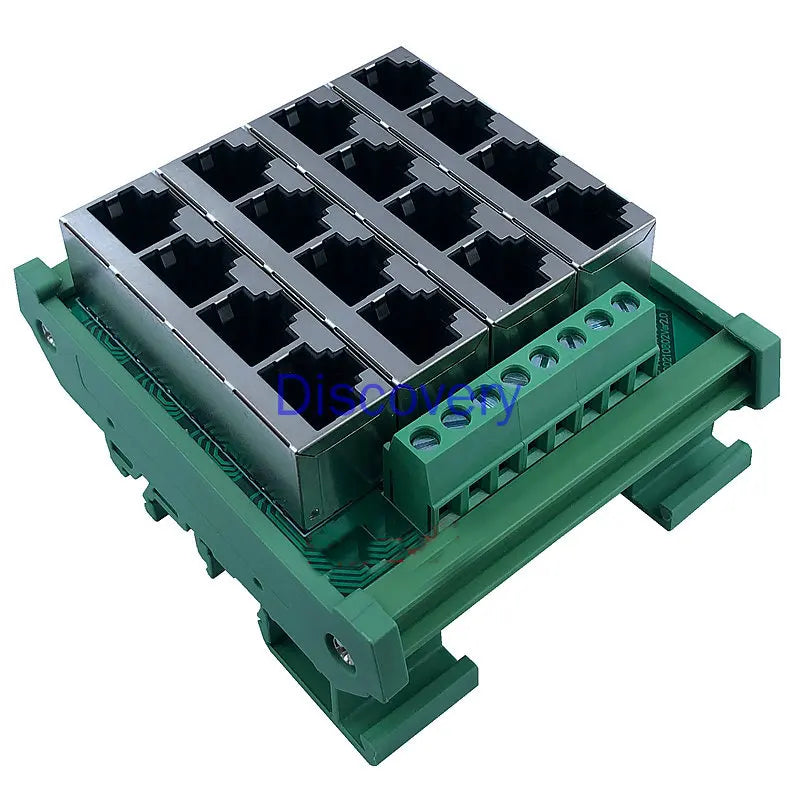

RJ45 Multi-Network Interface Module – 8/16 Bus RS485 Modbus Communication Hub

Upgrade your industrial networking setup with this versatile RJ45 Multi-Network Interface Module. Supporting both 8-bus and 16-bus configurations, this module leverages the RS485 Modbus protocol to deliver reliable, long-distance serial communication across a wide range of automation, control, and monitoring applications.

Key Features

• RS485 Modbus Protocol: Industry-standard serial communication for robust, noise-resistant data transmission over long cable runs
• 8 or 16 Bus Support: Flexible bus configuration to suit small-scale and larger multi-device network topologies
• RJ45 Interface: Standard connector for fast, secure, tool-free connections — compatible with standard Cat5/Cat6 cabling
• Multi-Network Capability: Connects and coordinates multiple devices or nodes on a shared communication bus
• Compact Module Design: Easy to integrate into control panels, DIN rail enclosures, or custom electronics builds
• Plug-and-Play Ready: Designed for quick deployment with minimal configuration

Ideal Applications

• Industrial automation and PLC communication networks
• Building management and HVAC control systems
• Smart home and IoT device integration
• Energy monitoring and metering systems
• DIY electronics and prototyping projects

Specifications

• Connector Type: RJ45
• Protocol: RS485 / Modbus
• Bus Configuration: 8-Bus / 16-Bus
• Communication Type: Serial (half-duplex)

Related Products You May Also Like

• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 50pcs Gold & Silver Drawstring Jewelry Gift Bags 7x9 9x12cm

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the RJ45 Multi-Network Interface Module 8/16 Bus RS485 Modbus used for?

A: This module is used to establish reliable RS485 Modbus serial communication networks, connecting multiple devices or sensors across 8 or 16 bus lines. It is widely used in industrial automation, building control systems, IoT infrastructure, and electronics prototyping.

Q: What is the difference between the 8-bus and 16-bus configurations?

A: The 8-bus version supports up to 8 individual network nodes or device connections on the communication bus, while the 16-bus version doubles that capacity — ideal for larger, more complex multi-device networks requiring more simultaneous connections.

Q: Is this module compatible with standard Cat5/Cat6 Ethernet cables?

A: Yes. The RJ45 connector on this module is compatible with standard Cat5 and Cat6 network cables, making cabling simple and cost-effective. Note that while the connector is RJ45, the module communicates via RS485 Modbus protocol — not standard Ethernet TCP/IP.

Q: What devices or controllers can I use with this RS485 Modbus module?

A: This module is compatible with any controller or device that supports the RS485 Modbus RTU/ASCII protocol, including PLCs, Raspberry Pi, Arduino, STM32 microcontrollers, and a wide range of industrial sensors and actuators.
