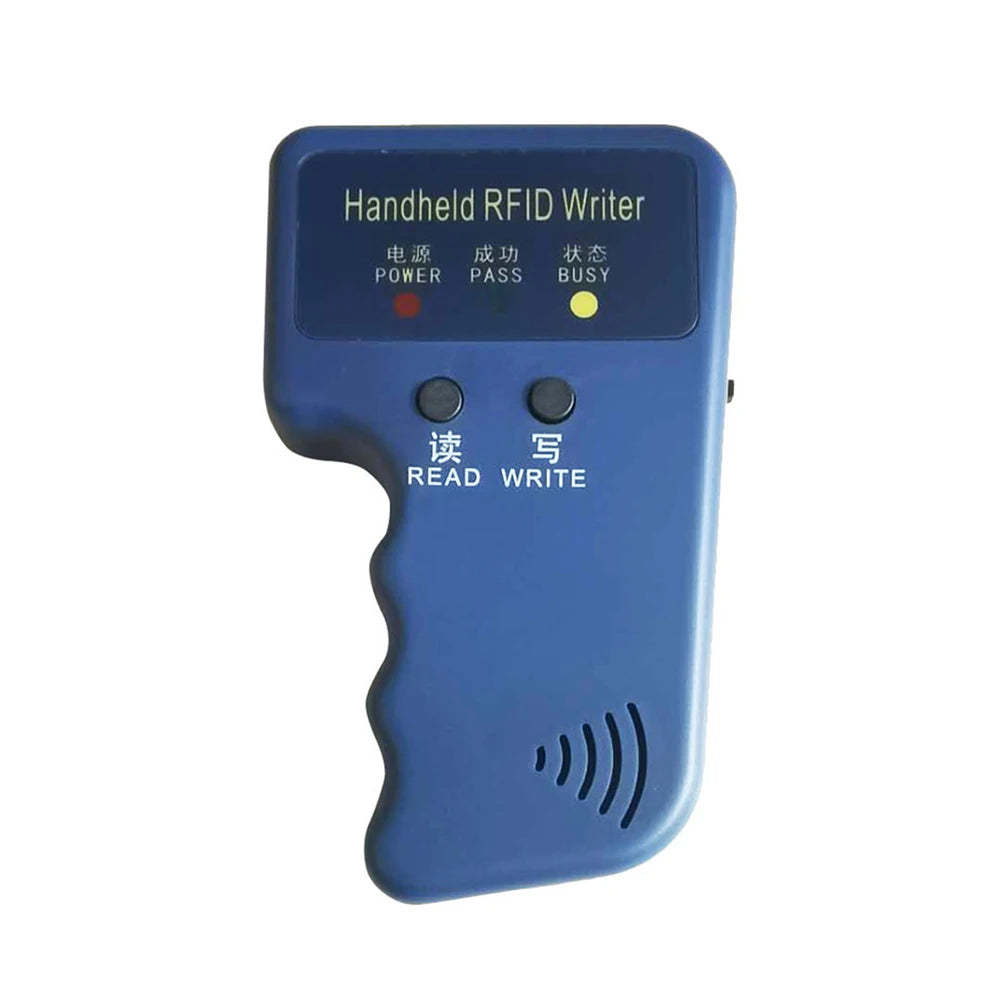

RFID 125KHz Handheld Copier Reader & Writer

Take full control of your 125KHz RFID access cards and key fobs with this compact, standalone handheld duplicator. Whether you need to back up an existing card or program a blank T5577/EM4305 tag, this device makes the process fast, simple, and completely PC-free — though USB connectivity is available when needed.

Key Features

Standalone Operation: No PC or software required — just two buttons and built-in LED/buzzer indicators guide you through every step.
Wide Compatibility: Reads EM4100 and TK4100 cards/fobs; writes to T5577, EM4305, CET5557, CET5200, and EM4205 blanks.
Reading Range: 0–6 cm induction distance for reliable, close-range reads.
USB Plug & Play: Connects to Windows 2000, XP, 7, 8, and 10 via USB cable — driverless, no installation needed.
Durable & Long-Lasting: Rated for over 20,000 read/write cycles.

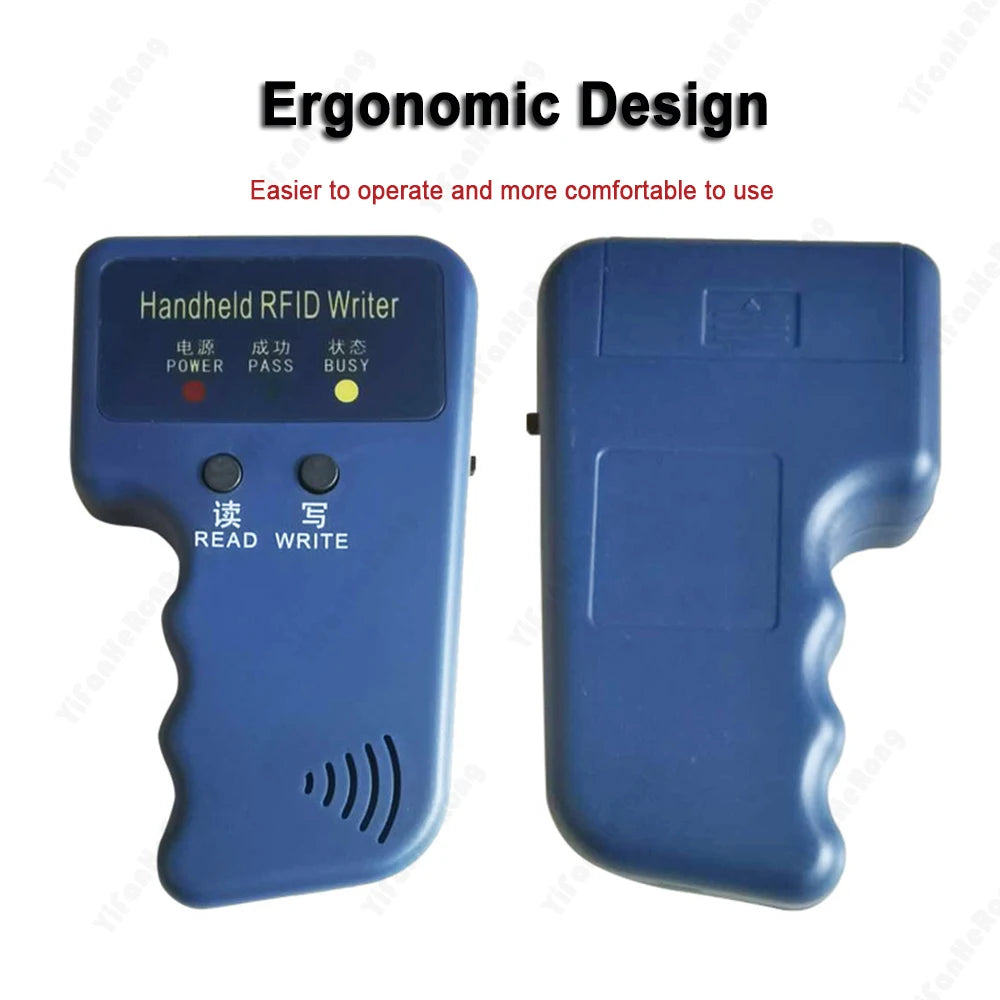

Ergonomic Design: Slim handheld form factor (115 × 70 × 30 mm, 85 g) fits comfortably in your hand for extended use.
Visual & Audio Feedback: Green LED + buzzer confirms a successful read; yellow LED + buzzer confirms a successful write.
Power: 2 × AAA batteries (3V) — batteries not included.

Technical Specifications

Frequency	125 KHz only
Read Formats	EM4100, TK4100 (and compatible)
Write Formats	T5577, EM4305, CET5557, CET5200, EM4205
Reading Distance	0–6 cm
Connection	USB (Plug & Play, driverless)
Power Supply	3V (2 × AAA batteries, not included)
Read/Write Cycles	> 20,000 times
Dimensions	115 × 70 × 30 mm
Weight	85 g

How to Use

Step 1 — Read a Card

Place your EM4100 or TK4100 card/fob in the induction area and hold the left (Read) button. A green LED flash + buzzer tone confirms a successful read. A blinking power light indicates the read was unsuccessful — reposition the card and try again.

Step 2 — Copy to a Blank Card

After a successful read, place a compatible blank card (T5577, EM4305, etc.) in the induction area and hold the right (Copy) button. A yellow LED flash + buzzer tone confirms a successful write. A blinking power light indicates the copy was unsuccessful.

What's in the Box

1 × RFID 125KHz Handheld Copier Reader/Writer
Note: No batteries, cards, or tags included. No retail box — item is securely packed.

Available Options

Writer Only
Writer + 5 Key Fobs Bundle

Frequently Asked Questions

Q: What RFID card formats does this 125KHz copier support?

A: This RFID handheld copier reads EM4100 and TK4100 format cards and key fobs. For writing, it is compatible with blank T5577, EM4305, CET5557, CET5200, and EM4205 cards/tags. It operates exclusively at 125KHz — it cannot read or write 13.56MHz (HF) cards.

Q: Do I need a computer to use this RFID duplicator?

A: No — this RFID copier writer operates completely standalone using just 2 × AAA batteries (not included) and its two onboard buttons. A USB connection to a PC is also available (Plug & Play, driverless on Windows XP through 10) for additional functionality, but is not required for basic read/copy operations.

Q: Why might a copied card fail to work in an access control system?

A: Some access control systems use firewalls, rolling codes, or special encryption chips that prevent standard duplication. If a copied card swipes only once or does not work at all, the system likely has anti-duplication measures in place. We recommend confirming your card type and access system compatibility before copying. Cards or tags are not included with the duplicator.

Q: Can this device copy cards at frequencies other than 125KHz?

A: No. This duplicator is designed specifically for 125KHz RFID cards and tags only. ID cards can come in various frequencies (125KHz, 250KHz, 350KHz, 500KHz). If your card operates at a different frequency, this device will not be able to read or copy it. Ensure your cards are confirmed 125KHz before purchasing.
