10A PWM DC Motor Speed Controller – Precise Variable Speed Control for 12V–30V DC Motors

Take full command of your DC motors, fans, and LED lights with this compact and reliable PWM DC Motor Speed Controller. Designed for 12V to 30V systems with a maximum current of 10A, this adjustable speed regulator delivers smooth, stepless control for a wide range of low-voltage DC applications — from workshop equipment to DIY electronics projects.

Key Features

Wide Voltage Range: Compatible with 12V, 24V, and any DC voltage from 12V to 30V — highly versatile for different setups.
High Current Capacity: Handles up to 10A, making it well-suited for driving high-power DC motors and fans.
PWM Technology: Pulse Width Modulation ensures efficient, low-heat speed regulation with minimal energy waste.
Stepless Adjustment: Smooth dial control lets you set the exact speed you need — from near-zero to full power.
Multi-Use Compatibility: Works with DC motors, cooling fans, LED lighting strips, and more.

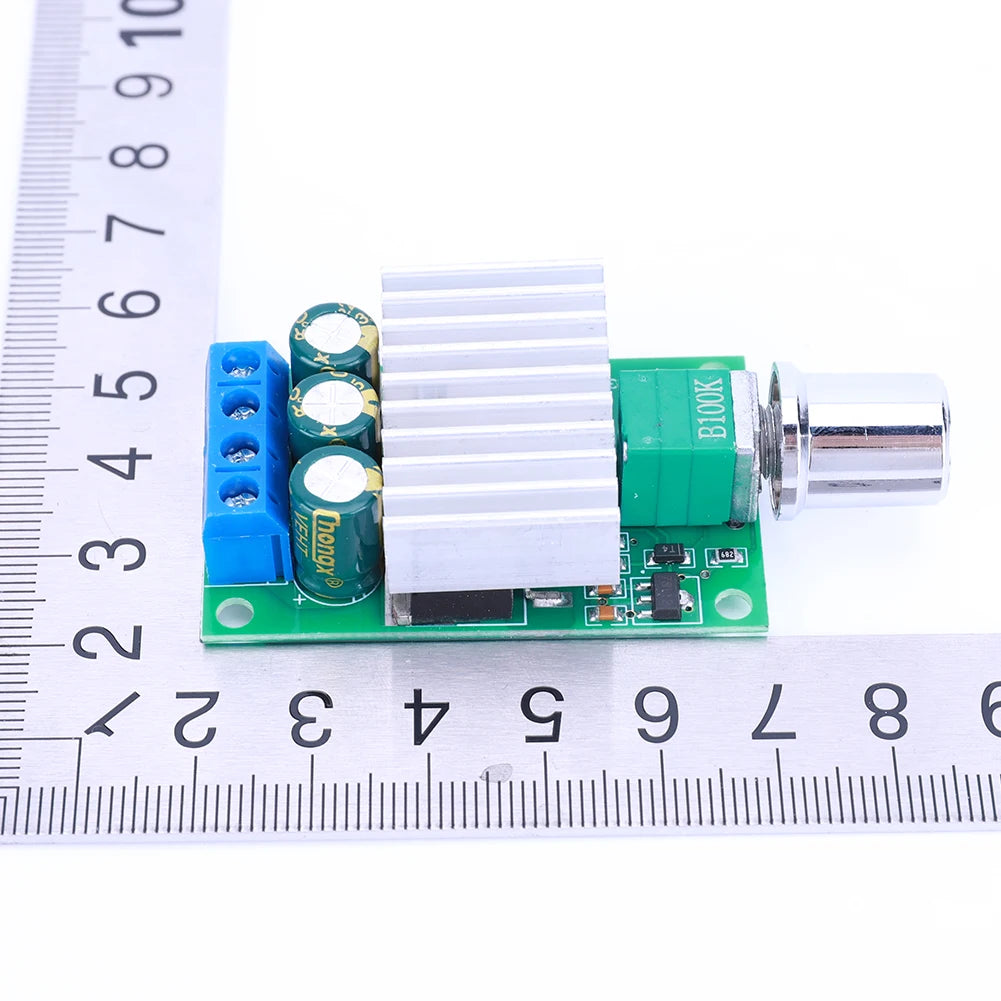

Compact & Sturdy Build: Measures just 65 × 31 × 16 mm (approx. 2.56 × 1.22 × 0.63 inches) — easy to integrate into tight enclosures or control panels.
No Battery Required: Powered directly from your DC supply — no additional power source needed.
Low Voltage Safe: Operates below 50V AC / 75V DC for safe, EU LVD-compliant use.

Product Specifications

Input Voltage	12V – 30V DC
Maximum Current	10A
Control Method	PWM (Pulse Width Modulation)
Compatible Loads	DC Motors, Fans, LED Lights
Dimensions	65 × 31 × 16 mm / 2.56 × 1.22 × 0.63 in
Battery Included	No
Voltage Class	Low Voltage (below 50V AC / 75V DC)

Perfect For

DIY electronics and robotics projects
Fan speed control in computers, enclosures, or ventilation systems
Dimming LED lighting strips or arrays
Variable speed control for small power tools or conveyor motors
Home automation and maker builds

Frequently Asked Questions

Q: What does a PWM DC Motor Speed Controller do?

A: A PWM (Pulse Width Modulation) DC Motor Speed Controller regulates the speed of a DC motor — or the brightness of an LED, or the airflow of a fan — by rapidly switching the power supply on and off. The ratio of on-time to off-time determines how much power the load receives, enabling smooth and efficient stepless speed adjustment without generating excessive heat.

Q: What devices are compatible with this 10A 12V–30V PWM Speed Controller?

A: This controller is compatible with any DC-powered load operating between 12V and 30V and drawing no more than 10A. Common applications include DC motors (pumps, conveyor systems, robotics), cooling fans, and 12V/24V LED light strips. It is not intended for AC-powered devices.

Q: How do I connect and use this PWM motor speed controller?

A: Simply connect your DC power supply (12V–30V) to the input terminals and your motor, fan, or LED to the output terminals. Use the built-in adjustment dial to smoothly increase or decrease speed/brightness. No battery or external circuit is required — it runs directly off your existing DC supply.

Q: Is this speed controller safe for indoor DIY projects?

A: Yes. The controller operates at low voltage (below 50V AC / 75V DC), placing it within EU LVD safety guidelines. Its compact, enclosed form factor and stable PWM regulation make it well-suited for integration into DIY electronics enclosures, control panels, and maker projects.
