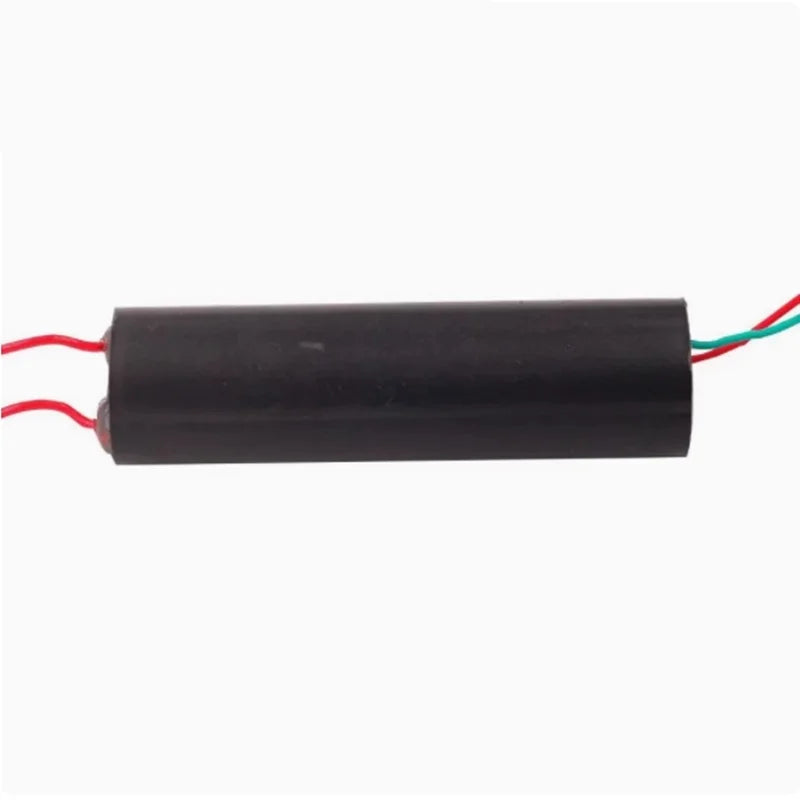

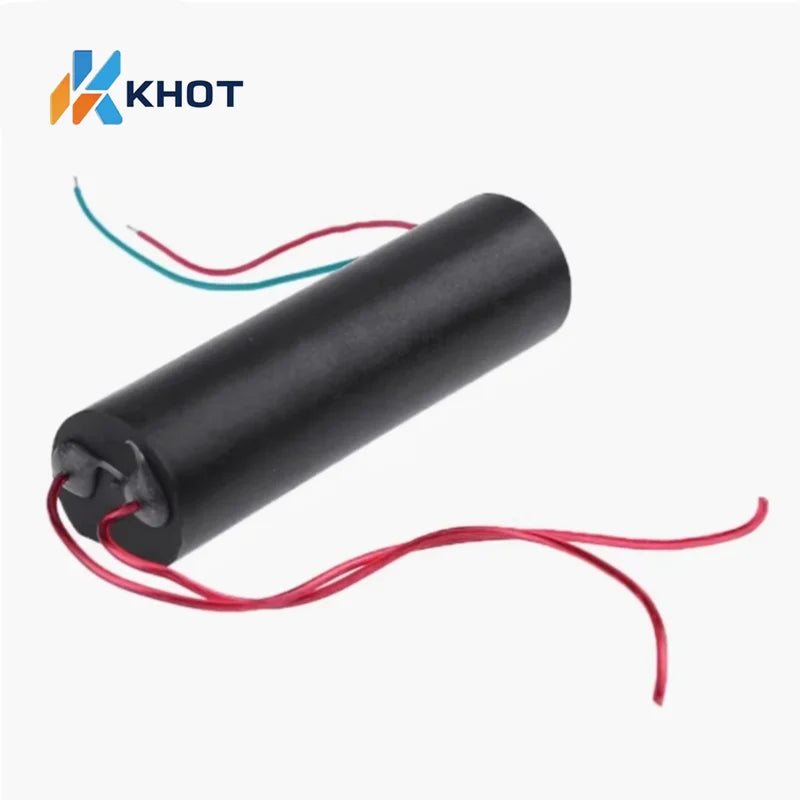

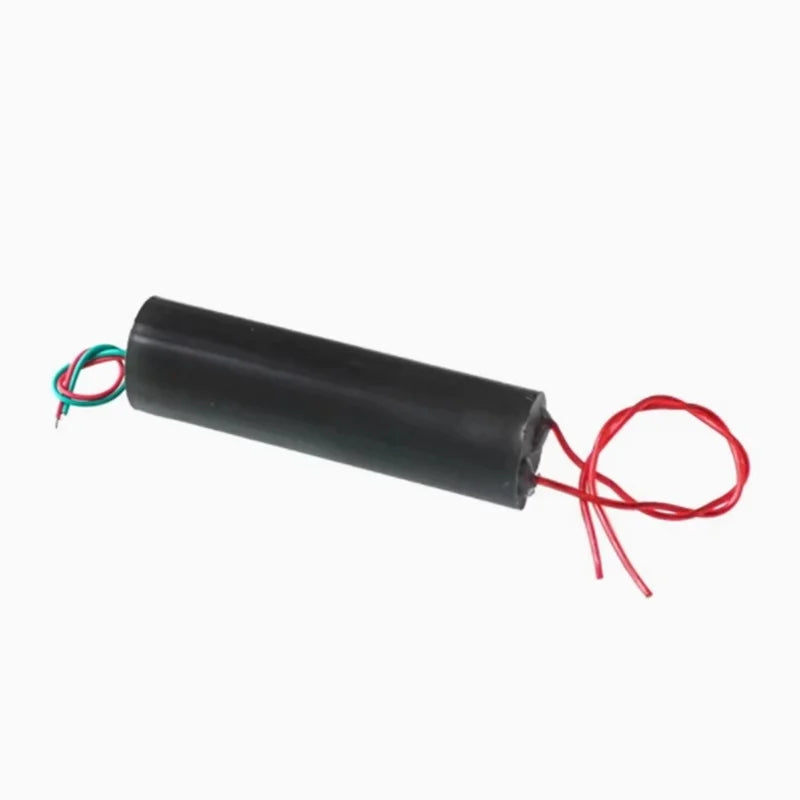

Pulse High-Voltage Inverter 901 DC Module Arc Generator 3–6V

The Pulse High-Voltage Inverter 901 DC Module Arc Generator is a compact, high-efficiency boost converter that transforms a low 3–6V DC input into a powerful high-voltage arc discharge. Whether you're a hobbyist, electronics enthusiast, or engineer experimenting with high-voltage circuits, this module delivers impressive discharge intensity in a surprisingly small package.

Key Features

Wide Input Voltage: Operates on 3V to 6V DC — compatible with standard AA/AAA batteries or small LiPo cells
Compact & Lightweight: Small form factor makes it easy to integrate into DIY projects or experimental setups
Simple Peripheral Circuit: Minimal wiring required — just connect a switch and a battery to get started immediately
Strong Discharge Intensity: Generates a visible, powerful arc with high-voltage output
High Efficiency: Optimized inverter design converts low DC voltage with minimal energy waste
Model: 901 DC Pulse Inverter Module

Specifications

Input Voltage: 3V – 6V DC
Output: High-voltage arc discharge
Circuit Complexity: Low — switch + battery only
Application: DIY electronics, science experiments, high-voltage demonstrations

Who Is This For?

This module is ideal for electronics hobbyists, makers, STEM educators, and curious experimenters who want to explore high-voltage behavior in a hands-on, educational setting. Its plug-and-play simplicity means you spend less time wiring and more time experimenting.

⚠️ Safety Notice: This module generates high-voltage electrical arcs. Always handle with care, keep away from children, and never touch the output terminals while in operation. Use appropriate insulation and follow all electrical safety precautions.

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What does the Pulse High-Voltage Inverter 901 DC Arc Generator Module do?

A: The Pulse High-Voltage Inverter 901 DC Module is a boost converter circuit that takes a low 3–6V DC input and steps it up to generate a high-voltage arc discharge. It is widely used in DIY electronics projects, science demonstrations, and high-voltage experiments due to its strong discharge intensity and simple setup.

Q: What power source does this arc generator module require?

A: This module works with any DC power source in the 3V to 6V range. Standard AA or AAA batteries, button cells in series, or small rechargeable LiPo packs all work perfectly. The peripheral circuit is minimal — just connect a switch and your battery and it's ready to operate.

Q: Is this module safe to use for hobby and experimental projects?

A: The module is designed for use by experienced electronics hobbyists and makers who understand high-voltage safety. Always ensure you do not contact the high-voltage output terminals while the module is powered. Keep out of reach of children and use proper insulation. With the right precautions, it is a highly effective and rewarding component for educational and experimental use.

Q: Can this module be integrated into a larger DIY circuit?

A: Yes. Thanks to its compact size and simple wiring requirements (just a switch and battery), the 901 DC Pulse Inverter Module integrates easily into custom enclosures, experimental rigs, or science project builds. Its high efficiency and strong output make it a popular choice for makers building plasma or arc-based demonstrations.
