PMW3901 Optical Flow Sensor Module XY Translation | SPI

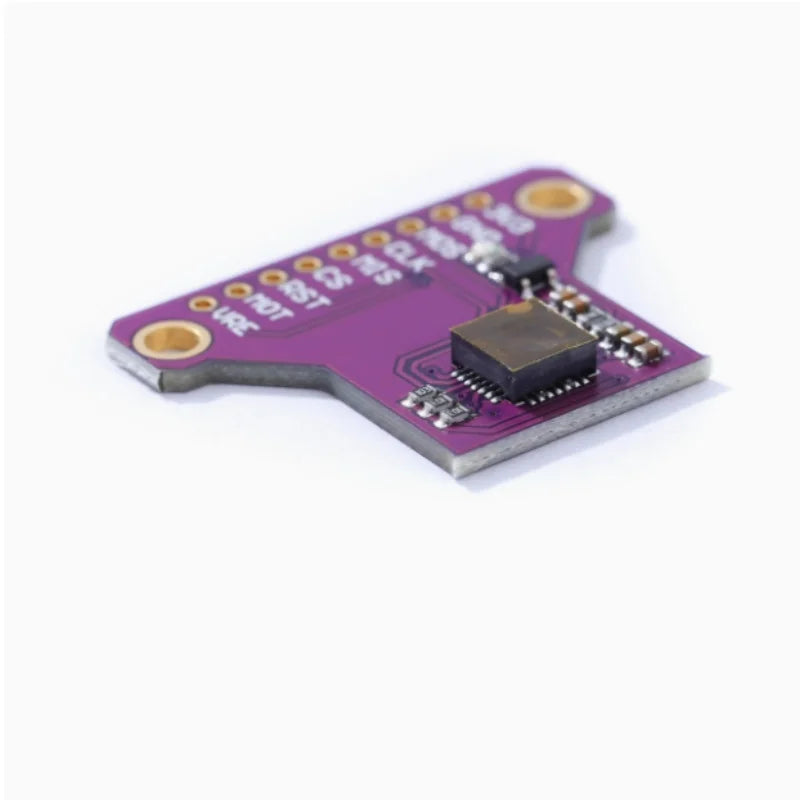

PMW3901 Optical Flow Sensor Module – XY Translation

The PMW3901 Optical Flow Sensor Module is a compact, high-performance sensor designed to detect XY surface translation with exceptional accuracy. Whether you're building a drone, autonomous robot, or motion-tracking project, this module delivers reliable, low-latency motion data to power your next DIY electronics build.

Key Features

• PMW3901 Chip: Industry-proven optical flow sensor capable of detecting XY translational motion with high precision
• SPI Interface: Fast and simple integration with microcontrollers including Arduino, Raspberry Pi, and STM32 platforms
• Wide Operating Range: Performs consistently across varying surface textures and lighting conditions
• Compact Form Factor: Small, lightweight PCB footprint makes it ideal for drones, robotics, and embedded systems
• Low Power Consumption: Efficient design suited for battery-powered applications
• High Frame Rate: Rapid data output for real-time motion feedback and navigation systems
• Plug-and-Play Breakout: Pre-soldered headers for quick prototyping and integration

Specifications

• Sensor: PMW3901MB
• Interface: SPI
• Supply Voltage: 3.3V
• Motion Detection: XY optical flow (surface translation)
• Typical Use Cases: Drones (UAV positioning), robotics, optical mouse controllers, indoor navigation

Applications

• UAV / Drone indoor positioning and stabilization
• Autonomous ground robots for obstacle avoidance and path tracking
• DIY electronics and embedded motion-sensing projects
• Prototyping with Arduino, Raspberry Pi, or other SPI-compatible boards

Related Products You May Like

Expand your sensor toolkit with these complementary components:

• Natural Stone Round Beads – Tiger Eye, Labradorite & Agate
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What does the PMW3901 Optical Flow Sensor Module measure?

A: The PMW3901 module measures XY surface translation — it detects relative motion across a surface by analyzing optical patterns frame by frame, outputting motion data (delta X and delta Y) via SPI communication. It is widely used in drone stabilization and robotics navigation.

Q: What microcontrollers and platforms are compatible with the PMW3901 module?

A: The PMW3901 communicates via a standard SPI interface and is compatible with a broad range of microcontrollers, including Arduino (Uno, Mega, Nano), Raspberry Pi, STM32, and ESP32. Most platforms have community-supported libraries available to simplify integration.

Q: What voltage does the PMW3901 Optical Flow Sensor Module require?

A: The module operates at 3.3V logic and supply voltage. Ensure your development board or circuit provides a regulated 3.3V supply and uses 3.3V logic levels on the SPI lines, or use a level shifter when interfacing with 5V systems.

Q: Is the PMW3901 suitable for indoor drone positioning?

A: Yes — the PMW3901 is one of the most popular sensors for indoor UAV / drone positioning where GPS is unavailable. It provides accurate XY velocity estimation by tracking surface features below the drone, enabling stable hover and precise movement control.
