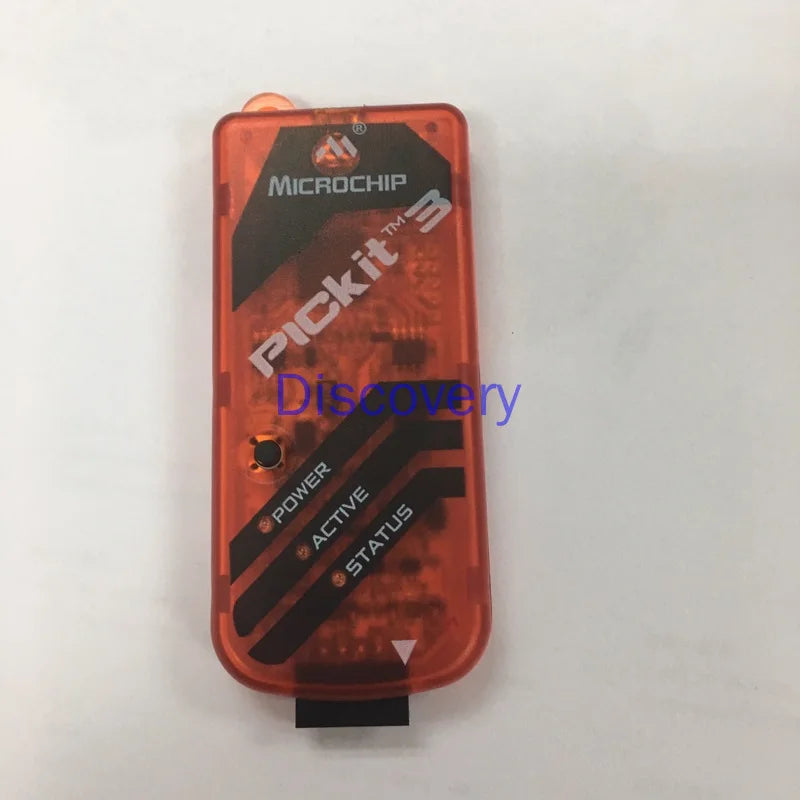

PICKIT3 5 PIC Programmer – Offline Burn, Emulator & Debugging Tool

The PICKIT3 5 PIC Programmer (KIT3/KIT3.5) is a professional-grade in-circuit debugger and programmer designed for Microchip PIC microcontrollers. Whether you're a firmware developer, embedded systems engineer, or working on batch production programming, this tool delivers fast, stable, and reliable performance — both online and completely offline without a PC.

Key Features & Upgrades

Offline Burn / Standalone Programming: Program PIC microcontrollers without a connected computer — ideal for field firmware upgrades and high-volume batch production.
Firmware Self-Recovery: Built-in automatic firmware recovery in minutes via USB power — no housing removal or manual re-flashing required. The STATUS LED (red/green) and ACTIVE LED (blue) guide you through the process.
Compatible with MPLAB IDE & MPLAB X: Fully supports all versions of Microchip's MPLAB and MPLAB X software environments. Multiple KIT3 units can be operated simultaneously.
Faster Programming Speed: Significantly faster download and debugging than ICD2, especially for 16-bit and 32-bit chips.
Unique Serial Number: Each unit carries its own unique serial number for traceability and professional use.
Stable Programming Voltage: High power-supply current output with stable programming voltage; adjustable debug power output (e.g., 3.3V for dsPIC33F) — directly from software.
Enhanced Interface Protection: Features a 1812 self-recovery fuse and robust protection circuitry — short-circuit events will not damage the device.
Frosted Shell Design: Premium frosted transparent housing reduces fingerprints and scratches for a clean, durable finish — a significant upgrade over smooth originals.
Low VPP Chip Support: Supports direct debugging of PIC18FXXK series, PIC16F72X, and other chips where VPP is below 10V — no manual step-down circuit required (a limitation of ICD2).

KIT3 vs. ICD2 – Why KIT3 Wins

16-bit chip download and debugging is more than 2× faster than ICD2
16-bit and 32-bit chip simulation and debugging require KIT3
More reliable USB connectivity — no intermittent disconnection issues common with ICD2
MPLAB IDE provides real-time status hints on plug/unplug — no firmware damage from disconnection
Official open standard circuit design
Adjustable debug power output in software — ICD2 does not support this
Significantly lower price point than ICD2

Manual Firmware Update Steps (MPLAB IDE v8.92)

Go to menu: Programmer → Select Programmer → PICkit3
Go to menu: Programmer → Settings → Configuration
Click Manual Download
Double-click the PK3FW_012890.jam file in the dialog box
Monitor the MPLAB IDE Output status bar for PICkit3 Status until upgrade completes

Self-Recovery Firmware Steps (USB Power Only)

Hold the button before startup
Plug in USB power — do NOT connect the target board
Wait 3–4 seconds for the red/green STATUS LED to flash, then release the button
Wait for the blue ACTIVE LED to flash — this signals recovery is complete
Unplug and re-plug the USB cable — KIT3 is ready to operate normally

What's in the Box

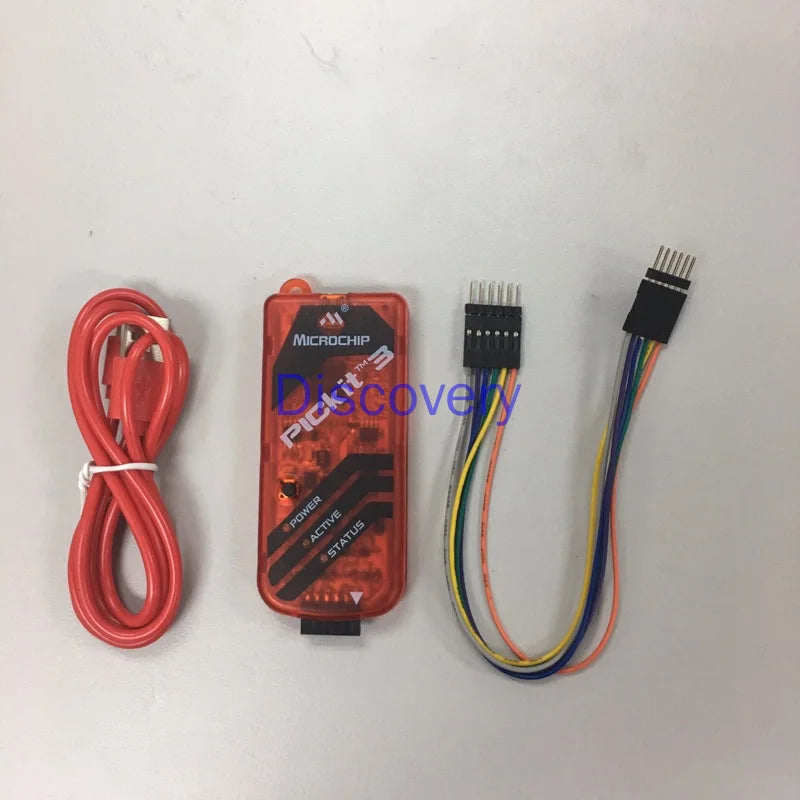

1× PICKIT3 5 / KIT3 PIC Programmer & Emulator Unit
USB Interface Cable

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the PICKIT3 5 PIC Programmer KIT3 used for?

A: The PICKIT3 5 KIT3 is an in-circuit debugger and programmer for Microchip PIC microcontrollers. It is used by embedded developers, engineers, and production teams to download firmware, debug code, and program chips both online (via PC with MPLAB/MPLAB X) and offline (standalone, without a computer). It supports 8-bit, 16-bit, and 32-bit PIC devices.

Q: Does the PICKIT3 5 KIT3 support offline programming without a computer?

A: Yes. One of the standout features of the KIT3 is its offline burn capability. You can load your target firmware onto the device and then use it to program PIC microcontrollers in the field or on a production line without needing a connected PC — making it excellent for batch programming and remote firmware upgrades.

Q: What happens if the KIT3 firmware becomes corrupted?

A: The KIT3 5 features an automatic self-recovery system. By holding the button while plugging in USB power (without the target board connected), the device will recover its firmware automatically within minutes — indicated by flashing STATUS and ACTIVE LEDs. No housing removal or external programmer is required.

Q: Is the PICKIT3 5 KIT3 compatible with MPLAB X?

A: Yes, the KIT3 fully supports all versions of both MPLAB IDE and MPLAB X. Multiple KIT3 units can be operated simultaneously, making it suitable for professional multi-programmer development and production environments.
