0.96"/1.3" OLED Display + EC11 Rotary Encoder Module for Arduino

0.96" / 1.3" OLED Display with EC11 Rotary Encoder Module – IIC Interface

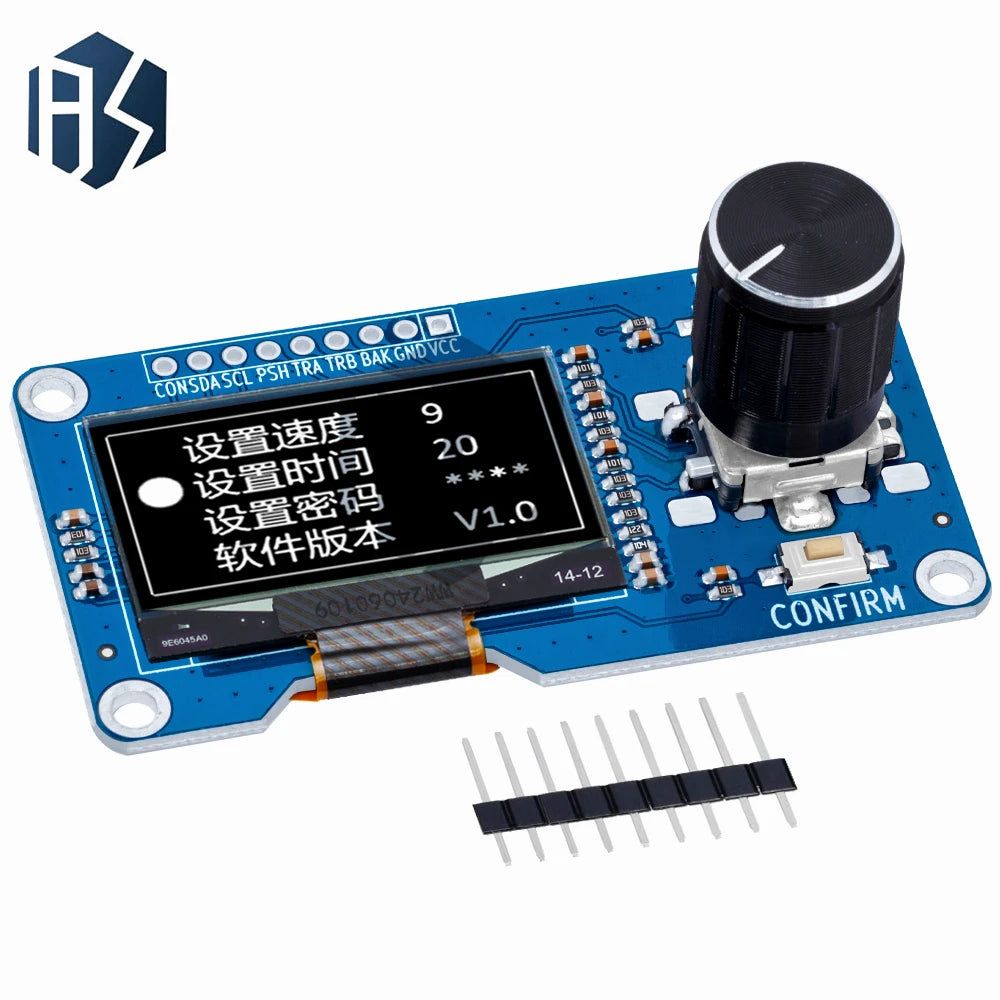

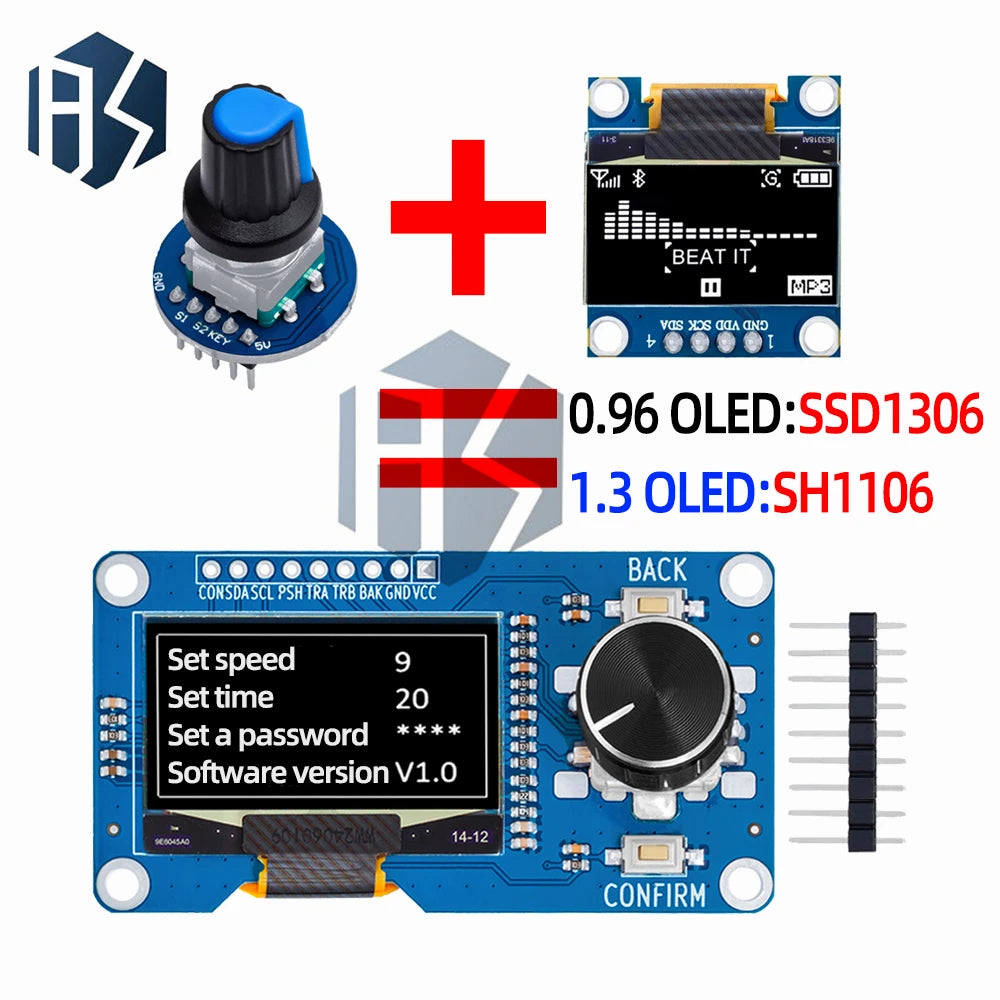

Upgrade your electronics projects with this compact and versatile OLED Display + EC11 Rotary Encoder combo module. Designed for makers, hobbyists, and engineers alike, this all-in-one board combines a crisp 128×64 OLED screen with a fully integrated EC11 rotary encoder — giving you both visual output and intuitive input control in a single, space-saving module.

Whether you're building a custom Arduino menu system, a DIY synthesizer, a smart controller, or any embedded project that needs a clean UI, this module delivers reliable performance with minimal wiring thanks to its IIC (I²C) interface.

Key Features

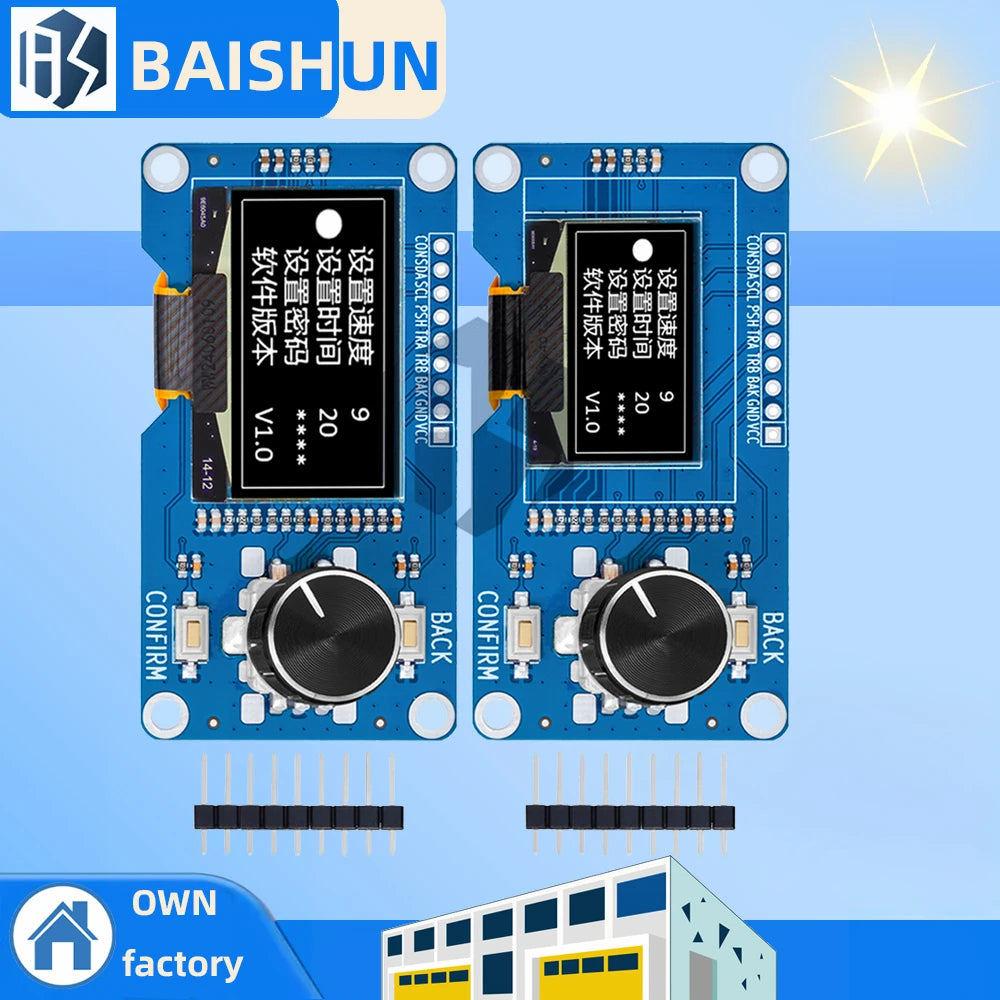

• Dual Size Options: Available in 0.96" and 1.3" OLED screen variants to suit your project's form factor
• High-Contrast OLED Display: 128×64 resolution with sharp white (or blue) pixels on a deep black background — no backlight needed

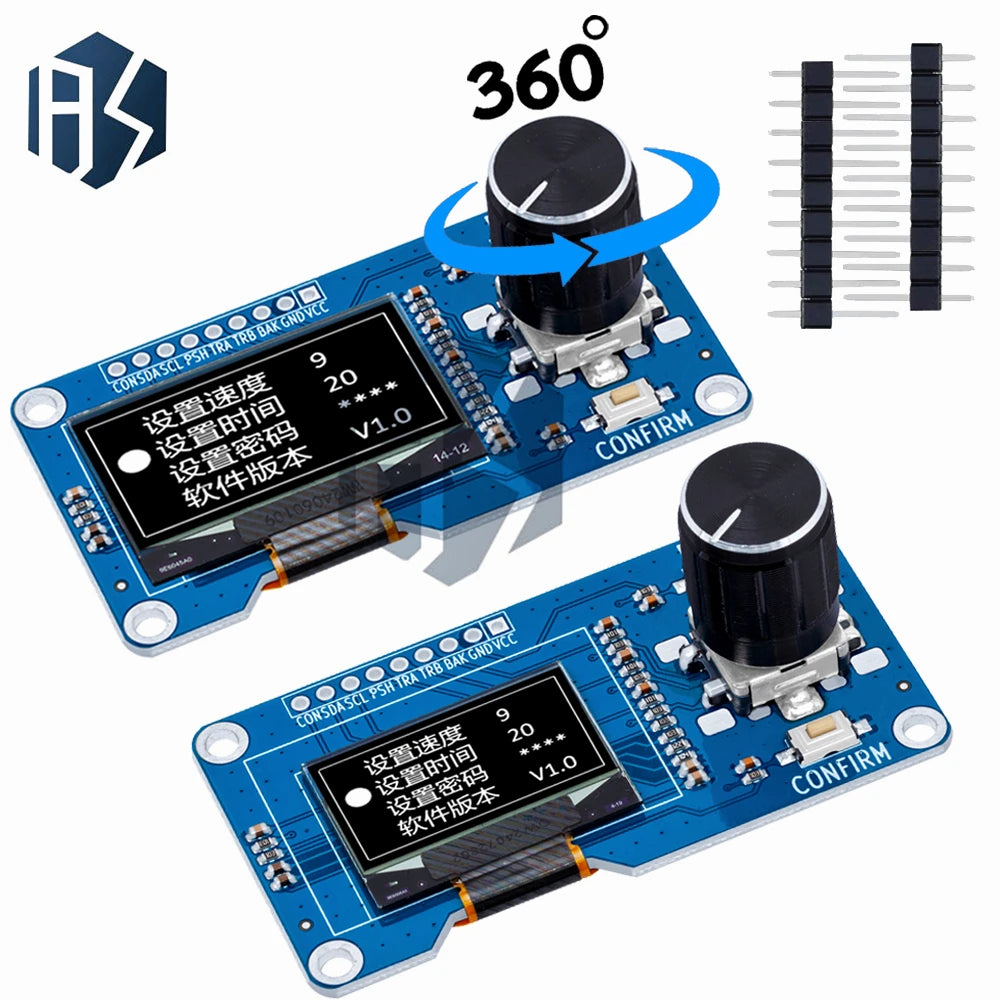

• Integrated EC11 Rotary Encoder: Smooth rotary input with push-button click function for intuitive menu navigation
• IIC / I²C Interface: Simplifies wiring — only 2 data lines needed to connect to Arduino, ESP32, STM32, and more
• Compact All-in-One Design: Saves board space by combining display and encoder on a single PCB
• Wide Compatibility: Works seamlessly with Arduino, Raspberry Pi, ESP8266/ESP32, STM32, and other common microcontrollers
• Customizable: Supports custom firmware and display content for tailored project needs

Specifications

Available Variants

• 0.96 inch – White
• 0.96 inch Pro
• 0.96 inch Pro Max – White
• 1.3 inch – White
• 1.3 inch – Blue
• 1.3 inch Pro
• 1.3 inch Pro 1

Perfect For

• Arduino menu systems and embedded UI projects
• DIY audio equipment and synthesizer controllers
• Smart home device dashboards
• Volume/parameter control panels
• Robotics and automation systems

Related Products You May Like

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• Glow in the Dark Natural Stone Round Beads | DIY Jewelry Making

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What microcontrollers are compatible with this OLED + EC11 Rotary Encoder module?

A: This module is compatible with a wide range of popular microcontrollers including Arduino (Uno, Nano, Mega), ESP8266, ESP32, STM32, and Raspberry Pi. Its IIC (I²C) interface ensures easy integration with minimal wiring — typically just VCC, GND, SDA, and SCL pins.

Q: What is the difference between the 0.96" and 1.3" versions?

A: Both versions share the same 128×64 resolution and EC11 rotary encoder integration. The primary difference is physical screen size — the 1.3" version has a larger display area, making text and graphics slightly bigger and easier to read, while the 0.96" version is more compact and ideal for space-constrained builds.

Q: Does the EC11 rotary encoder include a push-button function?

A: Yes! The EC11 rotary encoder on this module includes a built-in push-button (click) function, allowing you to use it for both rotary navigation and selection inputs — perfect for menu-driven interfaces and parameter control in your projects.

Q: Can I display custom graphics or text on this OLED module?

A: Absolutely. The 128×64 OLED display is fully programmable and works with popular libraries such as Adafruit SSD1306 and U8g2, enabling you to render custom text, icons, graphics, and animations tailored to your specific application.
