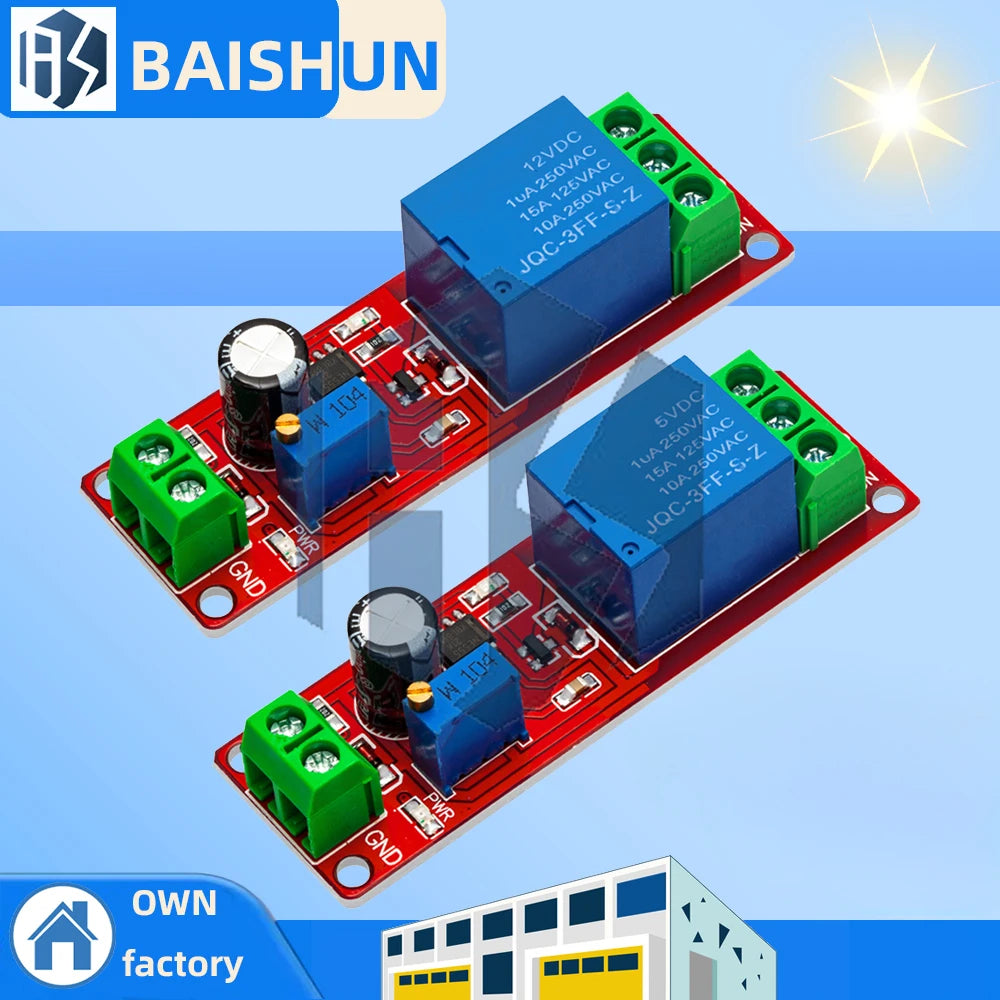

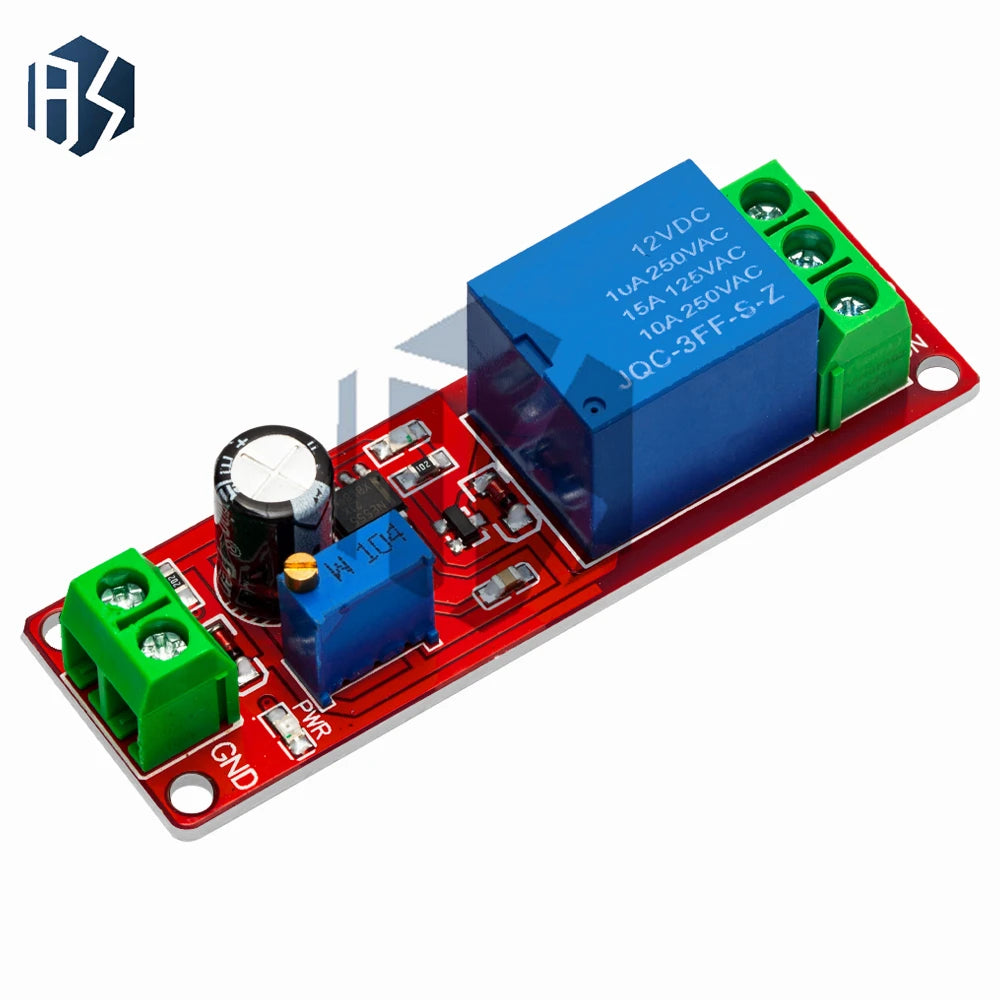

NE555 Timer Delay Relay Module – Adjustable 0–10S, DC 5V / 12V

Take precise control of your electronics projects with this NE555 Timer Delay Relay Module. Featuring a fully adjustable delay range of 0 to 10 seconds, this compact module is perfect for hobbyists, makers, engineers, and DIY enthusiasts who need reliable, repeatable timing control in their circuits. Compatible with both DC 5V and DC 12V systems, it integrates seamlessly into automation projects, microcontroller setups, and prototyping builds.

Key Features

  • Adjustable Time Delay: Set delay intervals from 0 to 10 seconds with a simple onboard potentiometer — no extra components needed.
  • Dual Voltage Compatibility: Works with DC 5V and DC 12V power supplies for flexible use across a wide range of projects.
  • NE555 Timer IC: Built around the industry-standard NE555 timer chip, renowned for its stability, accuracy, and versatility.
  • Relay Output: Onboard relay switches your connected load reliably, supporting both normally-open (NO) and normally-closed (NC) configurations.
  • Compact & Lightweight: Weighing just 17.1g, it fits neatly into tight enclosures and on breadboards or PCBs.

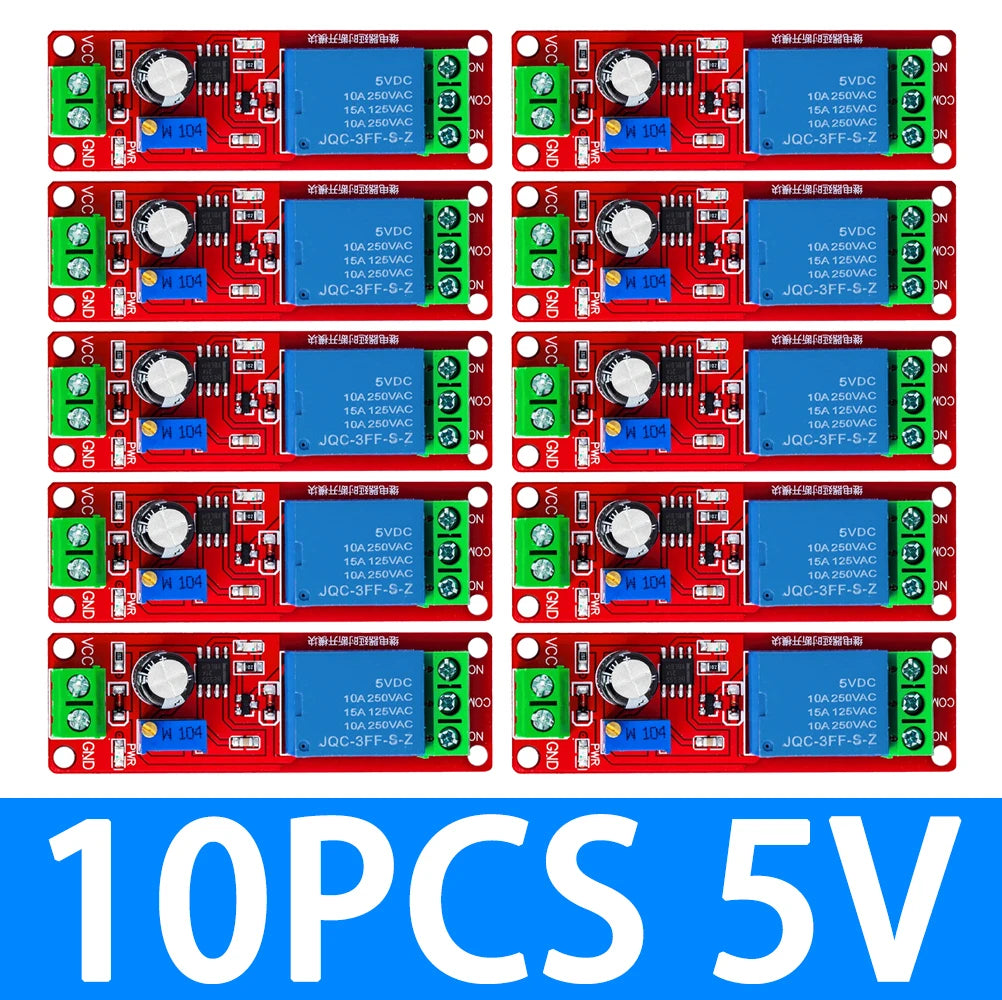

  • Multiple Quantity Options: Available in single or multi-pack configurations — 1PCS 5V, 1PCS 12V, 5PCS 5V, 5PCS 12V, 10PCS 5V, 10PCS 12V — to suit your project scale.

Applications

  • Arduino / Raspberry Pi automation circuits
  • Motor delay start / stop controls
  • LED lighting automation and switching
  • Sensor-triggered time-delay outputs
  • DIY home automation and smart device prototyping
  • Industrial and hobbyist electronic control systems

Specifications

Timer IC NE555
Operating Voltage DC 5V / DC 12V
Adjustable Delay Range 0 – 10 Seconds
Output Type Relay (NO / NC)
Weight 17.1g
Customization Available in 6 quantity/voltage variants

Related Products You May Like

Looking to expand your DIY electronics toolkit? Check out these related items from our store:

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does the NE555 Timer Delay Relay Module do?

A: The NE555 Timer Delay Relay Module provides an adjustable time delay (0 to 10 seconds) before triggering a relay output. It is used to control when a connected device or circuit is switched on or off after a set delay, making it ideal for automation, motor control, and DIY electronics projects.

Q: Can I use this module with both 5V and 12V systems?

A: Yes! This module is fully compatible with DC 5V and DC 12V power supplies. Simply choose the correct variant for your project when placing your order — both voltage versions are available in single and multi-pack quantities.

Q: How do I adjust the time delay on this module?

A: The delay time is set using the onboard potentiometer (adjustment knob). Turning the potentiometer clockwise or counterclockwise changes the delay interval anywhere from 0 to 10 seconds. No additional components or programming are required.

Q: Is this module compatible with Arduino or other microcontrollers?

A: Absolutely. The NE555 Timer Delay Relay Module works seamlessly with Arduino, Raspberry Pi, ESP32, ESP8266, and virtually any DC-powered microcontroller or electronics project operating at 5V or 12V.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
