NE555 Pulse Generator Module – Sine, Triangle & Square Wave

NE555 Multi-Waveform Pulse Generator Module (DC 6–12V)

Take your electronics projects to the next level with this compact NE555-based Pulse Generator Module. Operating on a wide DC 6–12V input, this versatile signal generator outputs three distinct waveforms — sine, triangle, and square waves — making it an indispensable tool for hobbyists, electronics students, makers, and DIY enthusiasts alike.

Whether you're testing circuits, building oscillators, experimenting with signal processing, or learning electronics fundamentals, this module delivers clean, reliable waveform output in a compact SMD form factor measuring just 4.39 × 5.09 × 0.15 cm.

Key Features

• Three Waveform Outputs: Sine, triangle, and square wave signals in one module
• Wide Voltage Range: Compatible with DC 6V to 12V power supply
• NE555 Timer IC: Based on the industry-standard NE555 chip for stable, consistent signal generation
• Compact SMD Design: Small footprint (4.39 × 5.09 × 0.15 cm) fits easily into breadboards and DIY enclosures
• Customizable: Ideal for multi-channel waveform generation and signal testing setups
• DIY Kit Ready: Perfect for DIY electronics kits, lab experiments, and educational projects

What's Included

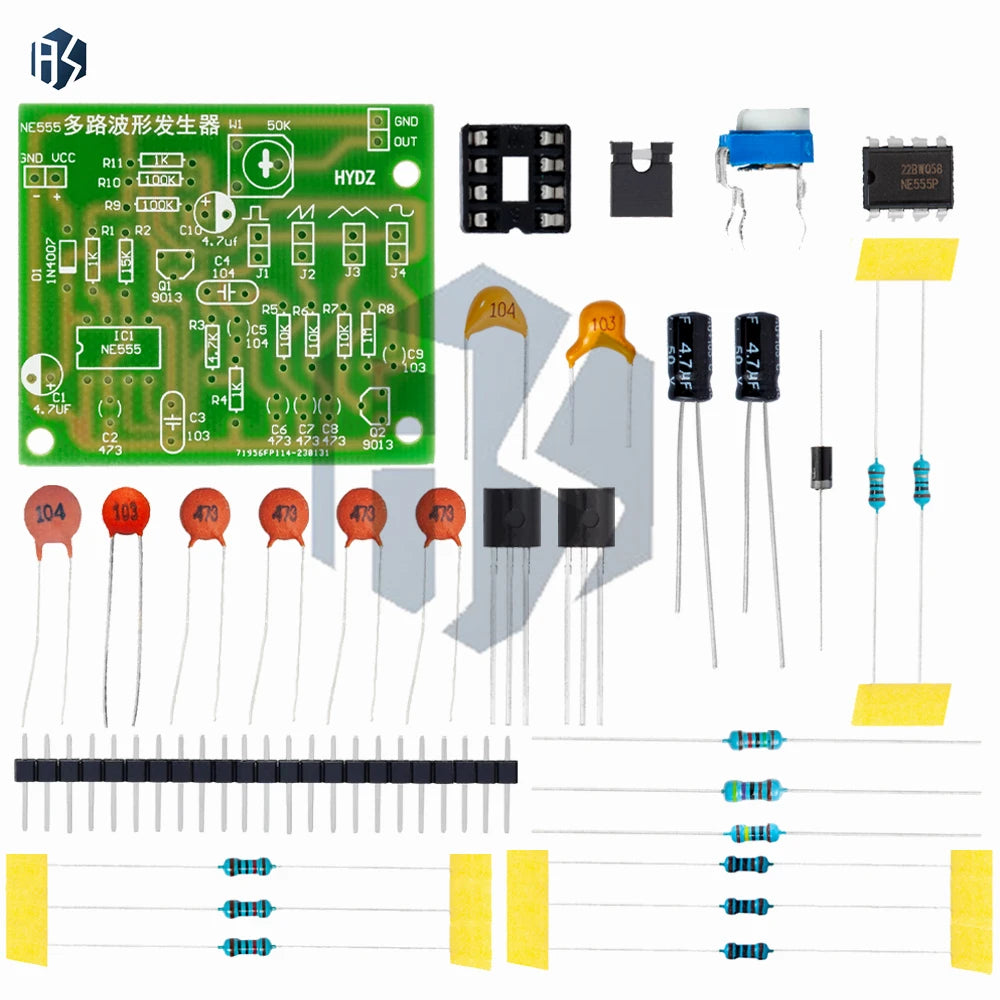

• 1 × NE555 Pulse Generator Module (SMD)

Specifications

Who Is This For?

This module is a great fit for:

• Electronics hobbyists and makers exploring signal generation
• Engineering and STEM students working on lab projects
• DIY kit builders needing a reliable waveform source
• Professionals testing and prototyping circuits on the bench

Related Products You May Like

• 4/6mm CCB Flat Round Spacer Beads – DIY Jewelry Making 100–200pcs
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 50pcs Gold & Silver Drawstring Jewelry Gift Bags 7×9 9×12cm

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What waveforms does the NE555 Pulse Generator Module produce?

A: This NE555-based module generates three types of waveforms: sine wave, triangle wave, and square wave. This makes it a versatile signal source for a wide range of electronics experiments, circuit testing, and DIY projects.

Q: What voltage does this pulse generator module require?

A: The module operates on a DC input voltage of 6V to 12V, making it compatible with most standard bench power supplies, battery packs, and DIY power sources commonly used in electronics projects.

Q: Is this module suitable for beginners in electronics?

A: Yes! The NE555 Pulse Generator Module is beginner-friendly and ready to use straight out of the box. Its compact SMD design and straightforward connections make it an excellent learning tool for students and hobbyists just getting started with signal generation and circuit design.

Q: Can this module be used in multi-channel waveform setups?

A: Absolutely. The module is customizable and well-suited for multi-channel waveform signal generation setups, making it a practical choice for more advanced DIY electronic projects and signal testing configurations.
