NE555 Monostable Timer Delay Module 0–10S Adjustable | 12V

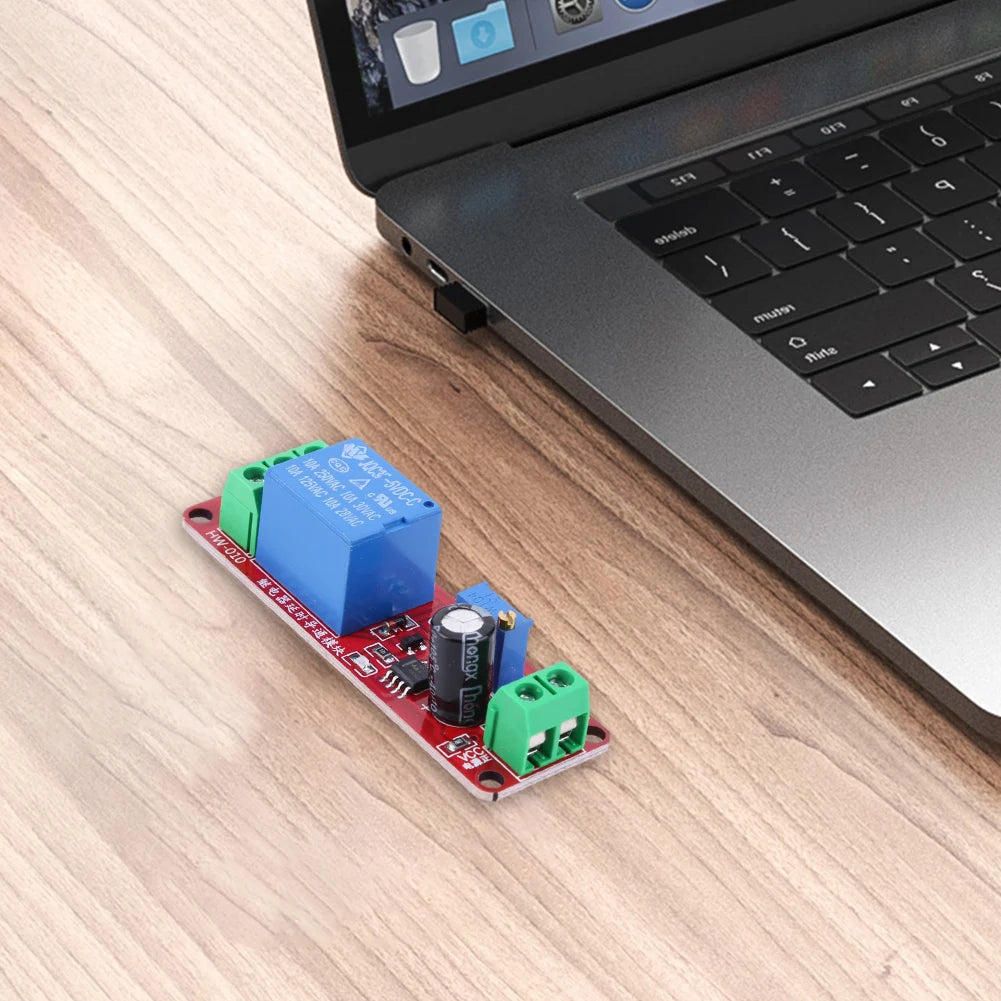

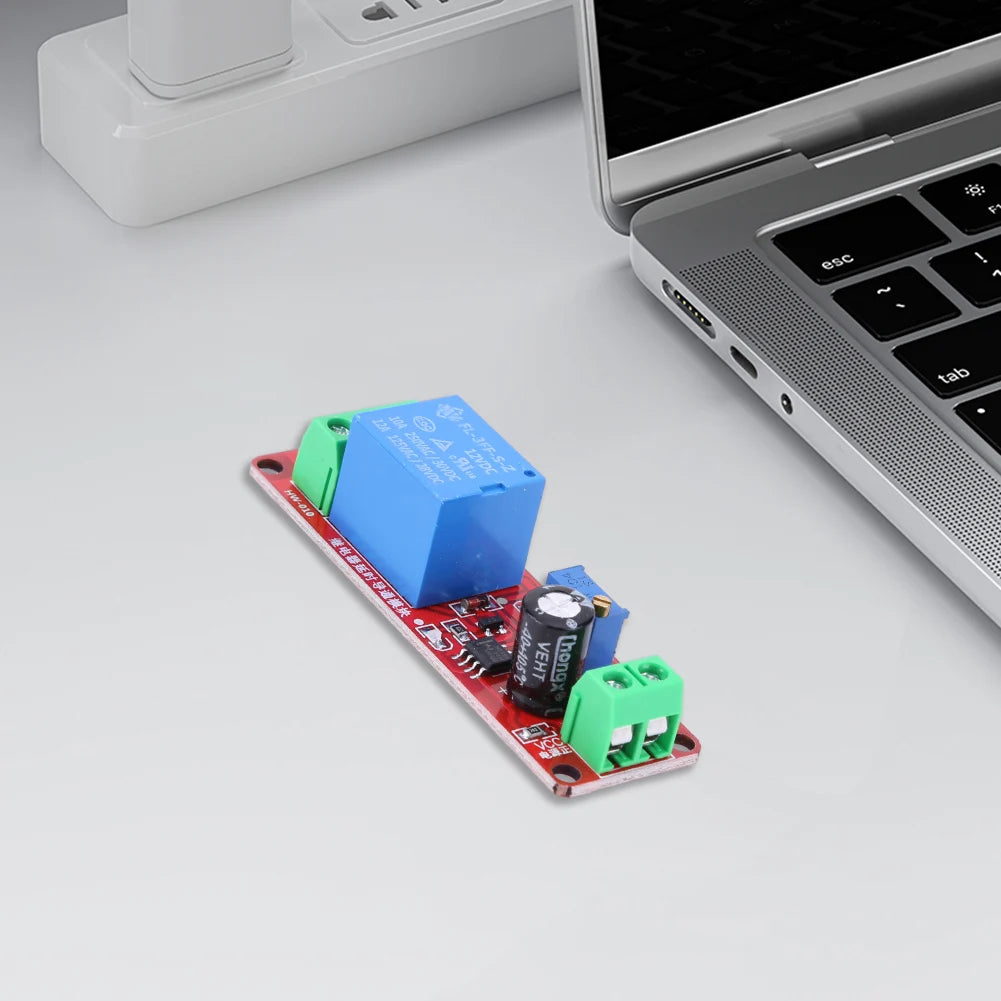

NE555 Monostable Switch Delay Board – Adjustable 0–10S Timer Module (12V)

Take precise control of your electronics projects with the NE555 Monostable Switch Delay Board. This compact, reliable timer module lets you dial in a trigger delay from 0 to 10 seconds, making it an indispensable component for automation circuits, relay control, signal timing, and DIY electronics builds. Operating at 12V, it integrates seamlessly into a wide range of hobby and professional applications.

Key Features

• Adjustable Delay Time (0–10 Seconds): Set your desired output delay with ease — simply turn the onboard potentiometer to tune the timing interval to your exact requirements.
• Monostable Operation: Triggered by a single input pulse, the module produces a single, clean output pulse of your chosen duration — ideal for one-shot timer applications.
• Extendable Timing Range: Increase the delay beyond the default 10-second range by adding an external potentiometer or swapping out capacitor C1 for a higher-value component, giving you flexibility for longer-duration projects.
• NE555 Timer IC Core: Built around the industry-standard NE555 chip — proven, stable, and widely supported with extensive community documentation.
• 12V Operating Voltage: Compatible with standard 12V DC power supplies commonly used in electronics workbenches, automotive projects, and industrial control panels.
• Compact PCB Design: Small form factor makes it easy to mount inside enclosures or integrate into larger circuit assemblies.
• Ready to Use: No complex setup required — connect power, set your delay, and trigger the input to start timing immediately.

Common Applications

• Relay trigger delay circuits
• Automotive and ignition timing control
• Home automation and smart switching
• Signal pulse generation and conditioning
• Educational electronics experiments and prototyping
• Industrial equipment sequencing

Specifications

• Timer IC: NE555
• Operating Voltage: 12V DC
• Delay Range: 0–10 seconds (adjustable; extendable with external components)
• Mode: Monostable (single-shot)
• Color Options: 2 available

Explore More DIY Electronics & Craft Supplies

Looking to round out your project toolkit? Check out these popular picks from our store:

• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does the NE555 Monostable Switch Delay Board do?

A: The NE555 Monostable Switch Delay Board is a timer module that generates a single output pulse of a user-defined duration (0–10 seconds) each time it receives a trigger input. It is designed for delay switching, relay control, pulse generation, and similar timing applications in 12V DC circuits.

Q: How do I adjust the delay time on the NE555 timer module?

A: The delay time is set using the onboard potentiometer. Simply rotate it to increase or decrease the output pulse duration anywhere within the 0–10 second range. To extend the range beyond 10 seconds, you can add an external potentiometer or replace capacitor C1 with a higher-value capacitor.

Q: What voltage does this NE555 delay module require?

A: This module operates on a 12V DC supply. Ensure your power source provides stable 12V to guarantee consistent and accurate timing performance.

Q: Can beginners use this NE555 timer delay board?

A: Yes! The module is designed to be straightforward — connect it to a 12V power source, adjust the potentiometer to your desired delay, and apply a trigger signal. The NE555 chip is one of the most widely documented ICs in electronics, so plenty of tutorials and community resources are available to help you get started.

Q: What is monostable mode and why does it matter?

A: In monostable mode, the circuit has one stable state. When triggered, it switches to its temporary output state for the set duration, then automatically returns to its resting state. This makes it perfect for applications where you need a precise, repeatable single pulse — such as triggering a relay for a set time after a button press.
