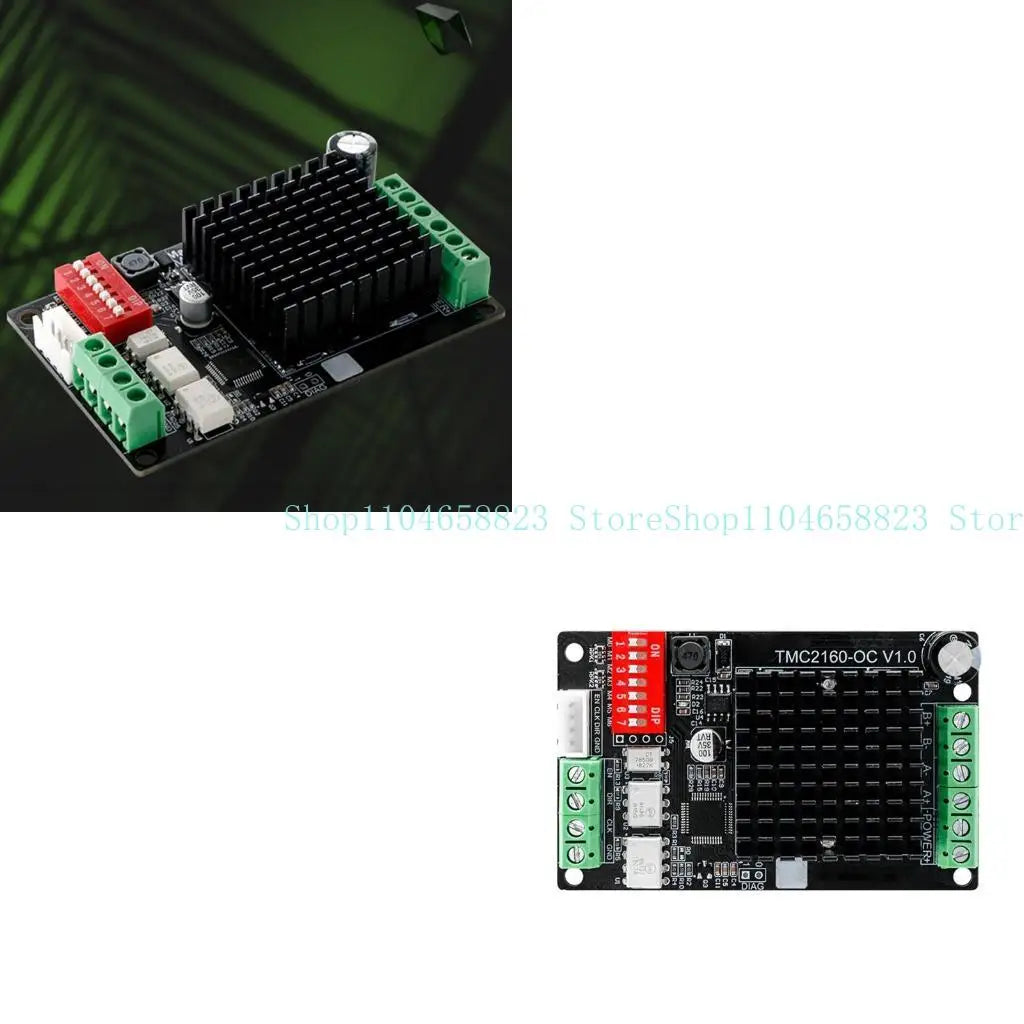

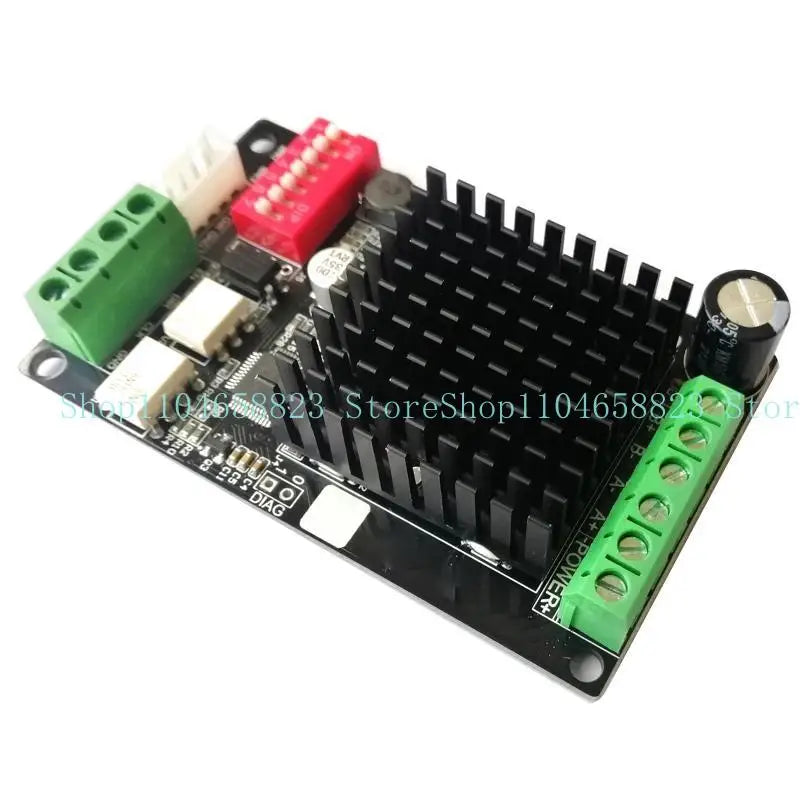

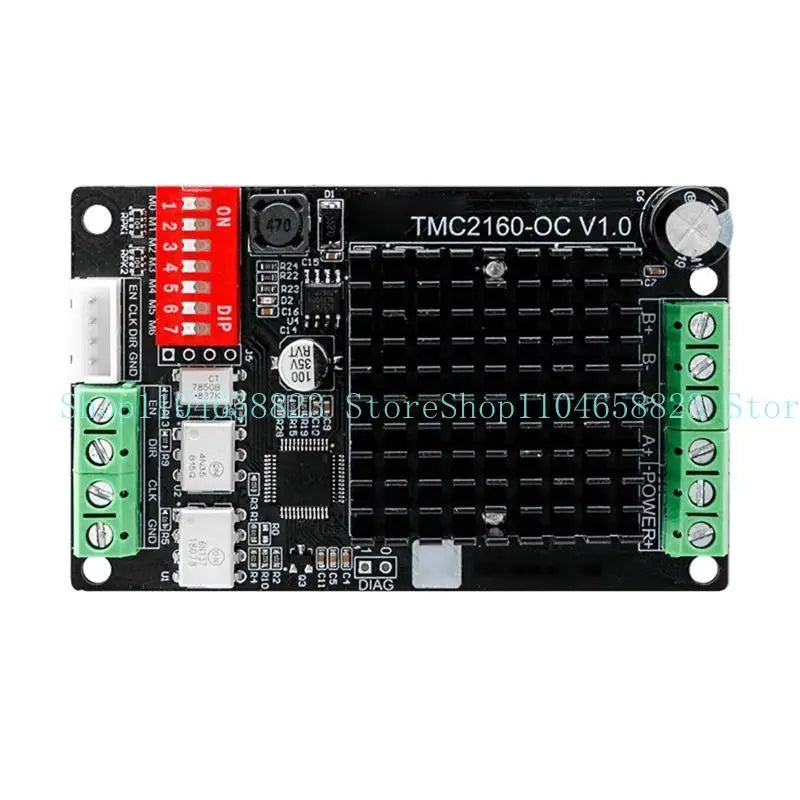

MKS TMC2160-OC Stepper Motor Driver Module – 4.3A Two Phase

MKS TMC2160-OC Stepper Motor Driver Module

The MKS TMC2160-OC Stepper Motor Driver is a high-performance two-phase stepping motor driver module engineered for precision control and whisper-quiet operation. Whether you're building or upgrading a 3D printer, CNC machine, or custom motion-control system, this driver delivers exceptional current handling, smooth microstepping, and easy configuration via DIP switch — all in a compact, thermally efficient design.

Made in China.

Key Features

• Dual Operating Modes: Seamlessly switch between SpreadCycle (standard, high-performance) and StealthChop (ultra-quiet) modes using the onboard DIP switch — no firmware changes required.
• High Current Output: Drives up to 4.3A of current, making it suitable for demanding stepper motor applications.
• Up to 64 Microsteps: Achieve ultra-smooth motion by configuring microstep resolution (up to 1/64) directly via the DIP switch — no additional software needed.
• Optically Coupled Isolation: Built-in safe optical isolation protects your controller board and ensures reliable signal transmission.
• Low Heat Generation: Efficient design keeps operating temperatures low for reliable long-term performance and easy cooling.
• Plug-and-Play Ready: Brand new and ready to install straight out of the box.

Specifications

Package Includes

• 1 × MKS TMC2160-OC Stepper Motor Driver Module

Important Notes

• Due to lighting and photography angles, minor color differences may appear between product images and the actual item.
• Please allow a 0–1cm tolerance due to manual measurement.

Related Products You May Like

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What are the two operating modes of the MKS TMC2160-OC stepper motor driver?

A: The MKS TMC2160-OC supports two modes: SpreadCycle, which provides high-performance standard operation, and StealthChop, which enables ultra-quiet motor movement. You can switch between the two modes easily using the onboard DIP switch — no soldering or firmware modification is required.

Q: How do I configure the microstep resolution on the TMC2160 stepper driver module?

A: Microstep resolution on the MKS TMC2160-OC is configured directly via the onboard DIP switch, supporting up to 64 microsteps. This makes it straightforward to fine-tune motion smoothness for 3D printers, CNC routers, or any two-phase stepper motor application without needing to modify software settings.

Q: What stepper motor applications is the MKS TMC2160-OC compatible with?

A: The MKS TMC2160-OC is designed for a wide range of two-phase stepper motor applications, including FDM 3D printers, CNC machines, laser engravers, and custom motion-control systems. With a maximum current output of 4.3A and optically coupled isolation, it suits both hobbyist builds and more demanding industrial-style setups.

Q: Does the TMC2160 driver require any special cooling?

A: Thanks to its efficient low-heat design, the TMC2160-OC driver stays relatively cool during normal operation and is easy to cool down. For high-current or continuous-duty applications, attaching a small heatsink is recommended to maintain optimal performance over extended use.
