Microhard PX2 UAV Image Transmission Module PDDL900 PMDDL2350

Microhard PX2 UAV Image Transmission Module — PDDL900 / PMDDL2350 / 2450 / 2550

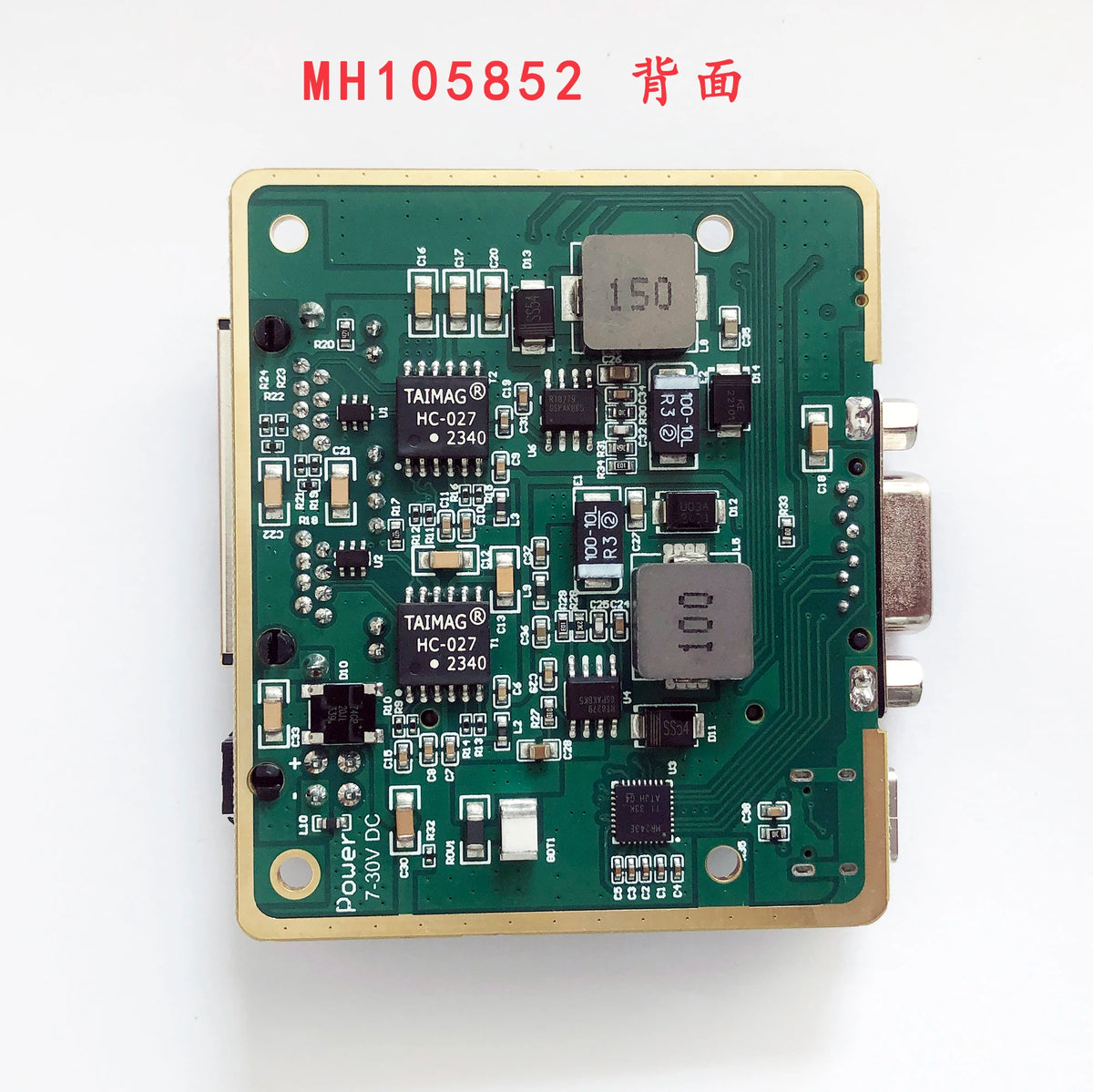

The Microhard PX2 UAV Image Transmission Module is a compact, high-performance data link board engineered for UAV (unmanned aerial vehicle) platforms that demand reliable, low-latency video and data transmission. Compatible with the PDDL900, PMDDL2350, PMDDL2450, and PMDDL2550 series, this module is the backbone of professional drone image and telemetry pipelines.

Whether you're building a custom UAV system, upgrading an existing airframe, or developing a ground-control integration, this module delivers the connectivity and interface versatility serious operators need.

Key Features

• Dual Network Ports — flexible Ethernet connectivity for seamless integration with onboard computers and ground stations
• 1× RS232 Serial Port — industry-standard serial communication for sensors, payloads, and autopilots
• 1× TTL Serial Port — direct low-voltage serial interface for microcontrollers and flight controllers
• 1× XT30 Power Interface — robust, high-current power connector ideal for UAV power systems
• 1× Fan Interface — active cooling support to maintain stable performance during extended flight operations
• Recovery Button — convenient hardware reset for field maintenance and firmware recovery
• Compact Form Factor — 70.2mm (L) × 67mm (W) × 20mm (H), 46g — lightweight and easy to integrate into tight airframes

Technical Specifications

Who Is This For?

This module is designed for UAV engineers, drone system integrators, and professional operators working with Microhard-based data link solutions. Its multi-interface design makes it adaptable across a wide range of UAV payloads — from imaging systems and LiDAR sensors to real-time video downlinks.

You May Also Like

• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What UAV data link modules is the Microhard PX2 compatible with?

A: The Microhard PX2 image transmission module is compatible with the PDDL900, PMDDL2350, PMDDL2450, and PMDDL2550 series data link modules, making it a versatile choice for a broad range of UAV image and telemetry transmission systems.

Q: What interfaces does the Microhard PX2 UAV transmission module include?

A: The module includes 2 network (Ethernet) ports, 1 RS232 serial port, 1 TTL serial port, 1 XT30 power interface, 1 fan interface, and a hardware recovery button — providing comprehensive connectivity for UAV integration projects.

Q: What are the dimensions and weight of the PX2 module?

A: The Microhard PX2 module measures 70.2mm in length, 67mm in width, and 20mm in height, weighing just 46g. This compact, lightweight form factor makes it easy to mount in space-constrained UAV airframes without significantly impacting payload capacity.

Q: Does the module come with accessories included?

A: The PX2 UAV image transmission module is sold as a standard unit without additional accessories. Please ensure you have compatible cabling and connectors for the XT30 power interface and serial ports before installation.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
