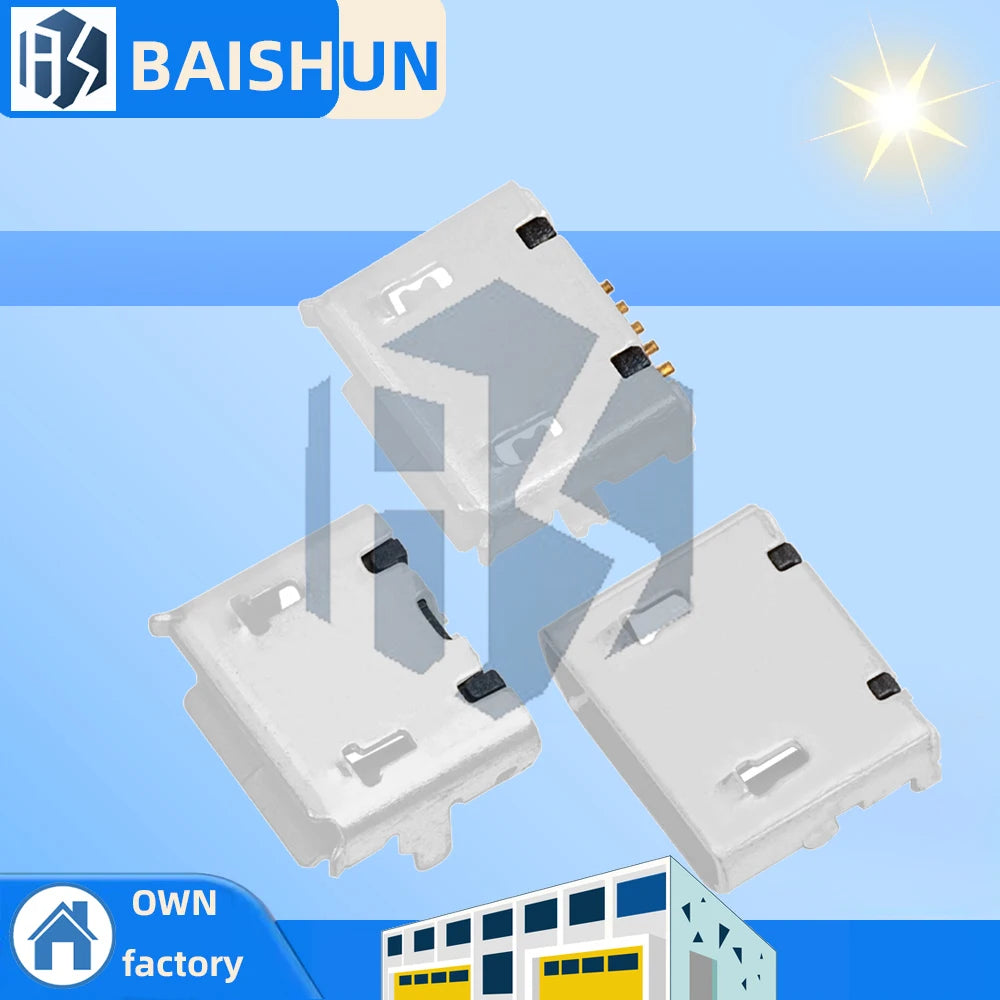

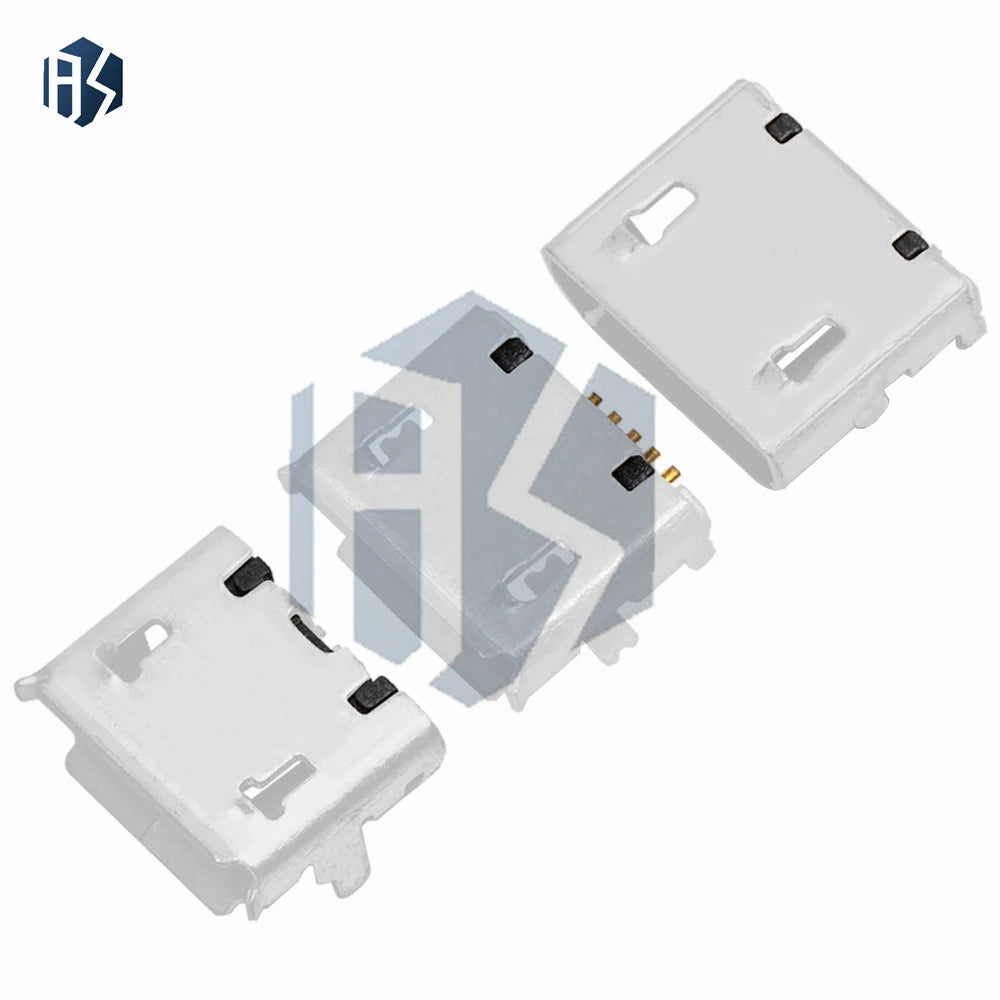

Micro USB 5-Pin PCB Mount Charging Jack Connector

Keep your DIY electronics and repair projects running smoothly with this reliable Micro USB 5-Pin PCB Mount Electrical Connector. Whether you're replacing a worn-out charging port, prototyping a custom circuit board, or building your own gadget from scratch, this compact connector delivers a solid, stable connection every time.

Choose Your Mount Style

Available in three configurations to suit a wide range of PCB applications:

Micro USB (Tail Type) – Ideal for through-hole PCB soldering with flexible wire tails
DIP USB – Dual In-line Package for standard through-hole mounting
SMD USB – Surface Mount Device style for compact, low-profile board designs

Each order includes the SMD variant. Please select your preferred type at checkout.

Key Features

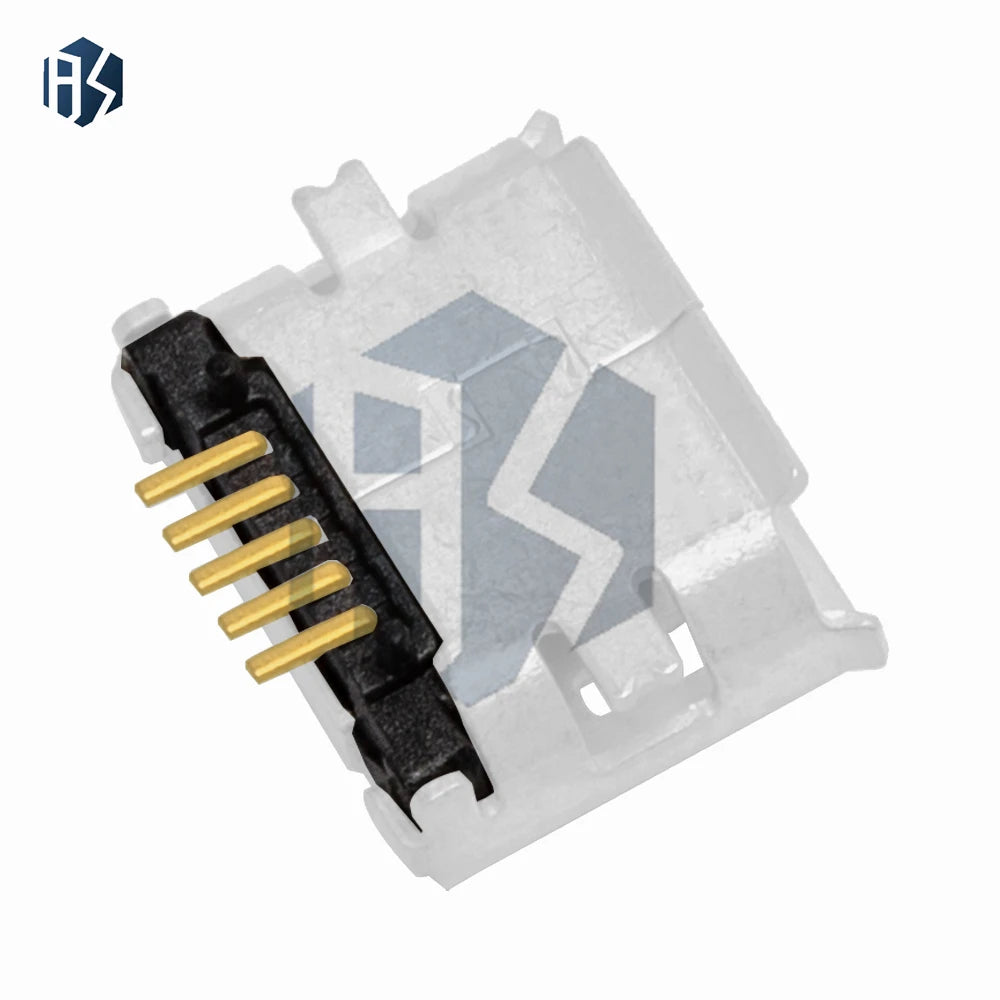

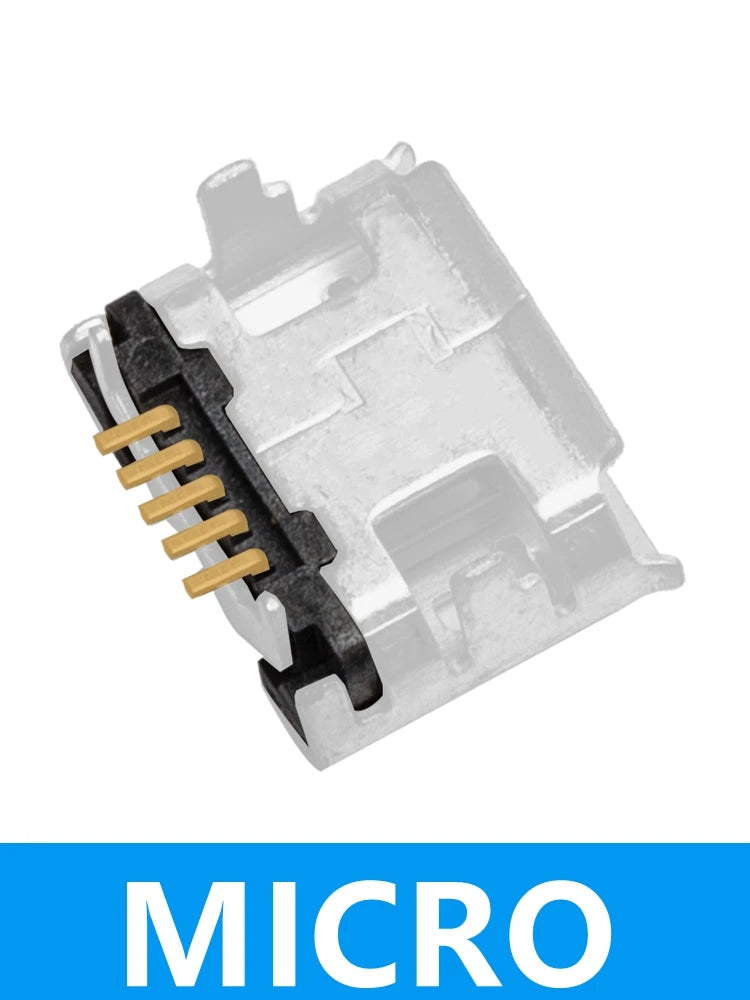

5-pin Micro USB interface for data and charging compatibility
Sturdy PCB mount design for secure, long-lasting attachment
Compact form factor — fits easily into tight board layouts
Suitable for DIY electronics, repairs, and prototyping
Consistent pin alignment for straightforward soldering
Compatible with standard Micro USB cables

Specifications

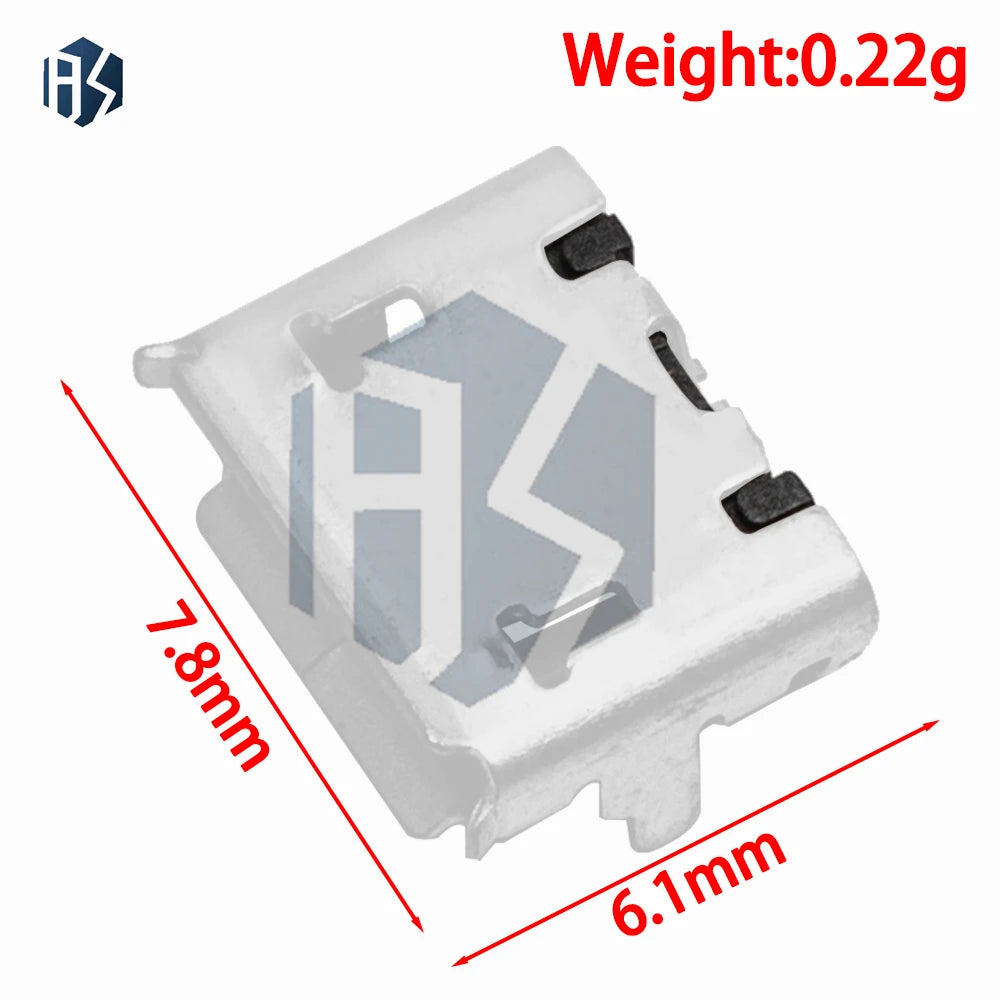

Connector Type: Micro USB 5-Pin
Mount Style: PCB Mount (Tail / DIP / SMD options available)
Pin Count: 5
Interface: Micro USB
Application: Charging ports, data transfer circuits, DIY electronics

Perfect For

PCB prototyping and circuit board repair
DIY electronics builds and maker projects
Replacing damaged Micro USB charging ports on devices
Electronics students and hobbyists

Pair this connector with other components from our store to complete your next project:

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What mount types are available for this Micro USB 5-Pin PCB connector?

A: This connector is available in three mount styles — Tail Type (through-hole with wire tails), DIP USB (dual in-line package through-hole), and SMD USB (surface mount device). Each order ships with the SMD type unless otherwise selected. All three types feature the standard 5-pin Micro USB interface.

Q: Is this Micro USB PCB connector suitable for DIY electronics repair?

A: Absolutely. This 5-pin Micro USB charging jack is specifically designed for PCB mounting, making it an excellent choice for repairing broken charging ports, prototyping custom circuits, or any hands-on electronics project. Standard soldering tools are all you need to install it.

Q: What cable type is compatible with this PCB mount Micro USB connector?

A: This connector uses the standard Micro USB interface, which is compatible with all standard Micro USB cables used for charging and data transfer. It follows the conventional 5-pin pinout widely used across electronics.
