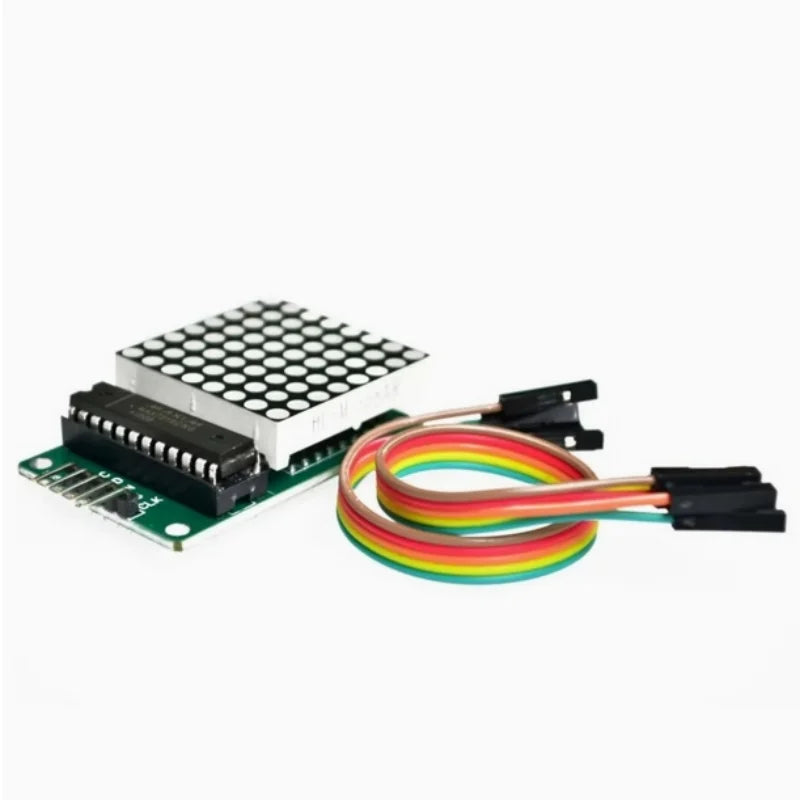

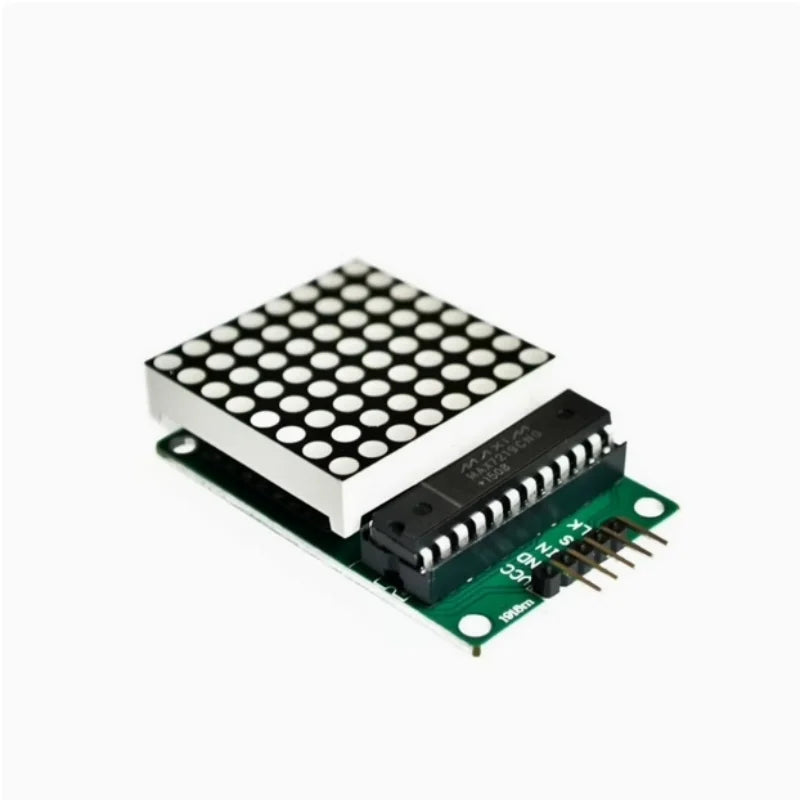

MAX7219 Dot Matrix LED Module – Microcontroller Display Made Simple

The MAX7219 Dot Matrix Module is a compact, versatile LED display driver designed to work seamlessly with popular microcontrollers such as Arduino, ESP8266, ESP32, and Raspberry Pi. Whether you're building scrolling text displays, LED clocks, score counters, or visual indicators for your electronics projects, this module delivers reliable, crisp digit and character output with minimal wiring.

Why Choose the MAX7219 Dot Matrix Module?

Easy Serial Interface: Uses a simple 3-wire SPI connection (DIN, CS, CLK), making it fast to wire up and compatible with virtually any microcontroller platform.
Cascadable Design: Chain multiple modules together to create longer scrolling displays — no extra components required.
Onboard MAX7219 Driver IC: Handles all multiplexing and brightness control internally, freeing up your microcontroller's processing power for other tasks.
Adjustable Brightness: Software-controlled brightness via the MAX7219 register — easily dimmed or brightened to suit your environment.
Available in 2 Color Options: Choose the LED color that best fits your project's aesthetic or visibility needs.
Compact Form Factor: Small footprint makes it ideal for embedded projects, desktop gadgets, and maker builds.

Technical Highlights

Driver IC: MAX7219
Matrix Size: 8×8 LED dot matrix
Interface: SPI (3-wire: DIN, CS, CLK)
Operating Voltage: 5V DC
Cascadable: Yes — connect multiple modules in series
Compatible with: Arduino, ESP8266, ESP32, Raspberry Pi, and most microcontroller platforms

Perfect For

DIY scrolling text signs and LED clocks
Hobbyist and maker electronics projects
STEM education and learning platforms
Score displays, counters, and visual status indicators
Prototyping and breadboard experiments

Frequently Asked Questions

Q: What microcontrollers are compatible with the MAX7219 Dot Matrix Module?

A: The MAX7219 Dot Matrix Module is compatible with a wide range of microcontrollers and development boards including Arduino (Uno, Nano, Mega), ESP8266, ESP32, and Raspberry Pi. It communicates via a standard 3-wire SPI interface (DIN, CS, CLK), making integration quick and straightforward with most platforms.

Q: Can I connect multiple MAX7219 Dot Matrix Modules together?

A: Yes! The MAX7219 module is designed to be cascaded — simply chain modules together in series using the DOUT pin of one module connected to the DIN pin of the next. This allows you to build longer scrolling displays or larger LED matrices using a single set of microcontroller pins and widely available libraries.

Q: What kind of projects can I build with the MAX7219 Dot Matrix Module?

A: This module is ideal for a huge variety of maker and electronics projects, including scrolling text banners, digital clocks, countdown timers, game scoreboards, sensor data displays, and custom visual indicators. It's a popular choice for both beginners learning microcontroller programming and experienced makers building polished projects.

Q: Does the MAX7219 module require any special libraries?

A: Several free, well-documented libraries are available for platforms like Arduino IDE (e.g., LedControl, MD_Parola) that make it easy to control the MAX7219 module with just a few lines of code. No advanced programming experience is needed to get started.
