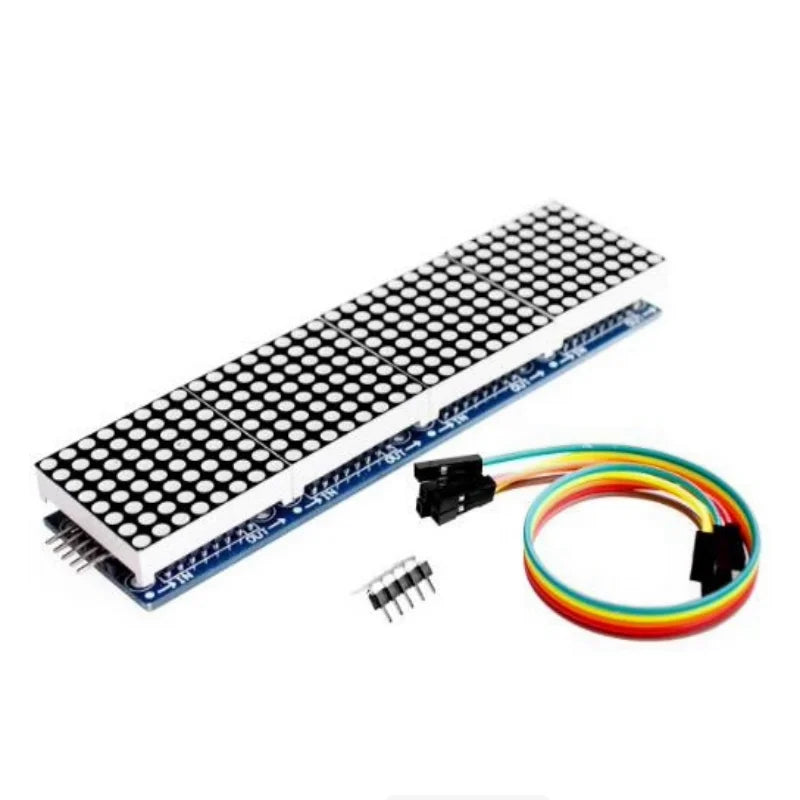

MAX7219 Dot Matrix LED Display Module – 1, 2, 4 & 8-Bit

Take your microcontroller projects to the next level with the MAX7219 Dot Matrix LED Module. Available in 1, 2, 4, and 8-unit configurations and offered in 3 color options, this compact and versatile display module is a go-to component for makers, hobbyists, engineers, and students alike. At just 26.5 cm in length for the 8-unit version, it's easy to integrate into any build.

Key Features

MAX7219 Driver IC – Industry-standard LED driver chip with on-chip B-type BCD encoder for reliable, consistent performance
8×8 Static RAM – Dedicated RAM stores display data for each digit independently
Multi-Channel Scanning Circuit – Drives all LED segments efficiently with minimal microcontroller overhead
Single External Register – Only one external resistor needed to set the segment current for all LEDs, simplifying your circuit design
Cascadable Design – Chain multiple modules (1, 2, 4, or 8-bit configurations) via SPI for larger displays
3 Color Options – Choose the LED color that best fits your project aesthetic
Compact Form Factor – Easy to mount and integrate into breadboards, enclosures, or PCBs
Wide Compatibility – Works with Arduino, Raspberry Pi, ESP8266/ESP32, and other popular microcontroller platforms

Specifications

Driver IC: MAX7219
Display Type: 8×8 LED Dot Matrix
Interface: SPI (3-wire: DIN, CS, CLK)
Configurations: 1, 2, 4, or 8 cascaded modules
Length (8-unit): 26.5 cm
Available Colors: 3 options

Perfect For

Scrolling text and message displays
Clock and timer projects
Score or counter displays
DIY electronics and prototyping
STEM education and coding projects

Frequently Asked Questions

Q: What microcontrollers are compatible with the MAX7219 Dot Matrix LED Module?

A: The MAX7219 Dot Matrix LED Module is compatible with a wide range of popular microcontroller platforms, including Arduino (Uno, Mega, Nano), Raspberry Pi, ESP8266, ESP32, and most other boards that support SPI communication. It is easy to set up using widely available libraries such as the Arduino LedControl library.

Q: What is the difference between the 1, 2, 4, and 8-bit module configurations?

A: The number refers to how many 8×8 LED dot matrix units are included in a single module. A 1-bit module has one 8×8 grid, while an 8-bit module chains eight grids together, allowing you to display longer scrolling text or more complex graphics. All configurations use the same SPI interface and can be further cascaded if needed.

Q: How do I set the LED brightness on the MAX7219 module?

A: The MAX7219 IC includes a built-in intensity control register that lets you adjust LED brightness in 16 steps via software commands over SPI. Additionally, a single external resistor (connected to the ISET pin) sets the maximum segment current for all LEDs on the module, making hardware setup straightforward.

Q: Can I connect multiple MAX7219 modules together?

A: Yes! The modules are designed with a cascadable (daisy-chain) architecture. You simply connect the DOUT pin of one module to the DIN pin of the next and share the CLK and CS lines. This allows you to drive very long scrolling displays while only using 3 pins on your microcontroller.
