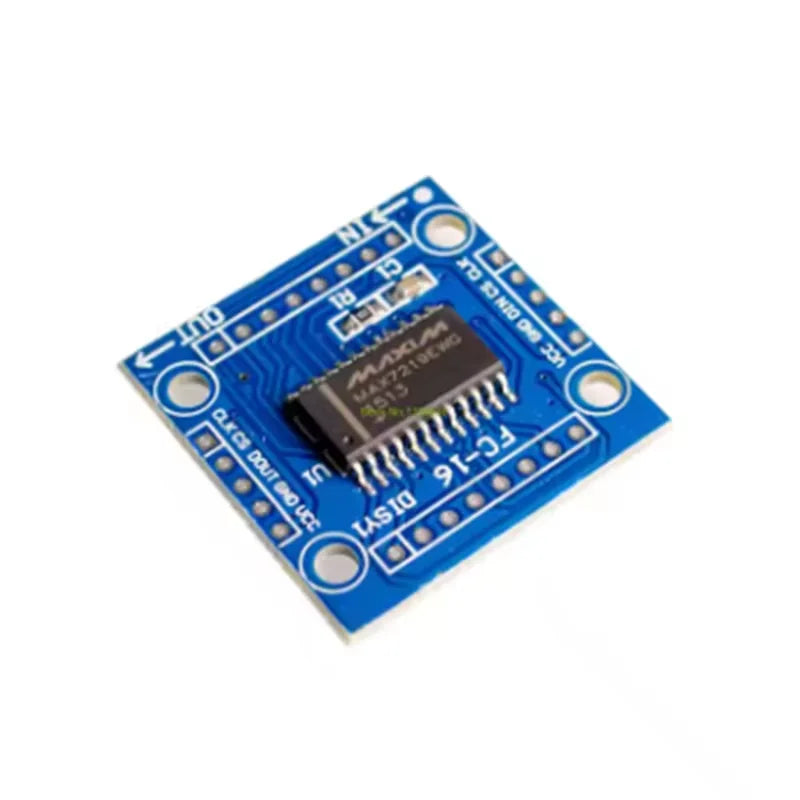

MAX7219 8×8 Dot Matrix LED Display Module

Add dynamic, programmable LED displays to your electronics projects with the MAX7219 Dot Matrix Module. Driven by the reliable MAX7219 IC, this compact module makes it effortless to control an 8×8 LED matrix from any MCU — including Arduino, Raspberry Pi, and similar microcontroller platforms — using just three digital I/O pins via SPI interface.

Whether you're building a scrolling text display, a custom clock, a game scoreboard, or an animated indicator panel, this module delivers crisp, bright output in your choice of Red or Blue LED color — 3 color options available to match your project aesthetic.

Key Features

MAX7219 Driver IC — industry-standard serial interface LED driver for straightforward MCU integration
8×8 LED Matrix — 64 individually addressable LEDs for flexible pattern, character, and animation display
On-Chip BCD Encoder — built-in B-type BCD decoder, multi-channel scanning circuit, and segment word driver
8×8 Static RAM — on-chip storage holds display data for each LED independently
Single External Register — only one external resistor needed to set the segment current for all LEDs, simplifying your circuit design
Cascadable Design — chain multiple modules together for wider or taller displays without additional wiring complexity
Compact Form Factor — 3.2 cm × 3.2 cm × 1.3 cm; fits neatly into enclosures and breadboard setups
3 Color Options — choose Red, Blue, or Green to suit your build
SPI-Compatible Interface — high-speed serial communication for reliable, low-noise data transfer
Wide Compatibility — works with Arduino, ESP32, STM32, Raspberry Pi, and most 3.3V/5V microcontrollers

Technical Specifications

Driver IC: MAX7219
Matrix Size: 8×8 (64 LEDs)
Interface: SPI (3-wire serial)
Operating Voltage: 5V DC

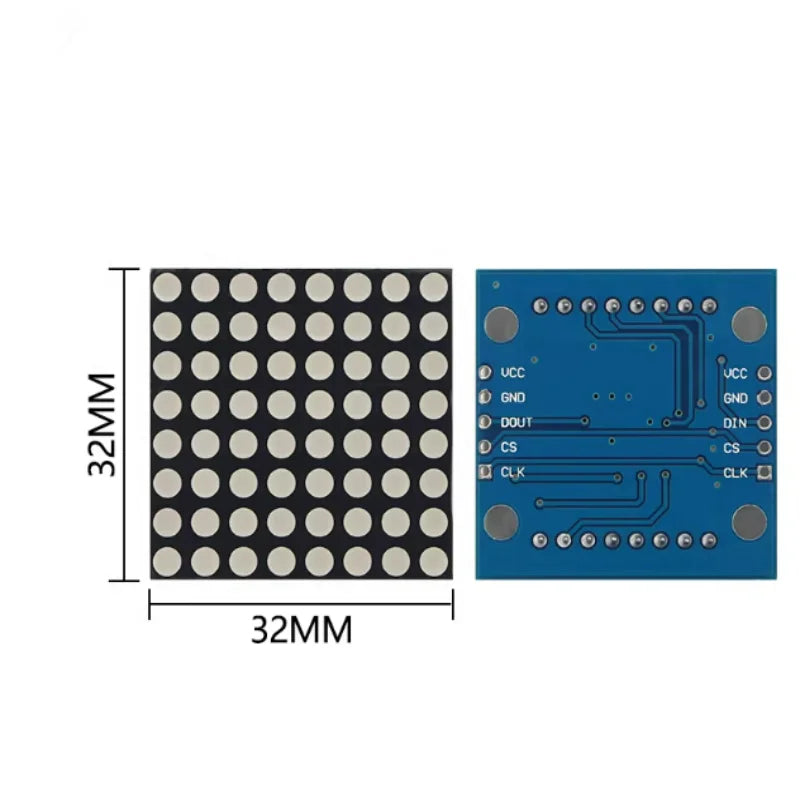

Module Dimensions: 3.2 cm (L) × 3.2 cm (W) × 1.3 cm (H)
LED Colors Available: Red, Blue, Green

What's in the Box

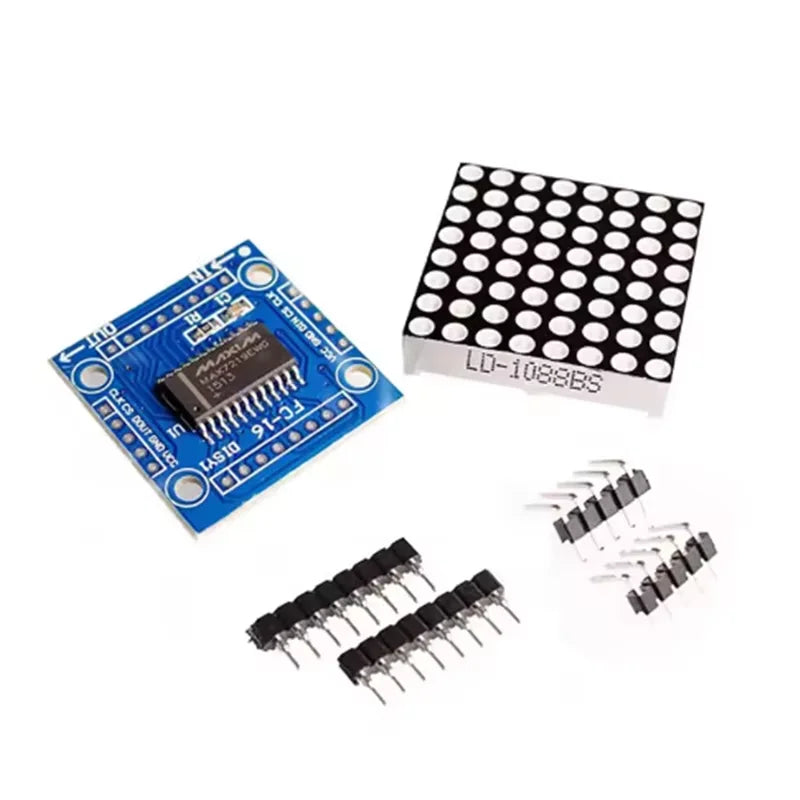

1 × MAX7219 8×8 Dot Matrix LED Display Module

Perfect For

Arduino and microcontroller learning projects
Scrolling text and character displays
DIY digital clocks and timers
Visual indicators and status panels
Maker labs, STEM education, and electronics prototyping

Explore more components for your builds: AS5600 Magnetic Encoder Induction Angle Measurement Sensor and ESP32-C6-DevKitM-1 Equipped ESP32-C6-MINI-1 WiFi Development Board.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What microcontrollers are compatible with the MAX7219 Dot Matrix LED Display Module?

A: The MAX7219 module is compatible with virtually any 3.3V or 5V microcontroller that supports SPI communication, including Arduino Uno/Mega/Nano, ESP8266, ESP32, STM32, and Raspberry Pi. Most platforms have ready-made libraries (such as LedControl for Arduino) that make getting started quick and straightforward.

Q: Can I chain multiple MAX7219 modules together for a larger display?

A: Yes! The MAX7219 module is designed to be cascaded. You can daisy-chain multiple modules by connecting the DOUT pin of one module to the DIN pin of the next, while sharing the CLK and CS lines. This allows you to build wide scrolling text banners or larger matrix arrays while still using only three MCU pins.

Q: What is the difference between the Red, Blue, and Green color options?

A: The three versions are electrically identical — the only difference is the color of the LED matrix itself (Red, Blue, or Green). Choose the color that best suits your project's visual design or enclosure aesthetic. All versions operate at 5V and use the same SPI wiring and code.

Q: Do I need any external components to use this module?

A: The module is largely self-contained. You only need one external resistor (typically a 10kΩ–100kΩ RSET resistor on the ISET pin) to set the LED segment current. Power, ground, and three data lines to your MCU are all that's required to get the display running.
