MAX4466 MAX9814 Sound Sensor Module for Arduino & Pi

MAX4466 & MAX9814 Sound Sensor Module for Arduino & Raspberry Pi

Add a high-quality audio input to your next electronics project with this fully assembled and tested electret microphone amplifier breakout board. Available in multiple variants — including the MAX4466, MAX9814, KY-037, and KY-038 — this compact module delivers clean, low-noise audio capture for voice changers, audio recording, audio sampling, FFT-based audio-reactive projects, and more.

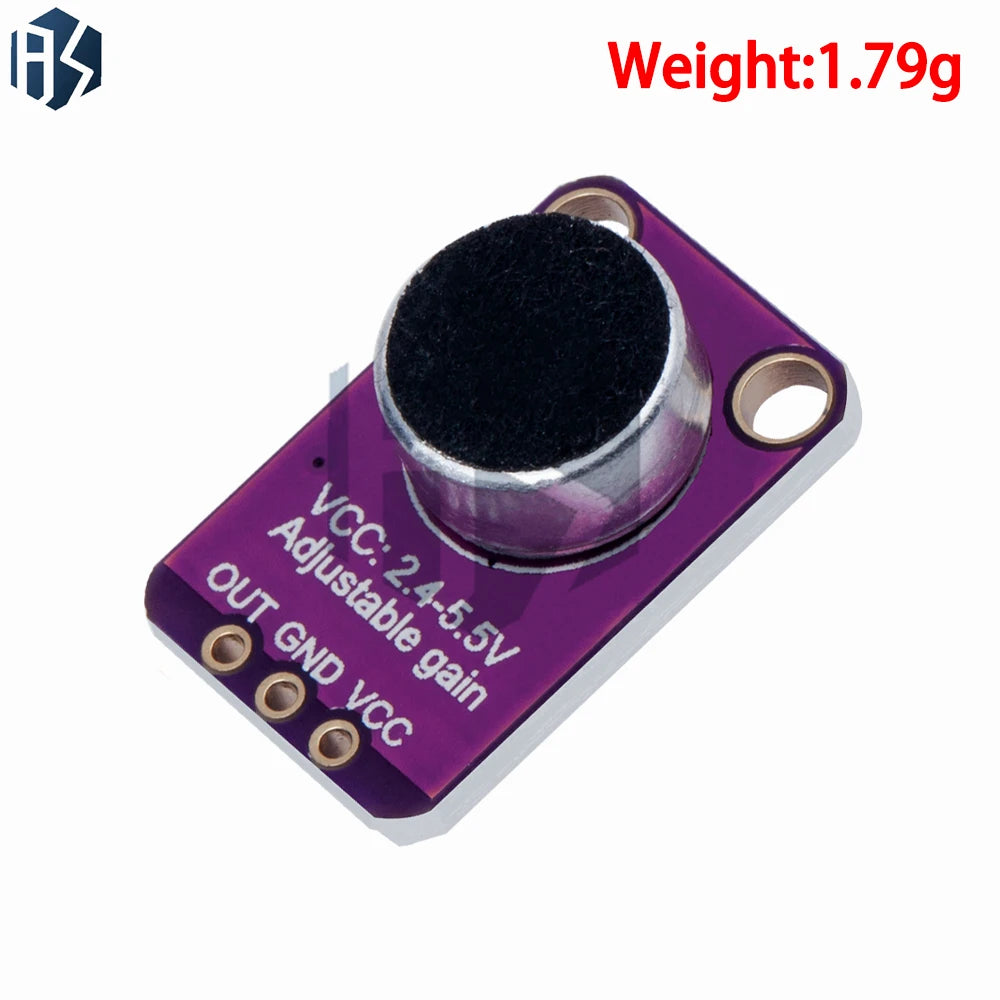

MAX4466 Microphone Amplifier — Features & Benefits

• Fully assembled with a 20Hz–20KHz electret microphone soldered on
• Uses the Maxim MAX4466 op-amp, specifically engineered for microphone amplification
• Excellent power supply noise rejection for clean, clear audio capture
• Adjustable gain via onboard trimmer pot: 25x to 125x (~200mVpp to ~1Vpp for normal speaking volume at ~6" distance)
• Rail-to-rail output — up to 5Vpp at loud volumes
• DC-coupled output with VCC/2 bias; use a 100µF capacitor for AC-coupled audio equipment
• Supply voltage: 2.4V – 5V DC
• Connect GND → ground, VCC → 2.4–5VDC, OUT → microcontroller ADC pin

MAX9814 Microphone Amplifier with Automatic Gain Control (AGC)

The MAX9814 is a high-performance microphone amplifier featuring built-in Automatic Gain Control (AGC), a low-noise front-end amplifier, variable gain amplifier (VGA), output amplifier, and microphone bias voltage generator.

• Supply voltage: 2.7V – 5.5V @ 3mA
• Output: 2Vpp on 1.25V bias
• Frequency response: 20Hz – 20KHz
• Selectable maximum gain: 40dB, 50dB, or 60dB
• Low input-referred noise density: 30nV/√Hz
• Low THD: 0.04% (typ)
• Programmable attack and release ratio
• Low-power shutdown mode
• Built-in 2V low-noise microphone bias
• Space-saving 14-pin TDFN (3mm × 3mm) package
• Extended operating temperature: –40°C to +85°C

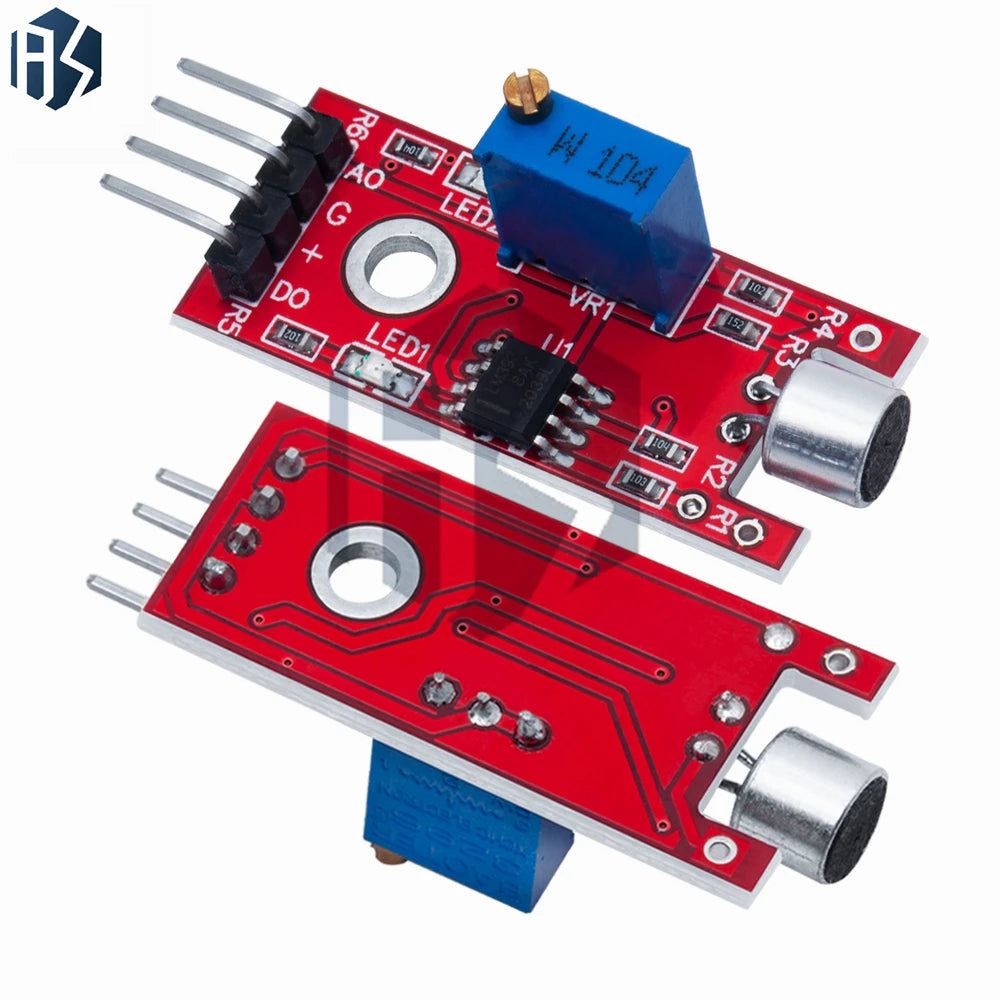

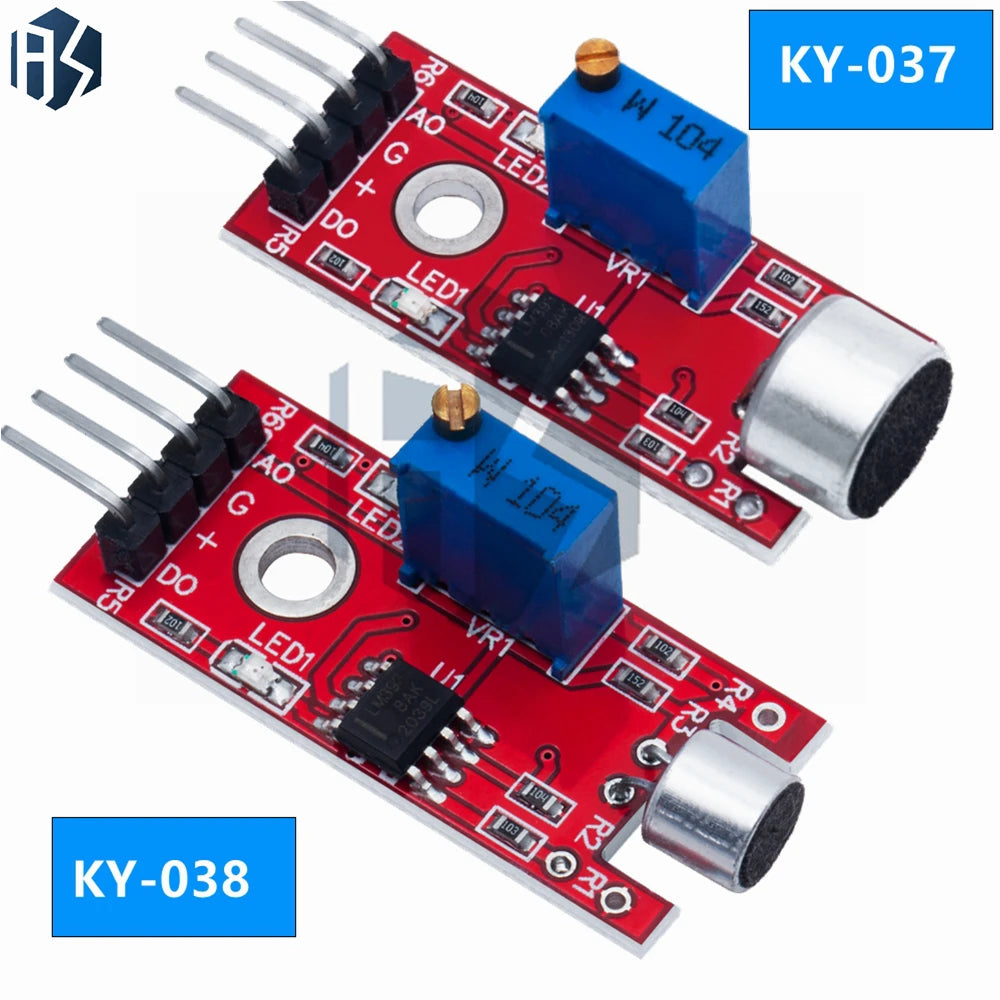

KY-037 / KY-038 Sound Detection Module — Features

These sound detection modules provide both analog and digital output for versatile project integration:

• AO (Analog Output): Real-time voltage signal directly from the microphone
• DO (Digital Output): High/low signal triggered when sound intensity reaches a set threshold
• 3mm mounting screw hole for easy installation
• 5V DC power supply
• Threshold level output with onboard LED indicator
• Power indicator light and comparator output LED
• High-sensitivity electret microphone

How to Connect

• MAX4466 / MAX9814: Connect GND to ground, VCC to 2.4–5VDC, and OUT to your microcontroller ADC pin. For best performance on Arduino, use the 3.3V supply rail.
• KY-037 / KY-038: Connect to 5V DC; read analog audio from AO pin or digital threshold detection from DO pin.
• For audio-reactive FFT projects, connect the OUT pin directly to your Arduino/Raspberry Pi ADC and use an FFT driver library to translate audio input into frequency data.

Ideal Applications

• Voice changers & audio recording
• Audio sampling & FFT frequency analysis
• Sound-reactive LED & light displays
• Arduino & Raspberry Pi audio input projects
• Robotics and smart home automation

Package Options

• KY-038 (Sound Blue)
• KY-037 (Sound Red)
• MAX4466 Microphone Amplifier Breakout
• MAX9814 AGC Microphone Amplifier Breakout
