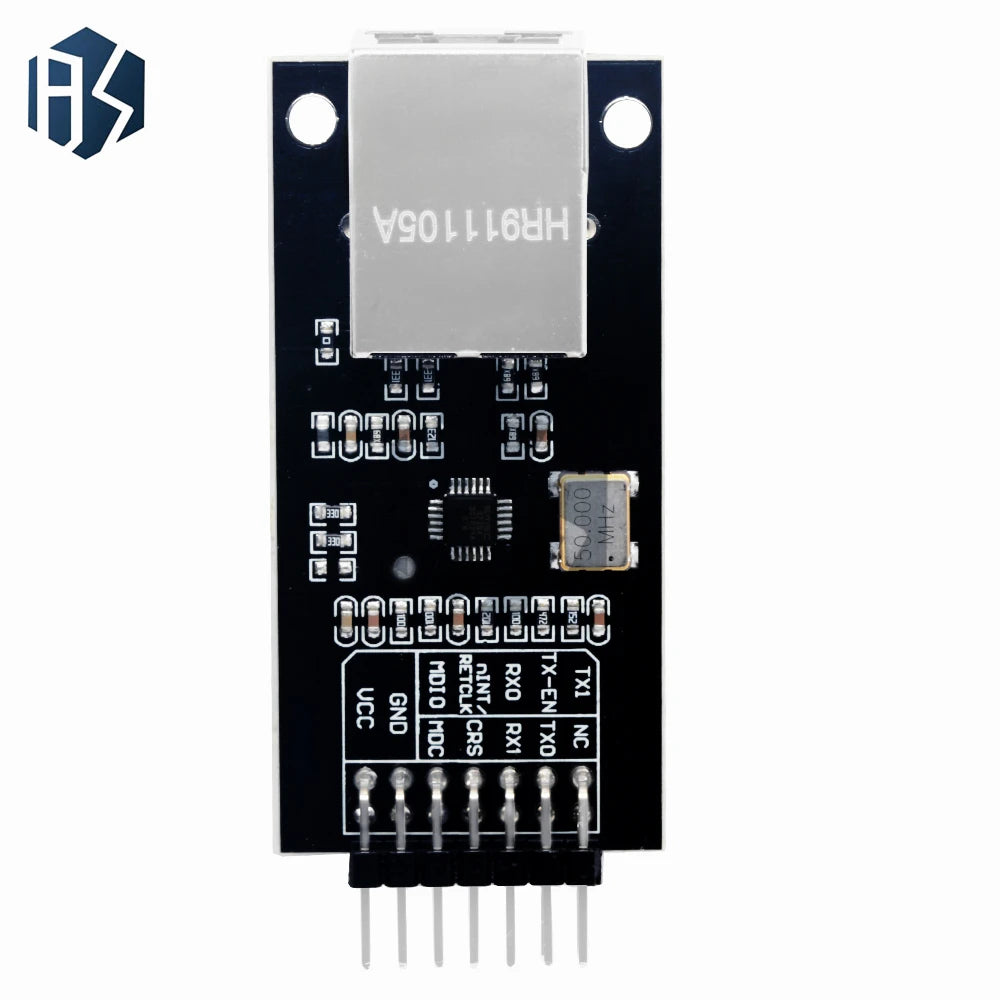

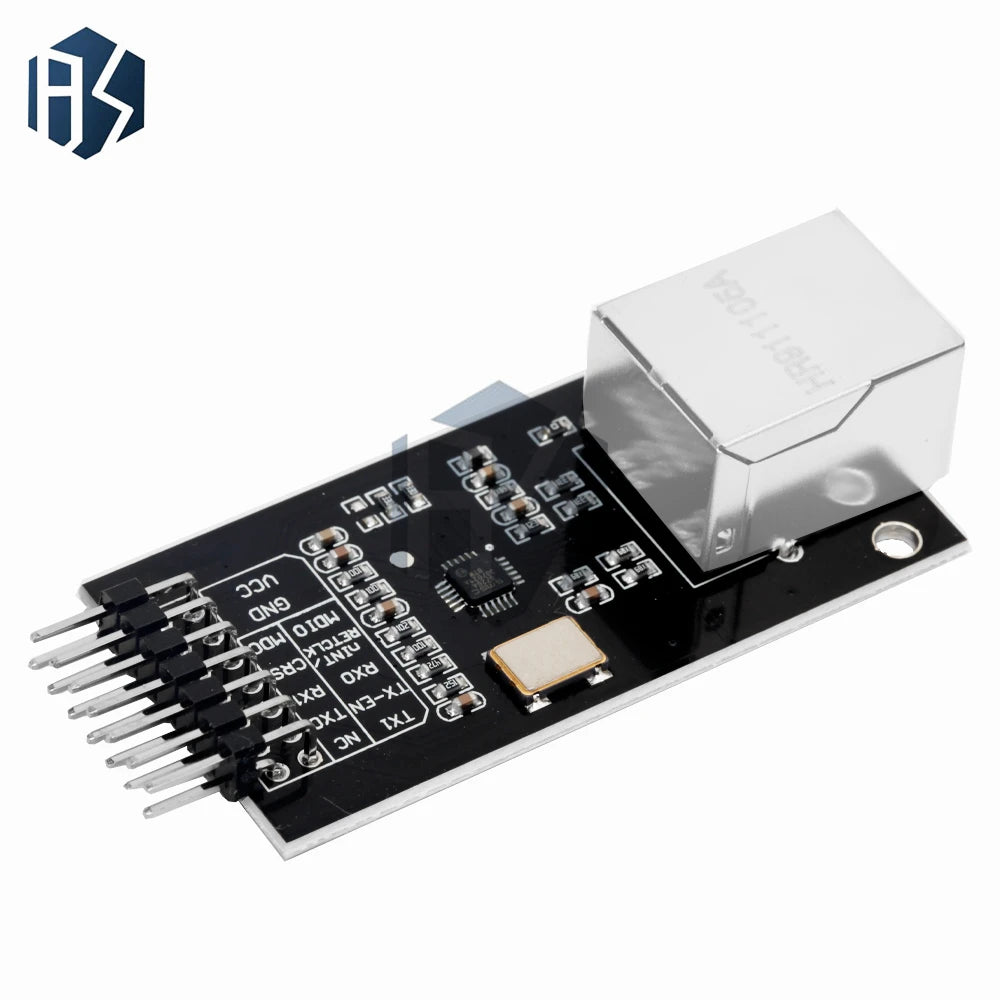

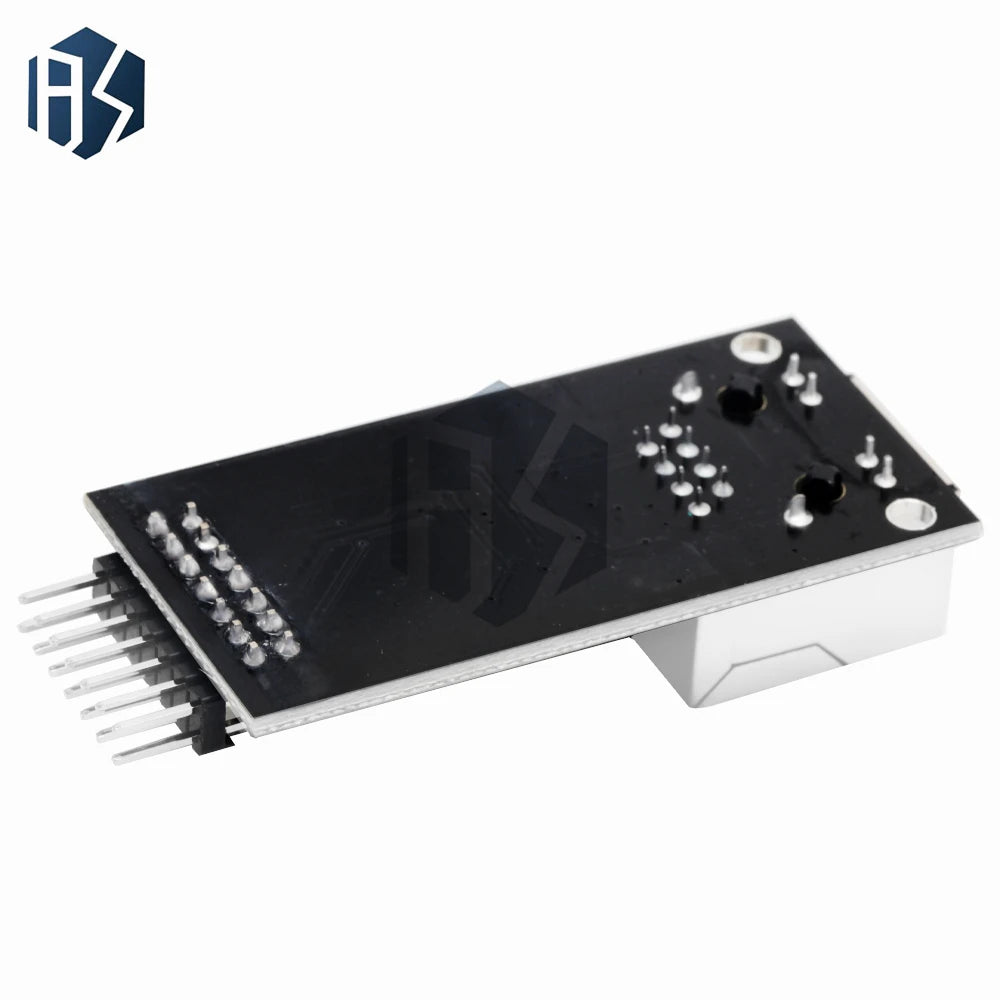

LAN8720 Ethernet Transceiver Module – RMII Interface, 3.3V Single-Supply

The LAN8720 Ethernet Transceiver Module is a compact, low-power PHY (Physical Layer) chip designed for embedded systems, development boards, and industrial networking applications. With its RMII (Reduced Media Independent Interface) and single 3.3V supply operation, this module makes adding reliable Ethernet connectivity to your microcontroller or embedded platform straightforward and efficient.

Key Features

  • RMII Interface: Simplified wiring and reduced pin count for easy integration with STM32, ESP32, and other popular development boards
  • Single 3.3V Supply: I/O voltage range of 1.6V–3.6V for broad compatibility with modern low-voltage MCUs
  • Auto-MDIX Support: Automatically detects and corrects cable polarity — no crossover cables needed
  • Low Power Consumption: Energy-efficient design ideal for battery-backed or always-on embedded server applications
  • Wide Operating Temperature: Rated from -40°C to +85°C, suitable for industrial environments
  • 10/100 Mbps Ethernet: Full support for Fast Ethernet and standard 10BASE-T networking
  • Available Quantities: Choose from 1 pc, 5 pcs, or 10 pcs to match your project needs
  • Condition: Brand new

Specifications

Interface RMII (Reduced Media Independent Interface)
Supply Voltage 3.3V single supply; I/O range 1.6V – 3.6V
Operating Temperature -40°C to +85°C
Application Embedded servers, development board Ethernet interfaces, computer networking
Package DIY Kit
Condition New
Quantity Options 1 pc / 5 pcs / 10 pcs

Who Is This For?

This module is perfect for electronics hobbyists, firmware engineers, and embedded system developers who need a reliable, low-cost Ethernet PHY solution. It pairs seamlessly with popular platforms like STM32 microcontrollers and other RMII-capable MCUs. Whether you're building a home automation hub, an industrial data logger, or an IoT device, the LAN8720 gets your project connected.

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the LAN8720 Ethernet Transceiver Module and what does it do?

A: The LAN8720 is a low-power 10/100 Mbps Ethernet PHY (Physical Layer Transceiver) module that uses the RMII interface to connect a microcontroller or embedded processor to a standard Ethernet network. It handles the physical layer signal processing, allowing your MCU to send and receive network data over a standard RJ45 connection.

Q: Which microcontrollers or development boards are compatible with the LAN8720 RMII module?

A: The LAN8720 is widely compatible with STM32-series microcontrollers (e.g. STM32F4, STM32F7), as well as other RMII-capable MCUs. It is commonly used in embedded server projects, IoT gateways, and development board Ethernet interface expansions. Its 1.6V–3.6V I/O range ensures compatibility with modern 3.3V and even some 1.8V systems.

Q: Does the LAN8720 module support Auto-MDIX?

A: Yes. The LAN8720 features built-in Auto-MDIX, which means it automatically detects the type of Ethernet cable connected (straight-through or crossover) and adjusts accordingly. You do not need a special crossover cable to connect it directly to another device or switch.

Q: Is the LAN8720 module suitable for industrial use?

A: Absolutely. The module is rated for an operating temperature range of -40°C to +85°C, making it suitable for demanding industrial environments where standard consumer electronics would fail. Its low-power design also makes it ideal for always-on or embedded server deployments.

Q: How many modules do I receive per order?

A: You can choose your quantity at checkout: 1 pc, 5 pcs, or 10 pcs. This flexibility makes the LAN8720 module a cost-effective choice whether you're prototyping a single unit or building a small production run.
