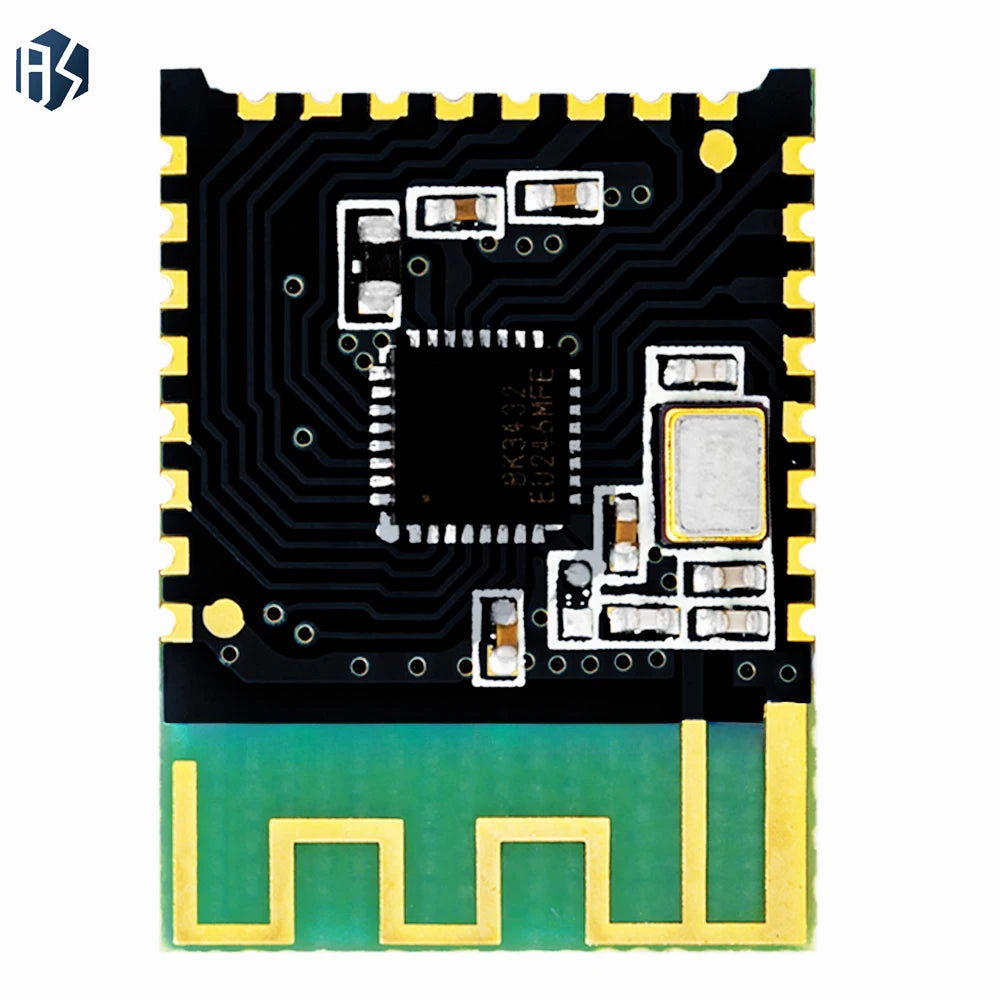

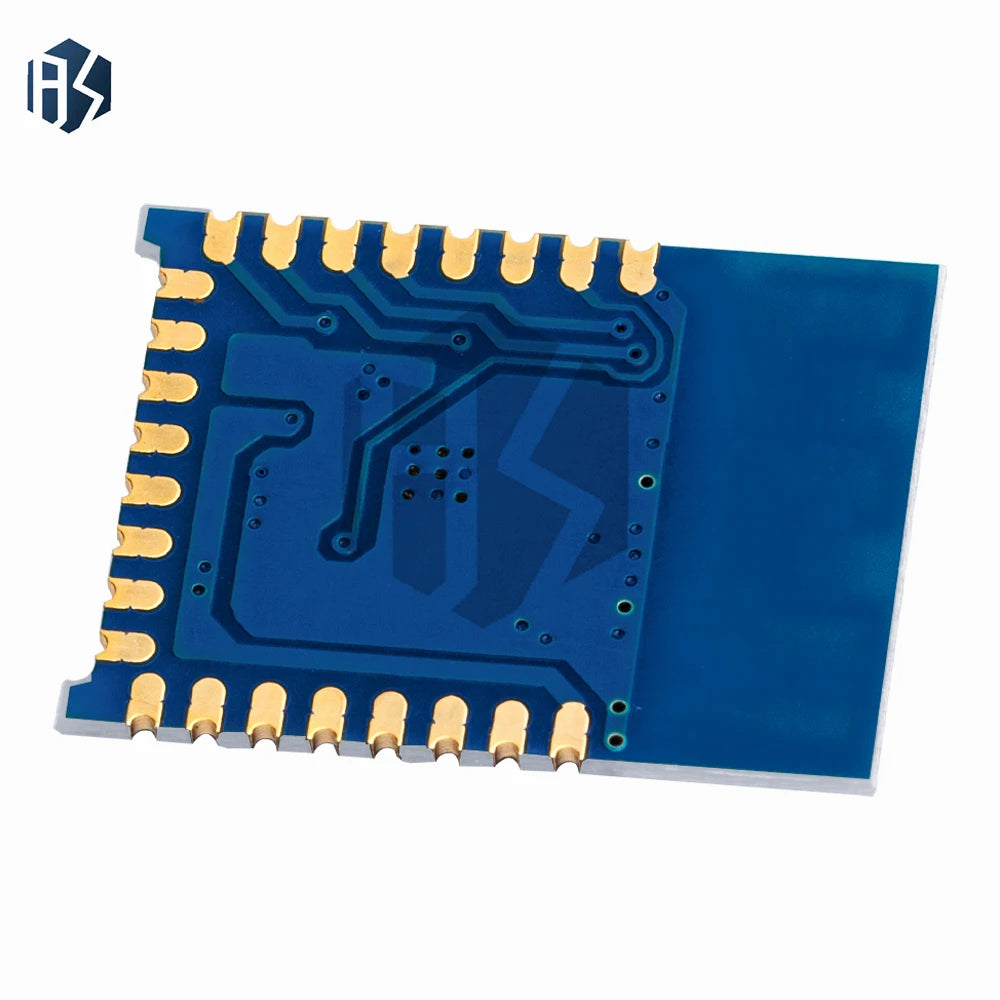

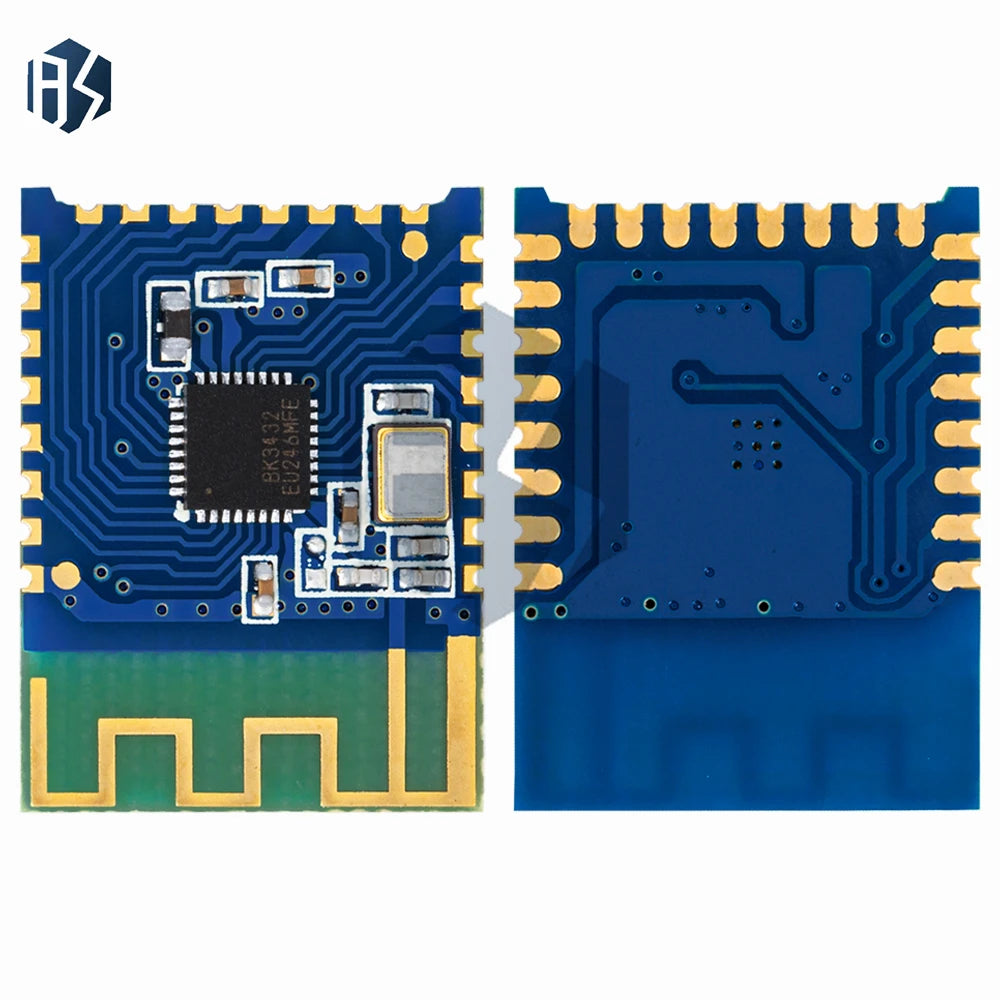

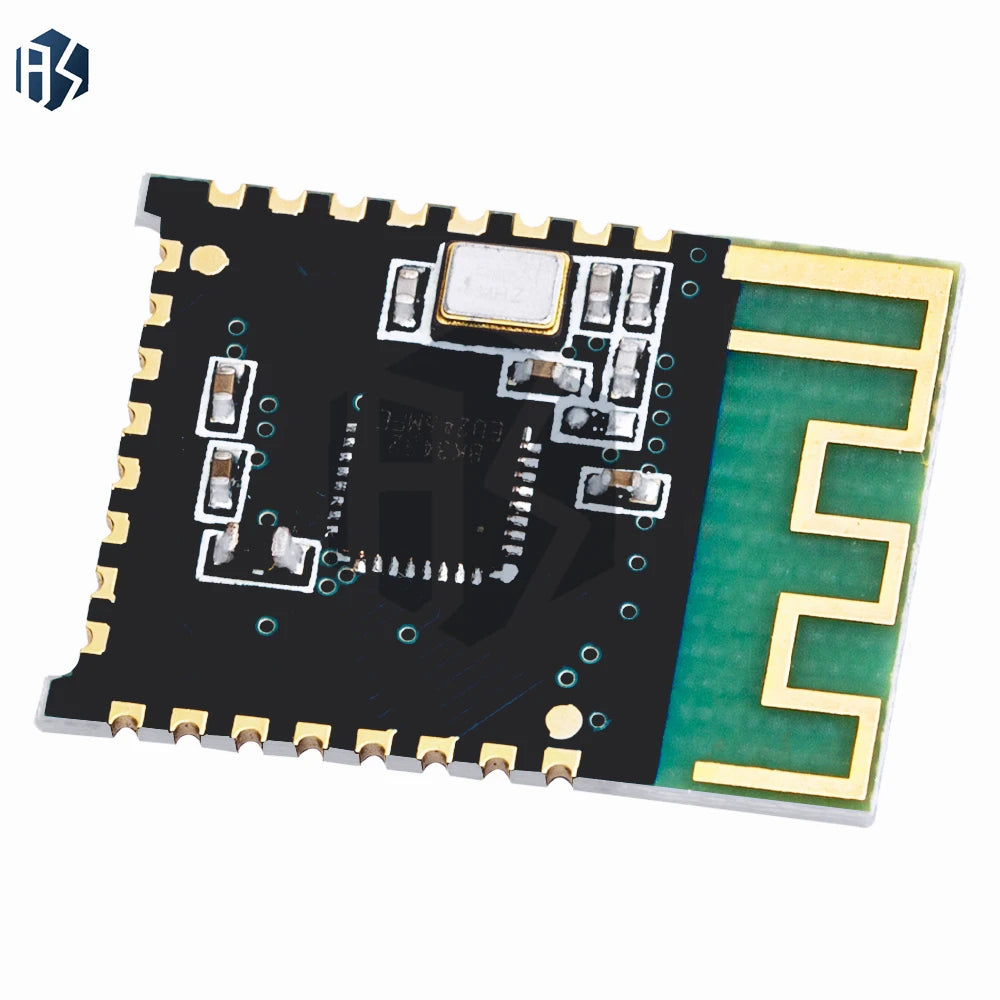

JDY-23 Bluetooth 5.0 BLE Module – Wireless Serial Data

JDY-23 Bluetooth 5.0 BLE Wireless Serial Module

The JDY-23 Bluetooth 5.0 BLE Module is a compact, low-energy wireless communication module designed for seamless serial data transmission and passthrough applications. Whether you're building IoT devices, Arduino projects, or custom wireless systems, this tiny but powerful module delivers reliable Bluetooth Low Energy (BLE) connectivity in a compact SMD form factor.

Key Features

• Bluetooth 5.0 BLE: Latest-generation low-energy wireless standard for stable, efficient communication

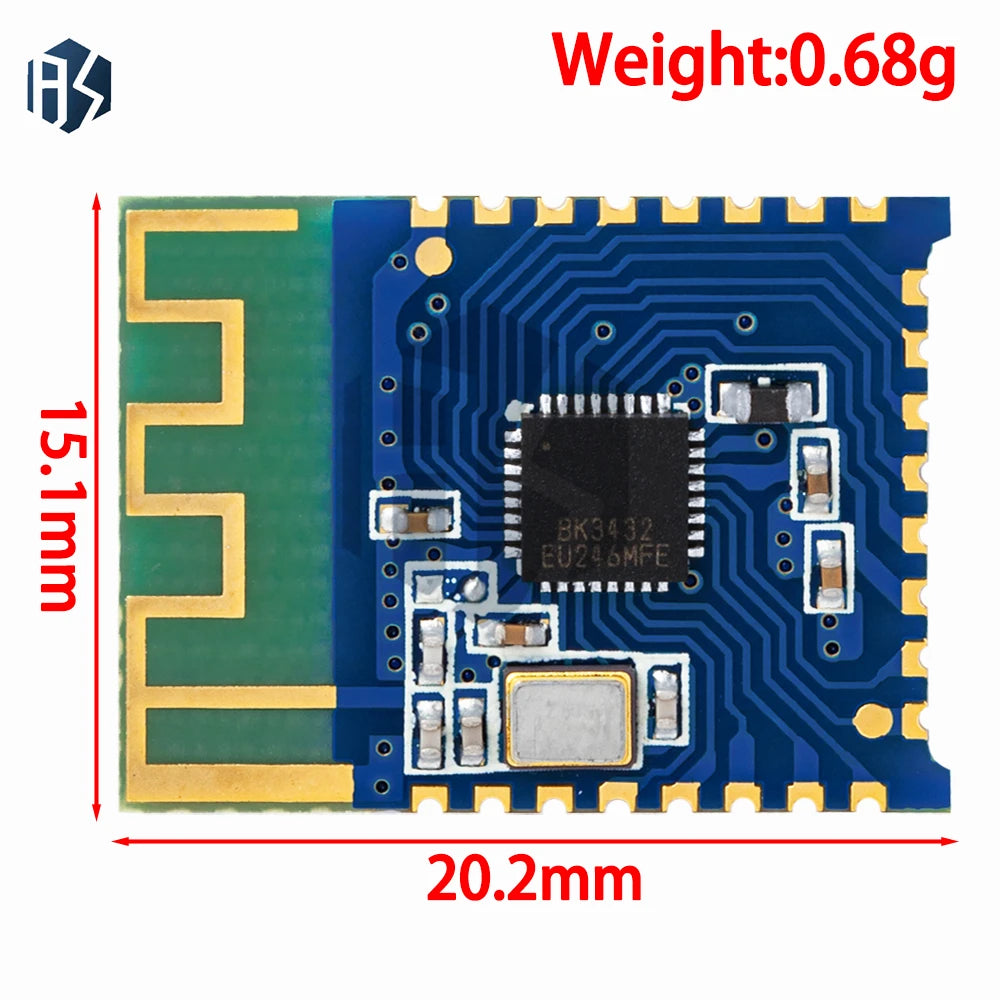

• Compact SMD Design: Ultra-small footprint at just 19.6 × 14.94 × 1.8 mm — easy to integrate into tight PCB layouts
• Serial Port Passthrough: Transparent UART serial data transmission for straightforward integration with microcontrollers
• CC2541 Chipset (Slave Mode): Based on the proven CC2541 chipset, operating in slave configuration for stable device-to-host communication

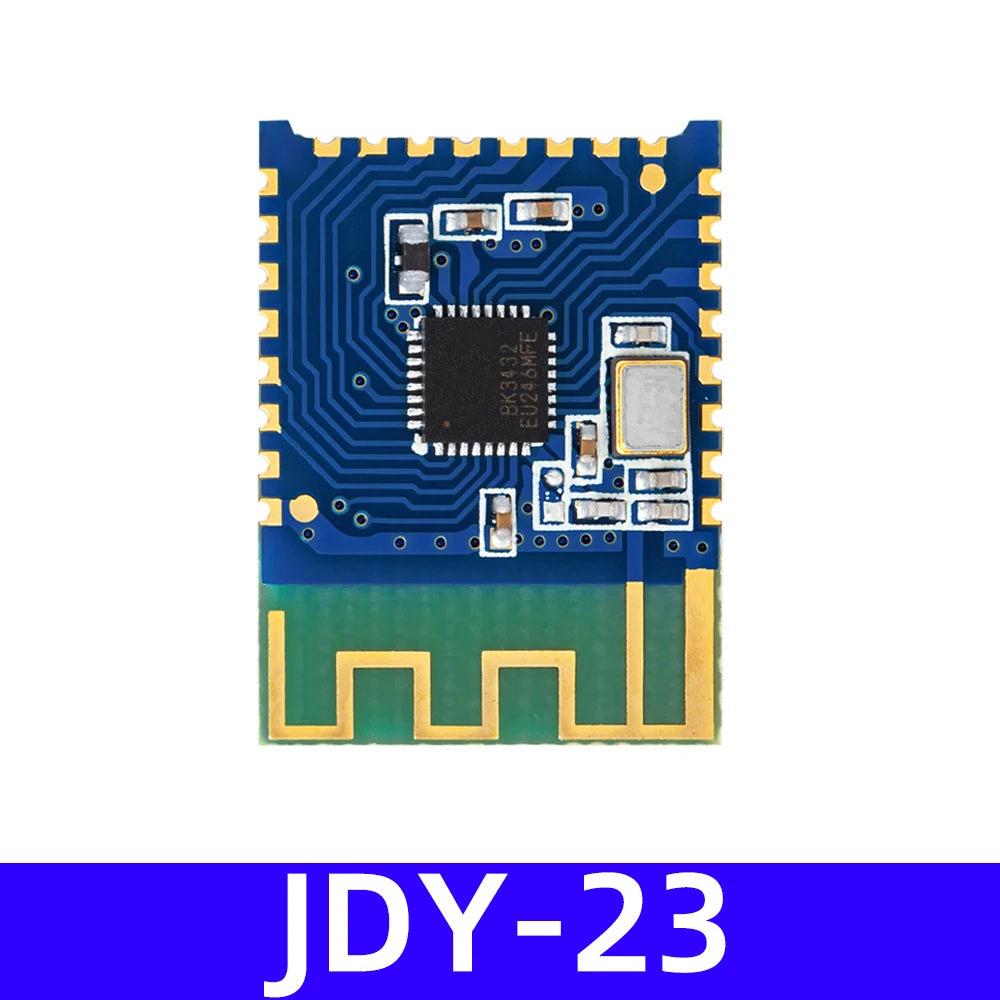

• Two Variants Available: Choose between JDY-23 (standard) and JDY-23A (alternate configuration) to suit your project needs
• Arduino & IoT Compatible: Works seamlessly with Arduino, Raspberry Pi, and a wide range of IoT platforms
• Low Power Consumption: BLE technology ensures minimal energy draw — ideal for battery-powered and embedded applications
• Each Order Includes: 1× SMD BLE module (JDY-23 or JDY-23A, as selected)

Specifications

What's in the Box?

• 1× JDY-23 or JDY-23A BLE 5.0 Module (SMD)

Perfect For

• Arduino & microcontroller wireless projects
• IoT sensor nodes and smart home devices
• Wireless serial communication between devices
• Embedded system prototyping and development
• DIY electronics and maker projects

Explore More Electronics Essentials

Complete your project with these related items from our store:

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the JDY-23 Bluetooth 5.0 BLE Module and what does it do?

A: The JDY-23 is a compact Bluetooth 5.0 Low Energy (BLE) wireless module built around the CC2541 chipset. It operates in slave mode and enables transparent UART serial data passthrough between a microcontroller (such as an Arduino) and a Bluetooth-enabled host device. It measures just 19.6 × 14.94 × 1.8 mm and is available as an SMD component in two variants: JDY-23 and JDY-23A.

Q: What is the difference between the JDY-23 and JDY-23A variants?

A: The JDY-23 is the standard version of the module, while the JDY-23A is an alternate configuration variant. Both are based on the same CC2541 BLE chipset and share the same compact SMD footprint. Please select the variant that best matches your project's requirements when placing your order.

Q: Is the JDY-23 BLE module compatible with Arduino and IoT platforms?

A: Yes — the JDY-23 Bluetooth 5.0 BLE Module is fully compatible with Arduino, Raspberry Pi, ESP32, and a wide range of IoT development platforms. Its standard UART serial interface makes integration straightforward, and its low-energy BLE protocol is ideal for battery-powered and embedded applications.

Q: Can I use this module for wireless serial communication between two devices?

A: Absolutely. The JDY-23 supports transparent serial port passthrough, meaning data sent via UART is wirelessly transmitted over BLE without any additional protocol conversion. This makes it an excellent choice for replacing wired serial connections in prototyping and production embedded systems.
