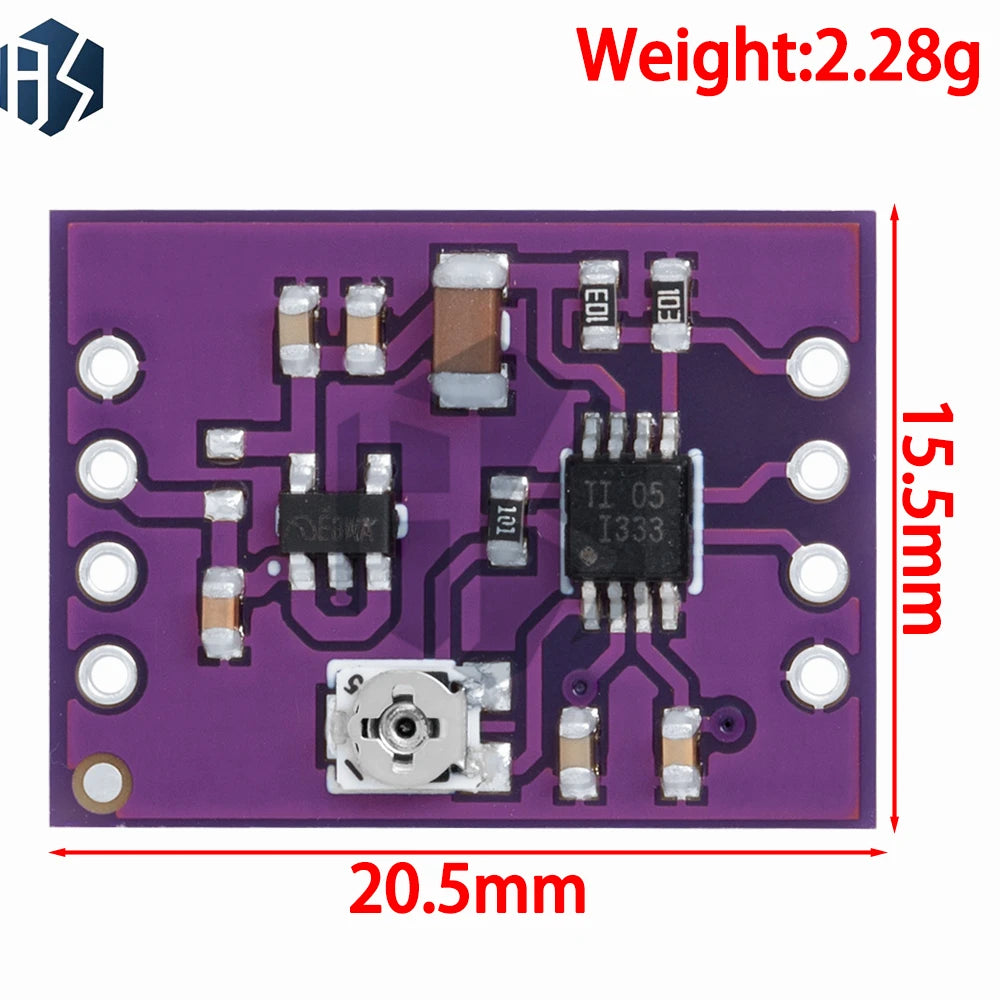

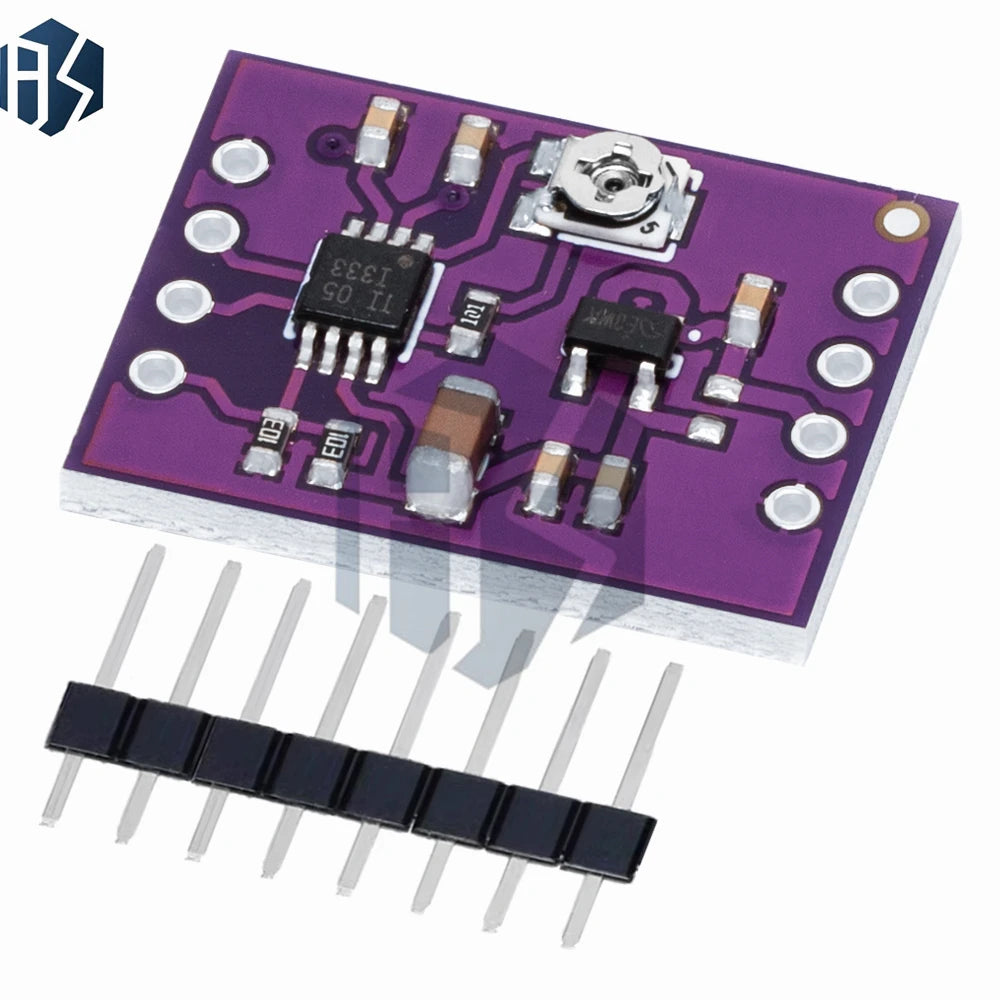

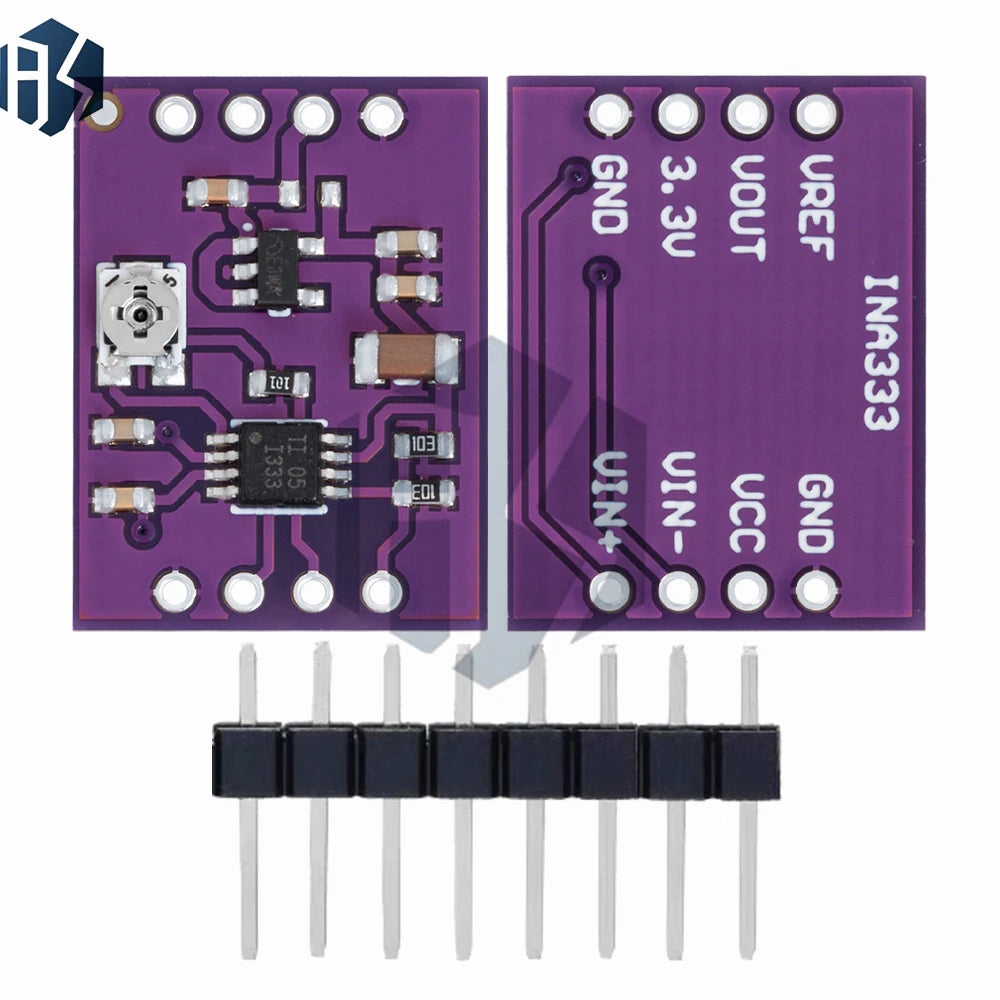

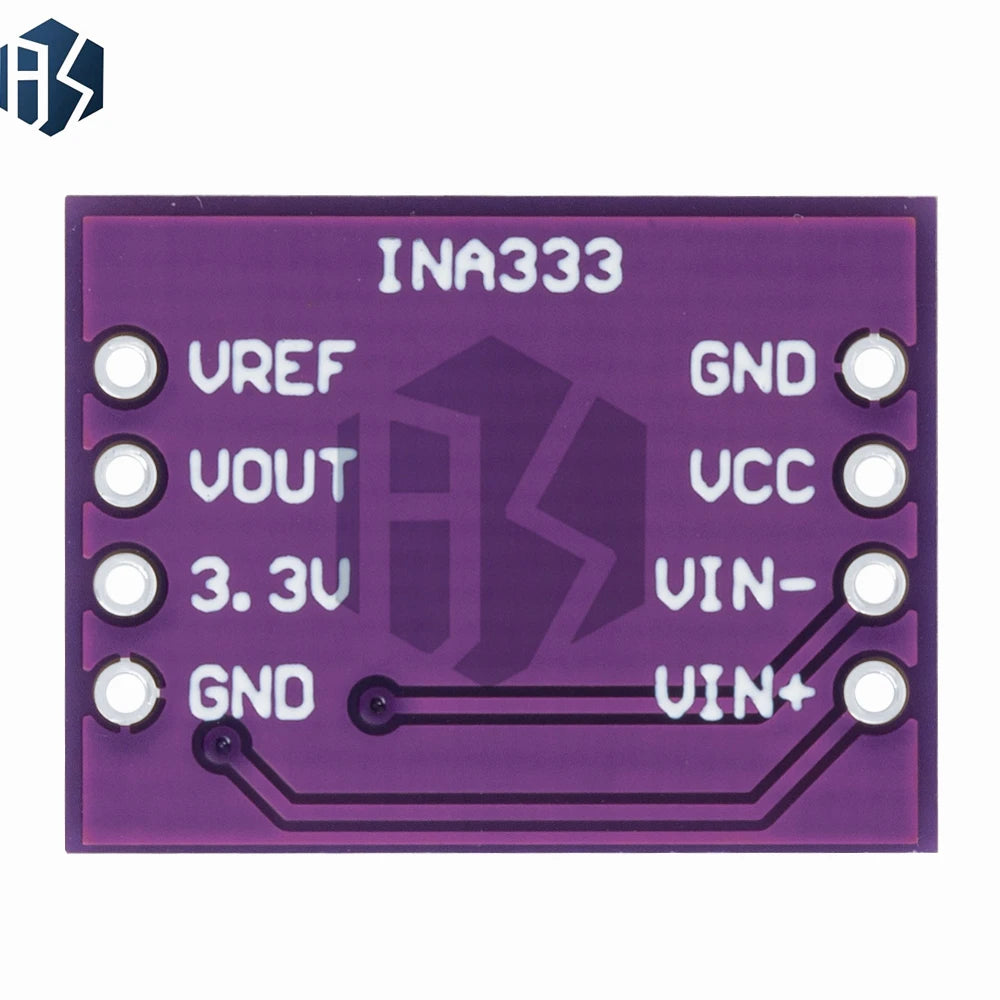

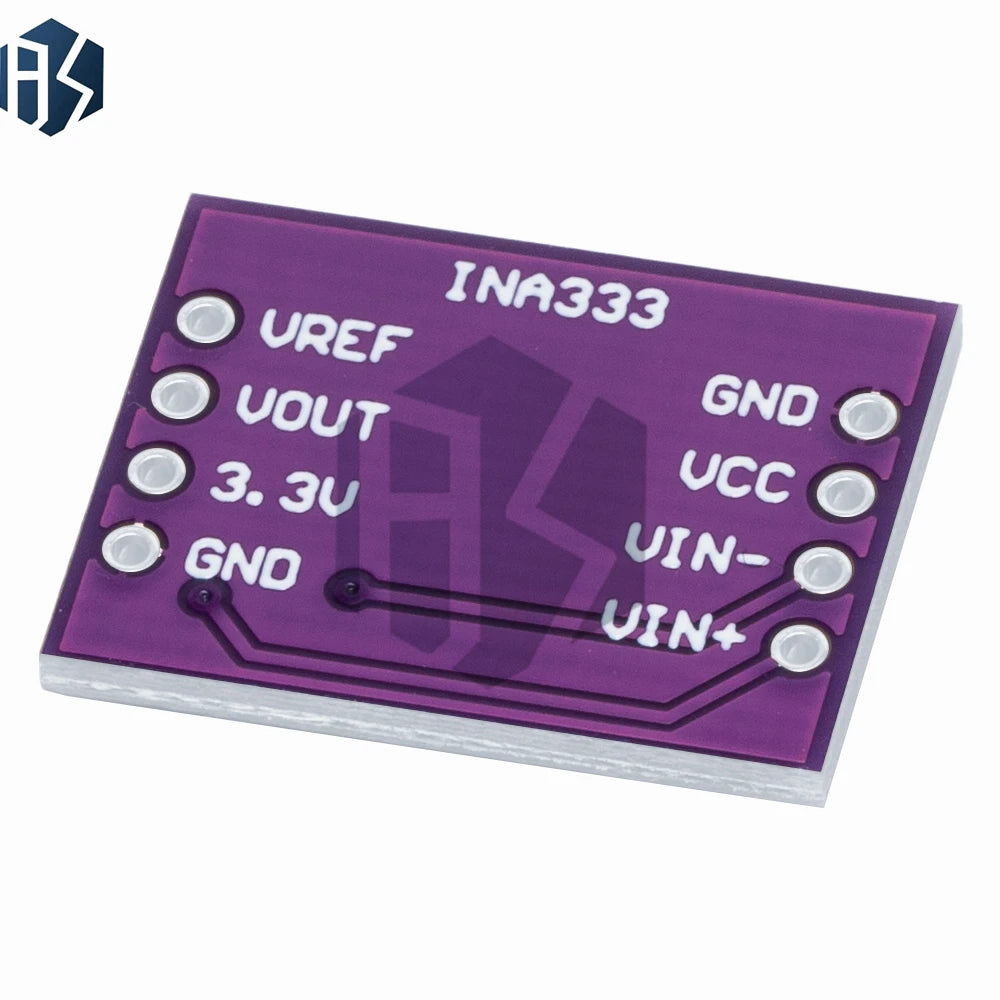

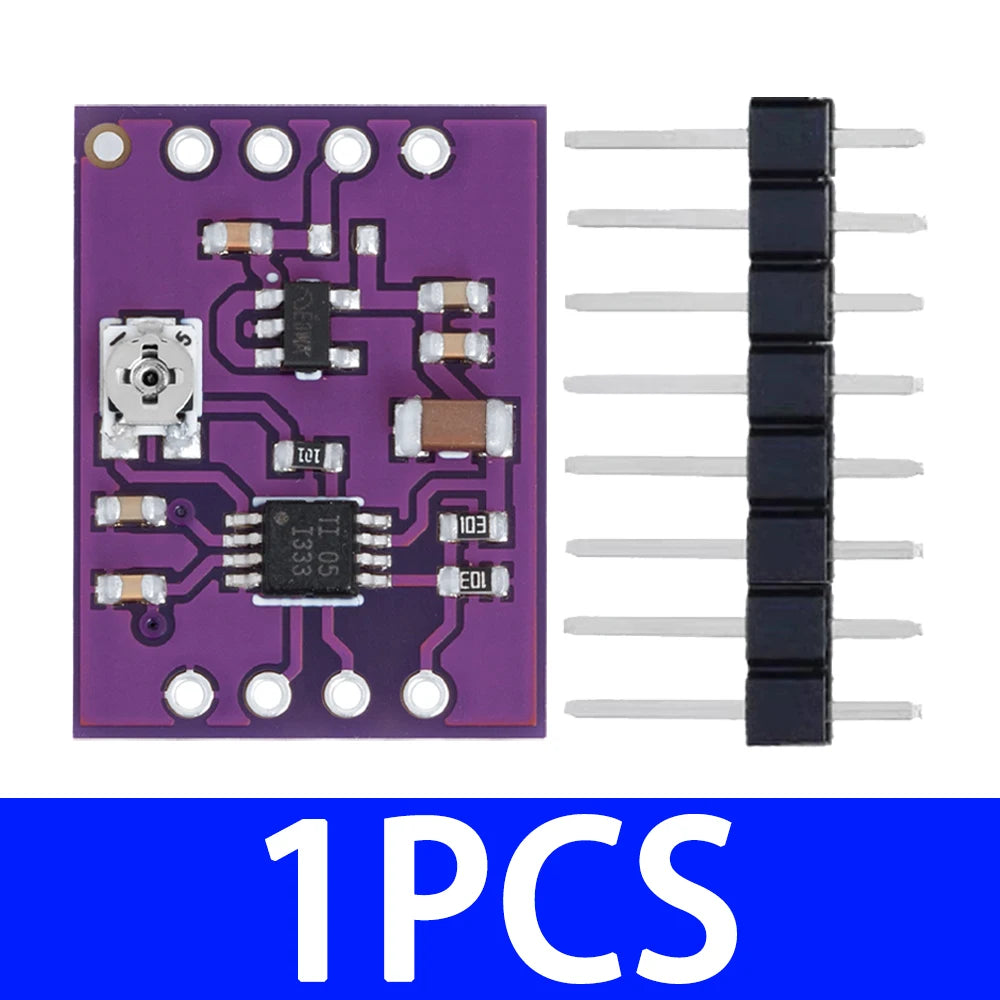

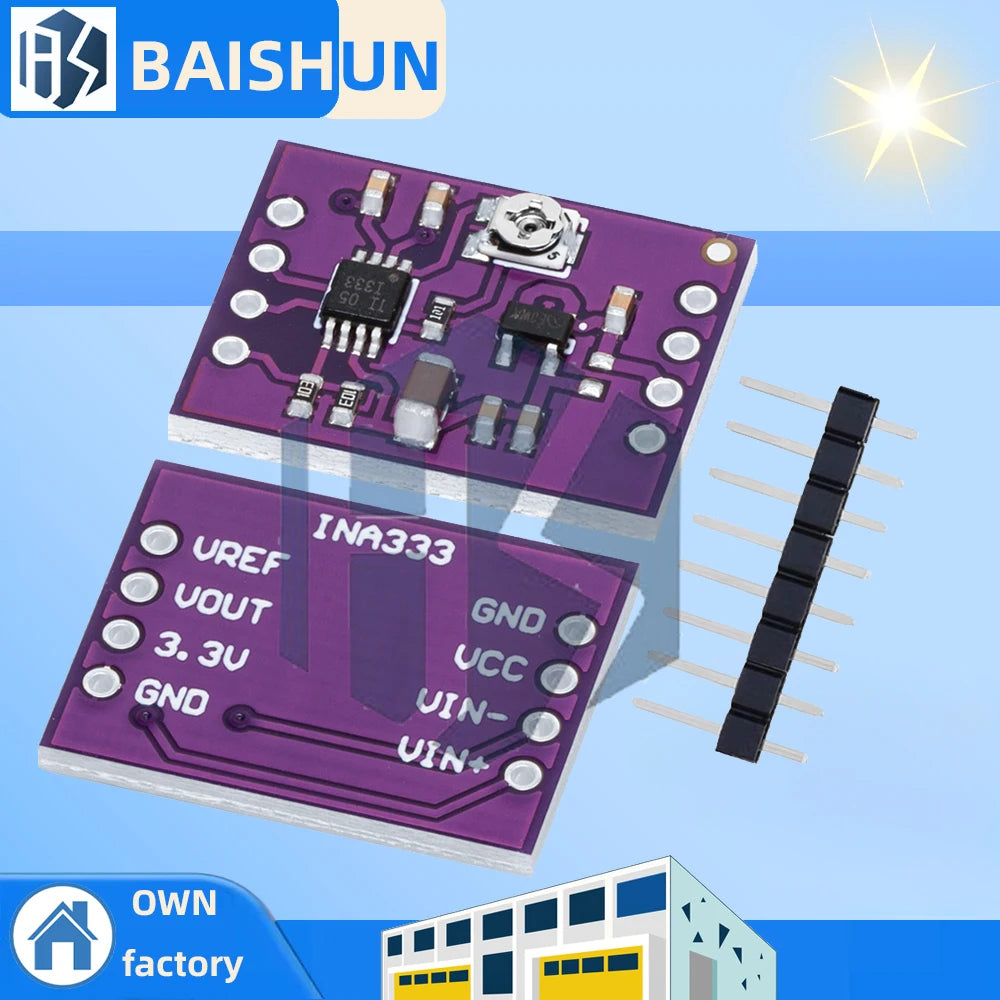

INA333 Precision Instrumentation Amplifier Module

The INA333 Precision Instrumentation Amplifier Module is a high-performance, three op-amp SMD module designed for accurate amplification of low-level micro signals. Built around the renowned INA333 chip, this module is ideal for engineers, hobbyists, and developers who need reliable, low-noise signal conditioning in embedded systems, data acquisition setups, and electronic projects.

Key Features

Triple Op-Amp Architecture: Three-op-amp instrumentation amplifier design delivers excellent common-mode rejection and high input impedance for accurate micro-signal amplification.
SMD Package: Compact surface-mount design makes it easy to integrate into tight PCB layouts and prototype boards.
Precision Performance: Low offset voltage and low drift ensure consistent, stable output across varying operating conditions.
Multifunctional Application: Suitable for use with computers, microcontrollers, Arduino, Raspberry Pi, and other embedded platforms.
Customizable: Supports custom configurations to match your specific circuit design requirements.
New Condition: Supplied brand new, ready for immediate integration into your project.

Specifications

Chip: INA333
Type: Instrumentation Amplifier Module
Package: SMD (Surface Mount Device)
Application: Computer / Embedded Systems / Signal Conditioning
Customizable: Yes
Condition: New
Quantity: 1 piece per order

What Is an Instrumentation Amplifier?

An instrumentation amplifier is a specialized differential amplifier designed to amplify very small signals with high precision. The INA333 is particularly well-regarded for its low power consumption, rail-to-rail output, and excellent accuracy — making it a go-to component for sensor signal conditioning, biomedical electronics experimentation, and precision measurement circuits.

Who Is This For?

This module is perfect for electronics engineers, PCB designers, students, and DIY electronics enthusiasts who need a compact, reliable amplifier module for signal processing tasks. Whether you are building a custom sensor interface, a data logger, or an analog front-end for a microcontroller, the INA333 module delivers the accuracy you need.

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the INA333 Precision Instrumentation Amplifier Module used for?

A: The INA333 Precision Instrumentation Amplifier Module is used to accurately amplify very small (micro-level) differential signals in electronic circuits. It is commonly used in signal conditioning, sensor interfaces, data acquisition systems, and embedded computing projects with platforms like Arduino and Raspberry Pi.

Q: What does the three op-amp design mean for performance?

A: The three op-amp architecture provides high input impedance, excellent common-mode rejection ratio (CMRR), and low noise amplification. This means the module can accurately amplify weak signals while rejecting unwanted interference, delivering clean and precise output for your circuit.

Q: Is this module compatible with Arduino or Raspberry Pi?

A: Yes, the INA333 module can be integrated into projects using Arduino, Raspberry Pi, and other microcontroller or single-board computer platforms. It is suitable for use as an analog front-end for sensor signal conditioning and data acquisition applications.

Q: What does the SMD package mean, and how is it used?

A: SMD stands for Surface Mount Device, meaning the module is designed to be mounted directly onto the surface of a printed circuit board (PCB). It is compact and well-suited for integration into custom PCB designs or prototype boards.
