HV-1 High Voltage Arc Generator – DC 3V–5V Ignition Module for DIY Projects

Take your electronics and DIY experiments to the next level with the HV-1 High Voltage Arc Generator Module. Powered by a low 3V–5V DC input, this compact SMD module steps up voltage to produce a visible, high-frequency arc — perfect for hobbyists, makers, and electronics enthusiasts looking to explore high-voltage circuits, plasma effects, or custom ignition mechanisms.

Whether you're building a science demonstration, a custom lighter, an arc-based ignition system, or just exploring high-voltage electronics, the HV-1 delivers reliable, repeatable performance in a small, easy-to-integrate form factor.

Key Features

Wide Input Voltage: Operates on DC 3V–5V — compatible with USB power banks, AA batteries, and standard microcontroller power rails
High-Voltage Arc Output: Produces a strong, visible electric arc ideal for ignition, plasma, and demonstration projects
Compact SMD Design: Small footprint makes it easy to integrate into custom enclosures and DIY builds
Customizable Quantities: Available as a 1-piece or 5-piece pack — perfect for single builds or project batches
Plug-and-Play Ready: Minimal external components required; simply connect power and it's ready to fire
Durable Construction: Built with quality SMD components for consistent, long-lasting performance

What's in the Box

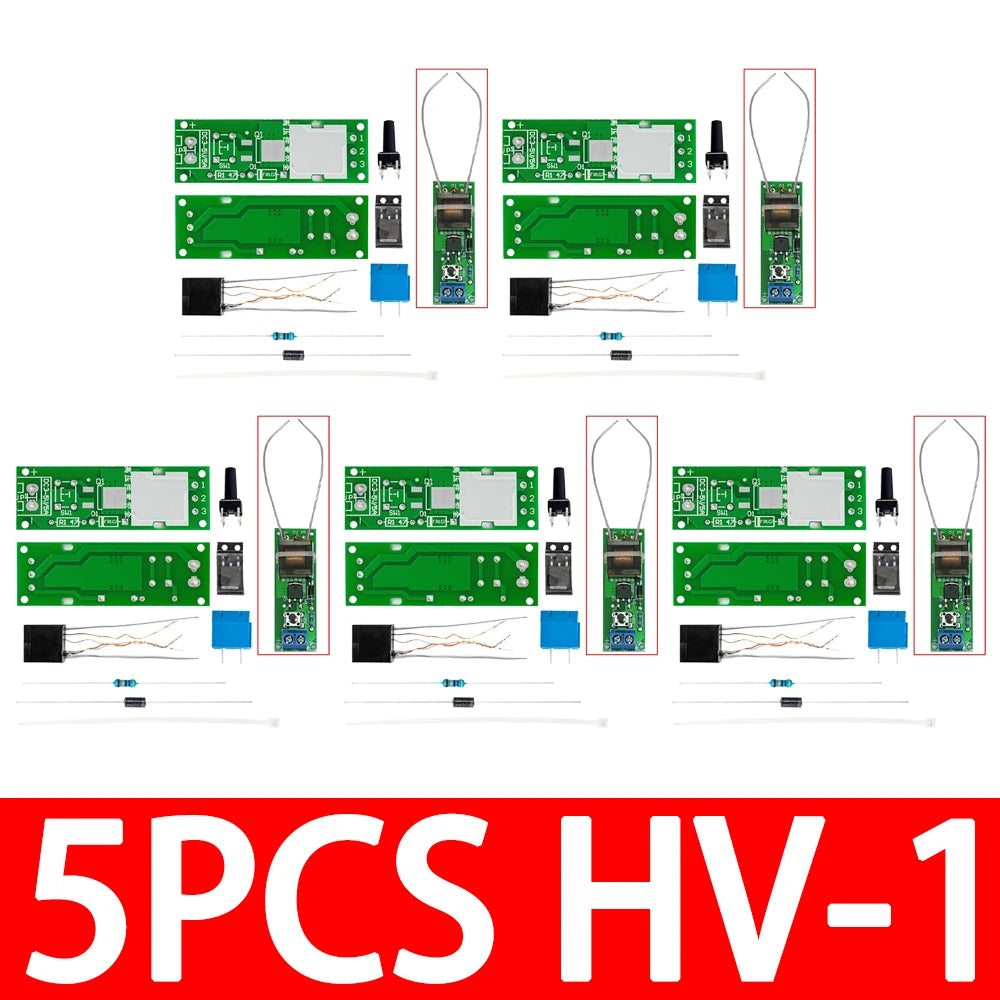

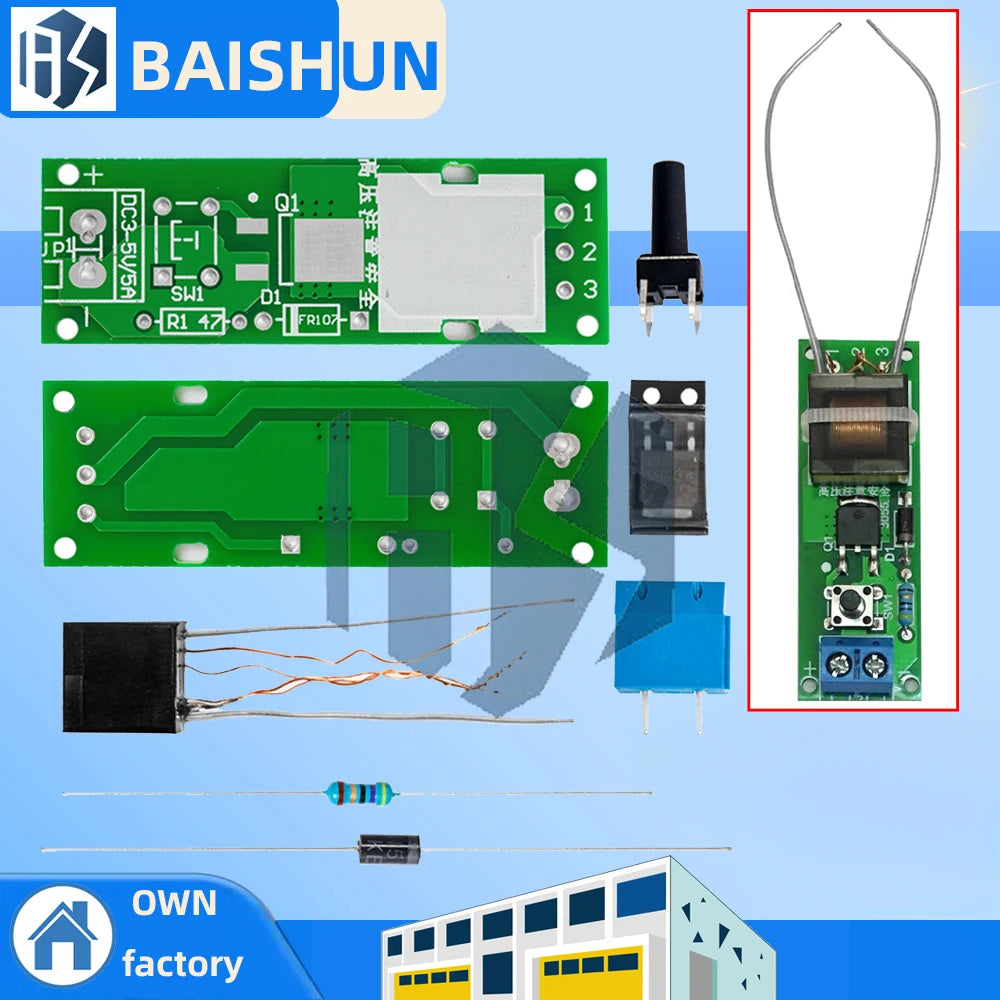

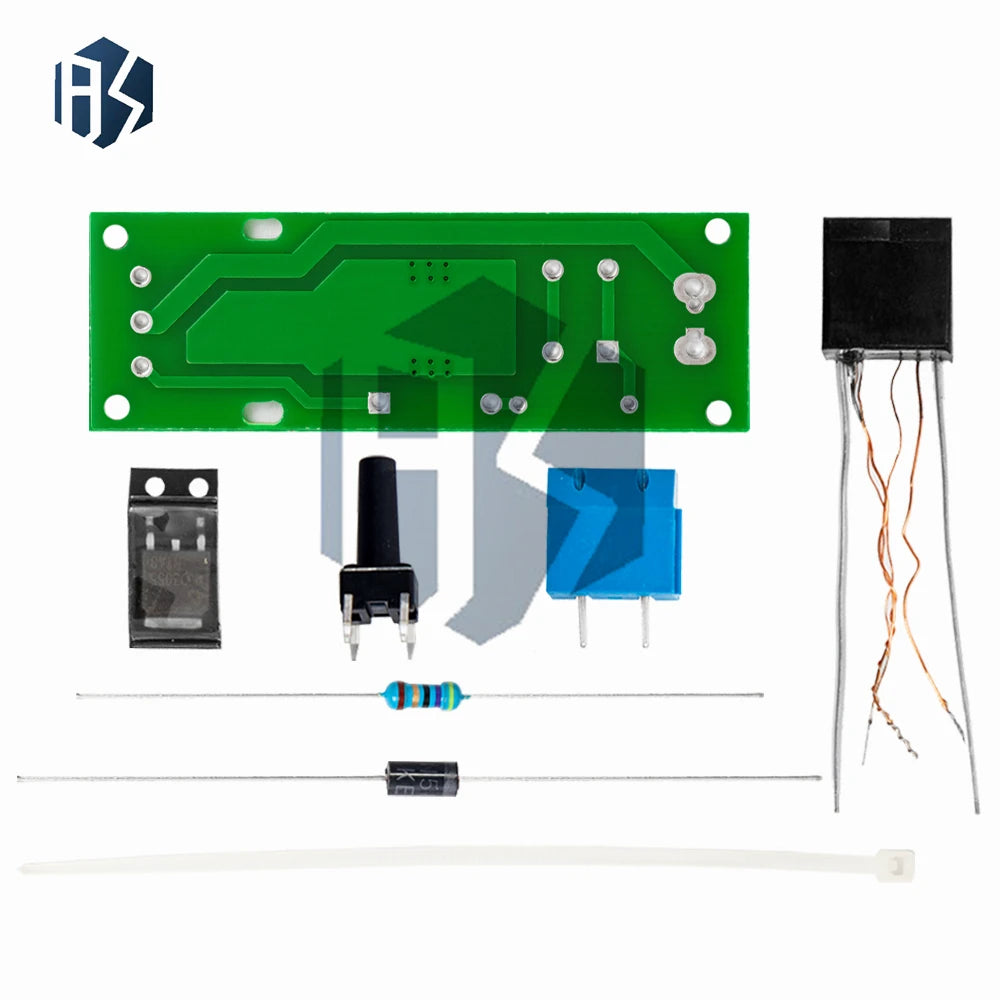

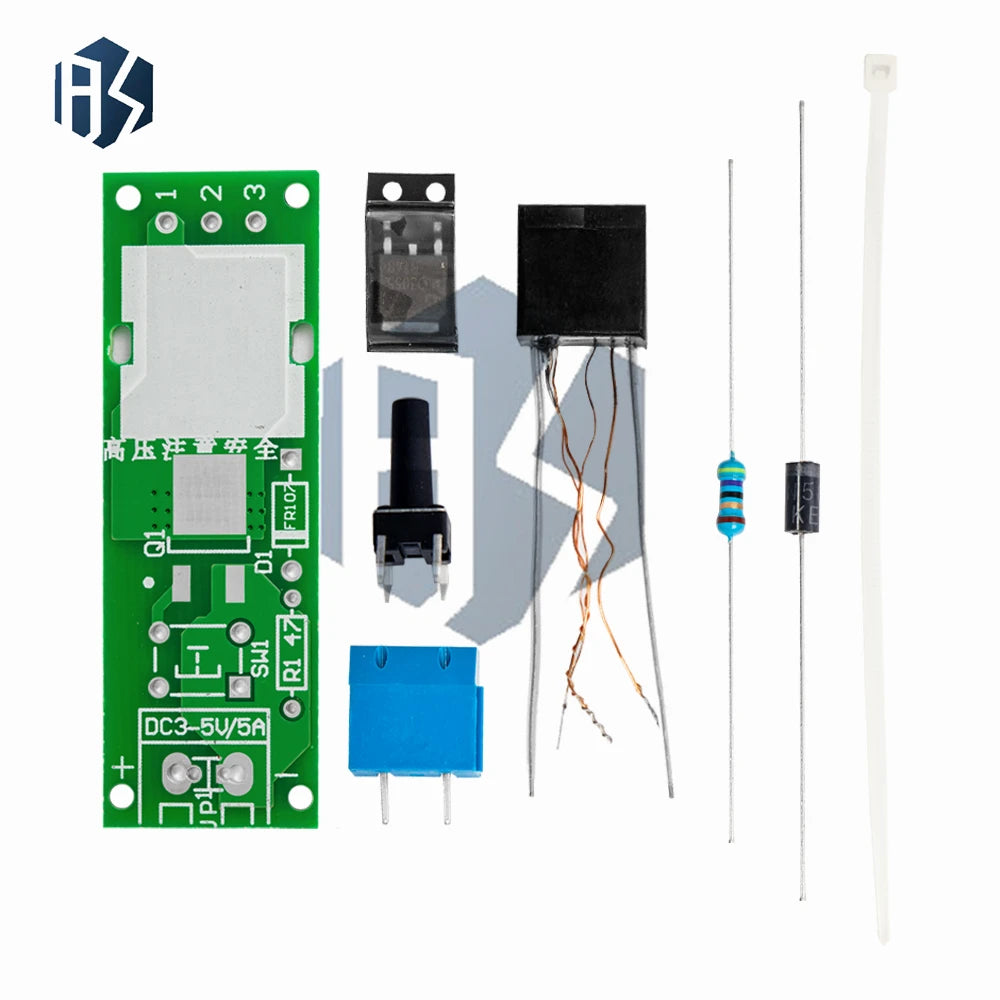

HV-1 Arc Generator Module(s) (SMD) — choose 1PCS or 5PCS

Specifications

Model: HV-1
Input Voltage: DC 3V – 5V
Type: High Voltage Arc / Ignition Module
Component Style: SMD (Surface Mount Device)
Quantity Options: 1PCS or 5PCS
Application: DIY electronics, ignition systems, science demonstrations, plasma projects

Great for These DIY Applications

Custom arc lighters and ignition systems
High-voltage science and STEM demonstrations
Plasma display and art projects
Hobbyist electronics experimentation
Robotics and automation ignition triggers

⚠️ Safety Note: This module produces high-voltage output. Always handle with care, avoid contact with the arc output, and use appropriate insulation and protective measures during operation. Keep away from children and operate in a dry environment.

Frequently Asked Questions

Q: What does the HV-1 Arc Generator Module do?

A: The HV-1 is a high-voltage arc generator module that takes a low DC input of 3V–5V and steps it up to produce a visible, high-frequency electric arc. It is commonly used in DIY ignition systems, plasma art, STEM demonstrations, and electronics experimentation projects.

Q: What power source does the HV-1 module require?

A: The HV-1 module operates on any DC power source between 3V and 5V. This includes standard AA/AAA battery packs, USB power supplies, and microcontroller power rails (such as those from Arduino or Raspberry Pi), making it highly versatile for a wide range of DIY setups.

Q: How many units are included per order?

A: You can choose between a 1-piece or 5-piece pack at checkout. The 5-piece option is ideal if you are working on multiple builds or want spares on hand for ongoing projects.

Q: Is the HV-1 module safe to handle?

A: While the module is safe to use when handled correctly, it does produce a high-voltage arc output. Always avoid direct contact with the arc terminals during operation, use appropriate insulation, and operate in a dry environment. Keep out of reach of children and follow standard high-voltage safety practices.
