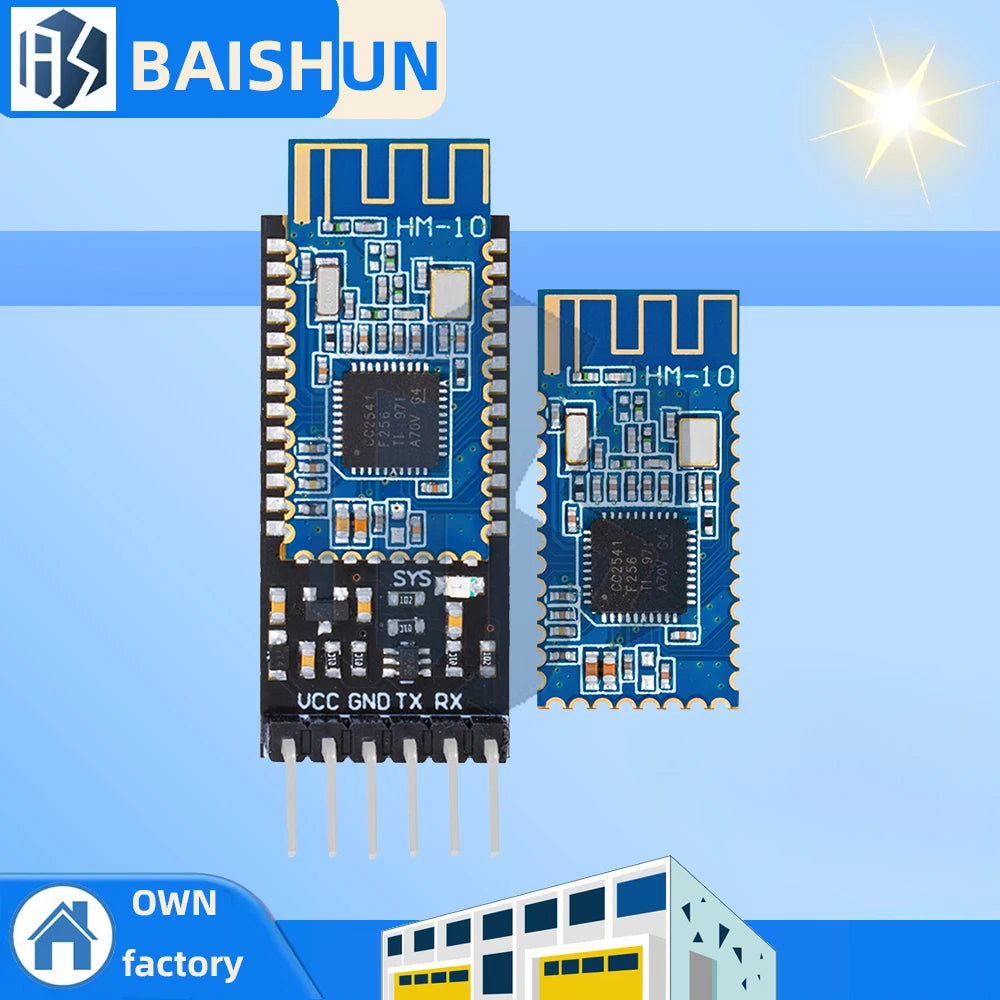

HM-10 BLE 4.0 Bluetooth UART Wireless Module | 3.3V–5V

The HM-10 BLE 4.0 Bluetooth Low Energy UART Transparent Wireless Module is a compact, energy-efficient solution for adding wireless connectivity to your microcontroller or Arduino-based projects. With seamless UART serial communication, this module enables transparent data transmission between devices — no complex programming required.

Whether you're building a DIY IoT device, a wireless sensor node, or a custom Arduino project, the HM-10 delivers reliable BLE 4.0 performance in a tiny SMD form factor measuring just 46 × 17 × 5 mm and weighing only 3.2g.

Key Features

• Bluetooth Low Energy (BLE) 4.0 — Ultra-low power wireless communication
• UART Transparent Transmission — Plug-and-play serial wireless bridge
• Wide Voltage Support: 3.3V – 5V logic levels, compatible with Arduino, Raspberry Pi & more
• Bi-Directional Logic Level Shifting — Works seamlessly with both 3.3V and 5V systems
• Compact SMD Package: 46 × 17 × 5 mm | 3.2g
• Wide Operating Temperature: -40°C to +85°C
• Available with or without pre-soldered pins — Ready for breadboard or PCB use
• Customizable configurations available

Specifications

• Bluetooth Version: BLE 4.0
• Interface: UART
• Supply Voltage: 3.3V – 5V
• Operating Temperature: -40°C to +85°C
• Package Type: SMD
• Dimensions: 46 × 17 × 5 mm
• Weight: 3.2g
• Application: Microcontrollers, Arduino, IoT projects, wireless serial communication

Available Options

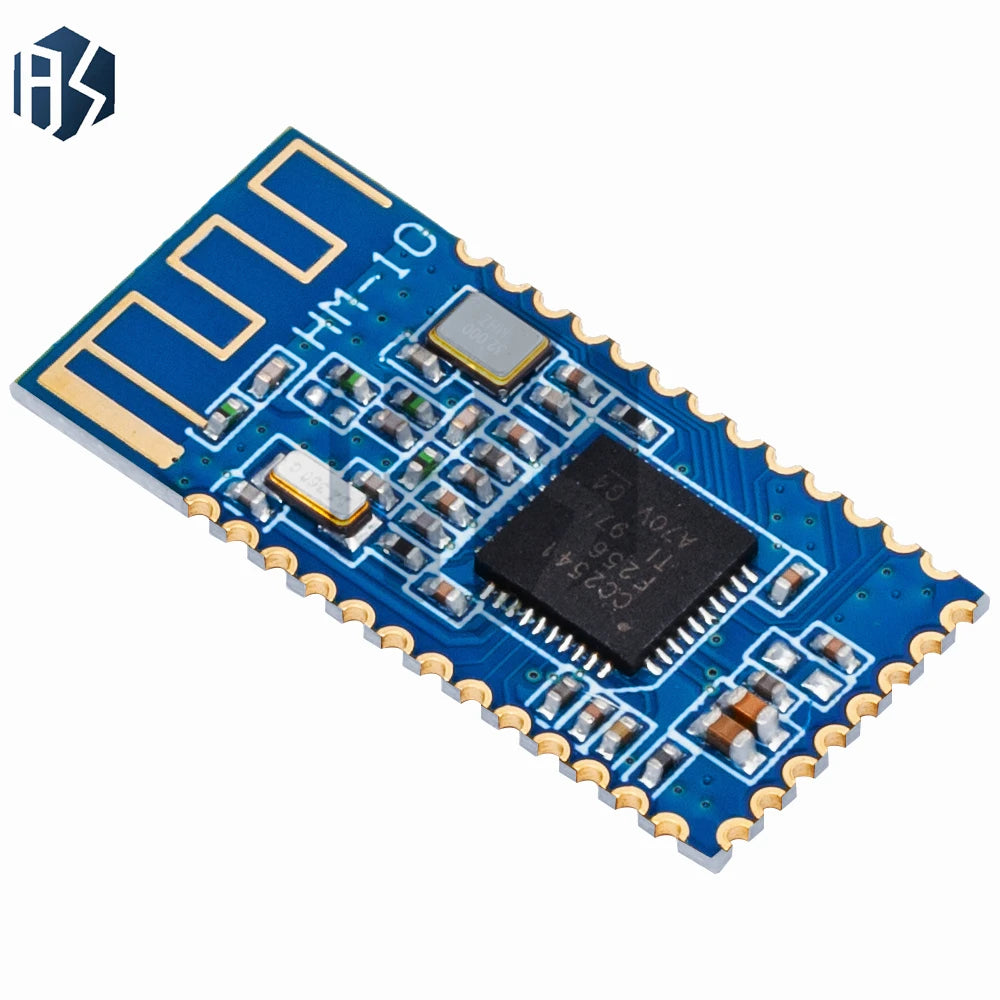

• 1PC – HM-10 Chip (bare module)

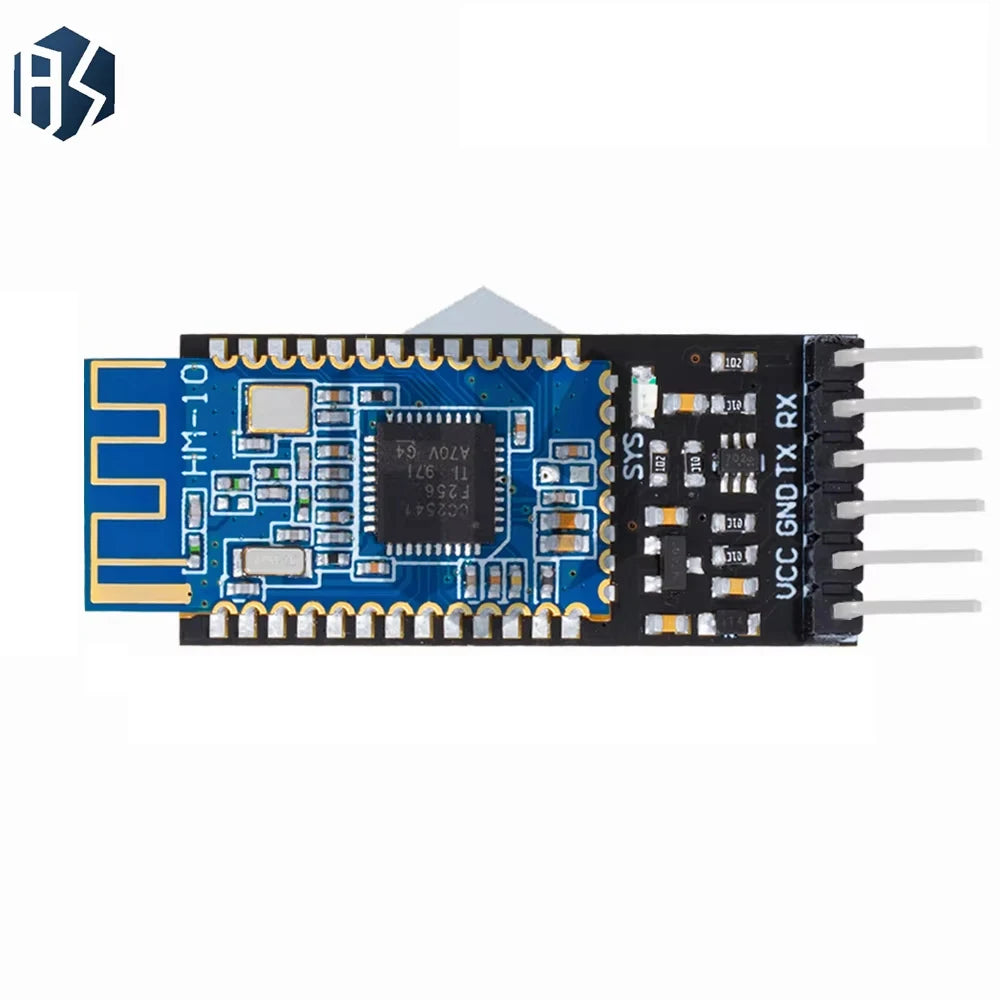

• 1PC – HM-10 with Pin Header
• 5PCS – HM-10 Chip
• 5PCS – HM-10 with Pin Header
• 10PCS – HM-10 Chip
• 10PCS – HM-10 with Pin Header

Perfect For

• Arduino & Raspberry Pi wireless projects
• IoT sensor nodes and home automation
• Wireless serial data logging
• Bluetooth-enabled robotics and wearables
• Makers, hobbyists, and electronics engineers

Explore more components for your builds: Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire and browse our full selection of crafting and maker supplies.

Looking for other creative project materials? Check out our 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100–200pcs for all your hands-on making needs.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the HM-10 BLE 4.0 Bluetooth module used for?

A: The HM-10 is a Bluetooth Low Energy (BLE) 4.0 UART module commonly used to add wireless serial communication to microcontrollers like Arduino, enabling transparent data transfer between devices over BLE without complex protocols.

Q: Is the HM-10 module compatible with Arduino and 5V systems?

A: Yes! The HM-10 supports both 3.3V and 5V logic levels, making it fully compatible with Arduino, Raspberry Pi, and other popular development boards. The bi-directional logic level shifting ensures reliable communication across different voltage systems.

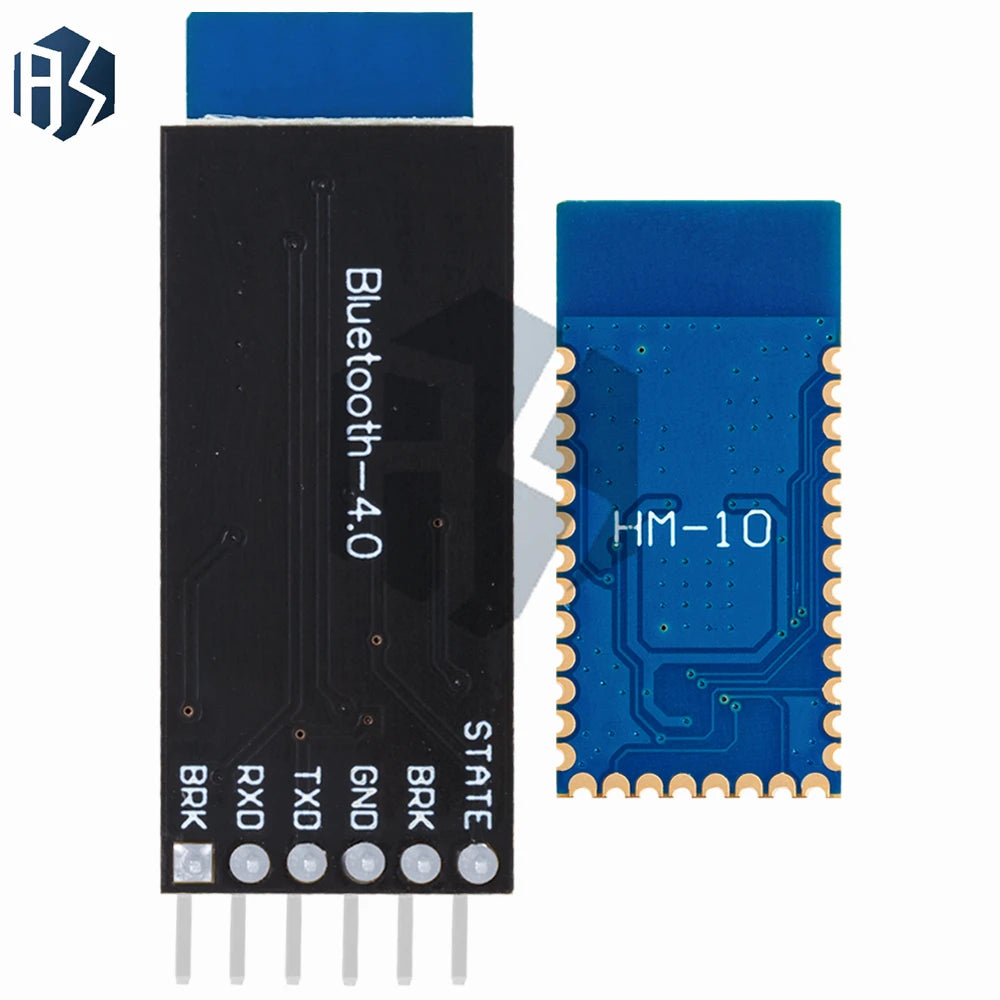

Q: What is the difference between the HM-10 chip version and the pin header version?

A: The bare chip version is ideal for direct PCB soldering, while the pin header version comes with pre-soldered pins for easy use on a breadboard or in prototyping setups — great for quick testing and development.

Q: What operating temperature range does the HM-10 support?

A: The HM-10 module operates reliably across a wide temperature range of -40°C to +85°C, making it suitable for both indoor and outdoor electronics applications.
