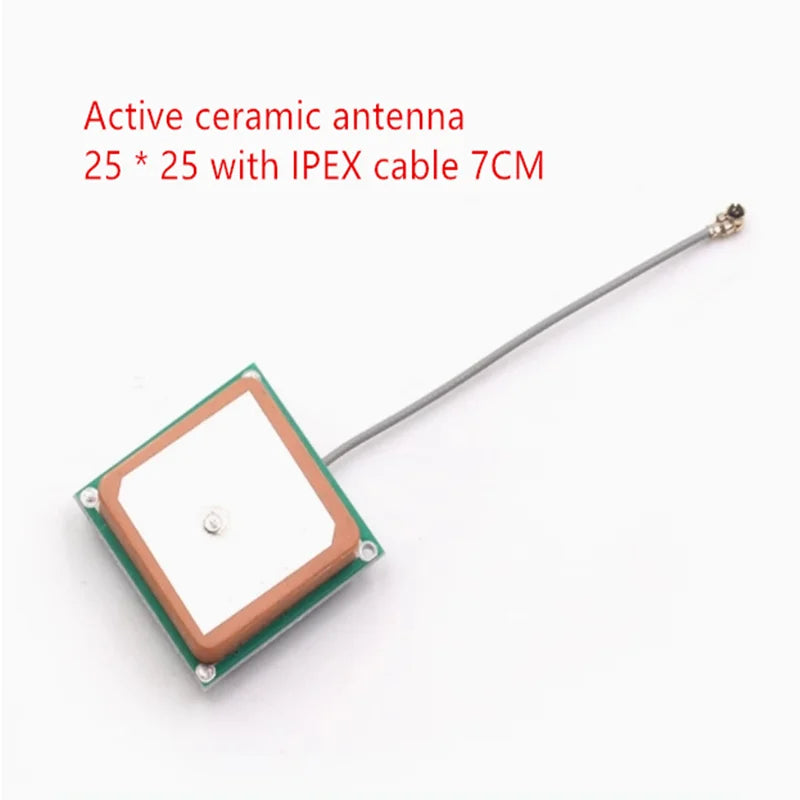

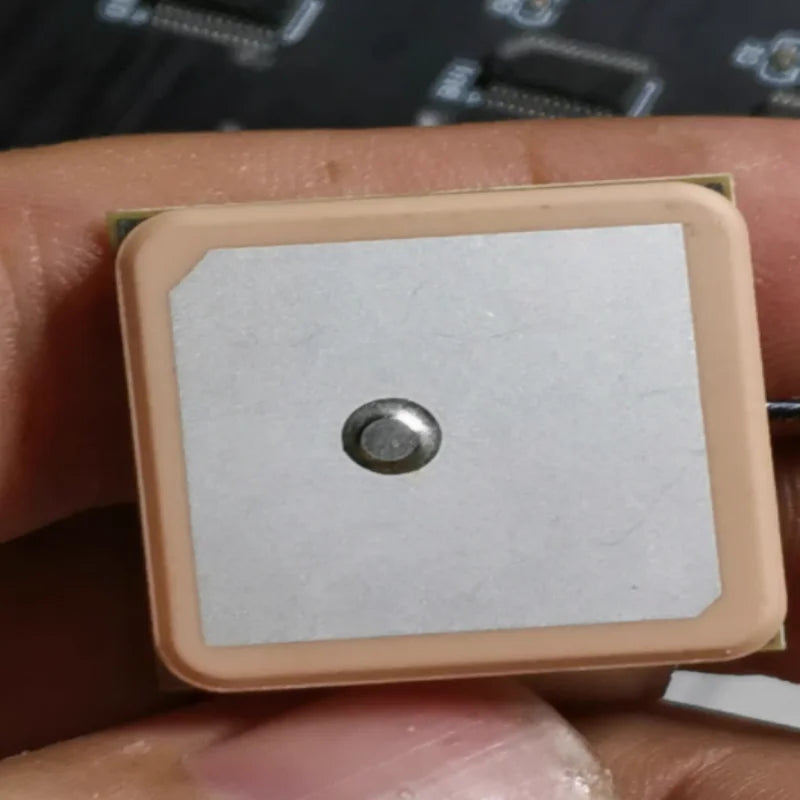

GPS Module Active Ceramic Antenna Sheet

Upgrade your GPS projects with this Active Ceramic Antenna Sheet — a compact, high-performance patch antenna designed for seamless integration into GPS modules, tracking devices, IoT builds, and DIY electronics. Its low-profile ceramic construction delivers strong signal acquisition, making it an essential component for hobbyists, engineers, and makers alike.

Key Features

Active Ceramic Design: Built-in low-noise amplifier (LNA) boosts signal strength for reliable satellite acquisition indoors and outdoors.
Compact Form Factor: Slim ceramic patch sheet fits neatly onto GPS modules, development boards, and custom PCB layouts without bulk.
Broad Compatibility: Works with standard GPS modules, microcontroller platforms, and a wide range of development boards.
Stable Signal Performance: Ceramic dielectric material ensures consistent frequency reception and minimal interference.
Easy Integration: Ready to connect straight out of the box — ideal for rapid prototyping and production builds alike.
Multiple Color Options: Choose from 3 color variants to suit your project or personal preference.

Specifications

Type: Active GPS Patch Antenna
Material: Ceramic
Antenna Type: Sheet / Patch
Application: GPS modules, tracking systems, IoT devices, development boards
Color Options: 3 available

Perfect For

Arduino, Raspberry Pi, and other microcontroller-based GPS builds
Vehicle and asset tracking projects
Drone and RC navigation systems
IoT location-aware applications
Electronics hobbyists and professional prototypers

Frequently Asked Questions

Q: What is the GPS Module Active Ceramic Antenna Sheet used for?

A: The GPS Module Active Ceramic Antenna Sheet is an active patch antenna used to enhance GPS signal reception in a wide range of electronics projects, including tracking devices, microcontroller builds (Arduino, Raspberry Pi), IoT applications, and navigation systems. Its ceramic construction and built-in amplifier deliver reliable satellite signal acquisition.

Q: Is this antenna compatible with standard GPS modules and development boards?

A: Yes — the Active Ceramic Antenna Sheet is designed for broad compatibility with most standard GPS modules and popular development boards. Its compact form factor and standard connection interface make it easy to integrate into both prototype and production-level builds.

Q: What are the advantages of an active ceramic antenna over a passive one?

A: An active ceramic antenna includes an integrated low-noise amplifier (LNA) that boosts the incoming GPS signal before it travels down the cable to your module. This results in better signal strength, faster satellite lock, and more reliable positioning — especially in challenging environments or when used with longer cable runs.

Q: Does this come ready to use out of the box?

A: Yes. The GPS Module Active Ceramic Antenna Sheet arrives ready to connect with no additional assembly required. Simply attach it to your GPS module or PCB and it's ready to go — making it perfect for quick prototyping or production integration.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
