FT232H USB 2.0 Multiprotocol Bridge Module – JTAG UART SPI I2C

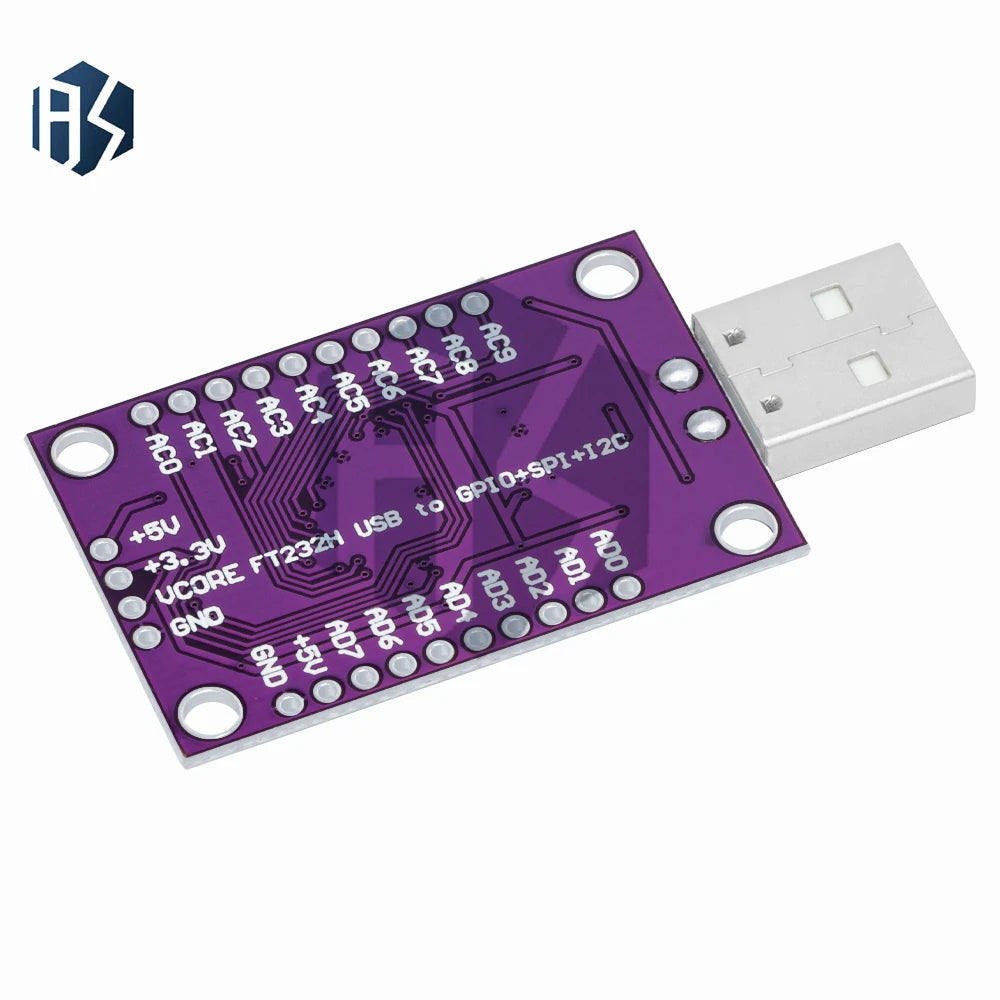

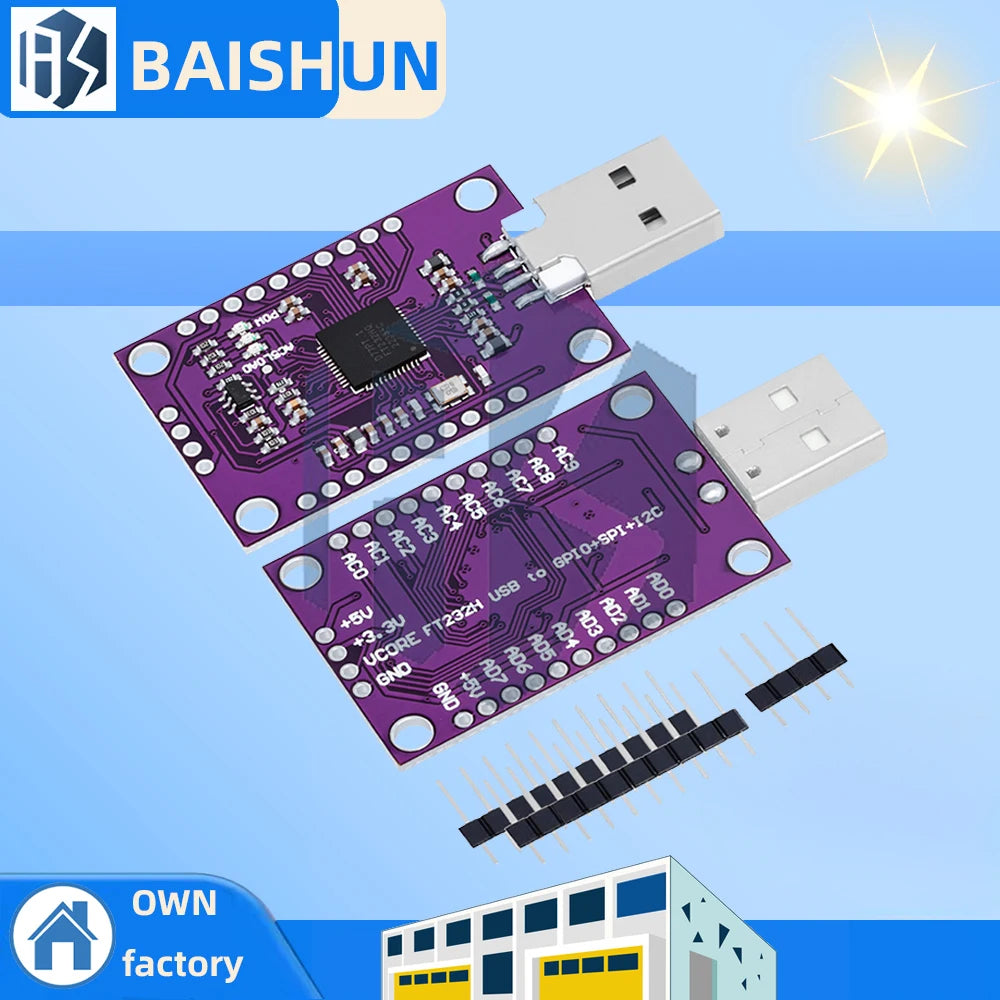

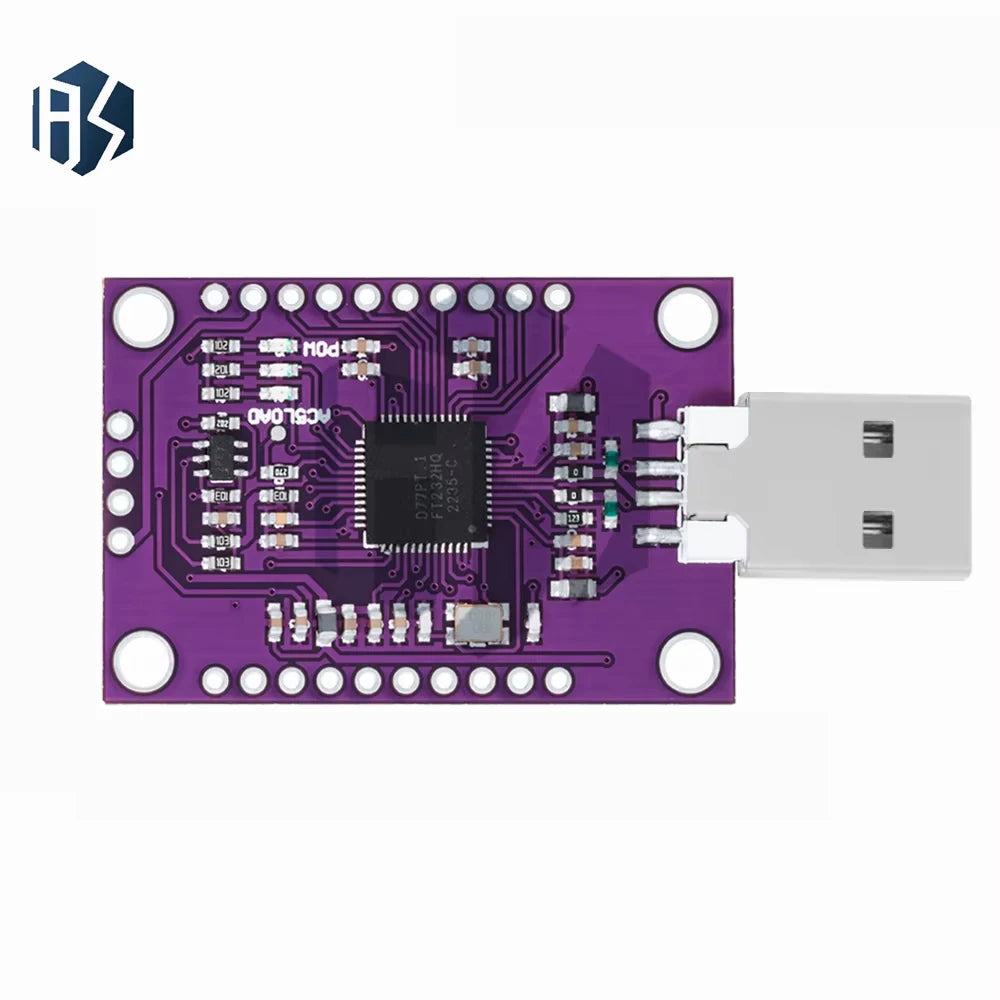

FT232H USB 2.0 Multiprotocol Bridge Module

Unlock seamless communication between your computer and embedded hardware with the FT232H USB 2.0 Multiprotocol Bridge Module. Built around the powerful FTDI FT232H chip, this compact module serves as a versatile USB-to-serial interface supporting JTAG, UART, SPI, and I2C protocols — making it an essential tool for developers, engineers, and electronics enthusiasts working with FPGAs, microcontrollers, and custom hardware designs.

Key Features

• Multi-Protocol Support: Communicate over JTAG, UART, SPI, and I2C from a single USB 2.0 connection — no need to swap adapters.
• High-Speed USB 2.0: Full-speed USB interface ensures fast and reliable data transfer for debugging and programming tasks.
• FPGA & MCU Compatible: Ideal for programming and debugging FPGAs, microcontrollers, and other embedded systems.
• Compact SMD Design: Surface-mount construction keeps the board small and easy to integrate into your workspace or project.
• Broad Driver Support: Compatible with Windows, Linux, and macOS via standard FTDI VCP or D2XX drivers.
• GPIO Pins: Exposes multiple configurable GPIO lines for flexible hardware interfacing.
• Plug-and-Play Ready: Connect via USB and get started immediately — no complex setup required.

What's in the Box

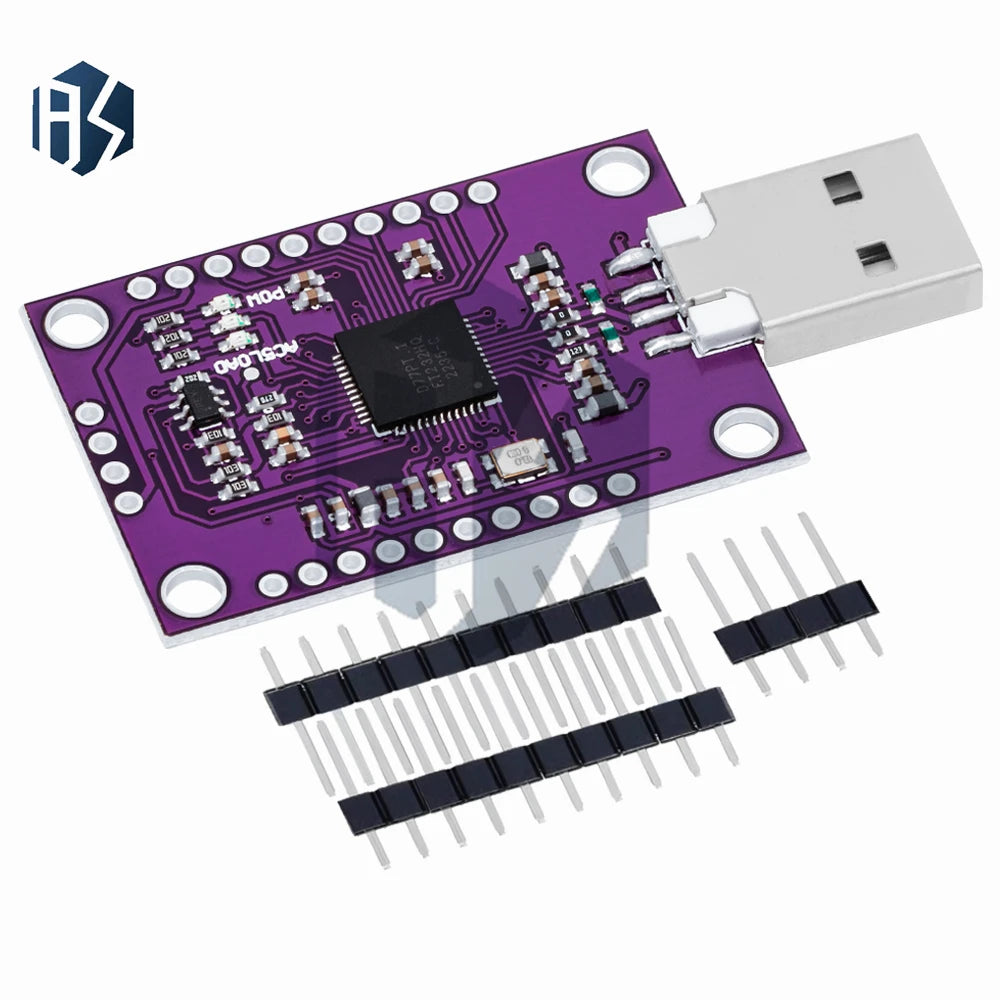

• 1 × FT232H USB 2.0 Multiprotocol Bridge Module (SMD)

Ideal For

• FPGA programming and boundary-scan testing via JTAG
• Debugging microcontroller firmware over UART
• Reading and writing SPI flash memory or sensors
• Interfacing with I2C peripherals (EEPROMs, displays, sensors)
• Hardware prototyping and embedded development projects

Related Products You May Like

• 4/6mm CCB Flat Round Spacer Beads – DIY Jewelry Making
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What protocols does the FT232H USB 2.0 Multiprotocol Bridge Module support?

A: The FT232H module supports four major serial communication protocols — JTAG, UART, SPI, and I2C — all over a single USB 2.0 connection. This makes it a highly versatile tool for interacting with a wide range of embedded hardware, including FPGAs, microcontrollers, sensors, and memory devices.

Q: Is the FT232H module compatible with my operating system?

A: Yes. The FT232H module uses standard FTDI drivers that are available for Windows, Linux, and macOS. Both Virtual COM Port (VCP) and D2XX direct driver modes are supported, giving you flexibility depending on your development environment and software toolchain.

Q: What is the FT232H module used for in FPGA and MCU development?

A: In FPGA development, the FT232H is commonly used as a JTAG interface for programming and boundary-scan testing. For microcontroller work, it can serve as a UART-to-USB bridge for serial debugging, an SPI master for flash programming, or an I2C master for sensor communication — consolidating multiple debug and programming functions into one compact module.

Q: Does this module come pre-assembled?

A: Yes. Each order includes the fully assembled SMD FT232H bridge module, ready to use right out of the box. Simply connect via USB and install the appropriate FTDI drivers to begin working with your hardware.
