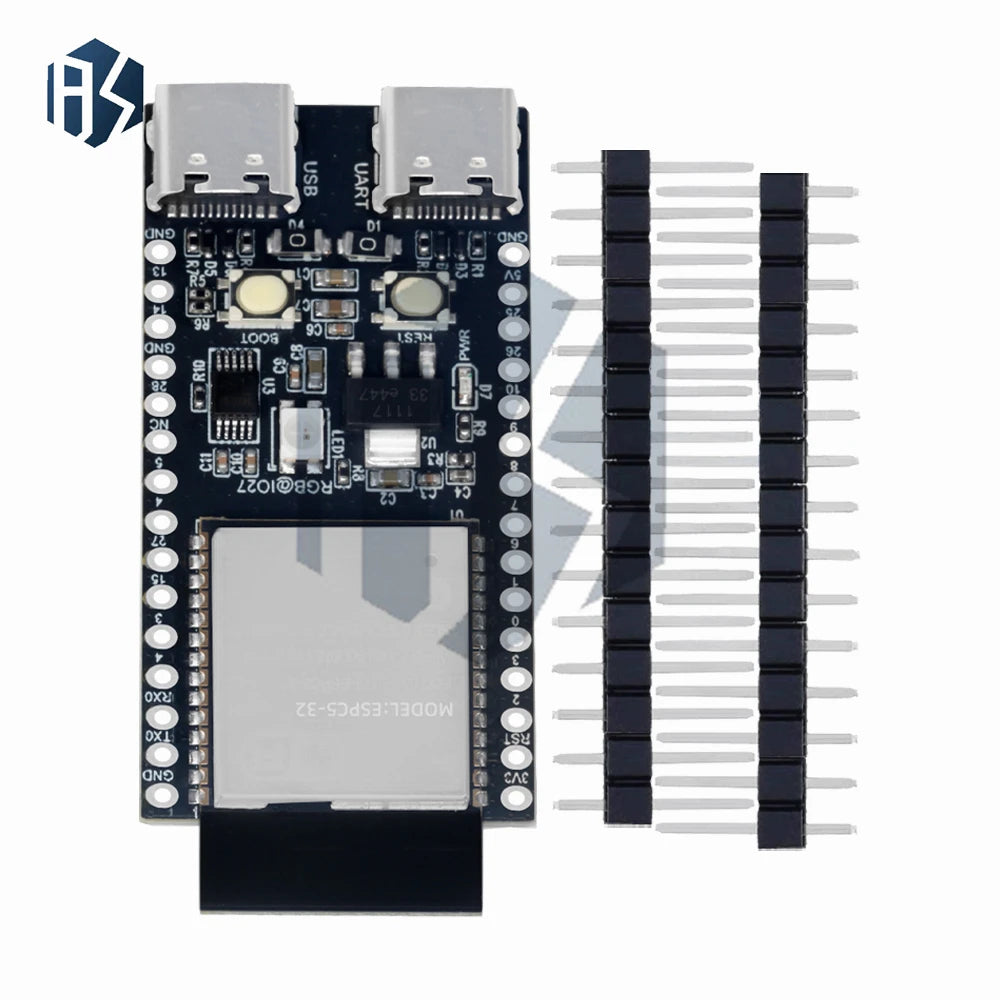

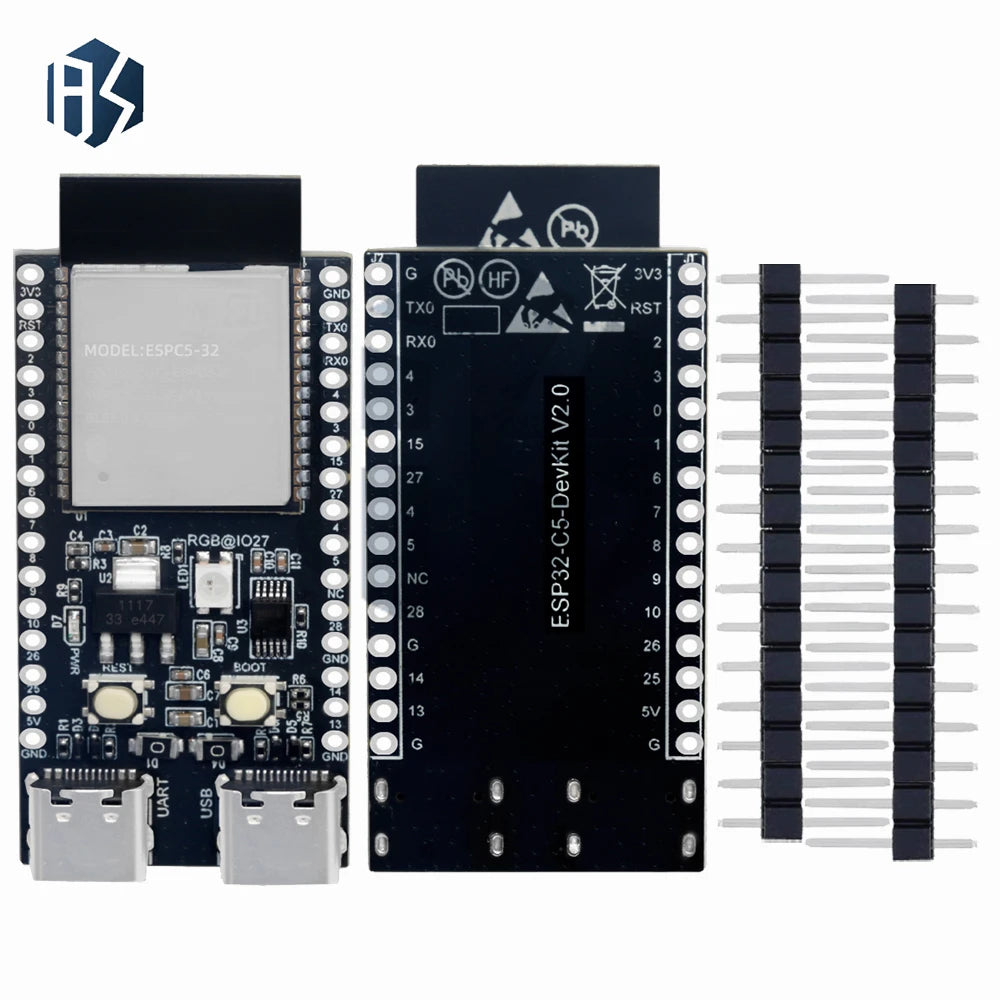

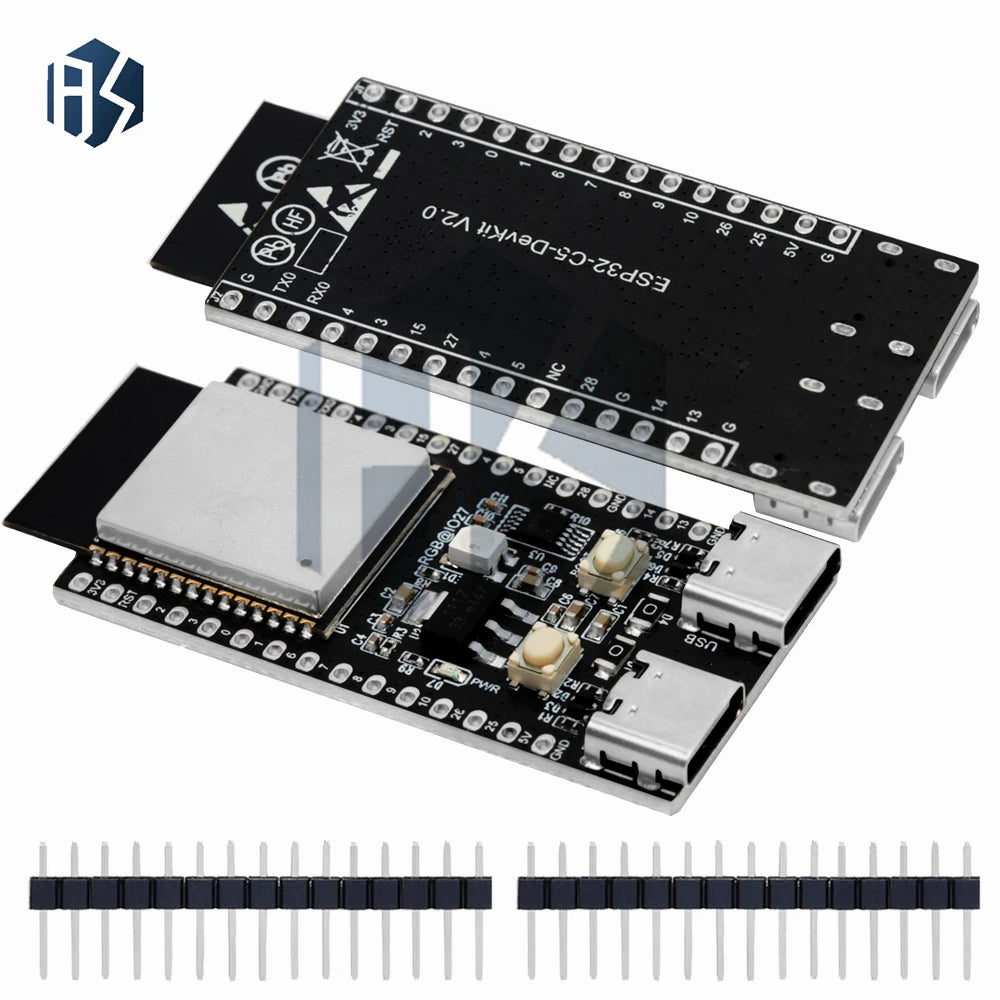

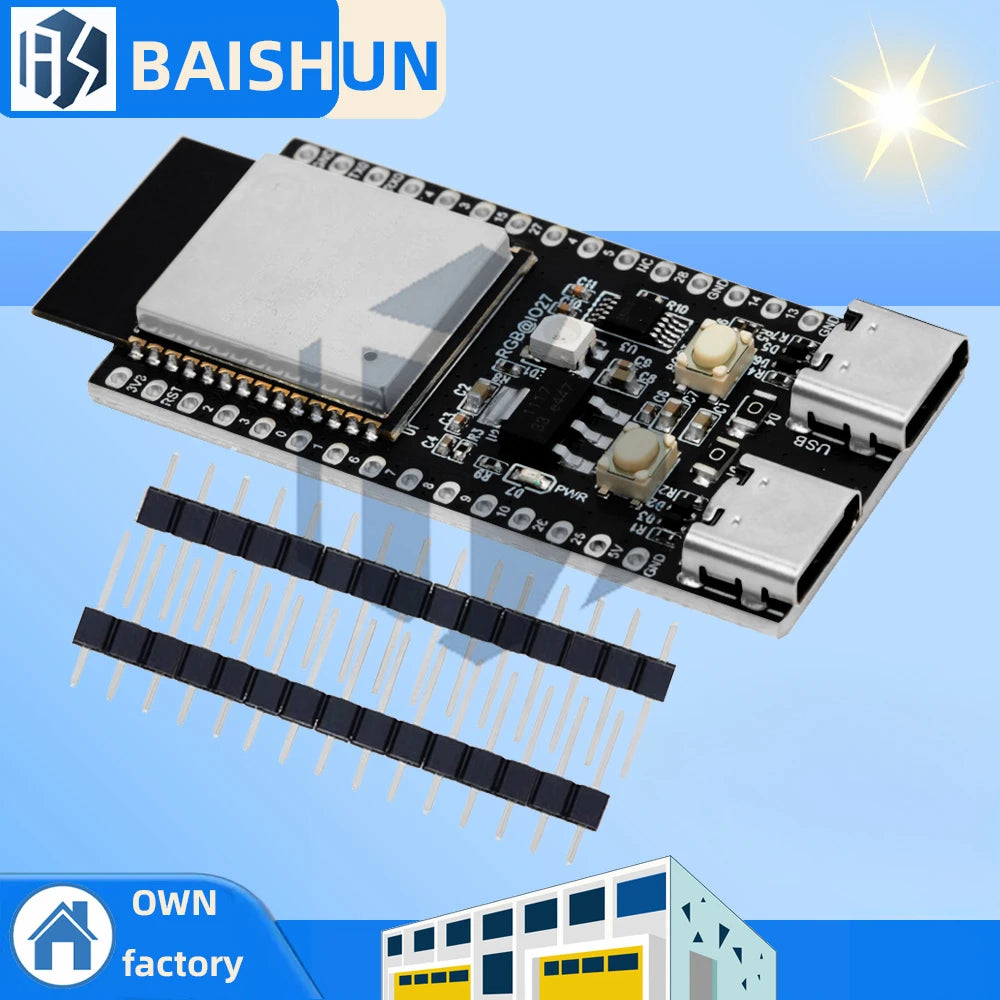

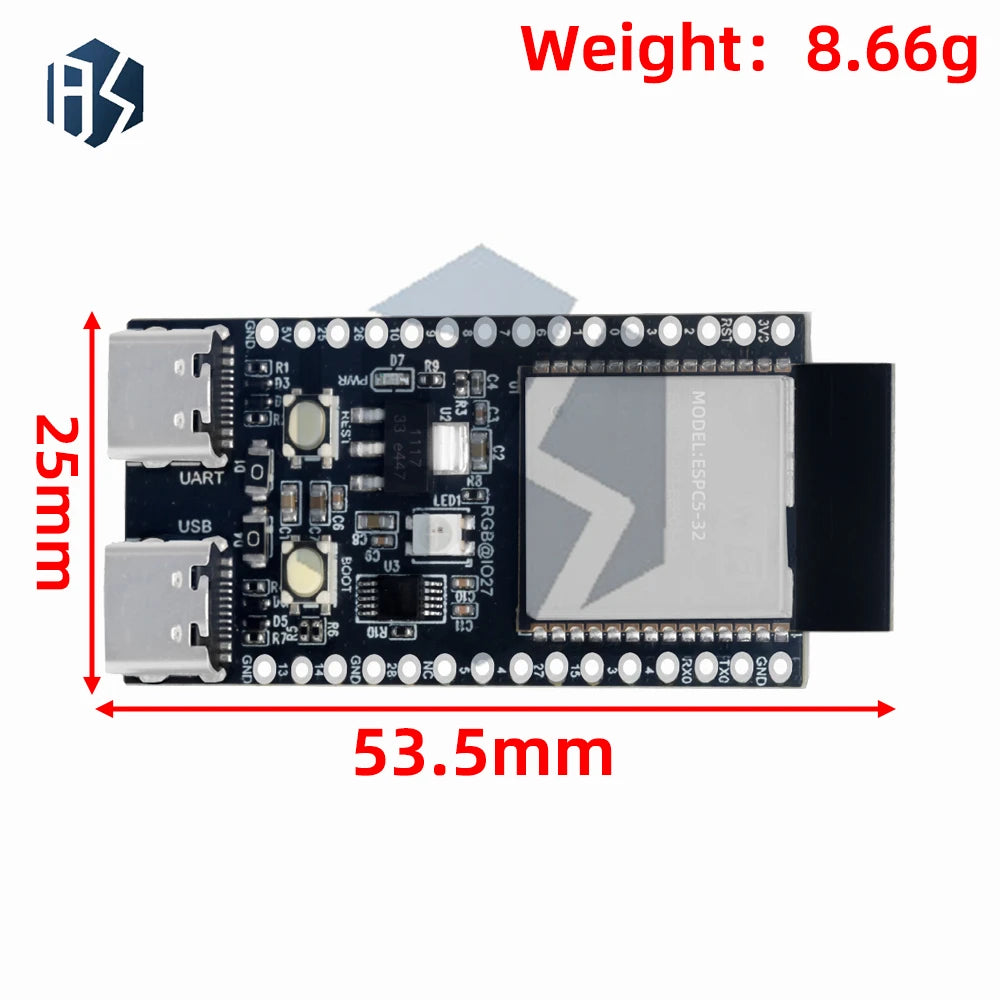

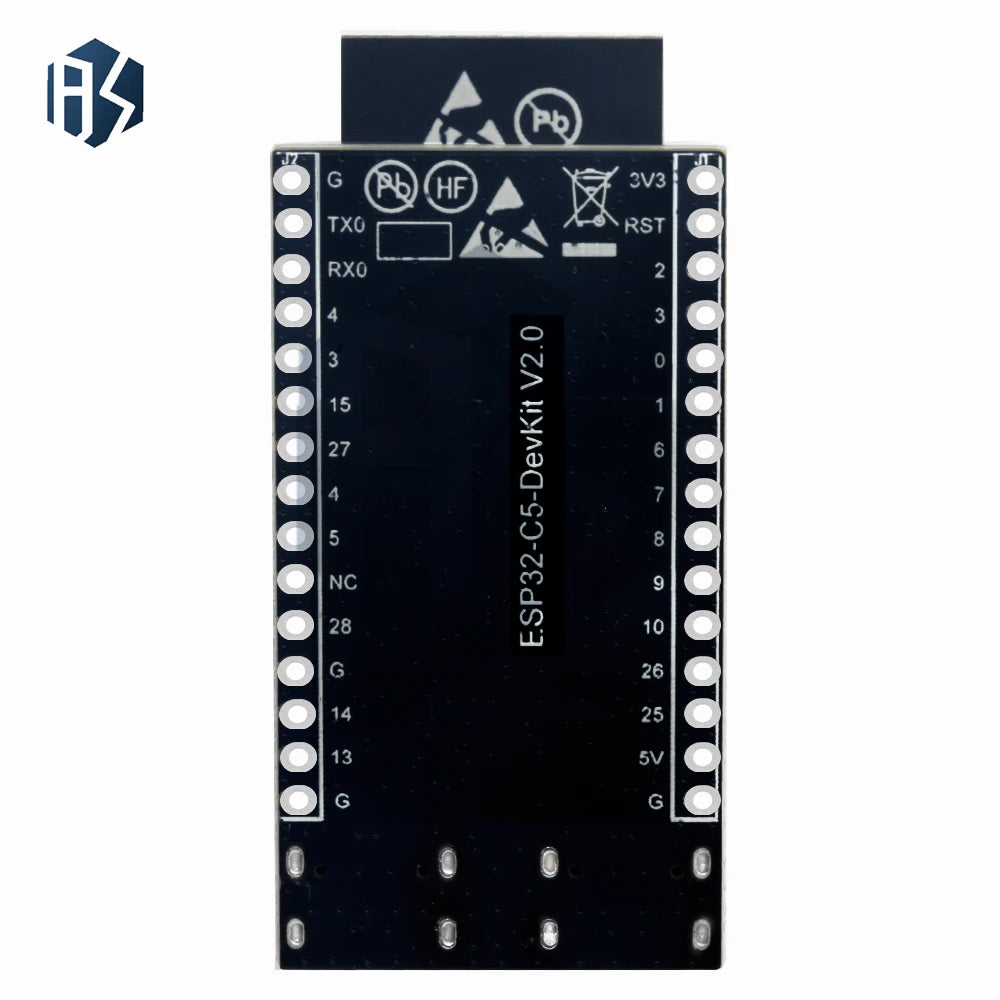

ESP32-C5-DevKitC-1 Dev Board – Dual-Band Wi-Fi & Bluetooth

ESP32-C5-DevKitC-1 Development Board – Dual-Band Wi-Fi & Bluetooth

Take your embedded projects to the next level with the ESP32-C5-DevKitC-1 Development Board. Powered by Espressif's ESP32-C5 RISC-V chip, this compact module delivers simultaneous 2.4GHz & 5GHz dual-band Wi-Fi plus Bluetooth 5 (LE) connectivity — all in a breadboard-friendly form factor. Whether you're prototyping IoT sensors, smart-home controllers, or wireless data loggers, this board gives you a robust, ready-to-go platform.

Key Features

• Dual-Band Wi-Fi: 2.4GHz & 5GHz IEEE 802.11 b/g/n/ax support for faster, less congested wireless connections
• Bluetooth 5 LE: Low-energy Bluetooth for efficient short-range communication
• RISC-V Core: ESP32-C5 single-core 32-bit processor for efficient, low-power operation
• USB Type-C Interface: Modern Type-C connector for easy programming and power delivery
• 3.3V Supply Voltage: Compatible with standard 3.3V logic-level peripherals
• SMD Package: Compact surface-mount design, ideal for integration into custom PCB layouts
• Available pre-soldered or unsoldered (no-weld): Choose the variant that suits your build
• Available in 1pc or 2pcs: Convenient multi-pack option for team prototyping

Specifications

Who Is This For?

The ESP32-C5-DevKitC-1 is ideal for makers, hobbyists, embedded engineers, and students who need a reliable, feature-rich development board for IoT, home automation, wireless sensing, and more. Its dual-band capability is especially valuable when 2.4GHz band congestion is a concern in your environment.

Related Products You May Like

Pair your electronics projects with quality components from our store:

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire – great for custom enclosure and antenna prototyping wire work
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs
• 50pcs Gold & Silver Drawstring Jewelry Gift Bags 7x9 9x12cm – perfect for gifting your finished DIY electronics builds

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What makes the ESP32-C5-DevKitC-1 different from other ESP32 boards?

A: The ESP32-C5-DevKitC-1 is one of Espressif's first modules to support dual-band Wi-Fi (2.4GHz & 5GHz) alongside Bluetooth 5 LE. This means you can connect to modern 5GHz networks for reduced interference, making it a significant upgrade over standard ESP32 boards that only support 2.4GHz Wi-Fi.

Q: What is the difference between the "no-weld" and "weld" pin options?

A: The "no-weld" (unsoldered) option ships without header pins soldered, giving you the flexibility to solder your own preferred headers or mount the board directly to a PCB. The "weld" (pre-soldered) option comes with headers already attached, so you can plug it into a breadboard immediately and start prototyping right away.

Q: What USB interface does the ESP32-C5-DevKitC-1 use for programming?

A: The board uses a USB Type-C connector for both power and programming. Simply connect it to your computer via a Type-C cable, select the correct COM port in your IDE (Arduino IDE, VS Code with PlatformIO, or Espressif's IDF), and you're ready to flash firmware.

Q: What voltage does the ESP32-C5-DevKitC-1 operate at?

A: The board operates at 3.3V logic. The onboard voltage regulator typically accepts USB (5V) input and steps it down to 3.3V for the ESP32-C5 chip and peripherals. Ensure any connected sensors or modules are also 3.3V compatible, or use a level shifter for 5V peripherals.
