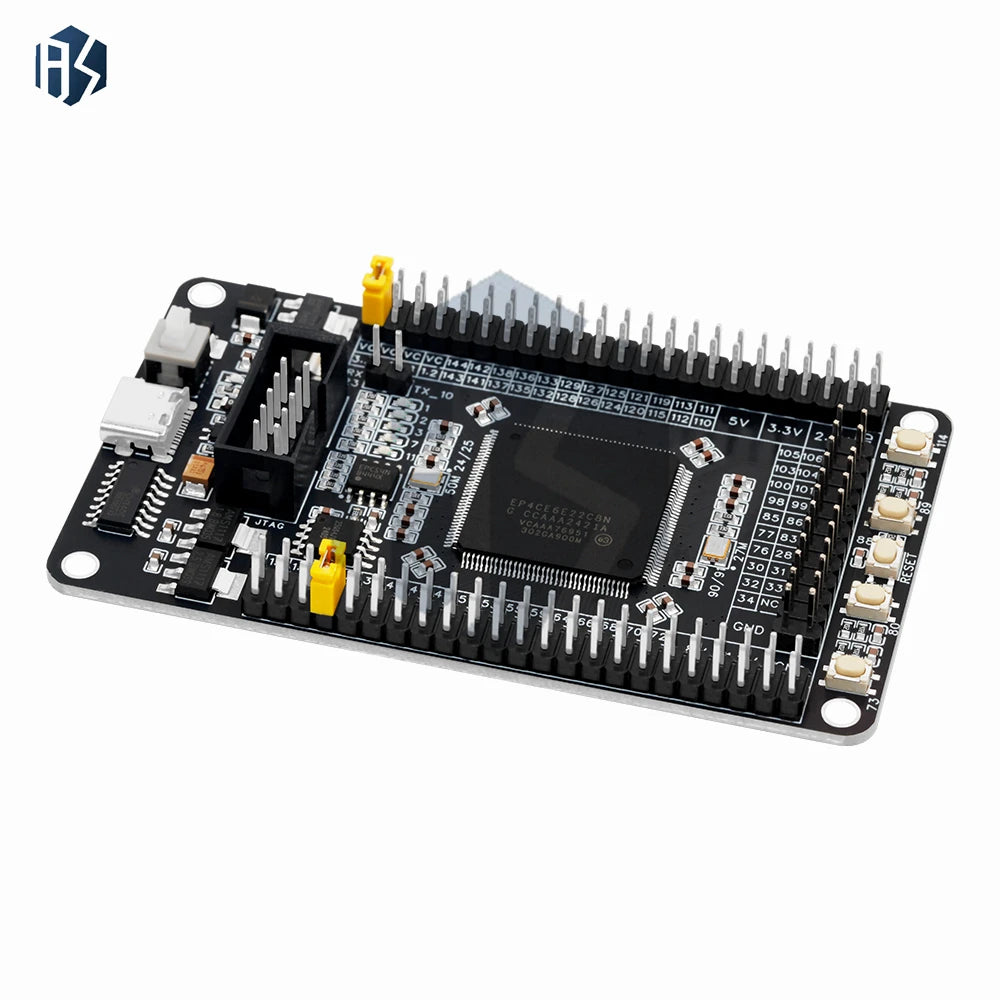

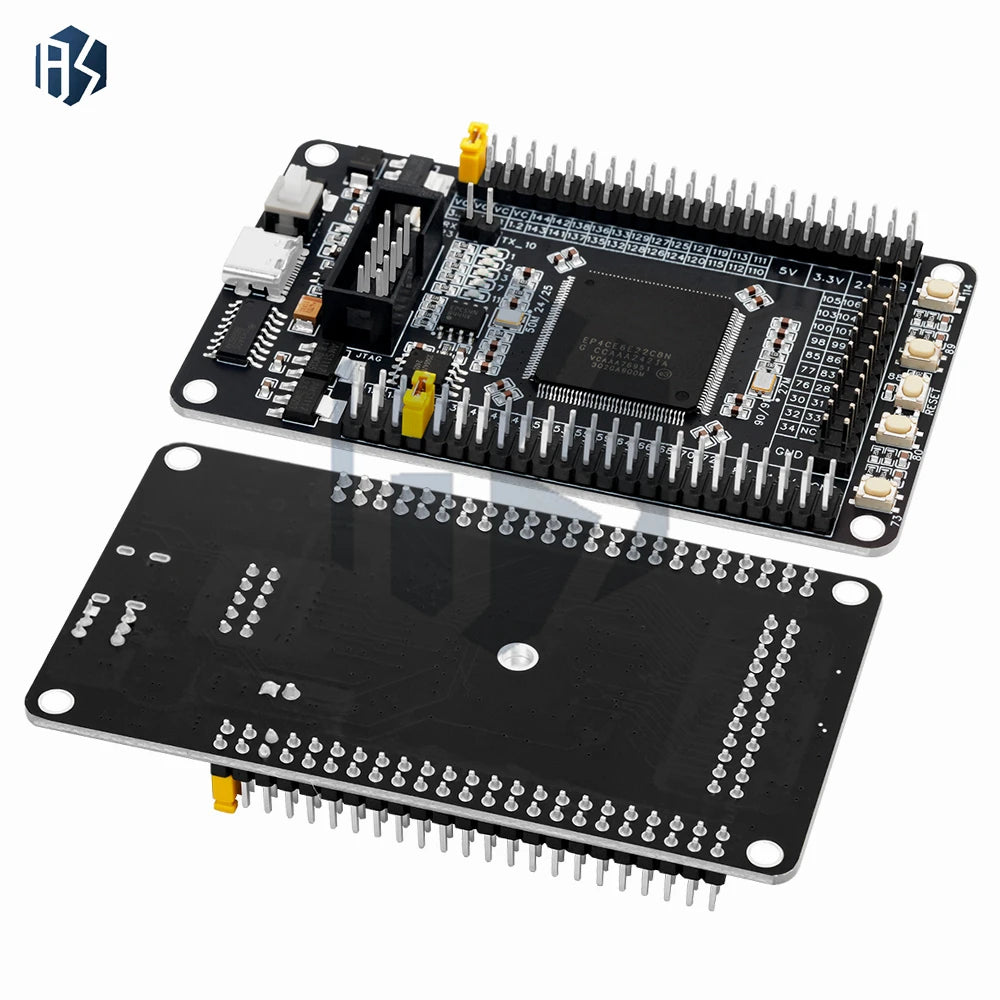

EP4CE6E22C8N Cyclone IV FPGA Development Board – 2.5V Core Module

Take your digital logic and hardware design projects to the next level with the EP4CE6E22C8N Cyclone IV FPGA Development Board. Powered by Intel's (Altera) Cyclone IV FPGA chip, this compact 2.5V core module gives engineers, students, and hobbyists a powerful and versatile platform for prototyping custom logic designs, embedded systems, signal processing experiments, and more.

Key Features

  • FPGA Chip: Intel (Altera) EP4CE6E22C8N — Cyclone IV family, 6,272 logic elements
  • Core Voltage: 2.5V for efficient and stable FPGA operation
  • SMD Components Included: Each order ships complete with surface-mount device (SMD) components
  • Customizable Design: Fully configurable logic fabric ideal for custom digital designs and prototyping
  • Compact Module Form Factor: Easy to integrate into larger systems or use standalone on a breadboard/carrier board
  • Arduino Compatible: Designed to work alongside Arduino and other popular development platforms
  • Broad Application Range: Suitable for digital circuit design, UART/SPI/I2C interface testing, DSP experiments, and embedded logic development

Who Is This For?

Whether you're an engineering student exploring programmable logic for the first time, a hardware developer prototyping a new product, or an embedded systems enthusiast pushing the boundaries of what's possible, this Cyclone IV FPGA board delivers the performance and flexibility you need at an accessible price point.

What's in the Box?

  • 1× EP4CE6E22C8N Cyclone IV FPGA Core Development Module (with SMD components)

Explore More DIY Electronics Components

Pair this FPGA board with other components from our store to build out your lab or project setup. You may also enjoy:

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the EP4CE6E22C8N Cyclone IV FPGA Development Board used for?

A: The EP4CE6E22C8N Cyclone IV FPGA Development Board is a programmable logic module used for digital circuit design, hardware prototyping, embedded systems development, signal processing experiments, and learning FPGA programming. It features Intel's (Altera) Cyclone IV chip with 6,272 logic elements and a 2.5V core voltage, making it well-suited for a wide range of electronics projects.

Q: Is this FPGA board compatible with Arduino and other development platforms?

A: Yes, the EP4CE6E22C8N Cyclone IV FPGA board is designed to be Arduino compatible and can interface with a variety of popular microcontroller and development platforms. It supports common communication protocols such as UART, SPI, and I2C, making integration into mixed-platform projects straightforward.

Q: What does "SMD included" mean for this development module?

A: SMD stands for Surface-Mount Device. Each order of this FPGA development module ships with SMD components pre-installed or included, meaning you receive a complete, ready-to-use board without needing to source additional passive components separately. This makes setup faster and more convenient for prototyping.

Q: What software do I need to program the EP4CE6E22C8N FPGA?

A: The EP4CE6E22C8N is supported by Intel Quartus Prime design software (formerly Altera Quartus II), which is available as a free Lite edition download from Intel's official website. You can write HDL code in VHDL or Verilog and synthesize, simulate, and program the FPGA using a USB Blaster programmer.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
