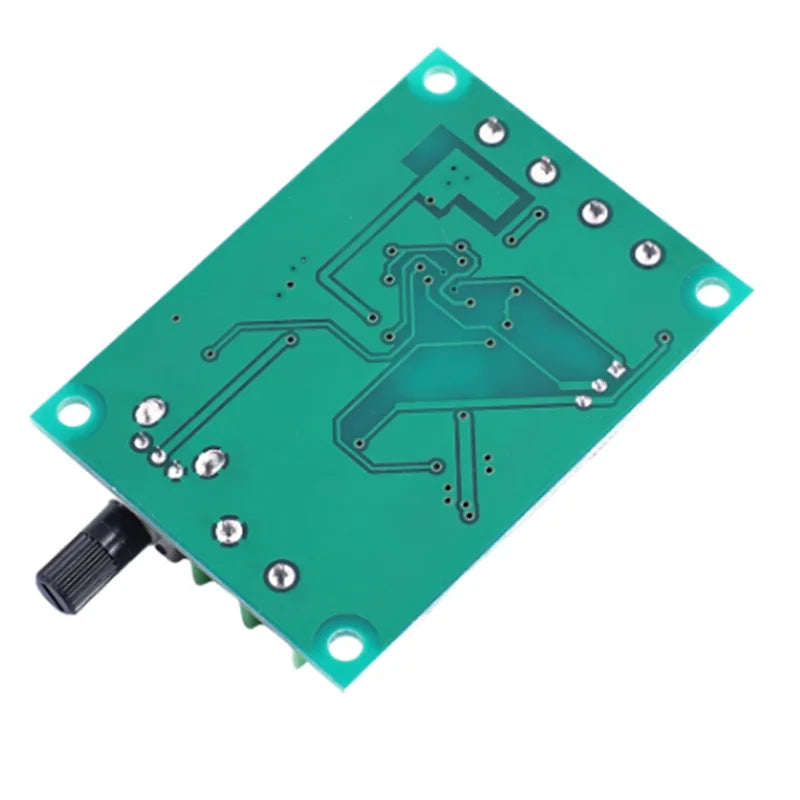

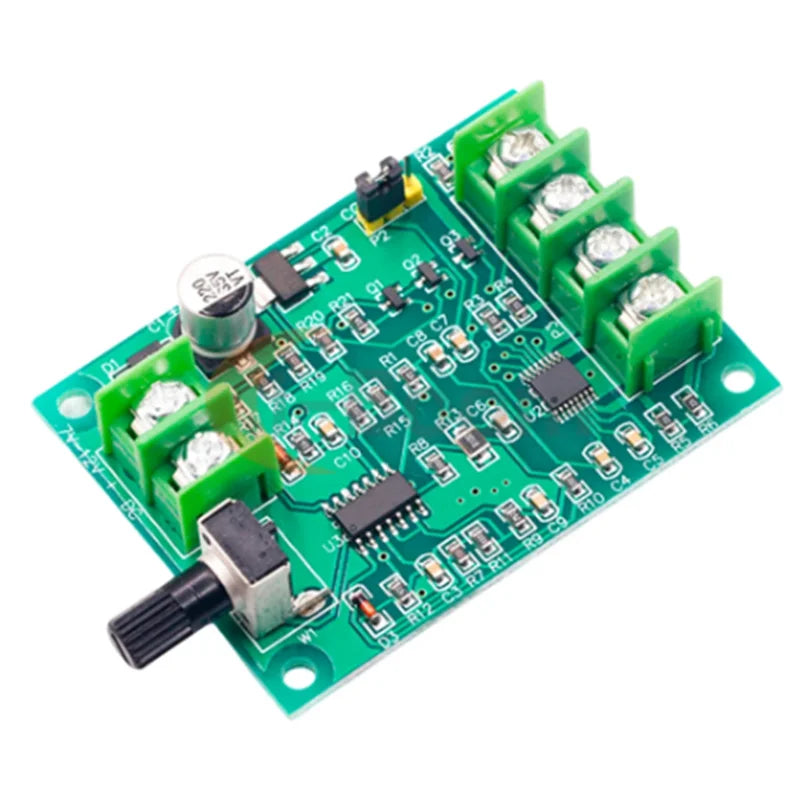

DC Brushless Motor Driver Board Module Speed Control 7V–12V

DC Brushless Motor Drive Board Module – Optical Hard Disk Speed Controller

Take precise control of your DC brushless motors with this compact and efficient Brushless Motor Driver Board Module. Designed for optical hard disk motors and similar small brushless DC motors, this module delivers smooth, adjustable speed control over a wide voltage range of 7V to 12V. Whether you're building a DIY electronics project, prototyping a robotics system, or repurposing a salvaged hard disk motor, this drive board makes it simple and reliable.

Key Features

• Wide Voltage Range: Operates at 7V–12V DC, compatible with most small brushless motor setups
• Smooth Speed Control: Onboard potentiometer allows for precise, stepless speed adjustment
• Optical Hard Disk Motor Compatible: Specifically suited for 3-phase brushless motors found in optical drives and hard disks
• Compact Module Design: Small PCB footprint makes it easy to integrate into tight enclosures or prototyping boards
• Improved Version: Upgraded circuit design for enhanced stability and reliable performance
• Easy to Use: No complex wiring required — connect power, motor leads, and you're ready to go

Specifications

• Input Voltage: 7V – 12V DC
• Compatible Motor Type: 3-phase DC brushless motors (optical drive, hard disk motors)
• Speed Adjustment: Onboard potentiometer
• Module Type: Brushless Motor Driver / Speed Controller

What Can You Do With It?

This board is a favorite among hobbyists, makers, and electronics enthusiasts. Use it to spin up salvaged hard disk platters for DIY projects, power small fans or centrifuges, or experiment with brushless motor control in your next robotics or engineering prototype. The possibilities are wide open.

Related Products You May Also Like

• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What type of motors is the DC Brushless Motor Driver Board Module compatible with?

A: This brushless motor driver board module is designed for 3-phase DC brushless motors, such as those found in optical hard disk drives. It operates efficiently within a 7V–12V input voltage range, making it ideal for small brushless motor applications in DIY and prototyping projects.

Q: How do I control the motor speed with this driver board?

A: The board features a built-in onboard potentiometer that allows you to manually adjust the motor speed smoothly and continuously. Simply turn the potentiometer to increase or decrease the RPM of your connected brushless DC motor — no external controller is required for basic speed adjustment.

Q: Is this brushless motor drive board suitable for beginners?

A: Yes! This DC brushless motor driver module is straightforward to set up. Connect your 7V–12V DC power supply and your brushless motor leads to the appropriate terminals, and the board handles the rest. It's a great starting point for anyone exploring brushless motor control in hobby electronics or robotics projects.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
