CP2112 USB to I2C SMBus Bridge Debug Board – HID Compliant

The CP2112 USB to I2C SMBus Bridge Evaluation Board is a compact, HID-compliant debug and development tool designed for engineers, makers, and hobbyists who need fast, reliable USB-to-I2C/SMBus communication. Whether you're interfacing with gas sensors like the CCS811, logging data, building portable controllers, or developing USB dongle applications, this board delivers versatile connectivity in a small 29.5 × 21.3 mm form factor.

Available in both Type-C and Micro-USB connector options, this board bridges the gap between your PC and I2C/SMBus peripherals without requiring a custom driver — it enumerates as a standard HID device, making setup fast and straightforward across Windows, Linux, and macOS.

Key Features

• USB HID-Compliant: No custom driver installation required — plug in and communicate immediately via standard HID protocol
• I2C & SMBus Support: Full SMBus/I2C bridge functionality for easy communication with sensors, EEPROMs, and microcontrollers
• Flexible Power Input: USB bus-powered at 4.0–5.25V; self-powered operation at 3.0–3.6V; I/O voltage range of 1.8V to VDD
• Wide Operating Temperature: Rated from -40°C to +85°C for reliable performance across a broad range of environments
• Compact SMD Design: Ultra-portable 29.5 × 21.3 mm PCB — ideal for bench testing, field data recording, and embedded development

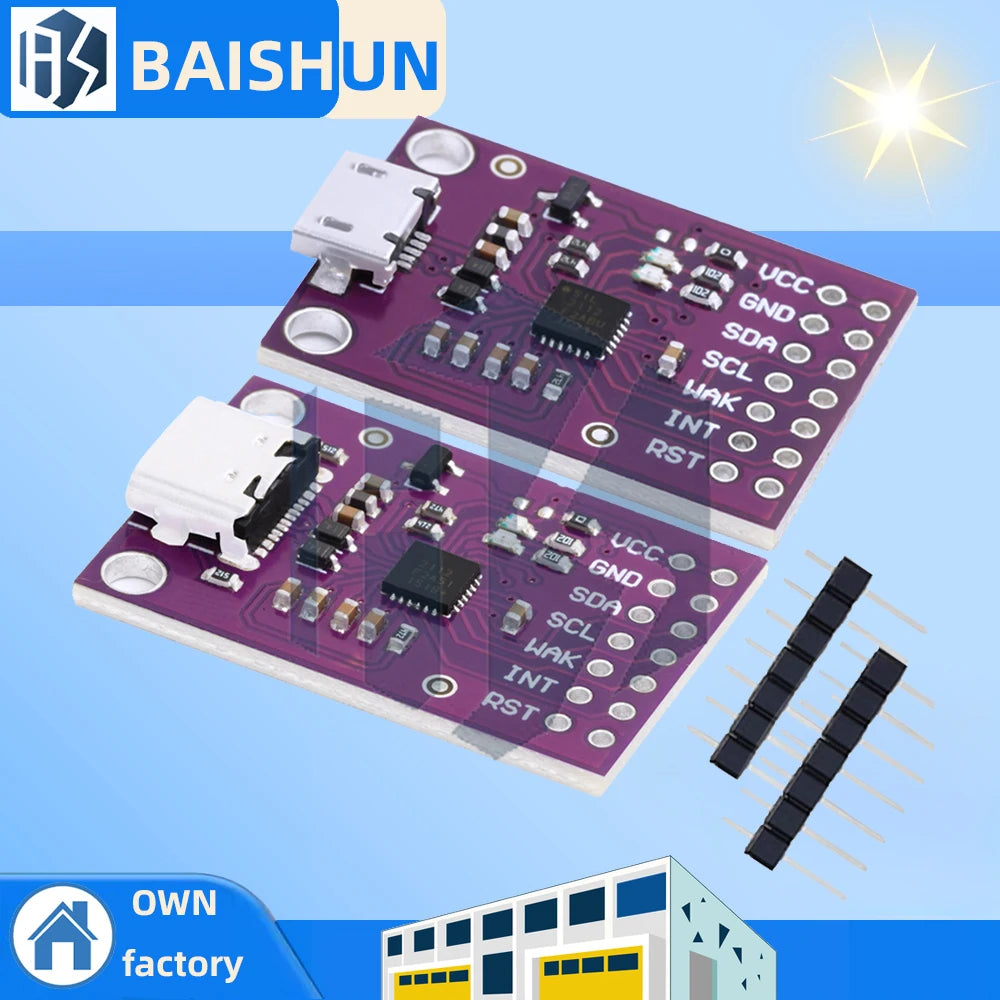

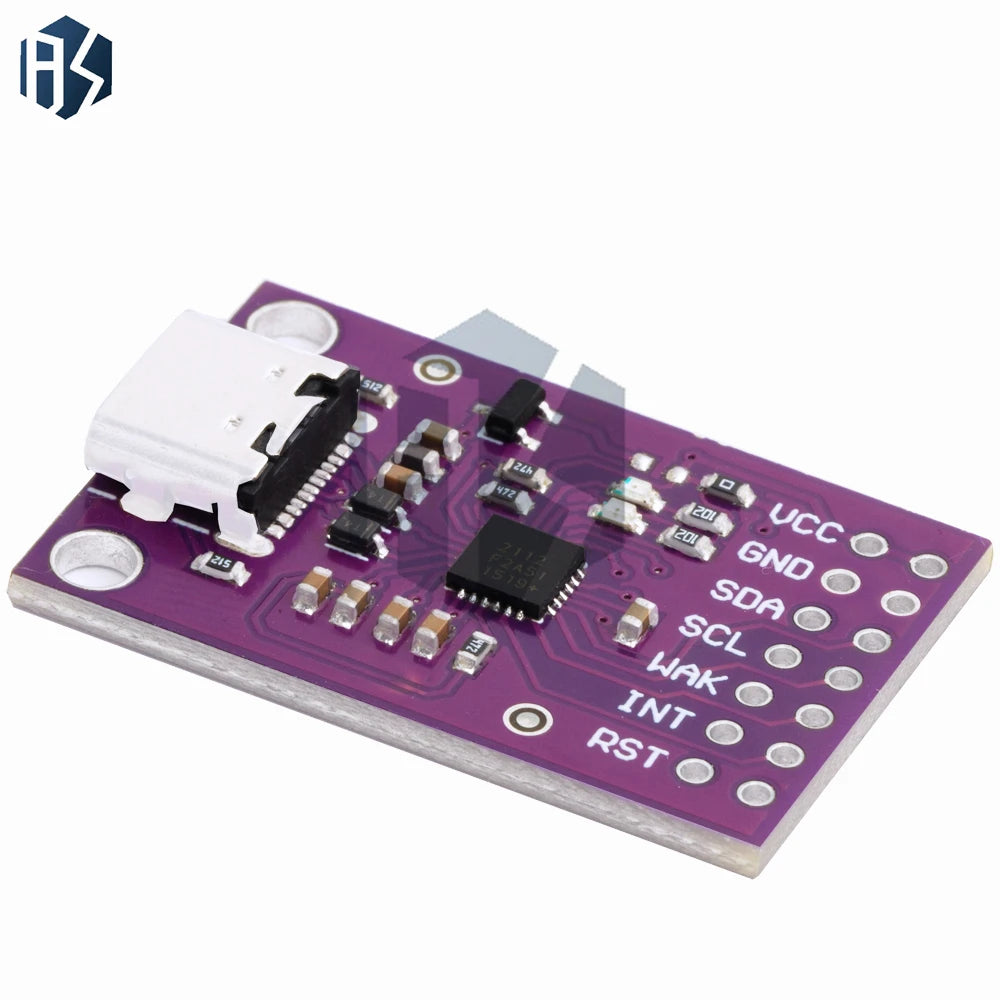

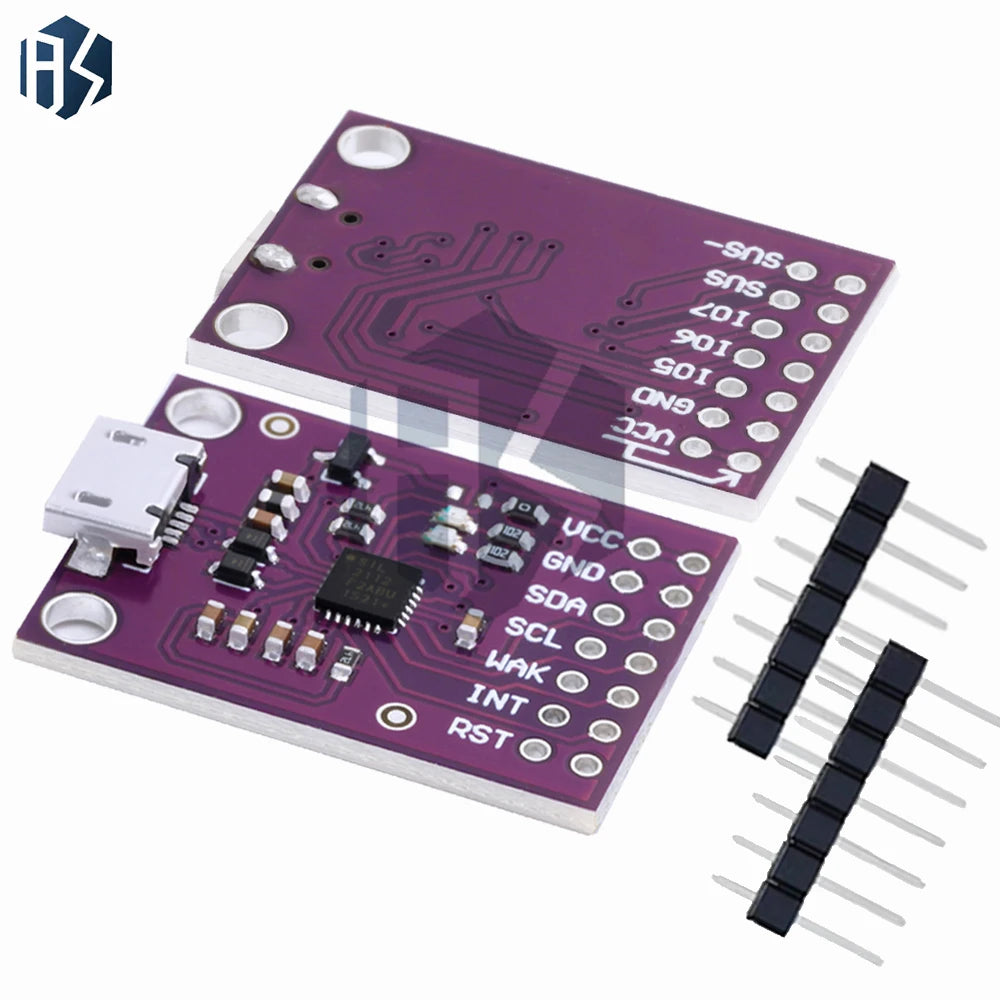

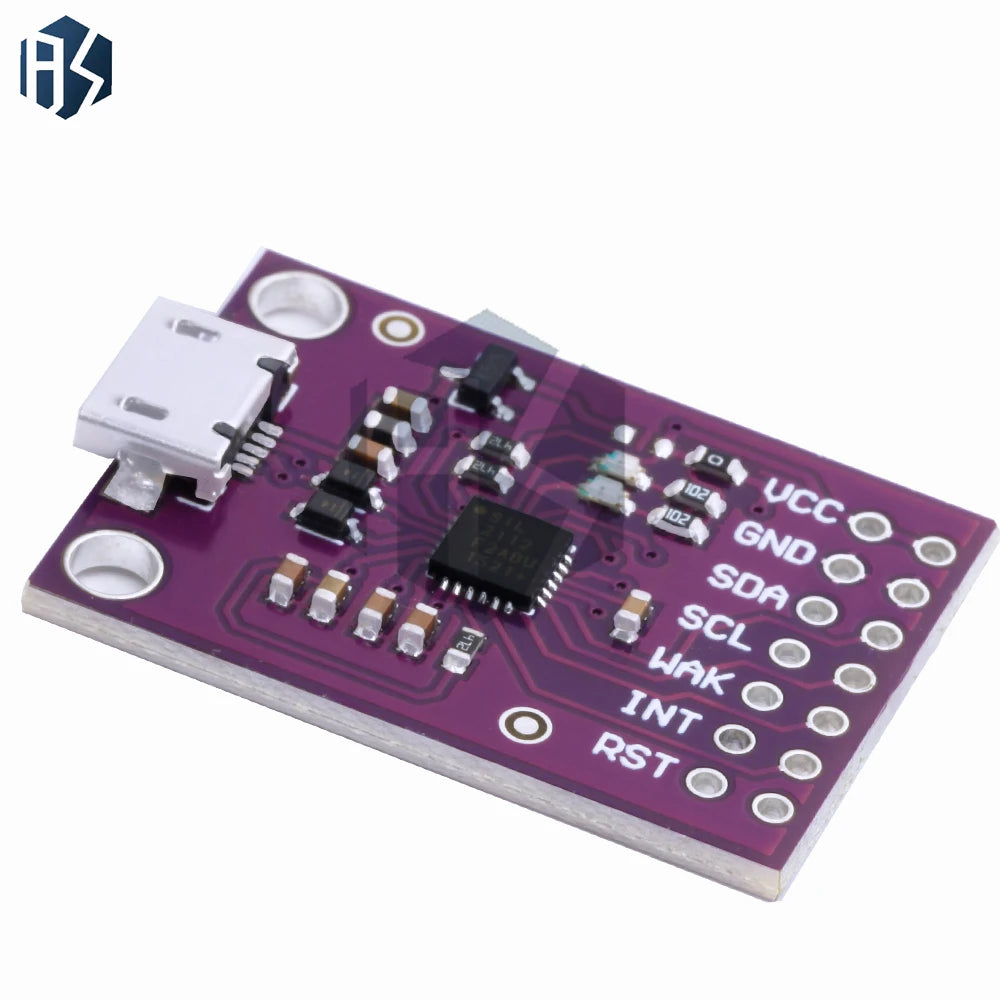

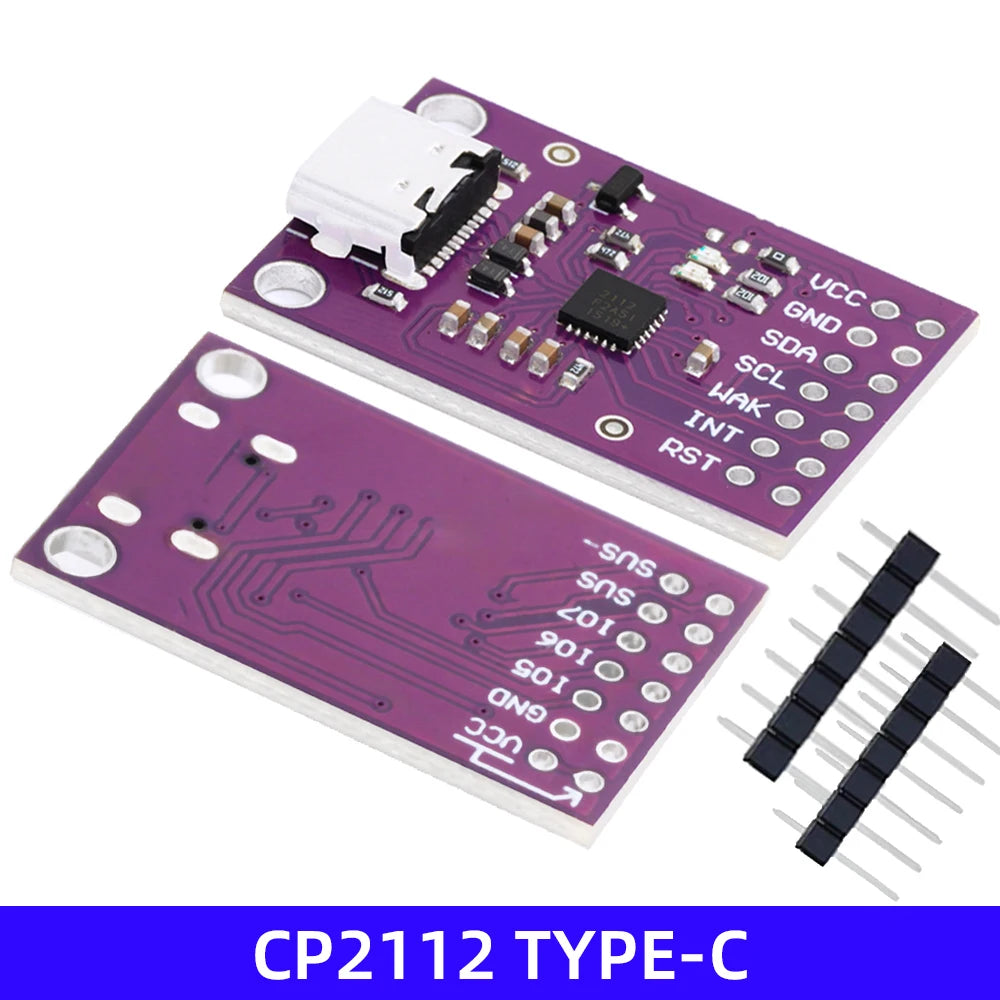

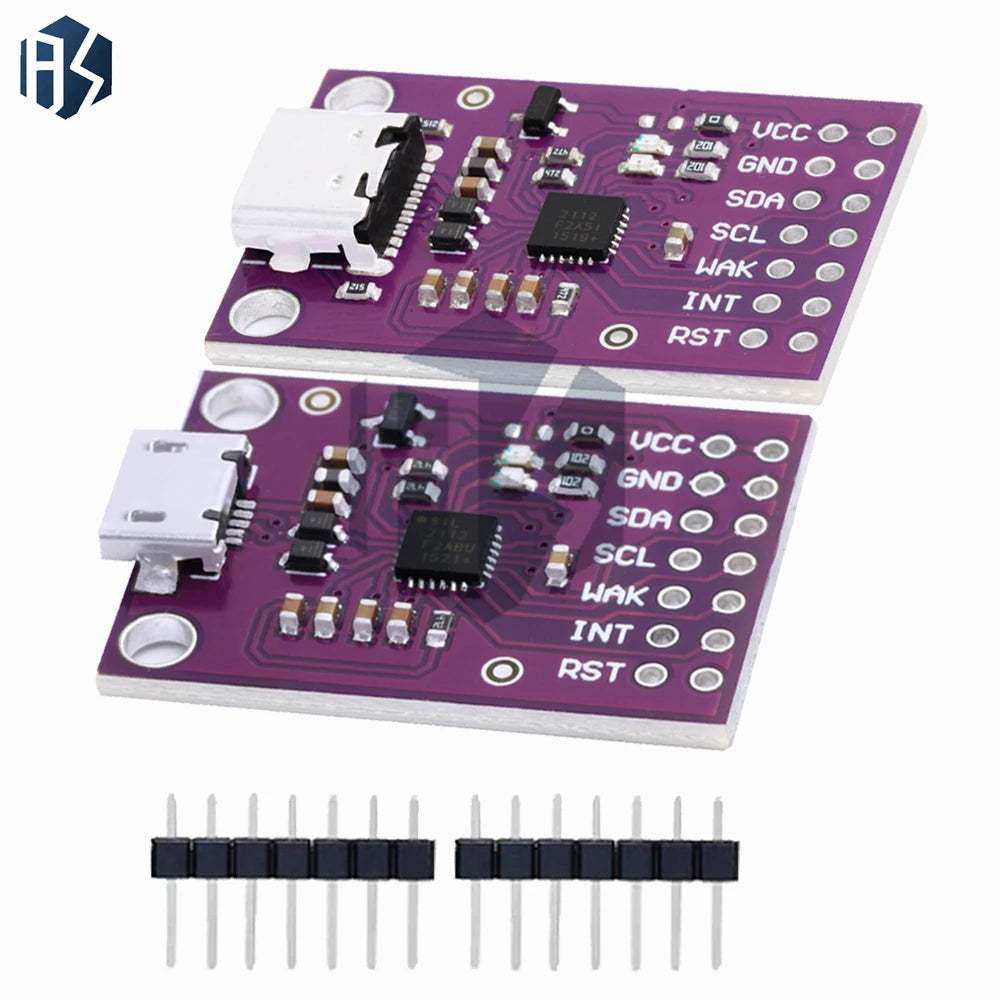

• Dual Connector Options: Choose between Type-C or Micro-USB to match your existing setup
• Compatible with CCS811 & More: Excellent for gas sensor evaluation, Arduino projects, and other I2C-based development boards

Specifications

What's in the Box

• 1 × CP2112 USB to I2C/SMBus Bridge Evaluation Debug Board

Related Products You May Like

Explore more components and accessories for your DIY and electronics projects:

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the CP2112 USB to I2C SMBus Bridge Evaluation Debug Board used for?

A: The CP2112 board functions as a USB-to-I2C/SMBus bridge, allowing a PC or laptop to communicate directly with I2C and SMBus peripheral devices — such as gas sensors (e.g. CCS811), EEPROMs, temperature sensors, and microcontrollers. It is widely used for firmware development, sensor evaluation, data logging, and building portable USB controller applications.

Q: Does the CP2112 board require a special driver to work?

A: No — the CP2112 is HID-compliant, meaning it enumerates as a standard Human Interface Device on Windows, Linux, and macOS without requiring a custom driver. Simply connect it via USB and begin communicating with your I2C/SMBus peripherals using Silicon Labs' API or compatible software tools.

Q: What connector types are available, and what voltage does this board support?

A: The board is available in both Type-C and Micro-USB connector variants. It supports USB bus-powered operation at 4.0–5.25V and self-powered operation at 3.0–3.6V. The I2C/SMBus I/O voltage range is 1.8V to VDD, making it compatible with a wide variety of 3.3V and 5V systems.

Q: Is this board compatible with Arduino and CCS811 gas sensor projects?

A: Yes — the CP2112 evaluation board is an excellent companion for CCS811 gas sensor breakout boards and can be integrated into Arduino-based development workflows. Its standard I2C protocol support ensures compatibility with most I2C-enabled sensors and modules commonly used in maker and embedded engineering projects.
