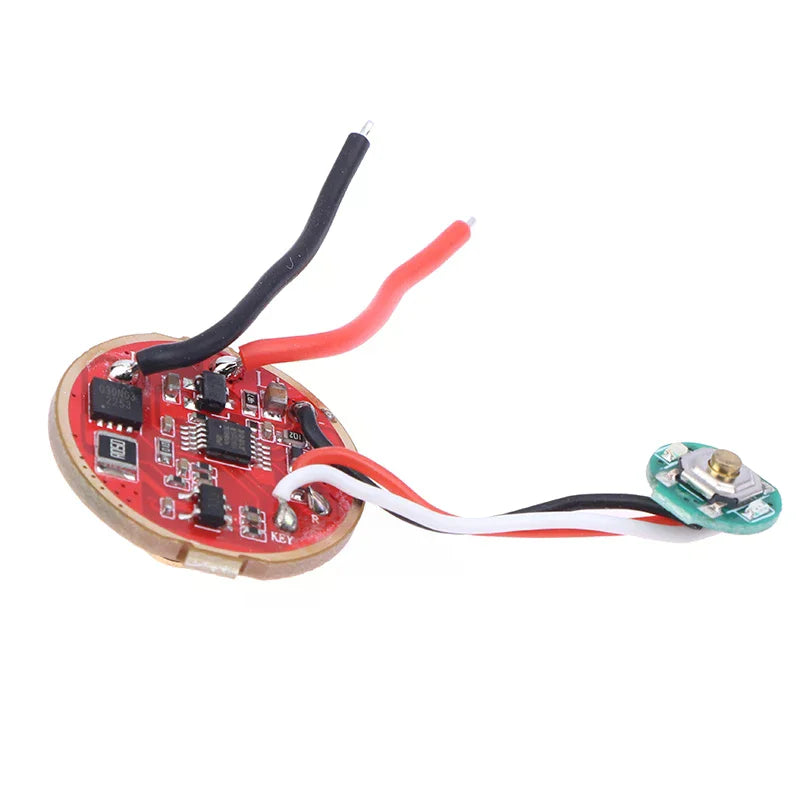

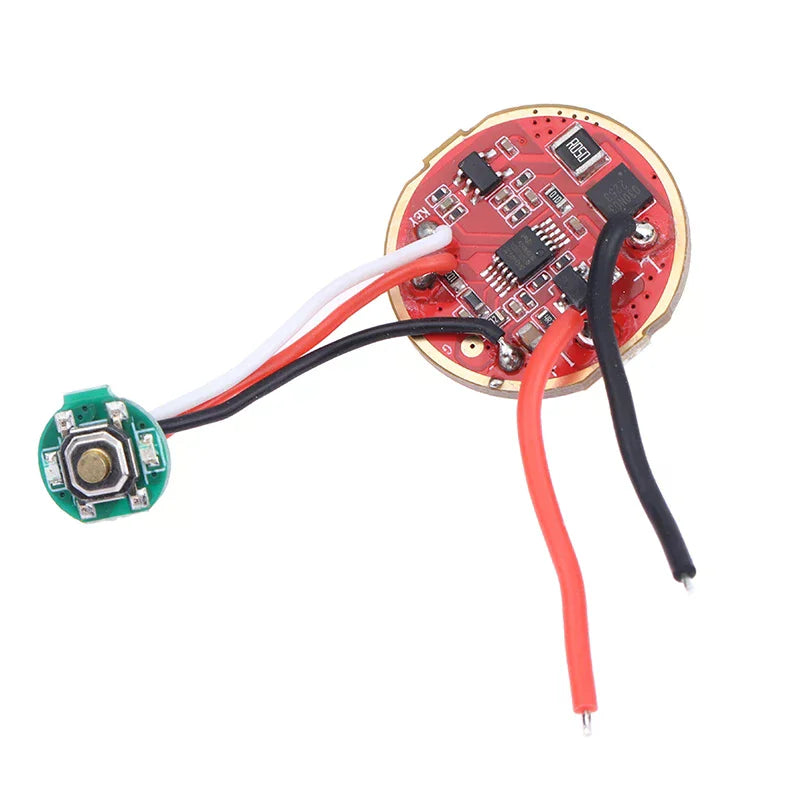

Convoy H1 Flashlight Driver – 3A Output with Advanced Multi-Mode Control

Upgrade your Convoy H1 flashlight with this high-performance driver board, delivering a smooth 3A (3000mA) maximum output and a versatile single-button UI. Whether you're a flashlight enthusiast or a DIY modifier, this driver gives you precise brightness control, built-in safety protections, and multiple operating modes — all packed into a compact 2cm form factor.

Key Features

High Current Output: Up to 3000mA (3A) max for brilliant, consistent illumination
Wide Input Voltage: Compatible with 3V–4.2V input (ideal for Li-ion cells)
Smooth Brightness Ramping: Hold the button to ramp brightness up or down seamlessly
Memory Function: Restores your last-used brightness level on startup
Moonlight Mode: Ultra-low 0.2% output for minimal light situations (non-memorized)
Turbo Mode: Double-click to jump instantly to full 100% brightness
Strobe Mode: Triple-click from off for attention-grabbing strobe effect
Tactical Mode: 4-click from off locks output to 100% for demanding use; 4-click again to exit
Voltage Detection: 5-click from off triggers battery voltage readout via flash signals
Low Voltage Protection: Automatically safeguards your battery from over-discharge
Thermal Protection: Built-in temperature control prevents overheating
Batteries Not Included

Mode Operation Guide

Action	Result
Click (light off → on)	Turns on at last memorized brightness
Hold (light on)	Ramp brightness up; release and hold again to ramp down
Click (light off)	Moonlight mode (0.2%) – not memorized
Double-click (on or off)	Turbo 100%
Triple-click (light off)	Strobe mode
4-click (light off)	Tactical mode (100% only); 4-click again to exit
5-click (light off)	Voltage detection (flash signals indicate battery voltage)

Technical Specifications

Input Voltage: 3V – 4.2V
Max Output Current: 3000mA (3A)
Size: 2cm diameter
Compatible With: Convoy H1 flashlight
Batteries Included: No

Note: Due to variations in monitor calibration, actual product color may differ slightly from images shown.

Explore More DIY Electronics & Accessories

Looking for more components for your builds? Check out these popular picks:

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What flashlight is this Convoy H1 driver compatible with?

A: This driver is specifically designed for the Convoy H1 flashlight. It is a replacement or upgrade driver board intended for enthusiasts who want to enhance or restore their Convoy H1 with advanced multi-mode control and high 3A output current.

Q: What input voltage does the Convoy H1 flashlight driver require?

A: The driver accepts an input voltage range of 3V to 4.2V, making it fully compatible with standard Li-ion rechargeable cells commonly used in Convoy flashlights. Batteries are not included.

Q: Does this flashlight driver have any built-in safety features?

A: Yes — the driver includes both low voltage protection to prevent over-discharging your battery and temperature control protection to guard against overheating during extended high-output use.

Q: How does the voltage detection mode work on this driver?

A: From the off state, 5-click the button to enter voltage detection mode. The flashlight will flash in a coded pattern to indicate the current battery voltage (e.g., three flashes, a pause, then seven flashes = 3.7V), helping you monitor battery status easily.
