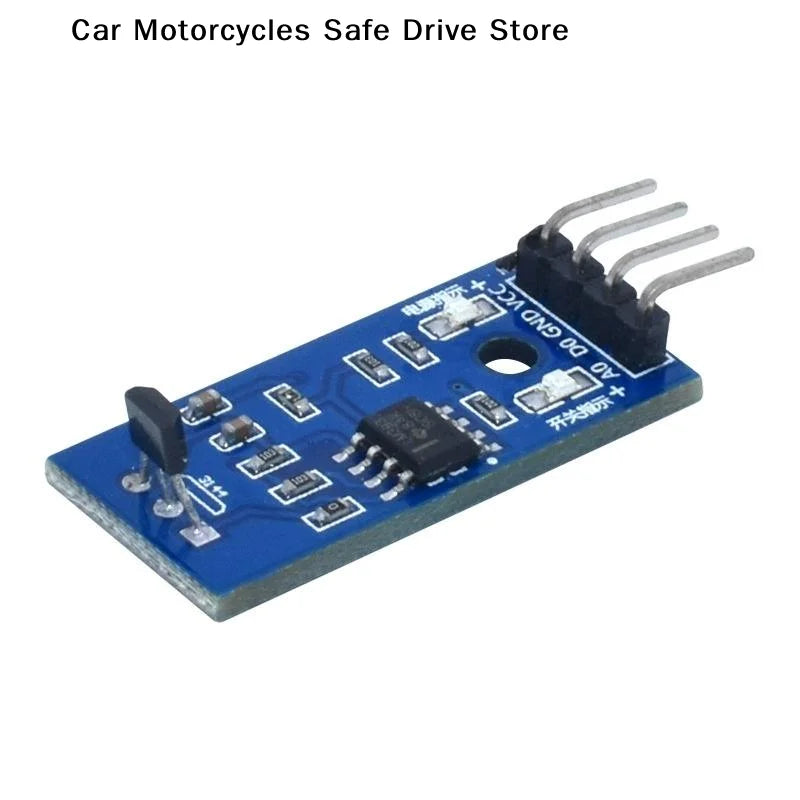

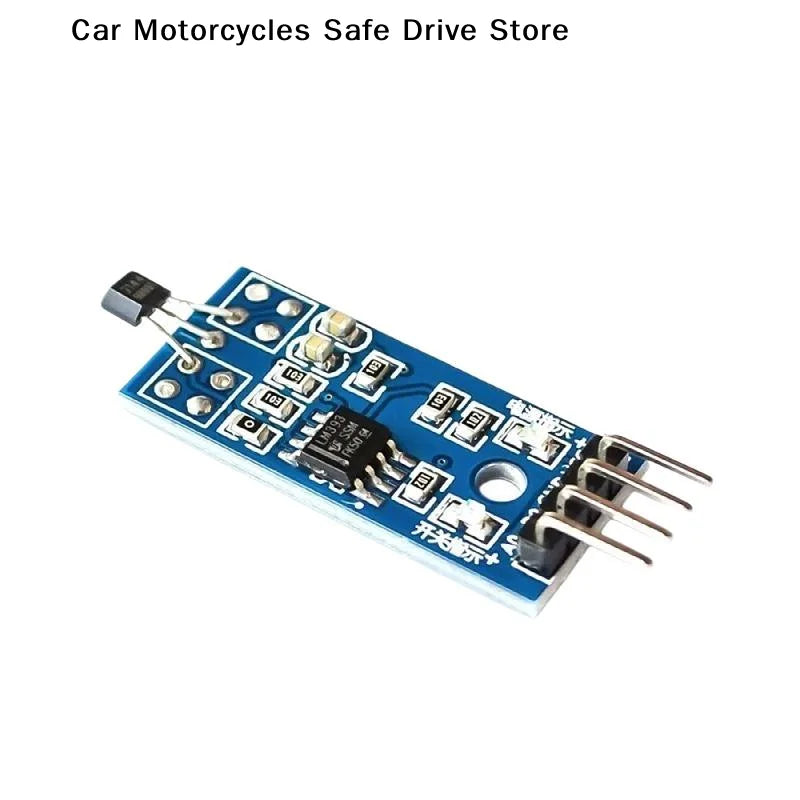

CM1 Hall Effect Counting Sensor Module – LM393 & 3144

The CM1 Hall Effect Motor Speed Measurement Module is a compact, reliable sensor solution built around the industry-standard LM393 comparator and 3144 Hall Effect sensor. Ideal for robotics, automation projects, speed counters, and DIY electronics builds, this module delivers accurate, real-time motor speed and pulse counting in a tiny form factor.

Key Specifications

• Main Microchips: LM393 Comparator + 3144 Hall Effect Sensor
• Working Voltage: DC 5V
• Dimensions: Approx. 31.5 × 14.0 × 9.0 mm
• Materials: Plastic + Metal construction
• Interface: 4-wire system (VCC, GND, Digital Output, Analog Output)
• Pack Options: Available in 1-piece or 5-piece packs
• Color Options: 2 options available

How It Works

The 3144 Hall Effect sensor detects changes in a magnetic field — such as those produced by a rotating encoder disc or magnetic strip on a motor shaft — and outputs a digital signal. The onboard LM393 comparator processes this signal and delivers a clean, stable digital output to your microcontroller (Arduino, Raspberry Pi, ESP32, etc.), making it perfect for counting pulses, measuring RPM, and tracking rotational speed.

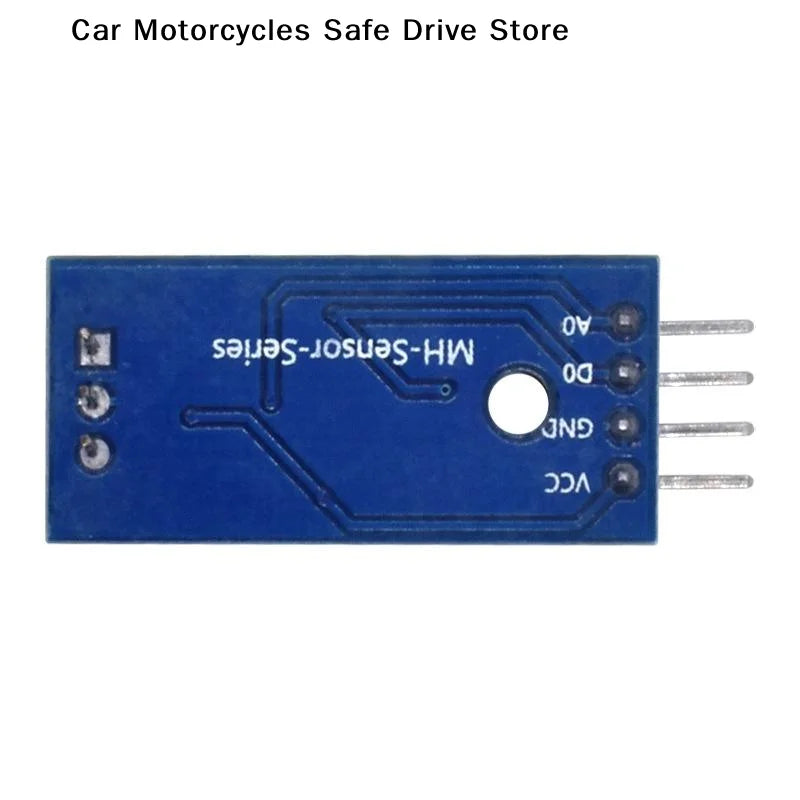

4-Wire Interface Description

1. VCC: External 5V power supply
2. GND: Ground
3. D0: Digital signal output (for speed/counting)
4. A0: Analog signal output

Perfect For

• Arduino & microcontroller-based DIY projects
• Motor RPM measurement & speed control loops
• Pulse counting applications
• Robotics, smart vehicles & automation
• Educational electronics experiments

Package Contents

• 1× or 5× CM1 Hall Effect Counting Sensor Module (LM393 + 3144)

Related Products You May Like

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What does the CM1 Hall Effect Counting Sensor Module do?

A: The CM1 module uses a 3144 Hall Effect sensor and an LM393 comparator chip to detect magnetic field changes from a rotating motor shaft or encoder disc. It outputs a clean digital (and analog) signal that microcontrollers can read to calculate motor speed (RPM) or count pulses in real time — making it an essential component for DIY speed-measurement and automation projects.

Q: What microcontrollers are compatible with the LM393 3144 Hall Sensor Module?

A: This module is compatible with virtually any 5V microcontroller platform, including Arduino (Uno, Nano, Mega), ESP8266, ESP32, Raspberry Pi (via a logic-level converter), STM32, and more. Simply connect VCC to 5V, GND to ground, and read the D0 digital output pin in your code.

Q: Do I need any external components to use this sensor module?

A: No additional components are required for basic operation. The onboard LM393 comparator and pull-up resistors are already integrated. You just need a 5V power source and a microcontroller to read the output. A magnet or magnetic encoder disc is required on the rotating shaft to trigger the Hall Effect sensor.

Q: What is the difference between the 1-piece and 5-piece pack options?

A: Both packs contain the exact same CM1 Hall Effect Sensor Module (LM393 + 3144). The 5-piece pack is ideal if you are building multiple projects, want spares on hand, or are stocking up for classroom/lab use — offering better value per unit compared to the single-piece option.
