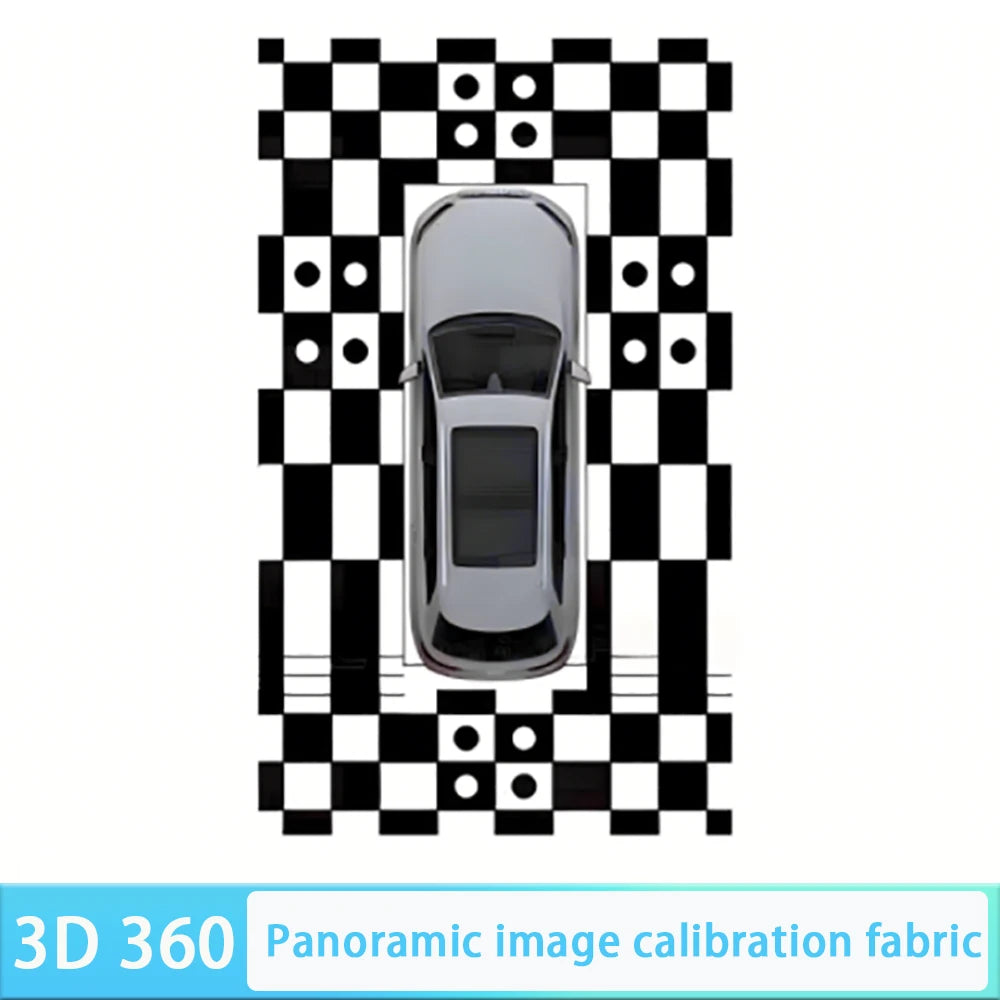

Car 360 Panoramic Image System Calibration Cloth

Get perfectly calibrated 360° surround-view cameras every time with this Automatic Completion Calibration Cloth for Car Panoramic Image Systems. Designed for professional installers and DIY automotive enthusiasts alike, this calibration mat provides the precise reference pattern your 3D/4-camera panoramic system needs to automatically compute accurate image stitching, perspective correction, and seamless bird's-eye-view rendering.

Why Proper Calibration Matters

A 360° panoramic camera system relies on four wide-angle cameras that must be stitched together into one unified overhead image. Without a proper calibration cloth, alignment errors produce visible seams, distortion, and inaccurate distance readings. This dedicated calibration mat eliminates guesswork by providing the standardized pattern your vehicle's ECU needs to automatically complete the calibration process quickly and accurately.

Key Features

Auto-Completion Calibration: Supports fully automatic calibration routines — lay out the cloth, follow your system's on-screen prompts, and let the software do the rest.
3D & 2D Correction Compatible: Works with both 2D flat-image and 3D perspective panoramic systems for broad vehicle compatibility.
Precision-Printed Pattern: High-contrast, dimensionally accurate reference markings ensure reliable detection by camera sensors.
Durable Cloth Material: Made from sturdy, crease-resistant fabric that lays flat on the ground for consistent, repeatable results.
Universal Fit: Compatible with most aftermarket and OEM 360° surround-view camera systems for cars, SUVs, and trucks.
Professional-Grade Accuracy: Reduces calibration time dramatically compared to manual point-selection methods.
Easy Storage: Folds compactly for storage in your workshop or vehicle trunk.

What's in the Box

1× Calibration Cloth (360 Panoramic System Pattern)

Who Is This For?

This calibration cloth is ideal for automotive workshops, car audio/video installation bays, car dealers performing 360-camera retrofits, and advanced DIY enthusiasts setting up or recalibrating surround-view camera kits after a bumper repair or camera replacement.

Pair It With Your Build

Completing a full automotive electronics project? Browse our related accessories:

Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire – for custom mounting wire work
Natural Hawk's Eye Stone Beads 6/8/10mm for Jewelry Making

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What is a 360 panoramic camera calibration cloth and why do I need one?

A: A 360 panoramic camera calibration cloth is a specially printed mat placed around your vehicle during the calibration process of a surround-view (bird's-eye-view) camera system. The camera system's software uses the precise pattern on the cloth to automatically calculate the correct image stitching, lens distortion correction, and 3D perspective alignment. Without it, you cannot complete automatic calibration, resulting in misaligned or distorted panoramic images.

Q: Is this calibration cloth compatible with my car's 360° panoramic system?

A: This cloth is designed to be universally compatible with most aftermarket and OEM-style 4-camera 360° surround-view panoramic systems, including both 2D and 3D image correction modes. We recommend verifying your specific system's calibration pattern requirements before purchase, as some proprietary OEM systems may require brand-specific mats.

Q: How do I use the auto calibration cloth for a panoramic camera system?

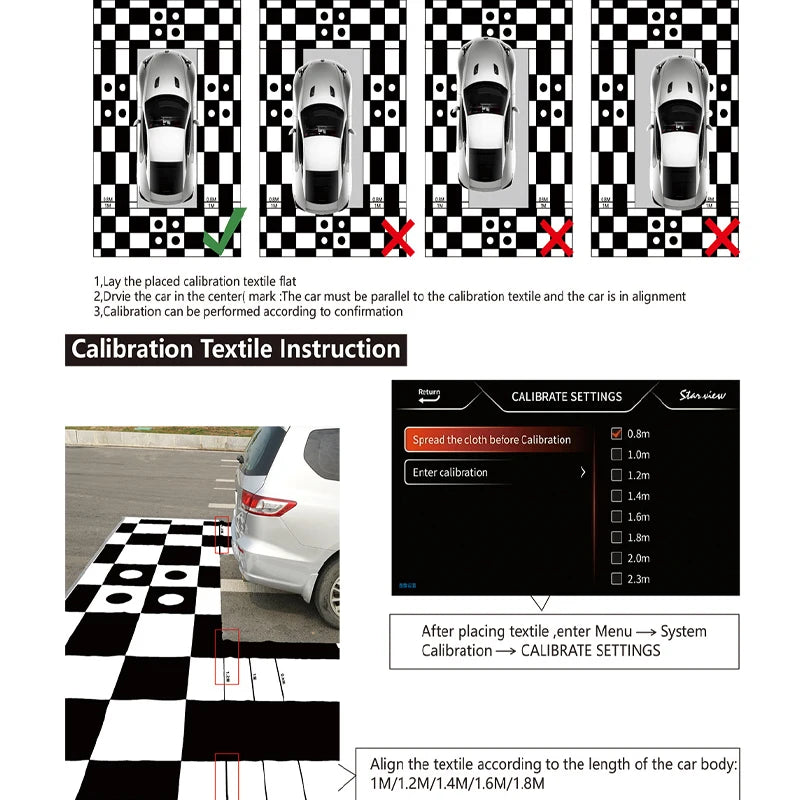

A: Place the calibration cloth flat on the ground around all four sides of your vehicle according to your panoramic system's instruction guide. Start the calibration mode on your head unit or calibration software. The cameras will detect the cloth's reference pattern automatically and compute the stitching parameters. The entire process typically takes just a few minutes.

Q: Can I reuse the calibration cloth multiple times?

A: Yes. The cloth is made from durable, crease-resistant fabric with permanently printed calibration patterns, allowing it to be reused for multiple calibration sessions across different vehicles or after system resets.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
