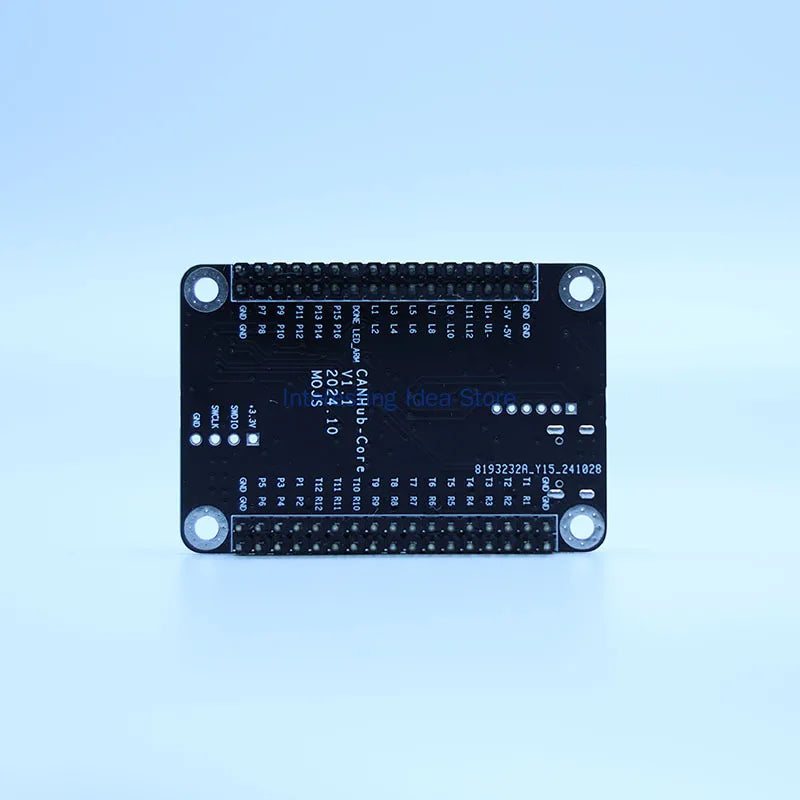

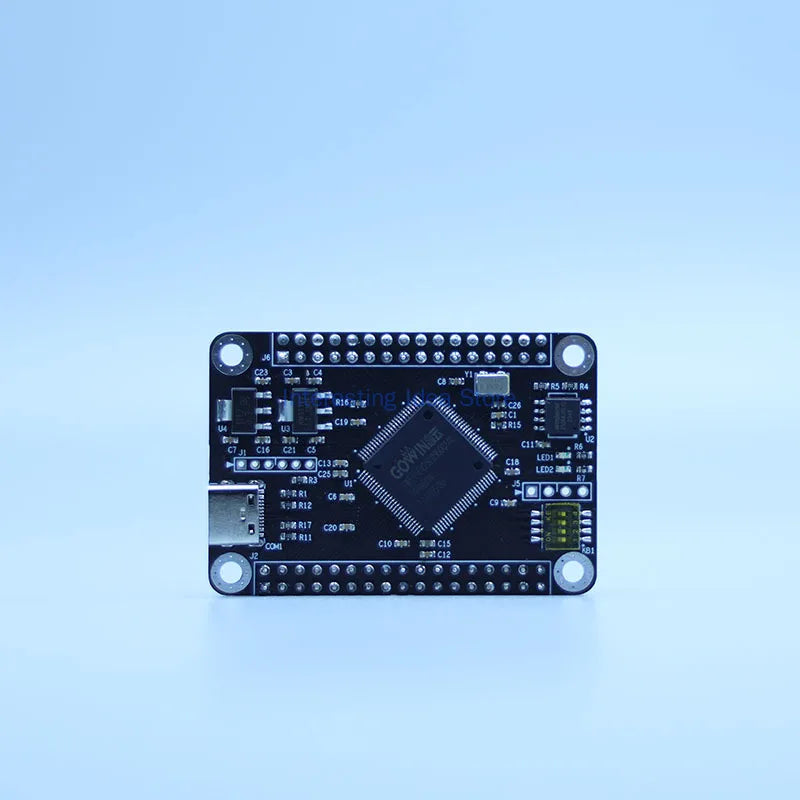

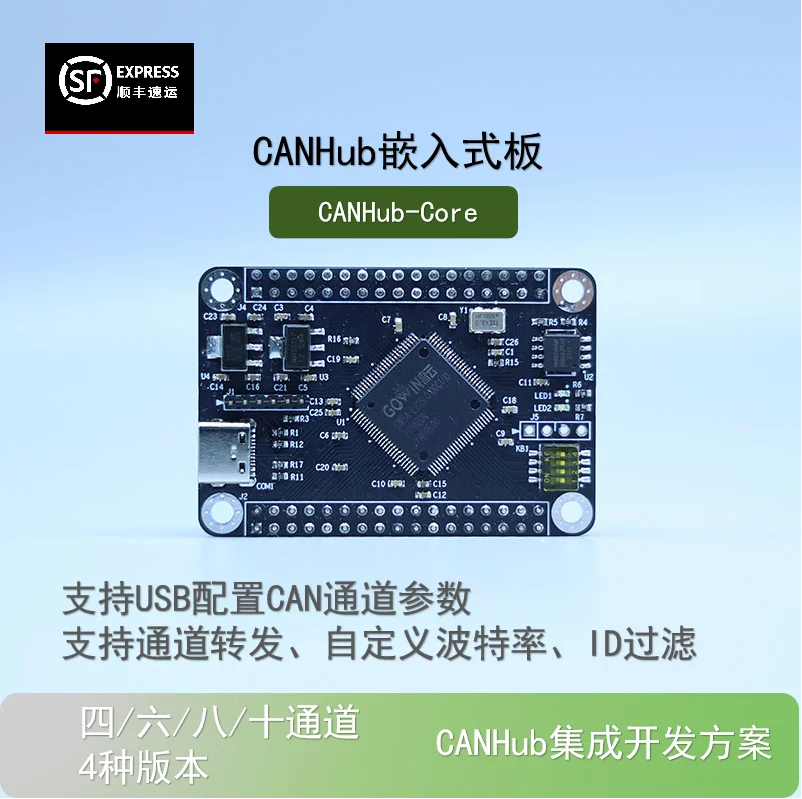

CANHub Embedded Module Core Board – Up to 10 CAN Channels

CANHub Embedded Integrated Module Core Board – Up to 10 CAN Channels

The CANHub Embedded Integrated Module Core Board is a powerful, compact solution for engineers and developers who need reliable multi-channel CAN bus communication in embedded systems. Supporting up to 10 independent CAN channels, this core board delivers flexible configuration, robust filtering, and seamless integration into a wide range of automotive, industrial, and IoT applications.

Key Features

• Up to 10 CAN Channels: Supports up to 10 simultaneous, fully independent CAN bus channels in a single integrated module.
• Individual Baud Rate Configuration: Each CAN channel can be configured with its own baud rate independently, offering maximum flexibility for mixed-speed networks.
• Per-Channel ID Whitelist Filtering: Configure separate ID whitelist filters for each CAN channel to precisely control which messages are accepted and processed.
• Embedded Core Design: Compact, integrated module form factor makes it easy to embed directly into your hardware design or development setup.
• 5 Color Options: Available in 5 color variants to suit your project or workspace aesthetic.
• Plug-and-Play Ready: Designed for straightforward integration — ready to use right out of the box with minimal setup.

Ideal Applications

• Automotive ECU development and CAN bus diagnostics
• Industrial automation and machine control networks
• IoT gateway and edge computing nodes
• Multi-node embedded system prototyping
• Research, testing, and education in embedded communications

Technical Highlights

• Supports independent baud rate setup per channel
• Supports independent ID whitelist filtering per channel
• Integrated module — no additional CAN transceiver board required per channel
• Core board design for direct embedding into custom PCB layouts or development rigs

Related Products You May Like

• 4/6mm CCB Flat Round Spacer Beads – DIY Jewelry Making 100-200pcs
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire
• 50pcs Gold & Silver Drawstring Jewelry Gift Bags 7x9 9x12cm

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the CANHub Embedded Integrated Module Core Board and what does it do?

A: The CANHub Embedded Integrated Module Core Board is a compact, multi-channel CAN bus communication module designed for embedded systems. It supports up to 10 independent CAN channels, each with individually configurable baud rates and ID whitelist filters, making it ideal for automotive development, industrial automation, and IoT applications.

Q: Can I configure each CAN channel with a different baud rate?

A: Yes. One of the standout features of the CANHub Core Board is that each of its CAN channels supports separate baud rate configuration. This means you can run channels at different speeds simultaneously within the same module, which is especially useful for mixed-speed CAN networks.

Q: What is ID whitelist filtering and how does it work on this module?

A: ID whitelist filtering allows you to specify which CAN message IDs are accepted and processed on a given channel — all other IDs are ignored. On this module, each of the up to 10 CAN channels has its own independent whitelist filter configuration, giving you precise, per-channel control over message traffic.

Q: What color options are available for the CANHub Core Board?

A: The CANHub Embedded Integrated Module Core Board is available in 5 color options, allowing you to choose the variant that best suits your workspace or project setup.
