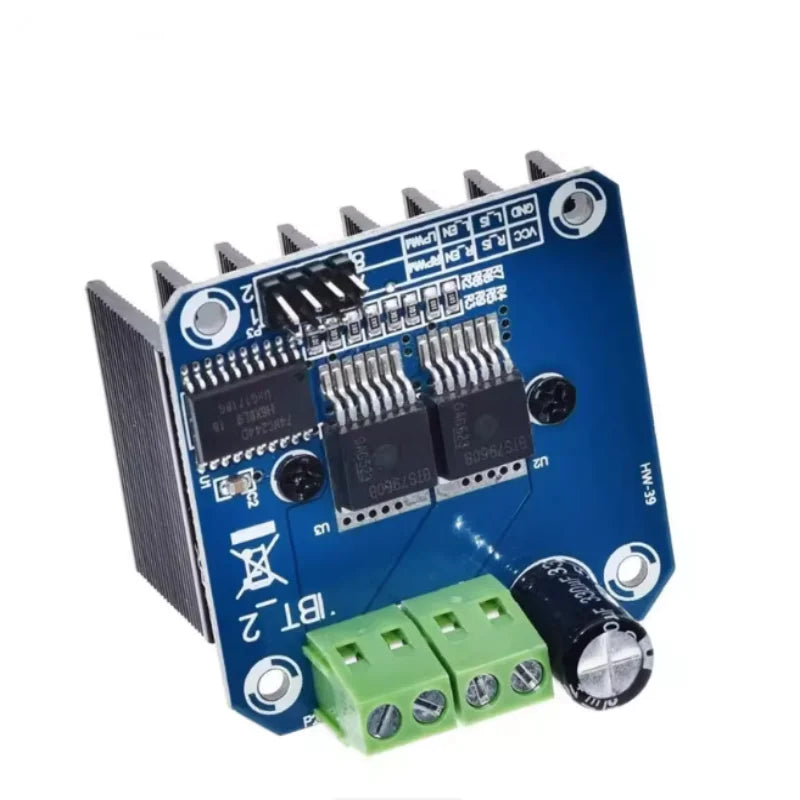

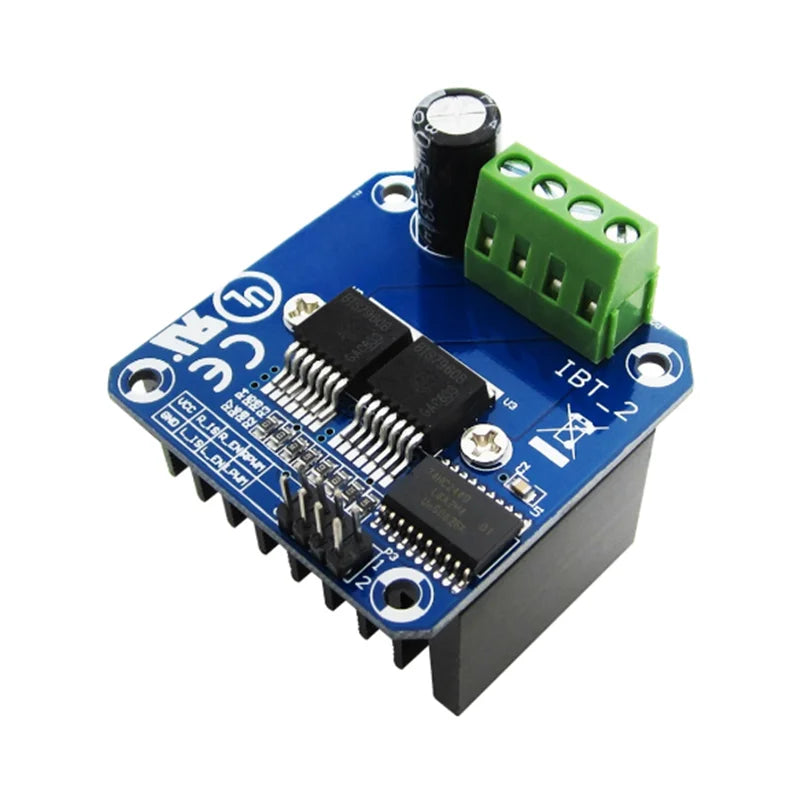

BTS7960 43A High-Power Intelligent Motor Driver Module

The BTS7960 43A Motor Driver Module is a robust, high-current H-bridge driver board built around the industry-trusted BTS7960 half-bridge IC. Designed for DIY robotics, electric vehicle projects, and motor control applications, this module delivers smooth bidirectional motor control with built-in overcurrent and thermal protection — making it an excellent choice for engineers, hobbyists, and makers alike.

Key Features

43A Continuous Current: Handles high-power DC motors with ease, supporting up to 43A continuous current per channel.
H-Bridge Configuration: Full H-bridge design enables bidirectional motor control — forward, reverse, and braking.
Built-in Protection: Integrated overcurrent limiting, thermal shutdown, and dead-time control keep your motor and circuitry safe during demanding operation.
Wide Voltage Range: Compatible with 5.5V–27V operating voltage, suitable for a wide range of DC motor applications.
PWM Speed Control: Supports PWM input for precise, stepless speed regulation from your microcontroller (Arduino, Raspberry Pi, etc.).
Logic-Level Compatible: Accepts 3.3V and 5V logic signals — no level shifter required.
Compact Form Factor: Lightweight PCB board with clearly labeled terminals for quick, straightforward wiring.
Dual-Channel Output: Drive two motors independently or combine channels for extra current capacity on a single motor.

Specifications

Driver IC: BTS7960B (Infineon)
Maximum Current: 43A (per channel)
Operating Voltage: 5.5V – 27V
Logic Voltage: 3.3V / 5V
PWM Frequency: Up to 25kHz
Protection: Overcurrent, over-temperature, short-circuit
Interface: 6-pin control header (compatible with Arduino, STM32, Raspberry Pi)

Ideal Applications

DC motor control for robotics and automation
Electric vehicle and e-bike motor controllers
Smart car and RC vehicle drive systems
Conveyor and actuator control boards
Industrial motor driver prototyping

What's in the Box?

1 × BTS7960 43A Motor Driver Module (PCB board)

Looking for more components and DIY project supplies? Check out our Round Aluminum Wire for DIY Projects or explore our selection of CCB Flat Round Spacer Beads for DIY Making for your next creative build.

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What is the BTS7960 43A Motor Driver Module used for?

A: The BTS7960 43A Motor Driver Module is a high-current H-bridge driver board used to control the speed and direction of DC motors. It is widely used in robotics, electric vehicle projects, smart cars, conveyor systems, and other motor-driven automation applications where high current capacity and reliable control are required.

Q: Is the BTS7960 module compatible with Arduino or Raspberry Pi?

A: Yes. The BTS7960 motor driver module accepts both 3.3V and 5V logic signals, making it fully compatible with Arduino, Raspberry Pi, STM32, and most other popular microcontroller platforms. Simply connect the 6-pin control header to your board's digital output and PWM pins to get started.

Q: What protections does this motor driver module include?

A: This module features built-in overcurrent limiting, over-temperature (thermal) shutdown, and short-circuit protection provided by the BTS7960B IC. These safeguards help protect both the module and your connected motor or power supply during demanding or unexpected operating conditions.

Q: Can I control two motors with this module?

A: Yes. The BTS7960 module has a dual-channel output, allowing you to drive two independent DC motors. Alternatively, you can parallel the channels to supply higher current to a single large motor, depending on your project requirements.
