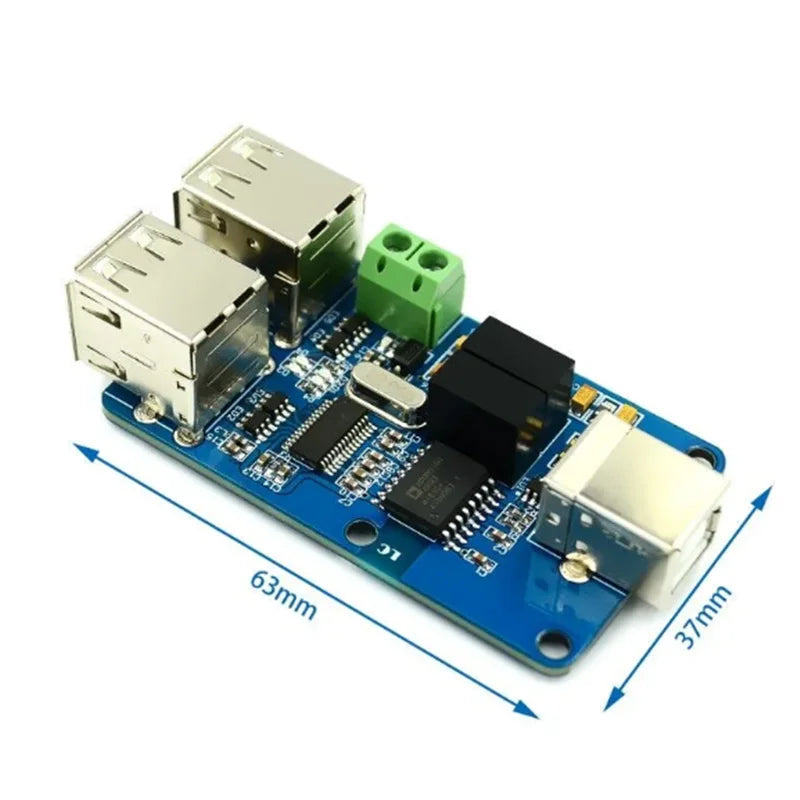

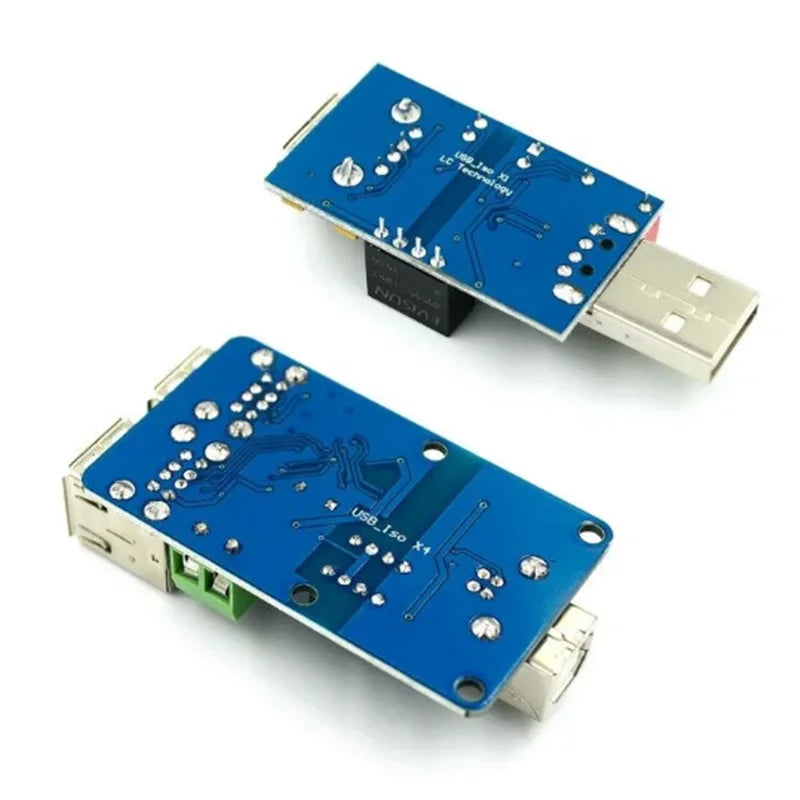

ADUM3160 USB Isolator Module – Coupling Protection Board

Keep your sensitive electronics safe with the ADUM3160 USB Isolator Module. This compact coupling protection board uses the ADUM3160 digital isolator chip to create a full galvanic isolation barrier between a USB host and its connected device — shielding your equipment from ground loops, voltage spikes, and electrical noise that can degrade signal quality or damage hardware.

Whether you're working with audio interfaces, test and measurement instruments, Arduino/microcontroller projects, or any USB-connected device that demands clean, noise-free power and data, this isolator module is an essential layer of protection for your setup.

Key Features

ADUM3160 Chip: Industry-trusted digital isolator providing up to 2500 V RMS isolation between USB host and device sides.
Full-Speed USB Support: Compatible with USB 1.1 Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) devices.
Galvanic Isolation: Effectively blocks ground loops and eliminates common-mode electrical noise for cleaner data transmission.
Compact Protection Board: Lightweight, easy-to-integrate PCB design that slots neatly into any workbench or project setup.
2 Color Options: Choose the style that suits your preference.
Plug-and-Play: No additional software or drivers required — ready to use straight out of the box.
Wide Compatibility: Works with Windows, macOS, and Linux hosts.

Who Is This For?

This isolator module is ideal for electronics enthusiasts, engineers, hobbyists, and professionals who need reliable electrical isolation for:

USB audio interfaces and DACs
Oscilloscopes and signal analyzers
Arduino, Raspberry Pi, and microcontroller projects
Industrial automation and control boards
Any scenario where ground-loop interference or voltage transients are a concern

What's in the Box

1 × ADUM3160 USB Isolator Module (Protection Board)

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What does the ADUM3160 USB Isolator Module do?

A: The ADUM3160 USB Isolator Module creates a galvanic isolation barrier between your USB host (e.g. a computer) and the connected USB device. This blocks ground loops, eliminates electrical noise, and protects sensitive equipment from voltage transients — resulting in cleaner data transmission and improved hardware longevity.

Q: Is this USB isolator compatible with my operating system?

A: Yes. The ADUM3160 USB Isolator is plug-and-play and compatible with Windows, macOS, and Linux. No additional drivers or software installation is required. Simply connect it inline between your USB host and device.

Q: What USB speeds does the ADUM3160 isolator support?

A: The ADUM3160 isolation module supports USB 1.1 Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) devices. It is best suited for applications such as audio interfaces, MIDI devices, oscilloscopes, and microcontroller boards rather than high-speed data transfer peripherals.

Q: Can I use this isolator for Arduino or Raspberry Pi projects?

A: Absolutely. The ADUM3160 USB Isolator Module is a popular choice among Arduino, Raspberry Pi, and general microcontroller enthusiasts. It protects your development board and your computer from potential electrical faults during prototyping and testing.
