AD7705 Dual 16-Bit ADC Data Acquisition Module SPI

AD7705 Dual 16-Bit ADC Data Acquisition Module with Programmable Gain & SPI Interface

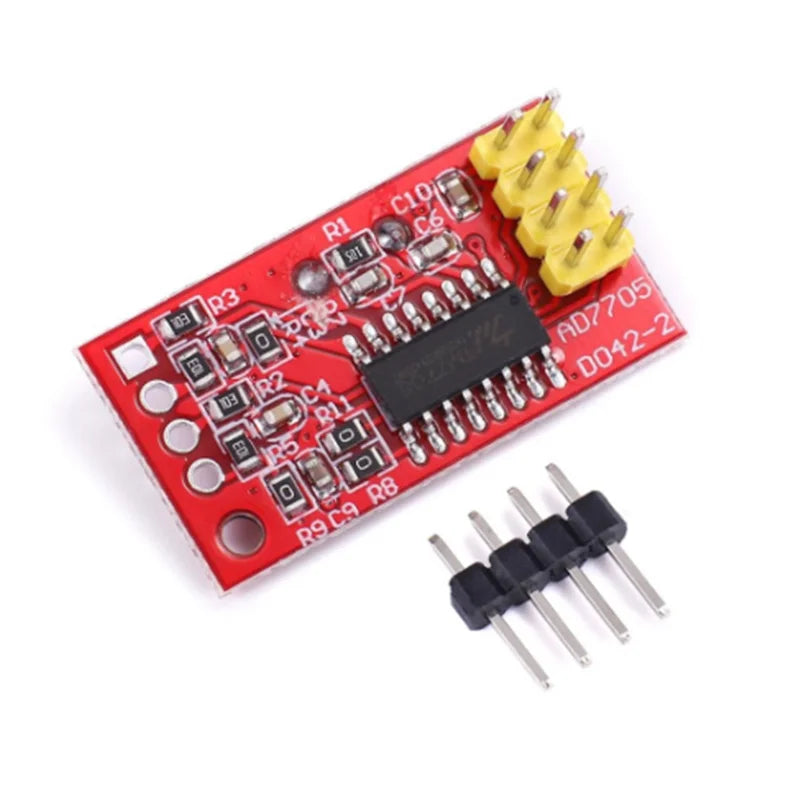

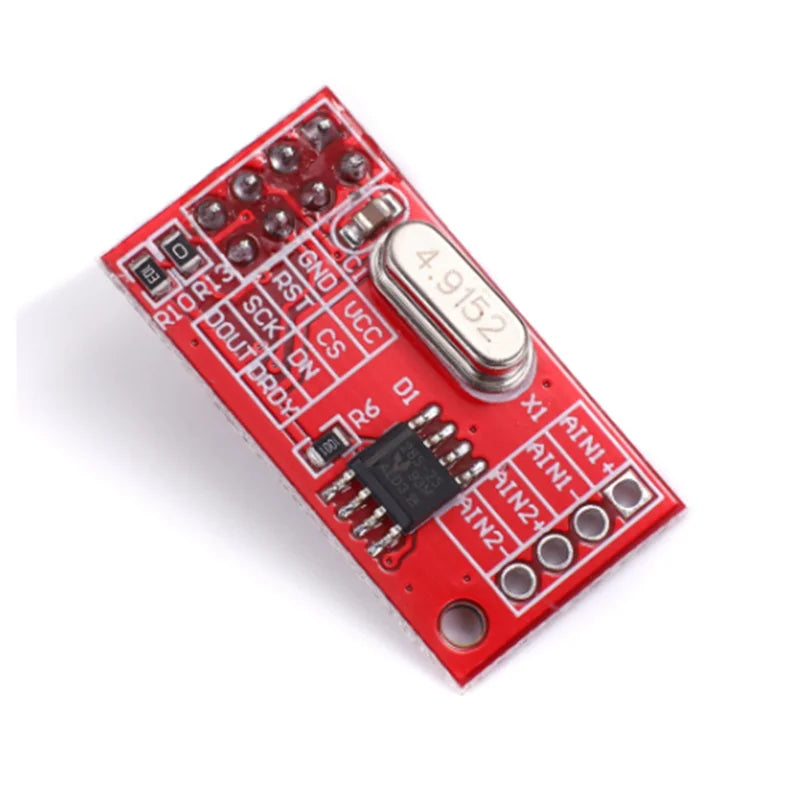

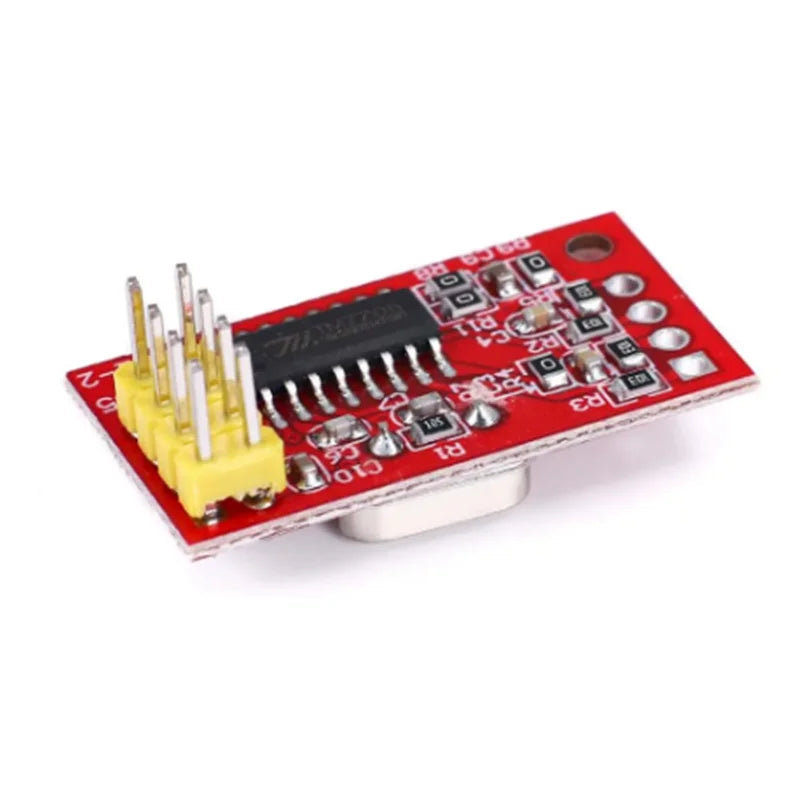

The AD7705 Dual 16-Bit ADC Data Acquisition Module is a high-precision analog-to-digital converter board built around the industry-standard AD7705 chip. Featuring dual-channel 16-bit resolution, programmable input gain, and a clean SPI interface, this compact module is an excellent choice for engineers, hobbyists, and students who need accurate, low-noise signal measurement in embedded systems, microcontroller projects, or laboratory setups.

Key Features

• 16-Bit Resolution: Dual-channel ADC delivers high-accuracy analog signal conversion with minimal quantization error.
• Programmable Input Gain: Adjustable gain settings let you match the module to a wide range of input signal amplitudes without additional amplifier circuitry.
• SPI Interface: Standard Serial Peripheral Interface (SPI) ensures straightforward integration with Arduino, Raspberry Pi, STM32, and other popular microcontroller platforms.
• Dual-Channel Input: Simultaneously handle two independent analog inputs — ideal for differential or ratiometric measurements.
• Compact Module Design: Breadboard-friendly footprint makes prototyping and final builds equally simple.
• Wide Supply Voltage Compatibility: Works with common 3.3 V and 5 V logic systems.
• Low Power Consumption: Efficient design suits battery-operated and portable measurement applications.

Typical Applications

• Precision sensor signal conditioning (temperature, pressure, load cell, strain gauge)
• Data logging and industrial measurement systems
• Microcontroller and single-board computer (SBC) ADC expansion
• Educational electronics and embedded systems coursework
• DIY instrumentation and lab bench tools

Module Specifications

• IC: AD7705
• Resolution: 16-bit
• Channels: 2 (dual differential)
• Interface: SPI (SCLK, DIN, DOUT, CS)
• Gain: Programmable (×1 to ×128)
• Output Data Rate: Selectable
• Supply Voltage: 3.3 V / 5 V compatible

Explore More Components for Your Build

Pair this ADC module with quality prototyping accessories from our store. If you enjoy hands-on making projects, you may also like:

• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire — great for custom enclosures and wire-forming.
• 4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100–200pcs — ideal for creative craft and maker projects.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What microcontrollers is the AD7705 ADC module compatible with?

A: The AD7705 dual 16-bit ADC data acquisition module communicates over a standard SPI interface, making it compatible with a wide range of microcontrollers including Arduino (Uno, Mega, Nano), Raspberry Pi, STM32, ESP32, and most other platforms that support SPI communication at 3.3 V or 5 V logic levels.

Q: What does the programmable input gain feature do?

A: The programmable gain amplifier (PGA) built into the AD7705 allows you to amplify small input signals before they reach the ADC core — without external components. Gain settings range from ×1 up to ×128, so you can accurately digitize everything from millivolt-level sensor outputs to larger analog signals within a single module.

Q: Can this module read two signals at the same time?

A: The AD7705 features two fully differential analog input channels. While the IC samples one channel at a time internally, both channels are accessible via software register settings, allowing you to switch between inputs and log data from two sources within the same acquisition cycle.

Q: Is any additional library or driver needed to use this module?

A: Several open-source Arduino and Python libraries are available in the maker community for the AD7705. The module communicates using standard SPI transactions, so even without a dedicated library, it is straightforward to implement register reads and writes by following the AD7705 datasheet.
